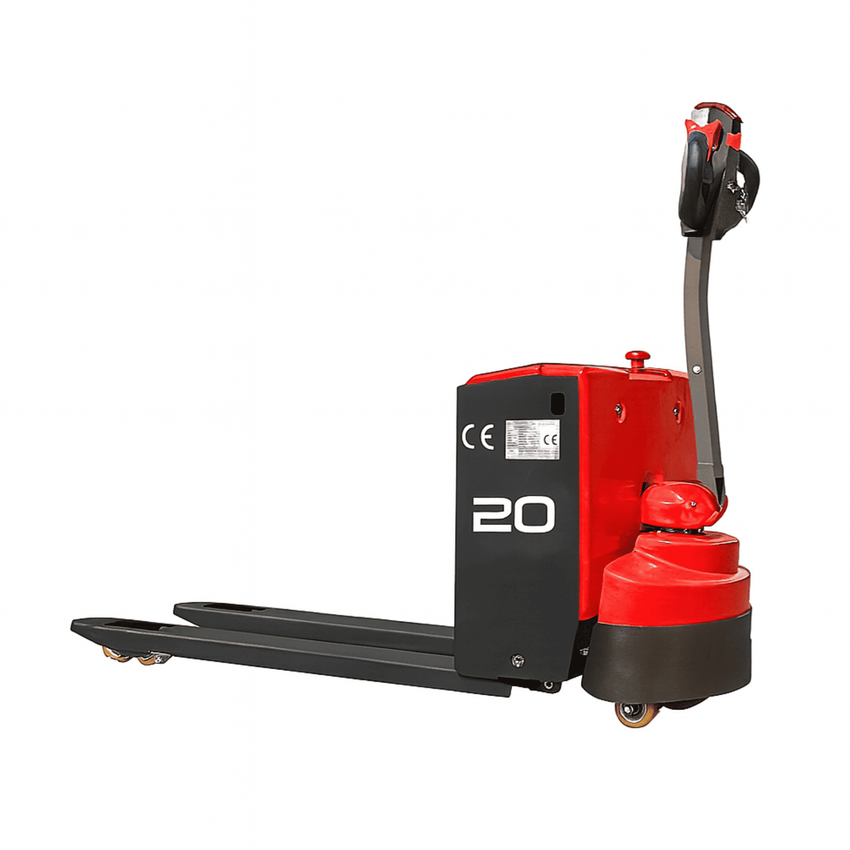

The Raelon TB20E Lithium-ion Electric Pallet Jack is built to handle heavy-duty warehouse tasks with ease. Offering a 4,400 lbs load capacity, long-lasting lithium-ion battery power, and smooth maneuverability, it reduces physical strain on operators while boosting productivity. Its compact design fits narrow aisles, making it an ideal choice for modern, high-demand material handling operations.
High Load Capacity: 4,400 lbs rating to handle demanding warehouse applications.
Lithium-ion Power: Fast charging and long runtime for minimal downtime.

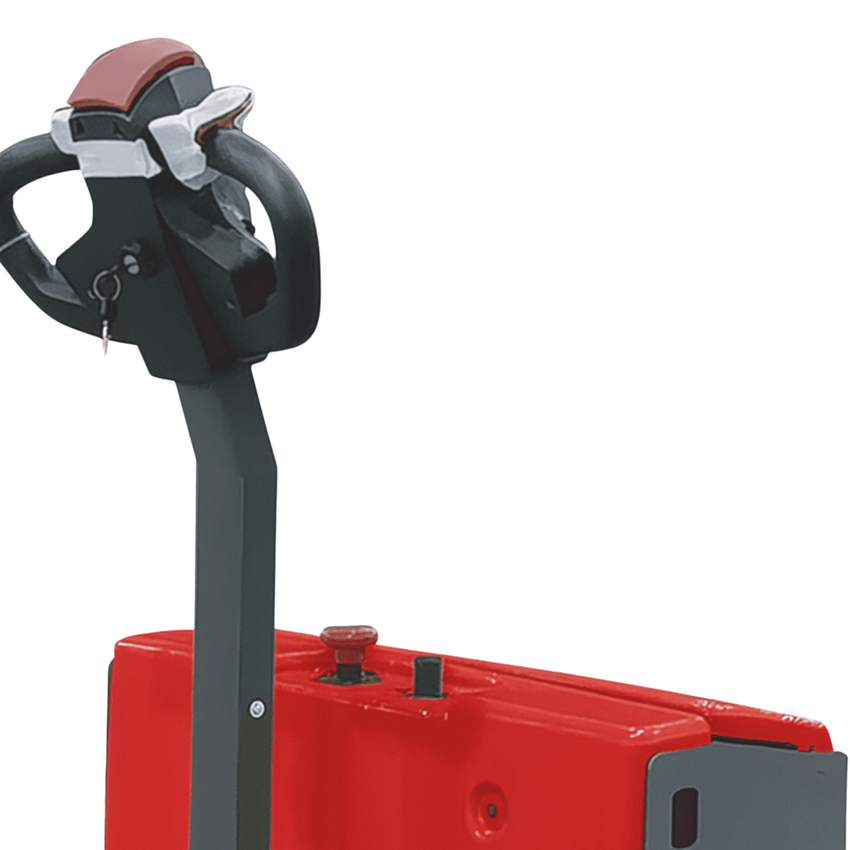

Compact & Ergonomic: Easy to maneuver in tight spaces with user-friendly controls.

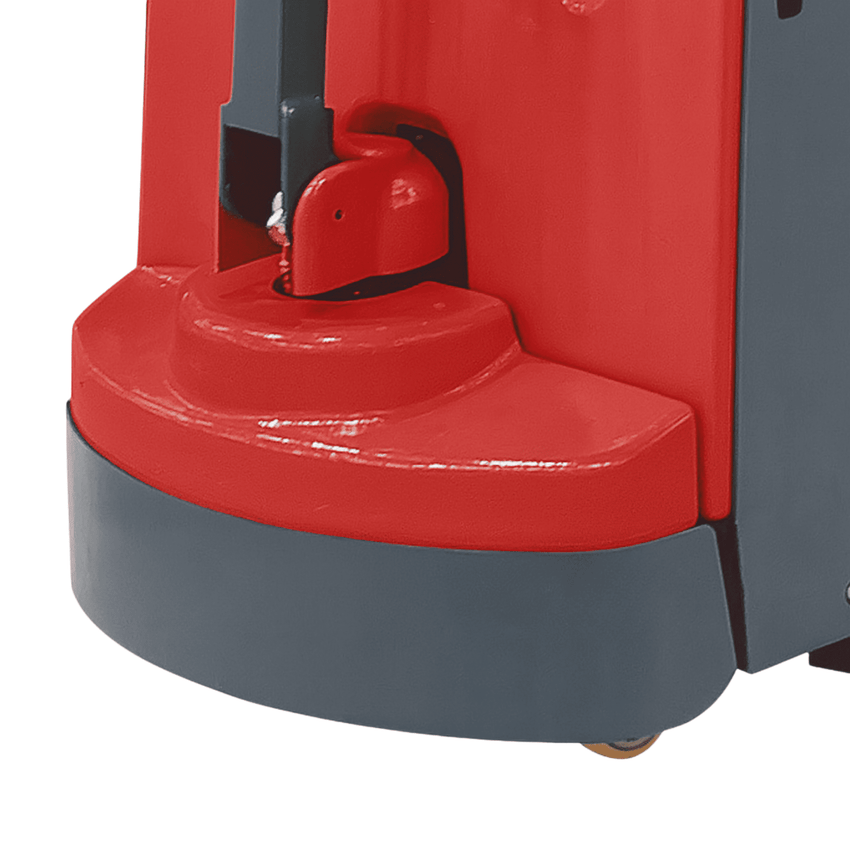

Durable Build: Strong chassis and reliable drive system for long-lasting performance.
Low Maintenance: Fewer service requirements compared to lead-acid models.
| Parameter | Value |
|---|---|
| Drive | Electric |
| Operation | Pedestrian |
| Nominal load capacity | 4409 lbs |
| Load center distance | 23.62 in |
| Load distance | 37.99 in |
| Wheel base | 51.77 / 54.53 in |
| Empty weight (with battery) | 617 / 794 / 661 lbs |
| Axle loading (laden, front/rear) | 2028 / 3042 lbs |
| Axle loading (unladen, front/rear) | 529 / 132 lbs |
| Tyres (front) | Ø220 x 80 mm |
| Tyres (rear) | Ø80 x 60 mm |
| Additional wheels | Ø85 x 48 mm |
| Wheels (driven) | 1x + 2/4 |
| Tread (front/rear) | 18.82 / 15.55 / 20.67 in |
| Rated lift height | 4.72 in |
| Drawbar height (min/max) | 31.5 / 46.85 in |
| Fork height (lowered) | 3.35 in |
| Overall length | 65.35 / 68.11 in |
| Length to face of forks | 20.08 in |
| Overall width | 27.17 in |
| Fork dimensions (s/e/l) | 2.17 / 6.3 / 45.28 / 48.03 in |
| Distance between forks | 21.65 / 26.97 in |
| Ground clearance (wheel base center) | 1.18 in |
| Aisle width for pallets 1000x1200 (crossways) | 73.23 / 75.98 in |
| Aisle width for pallets 800x1200 (lengthways) | 75.27 / 77.95 in |
| Turning radius | 58.07 in |
| Travel speed (laden/unladen) | 4 / 4.5 km/h |
| Lifting speed (laden/unladen) | 0.020 / 0.03 m/s |
| Lowering speed (laden/unladen) | 0.035 / 0.025 m/s |
| Max. gradeability (laden/unladen) | 7% / 15% |
| Drive motor output (S3 = 60 min) | 0.75 kW |
| Service brake | Electromagnetic |
| Battery voltage | 24 V |
| Battery capacity (Li-ion) | 100 / 130 / 100 Ah |
| Battery weight | 220 / 396 / 132 lbs |
| Type of drive unit | DC |
| Sound pressure level | 70 dB(A) |
