An electric pallet jack moves pallets horizontally at floor level. A pallet stacker can move them too, but what defines it is vertical lifting: placing loads onto raised storage and bringing them back down. That difference should drive the decision. If pallets stay at floor level from receiving to shipping, start with a pallet jack. If they must go into racking, you need equipment built to lift. If both jobs happen often, using both machines can make more sense than forcing one to do everything.
Pallet jack vs stacker at a glance
| Electric pallet jack | Pallet stacker | |
|---|---|---|
| Primary job | Horizontal pallet transport | Vertical placement, plus floor-level movement |
| Lift | Just enough to clear the floor | Raises pallets to elevated storage positions |
| Best use | Receiving, staging, shipping, floor-level transport | Racking, elevated storage, vertical handling |
| Elevated placement | No | Yes, within the machine's rated limits |
| Long floor travel | Core function | Possible, but not always the best tool for frequent long runs |
| Space needed | Turning room and travel path | Turning room, plus room to position, lift and withdraw the forks |
The useful question is not which machine can do more. It is which one matches the work done most of the day.

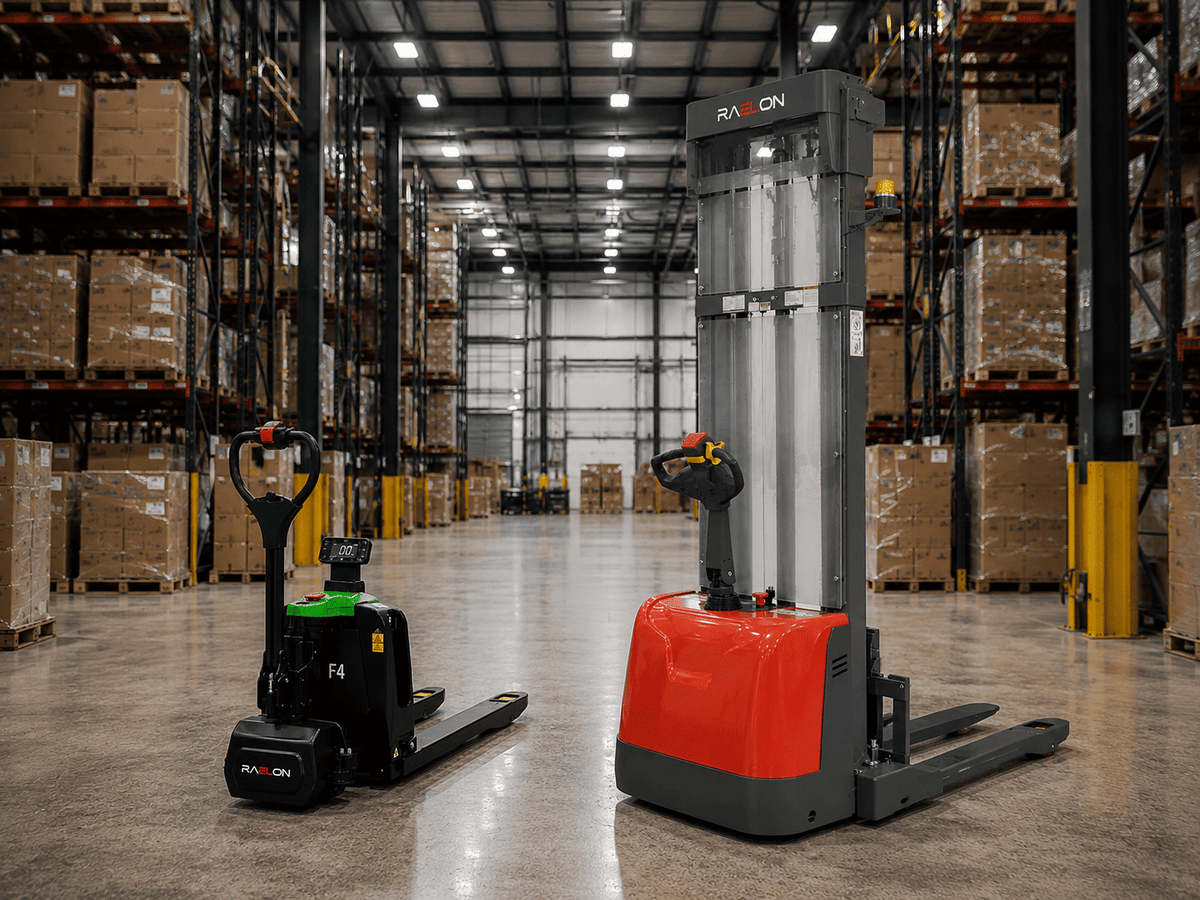

| Spec | Raelon F4 (electric pallet jack) | Raelon CTD15R (electric stacker) |
|---|---|---|
| Rated capacity | 3,300 lb | 3,300 lb up to 98 in; about 1,500 lb at the 138 in maximum |
| Lift height | Floor clearance only | Up to 138 in |
| Battery | Lithium-ion | 24V/105Ah GEL, maintenance-free |
These are Raelon's current models in each category. You can browse our electric pallet jacks and our electric stackers side by side.
When a pallet jack makes more sense
Trace the pallet's route. If it arrives at receiving, moves to staging and later goes to shipping without leaving floor level, horizontal transport is the main job. The same applies to moves between production and storage areas, around a retail backroom, or between floor-level storage positions. Frequency and distance matter too: if people spend much of the day moving pallets along travel routes, a machine built around movement is the right place to start. You gain little from a mast when vertical lifting is rarely part of the work.
When a stacker makes more sense
The decision changes as soon as a pallet has to be placed above the floor. If the workflow is receiving to rack, the machine must also raise the load to the right position and set it down correctly, and that is the job a stacker is designed for. But "we have racking" is not enough on its own. The machine still has to suit your pallets, rack layout, required lift height, load weights, aisles, floors and operating environment. For choosing between stackers, see our pallet stacker buying guide.
Pallet compatibility can change the answer
A pallet is not just a rectangular load that any forks can enter. Pallet openings, bottom boards and the way the load sits all affect how a machine engages it. With a stacker, the geometry of forks, pallet and chassis matters even more: some designs use straddle legs around the load, and that has to work with the pallet and with the rack position. Ask whether the machine can pick up this pallet, put it where you need it and withdraw the forks without interference. A pallet that works with a pallet jack will not automatically work with every stacker, so check the pallet construction and the manufacturer's requirements before you buy.
Lift height changes the capacity conversation
A pallet jack only needs enough lift to clear the floor. A stacker adds a second variable: how high the load must go. Its headline capacity is not necessarily the load it can lift at every height. Permitted capacity depends on lift height, load centre and configuration, and maximum capacity and maximum lift height should not be assumed to apply together. The Raelon CTD15R, for example, is rated for 3,300 lb up to 98 in, with about 1,500 lb at its 138 in maximum. Check the capacity plate and load chart for the actual machine, especially when the storage position is near its maximum height. For pre-use checks and handling habits, see the electric pallet stacker beginner's guide.
Measure the working space, not just the machine
A spec sheet can tell you whether a machine fits in an aisle, not whether it can do the job there. Think through the whole movement: approaching the pallet squarely, turning into position, lining up with the storage location, and withdrawing the forks before turning away. The front of the machine can clear a rack or wall while the rear swings toward it. For stacking, overhead space matters too, including the mast, the raised load and any structure above. So "better for narrow aisles" is not a useful rule on its own; the machine's dimensions, turning behaviour and your layout have to work together.
Four common workflows
- Receiving, staging, shipping, all at floor level: a transport job, so a pallet jack is the natural fit.
- Receiving to pallet rack: a pallet jack can bring the pallet to the rack but cannot finish the storage job. A suitable stacker may fit if its capacity, lift height, pallet compatibility and working space match.
- Long travel routes plus racking: two separate jobs. A jack for frequent transport and a stacker for vertical placement can be more practical than one compromise machine.
- Retail backroom with floor storage: if full pallets never go into elevated racking, the needs differ a lot from a multi-level warehouse, even when the shipments look similar.
Docks, ramps and uneven surfaces
Do not assume either machine is suitable for ramps, dock plates, trailers, uneven surfaces or outdoor use. Suitability depends on the specific machine, the manufacturer's instructions and your workplace conditions. A powered machine is not automatically built for slopes, gaps and transitions, so check the operator manual before using one there. This guide compares the roles of the two machines; it does not replace model-specific operating approval.
Can one machine replace the other?
Partly, never completely. A stacker can move pallets along the floor, so an operation with short routes and frequent vertical placement may manage with one machine, but it is not automatically the best tool for frequent long transport. A pallet jack is effective for moving loads around the building, but it cannot take over elevated placement. For some operations one machine is enough; for others, splitting the two jobs is the practical answer.
Not sure whether you need a jack, a stacker or both?
Tell us your pallet type, load weights, required lift height and aisle space. Our team can help you work out which equipment fits.
A practical decision checklist
- Does the pallet ever need to leave floor level, and what lift height is actually required?
- What pallets are you handling, and does their construction work with the machine's forks and chassis?
- What are your typical and heaviest loads, and what does the load chart allow at that height?
- How much room is there to approach, turn, position and withdraw the forks?
- How far does a pallet travel in a normal move, and how often are pallets moved versus stacked?
- Will the machine meet ramps, dock areas, trailers, uneven floors or outdoor surfaces, and is that specific model approved for them?
If the answers point almost entirely to floor transport, a pallet jack is the more logical category. If elevated placement is a regular part of the work, a stacker becomes relevant. If both are frequent, do not assume you must pick one. If you are unsure, contact us with your pallet type, aisle space and lift requirement.
