Rated Capacity
3300lbs
Item added to your cart
Raelon

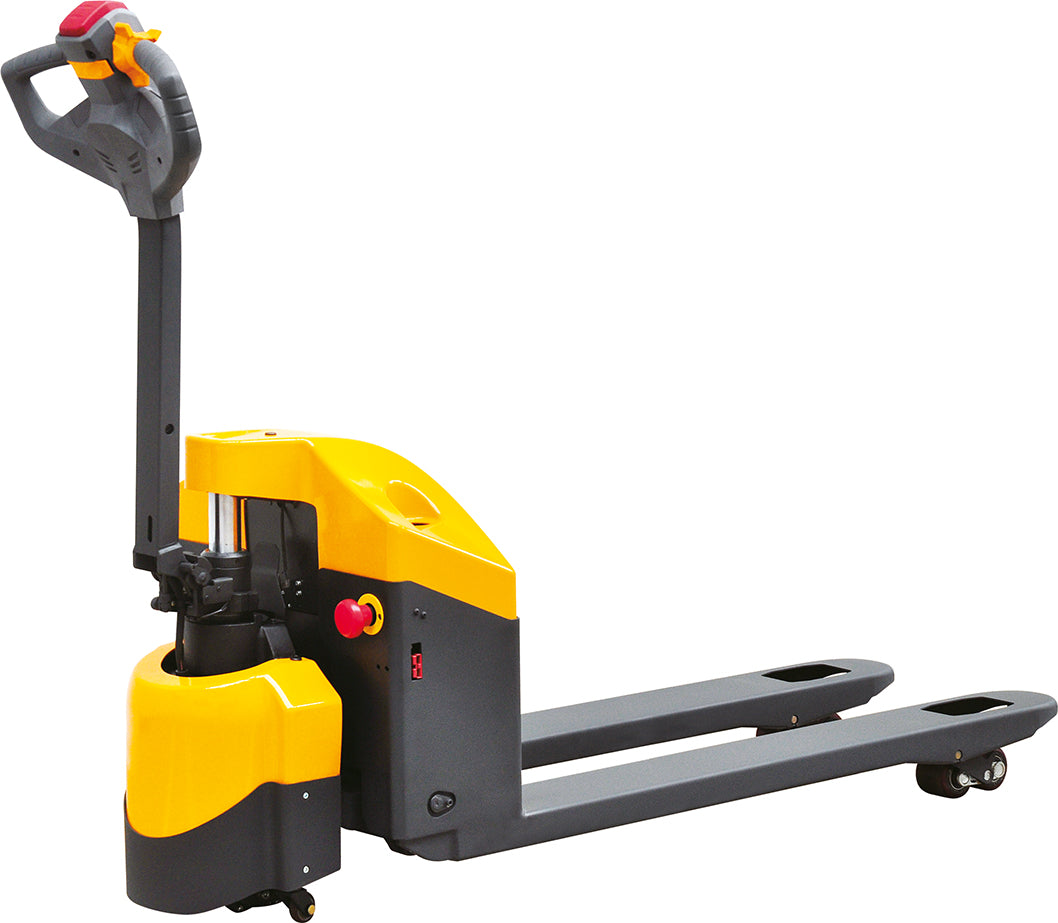

Raelon CBD15W-E19 3300lbs Lithium-ion Electric Pallet Jack is a Raelon electric pallet jack designed for commercial pallet movement in warehouses, receiving areas, stockrooms and material handling operations in Canada.
Only 1 product left
Estimate Shipping
Enter your Canadian postal code to estimate shipping for this product.
Shipping is an estimate only. Final shipping will be shown at checkout or confirmed by quote.
Local Pickup Available
Vancouver, BC Head office
4751 Shell Road
Unit 11
Richmond BC V6X 3H4
Canada
No Shipping Fee
Usually ready in 24 hours
Review the key capacity, battery and operating features of this Raelon electric pallet jack.
3300lbs
Li-ion
Local Pickup Available
Review the capacity, battery, dimensions and operating specifications before ordering.
The 3300lbs Electric Pallet Jack is engineered for seamless and stable material handling, making it a top choice for warehouses, logistics operations, and retail stockrooms. Designed as a compact yet powerful electric pallet jack, it delivers consistent performance with minimal effort. This model is a trusted tool for operations needing high precision in confined areas—whether you're upgrading your pallet jack equipment or expanding your pallet truck fleet.
| Specification | Details |
|---|---|
| Load Capacity | 3,300 lbs |
| Turning Radius | 56" |
| Aisle Width | 91.7" |
| Overall Dimensions | 67.8" L x 27" W x 49.2" H |
| Fork Width | 27" (Overall) |
| Single Fork Width | 6.3" |
| Fork Length | 48" |
| Fork Thickness | 2.1" |
| Fork Lowered Height | 3" |
| Lifting Distance | 4.5" |
| Lifting Height | 7.5" |
| Specification | Details |
|---|---|
| Battery Voltage & Capacity | 24V / 65Ah Lithium Battery |

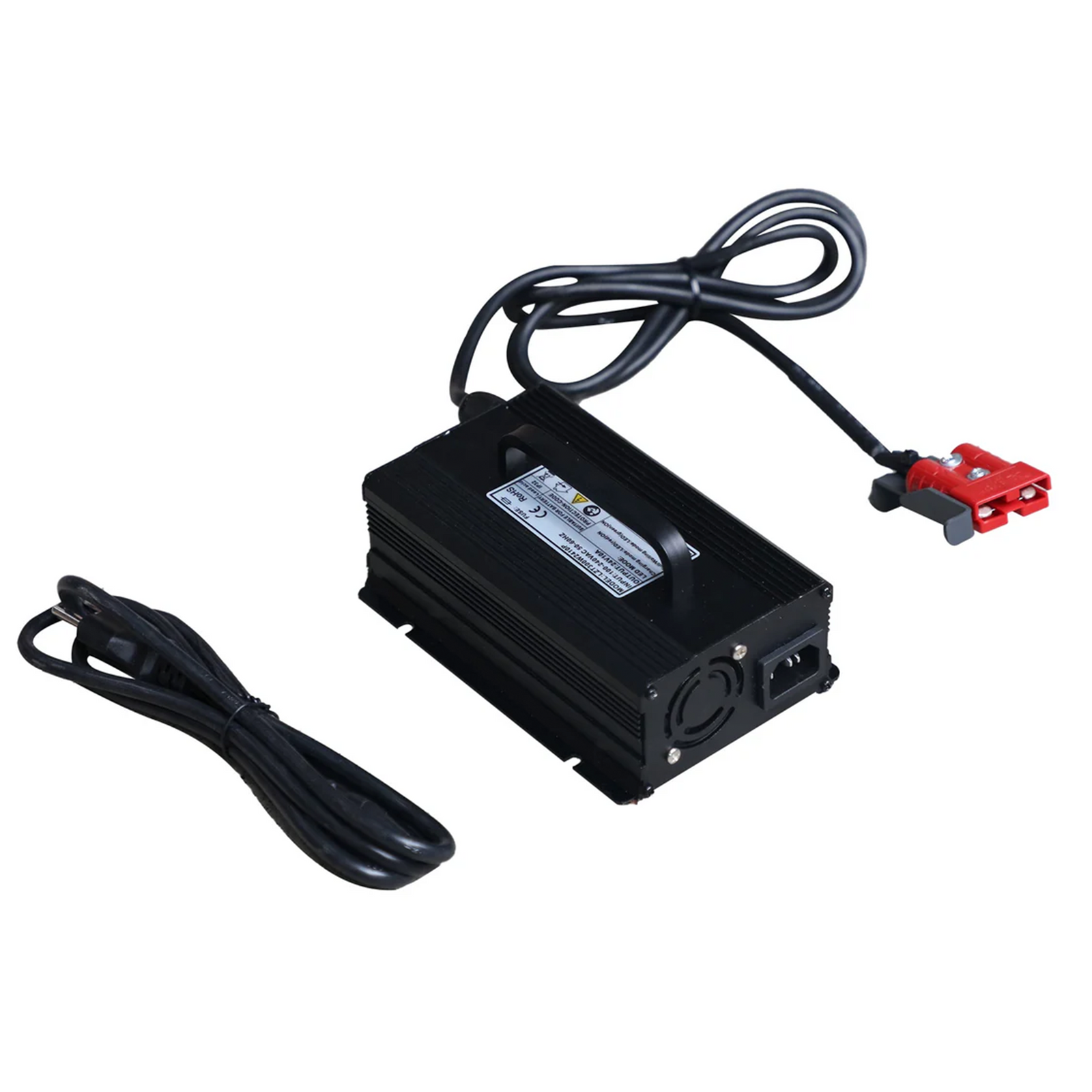

| Charger Type | 24V / 8A Charger |
| Charging Time | Approx. 4-6 Hours |
| Specification | Details |
|---|---|
| Travel Speed (Unladen) | 2.98 mph |
| Travel Speed (Laden) | 2.67 mph |
Still comparing models? View all Raelon electric pallet jacks to compare 3300 lb and 4400 lb options.
Shipping options are available for eligible electric pallet jacks across Canada. Rates and delivery timing depend on the product, destination and current inventory.
Pickup availability depends on the selected product, variant and current inventory location. Confirm availability before travelling.
Eligible Raelon equipment and batteries include limited warranty coverage subject to the applicable product and warranty terms.
Replacement batteries, chargers, wheels and selected compatible parts are available for supported models.
Compare the rated capacity, fork size, battery system, turning space and expected daily workload with your facility and pallet-handling requirements.
Canada-wide shipping is available for eligible products. Shipping costs and delivery timing depend on the product, destination and current inventory.
Local pickup depends on the selected product, variant and current inventory location. Check the product page or contact Raelon before travelling.
Warranty coverage depends on the product and battery configuration and is subject to the applicable Raelon warranty terms.
Replacement batteries, chargers, wheels and selected parts are available for supported models. Review the Compatible Parts section or contact Raelon to confirm compatibility.
