Rated Capacity
4500lbs
Item added to your cart
Raelon
Raelon WPL202 4500lbs Li-ion Electric Pallet Jack with Backrest Green is a Raelon electric pallet jack designed for commercial pallet movement in warehouses, receiving areas, stockrooms and material handling operations in Canada.
Only 2 products left
Estimate Shipping
Enter your Canadian postal code to estimate shipping for this product.
Shipping is an estimate only. Final shipping will be shown at checkout or confirmed by quote.
Local Pickup Available
Vancouver, BC Head office
4751 Shell Road
Unit 11
Richmond BC V6X 3H4
Canada
No Shipping Fee
Usually ready in 24 hours
Review the key capacity, battery and operating features of this Raelon electric pallet jack.
4500lbs
Li-ion
Local Pickup Available
Review the capacity, battery, dimensions and operating specifications before ordering.

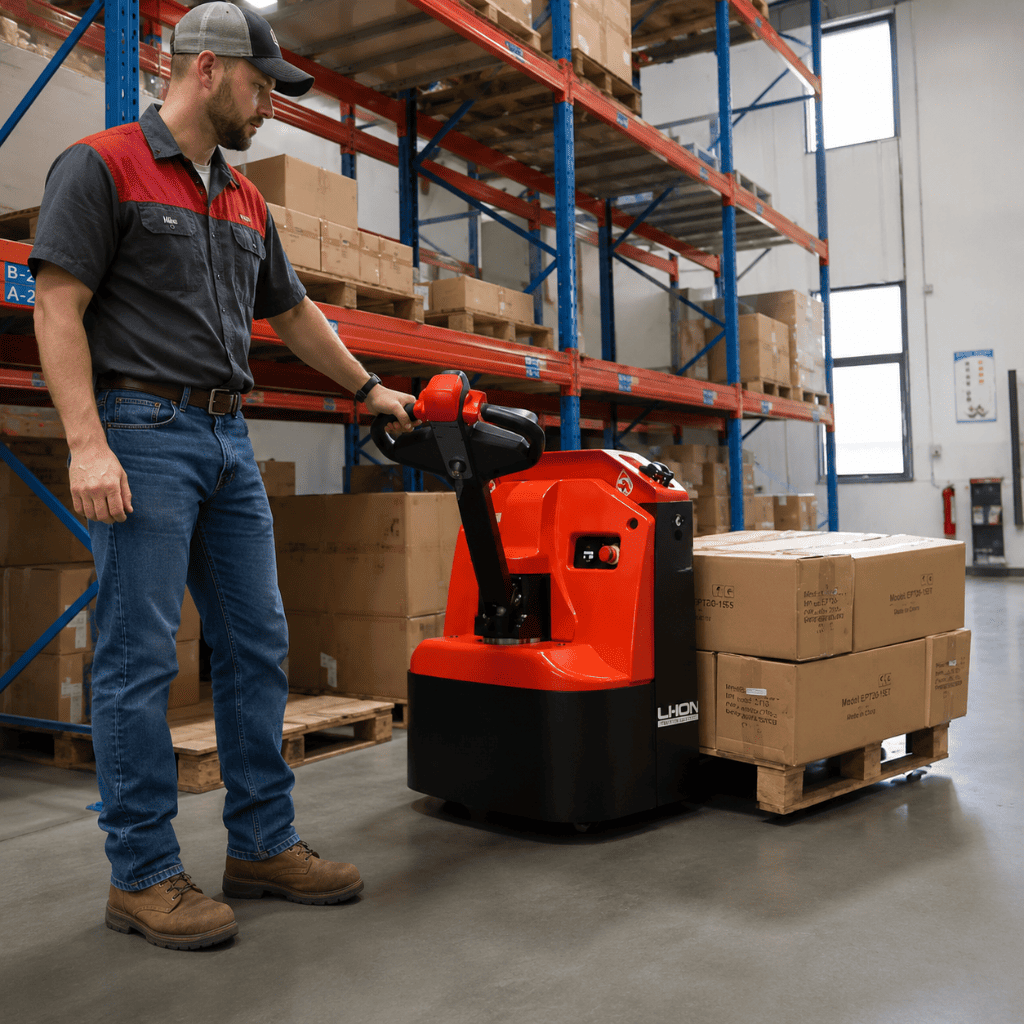

The Raelon WPL202 Li-ion Electric Pallet Jack is built for warehouses, distribution hubs, retail environments, food logistics, and pharmaceutical handling where compact size, stable movement, and reliable daily performance are essential. With a 4500 lbs capacity, 24V / 100Ah lithium-ion battery, 30A integrated charger, and load backrest, it is designed to handle heavier pallet movement while remaining easy to maneuver in confined spaces.
Thanks to its ultra-slim chassis, 52" turning radius, synchronized castor wheels, and durable PU wheels, the WPL202 is a practical choice for narrow aisles, lorries, compact warehouses, loading areas, and busy stockrooms.

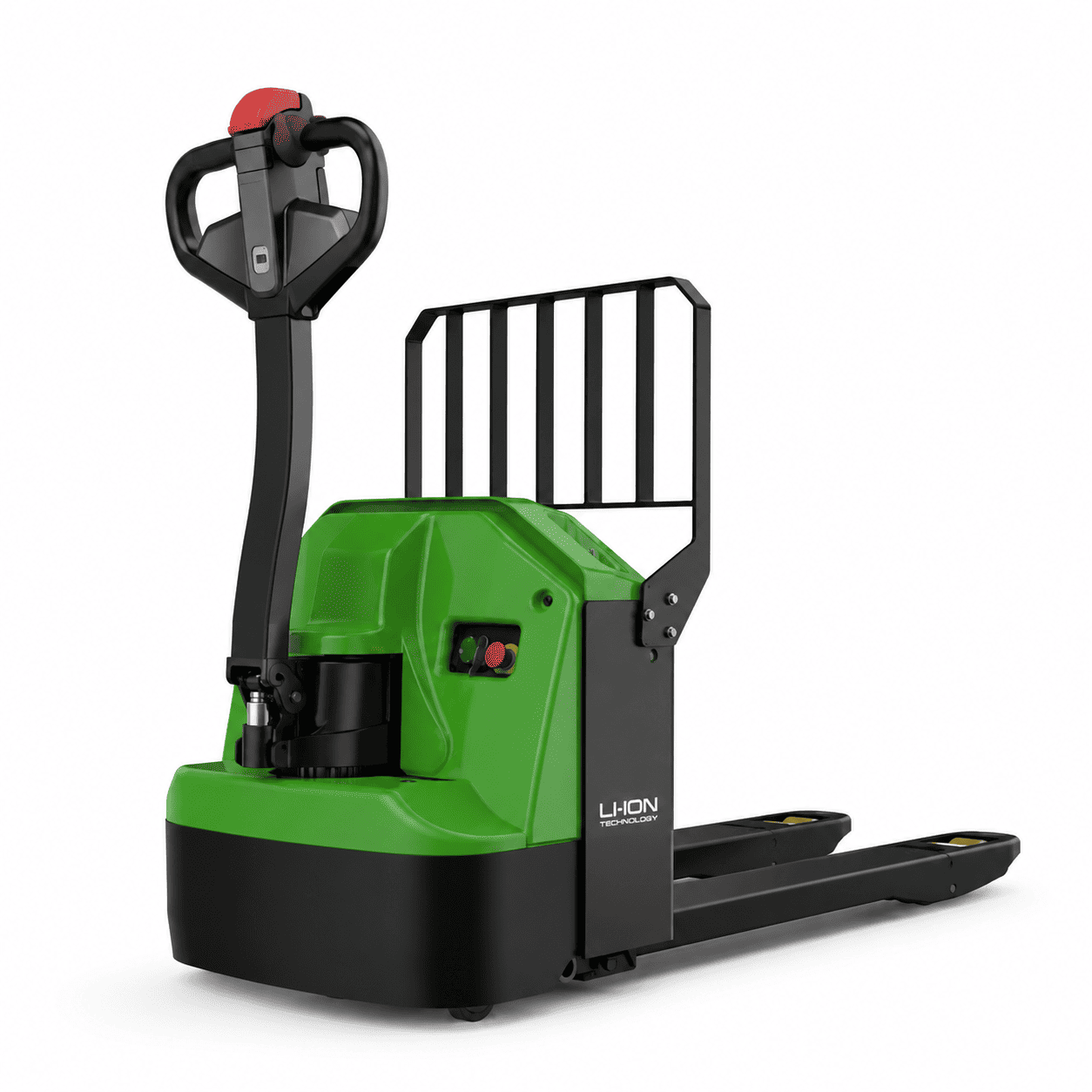

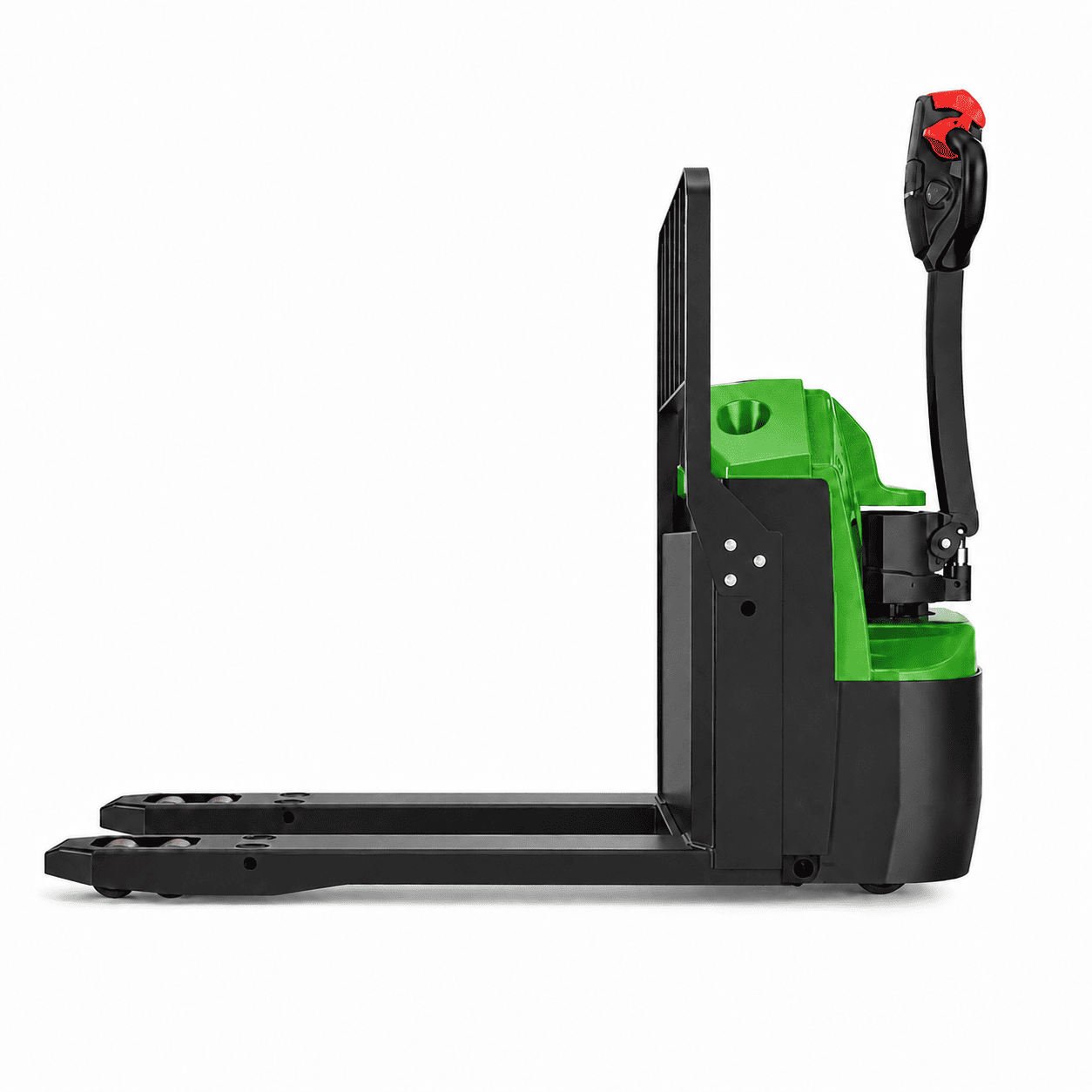

The WPL202 is designed for heavier warehouse handling while maintaining operator control and load stability. The included backrest provides additional support when transporting taller or less stable pallet loads.
Equipped with a 24V / 100Ah lithium-ion battery and 30A integrated charger, the WPL202 supports opportunity charging and convenient daily use. The integrated charger helps reduce the need for separate charging equipment and keeps operation simple for warehouse teams.

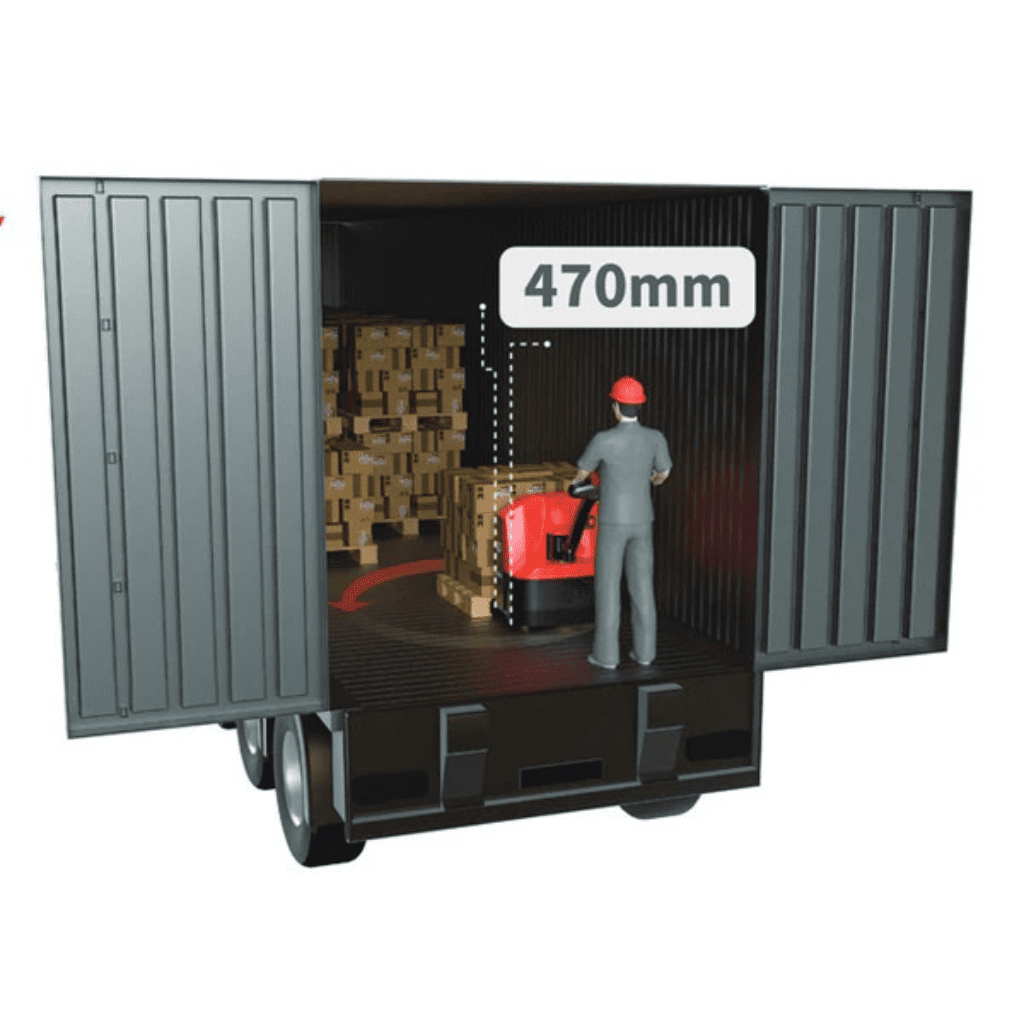

The WPL202 is built for tight operating environments. Its 470 mm chassis length and 1320 mm turning radius allow operators to move more easily through lorries, narrow aisles, compact warehouses, and busy loading zones.
The Raelon WPL202 comes with a 1.6 kW driving motor, 0.8 kW lifting motor, and full ZAPI controller for smooth and stable operation. Its synchronized castor wheels help improve stability and gradeability, especially when operating on ramps or less even warehouse surfaces.
| Load Capacity | Battery | Charger | Drive Motor | Controller | Wheel Type |
|---|---|---|---|---|---|
| 4500 lbs / 2250 kg | 24V / 100Ah Li-ion | 30A integrated charger | 1.6 kW | Full ZAPI controller | PU wheels |
Includes 24V lithium-ion battery, 30A integrated charger & load backrest
| Specification | Raelon WPL202 |
|---|---|
| Model | WPL202 |
| Drive Type | Electric |
| Operator Type | Pedestrian |
| Load Capacity | 4500 lbs / 2250 kg |
| Load Center | 23.6" / 600 mm |
| Battery Type | Li-ion |
| Battery Voltage / Capacity | 24V / 100Ah |
| Charger | 30A integrated charger |
| Driving Motor | 1.6 kW |
| Lifting Motor | 0.8 kW |
| Controller | Full ZAPI controller |
| Fork Size | 48" x 27" / 1220 x 685 mm |
| Lift Height | 4.9" / 125 mm |
| Turning Radius | 52" / 1320 mm |
| Overall Width | 28.1" / 714 mm |
| Service Weight | 705 lbs / 320 kg |
| Wheel Material | PU |
| Backrest | Included |
| Cold Storage Option | Available down to -20°C |
Still comparing models? View all Raelon electric pallet jacks to compare 3300 lb and 4400 lb options.
Shipping options are available for eligible electric pallet jacks across Canada. Rates and delivery timing depend on the product, destination and current inventory.
Pickup availability depends on the selected product, variant and current inventory location. Confirm availability before travelling.
Eligible Raelon equipment and batteries include limited warranty coverage subject to the applicable product and warranty terms.
Replacement batteries, chargers, wheels and selected compatible parts are available for supported models.
Compare the rated capacity, fork size, battery system, turning space and expected daily workload with your facility and pallet-handling requirements.
Canada-wide shipping is available for eligible products. Shipping costs and delivery timing depend on the product, destination and current inventory.
Local pickup depends on the selected product, variant and current inventory location. Check the product page or contact Raelon before travelling.
Warranty coverage depends on the product and battery configuration and is subject to the applicable Raelon warranty terms.
Replacement batteries, chargers, wheels and selected parts are available for supported models. Review the Compatible Parts section or contact Raelon to confirm compatibility.
