Full-Electric Operation
Powered travel and powered lifting are controlled from the walk-behind handle.
Item added to your cart
Raelon
In stock, ready to ship
PRICE COMPARISON
Indicative market pricing at time of publishing; prices may change.
Local Pickup Available
Package size for pickup: approx. 95 in H × 71 in L × 50 in W. Not palletized — a cargo van or flat-deck/flatbed truck both work; please confirm your vehicle fits this size before arriving.
Edmonton, AB Pickup
9837 42 Ave NW Edmonton
Edmonton AB T6E 0A3
Canada
No Shipping Fee
Usually ready in 24 hours

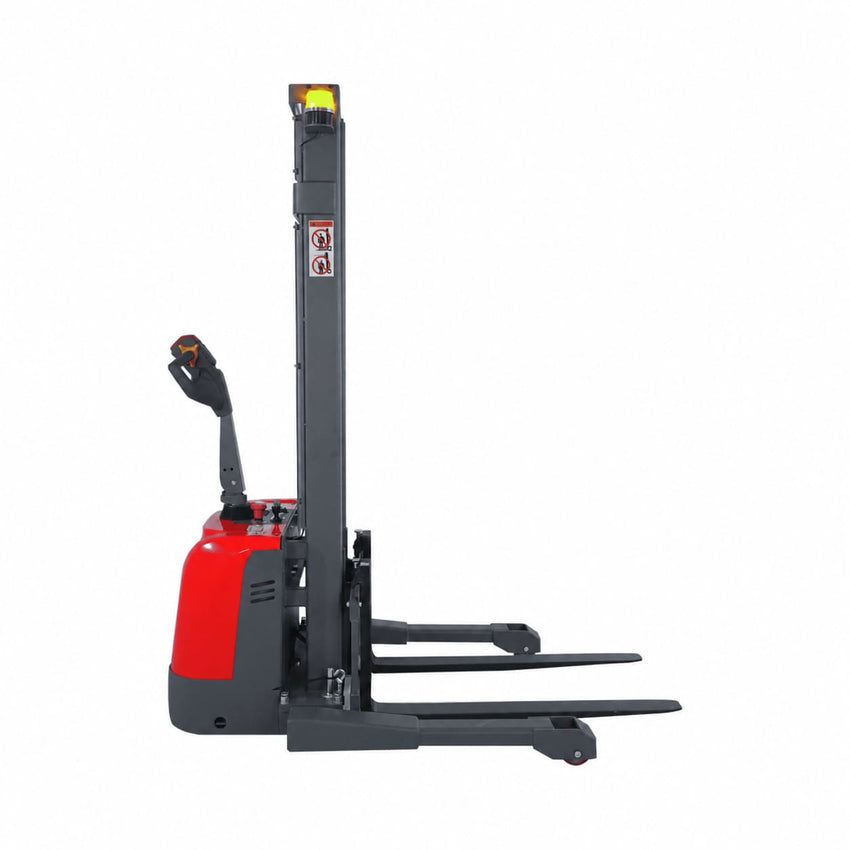

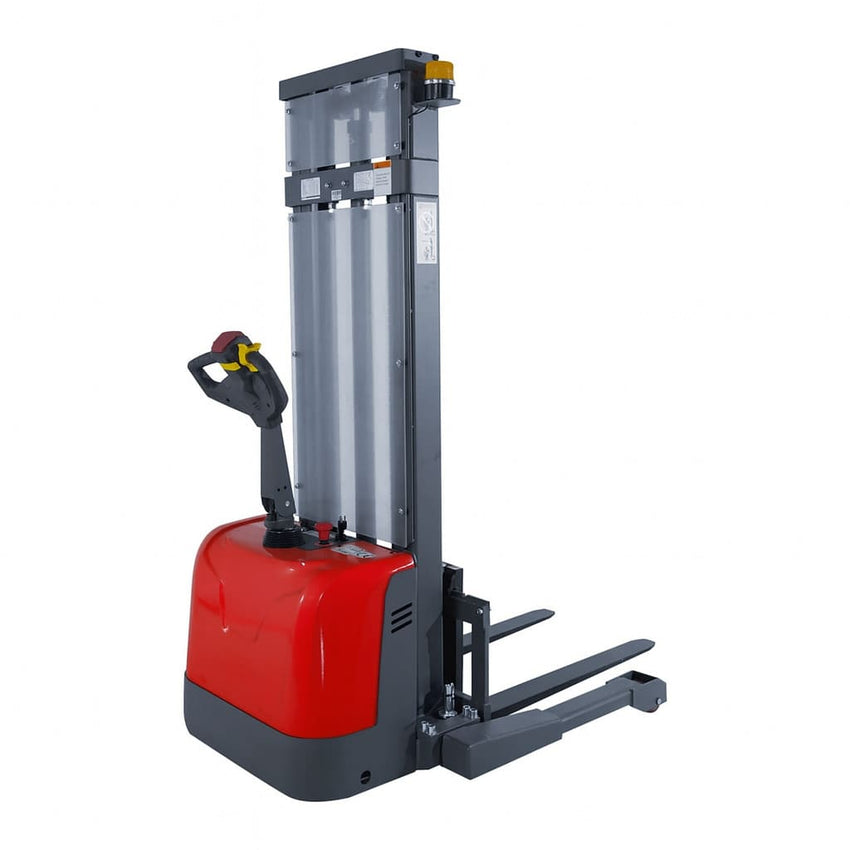

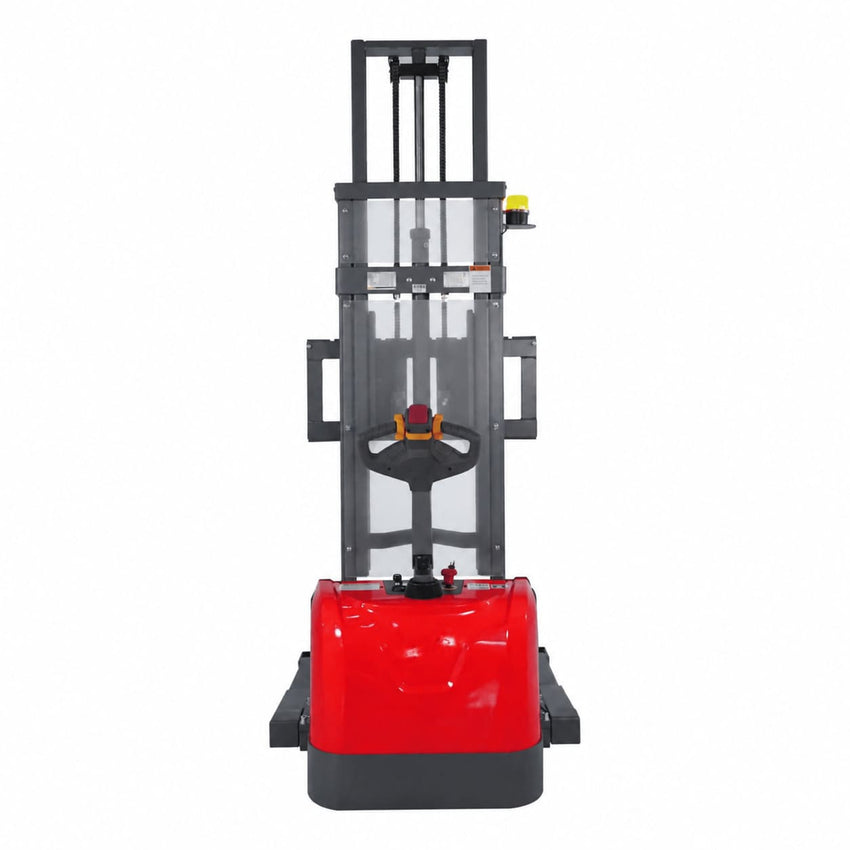

The Raelon CTD15R is a full-electric, walk-behind pallet stacker rated for 3,300 lb (1,500 kg) up to 98 in of lift, stepping down to about 1,500 lb (680 kg) at the full 138 in height with a 24 in load centre. Both travel and lift are powered from the tiller handle, so the operator steers and controls speed without manually pumping or pushing the load.

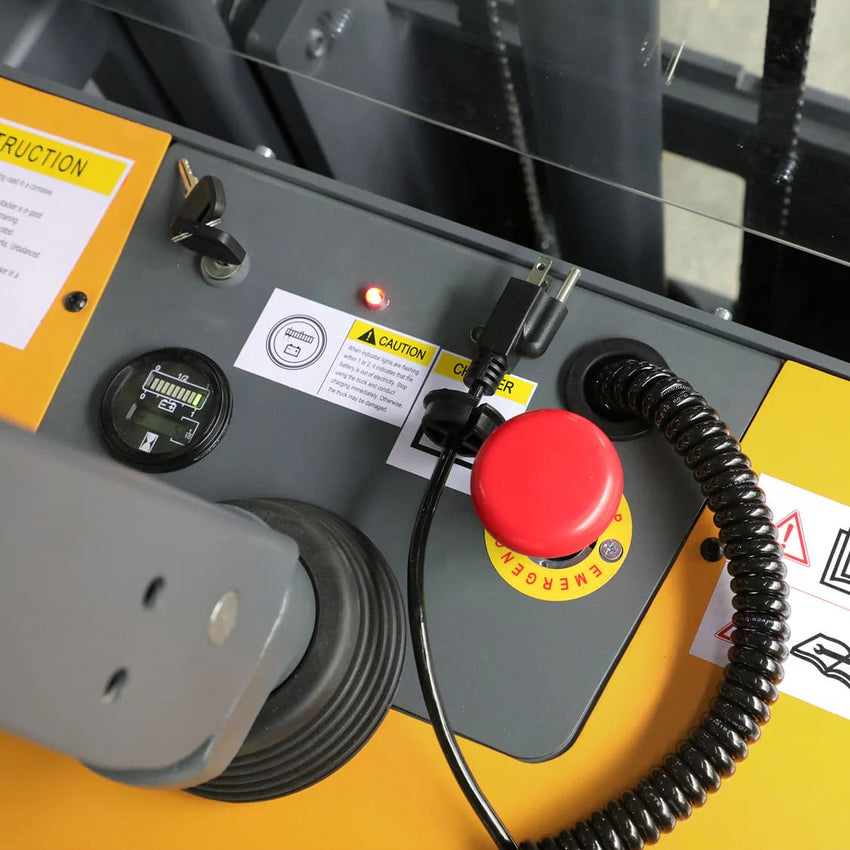

The CTD15R uses a 24V/105Ah GEL battery — sealed and maintenance-free, with no watering or acid checks. The built-in charger plugs into a standard outlet: a full charge takes about 10 hours and gives roughly 6–8 hours of typical operating time, depending on load and lift frequency.

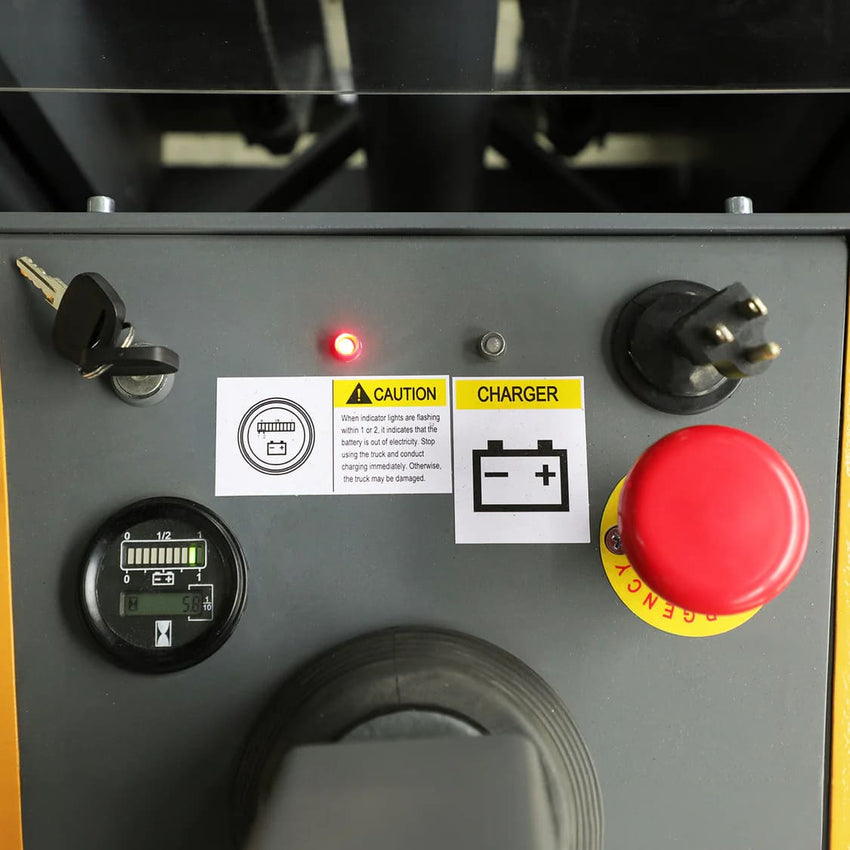

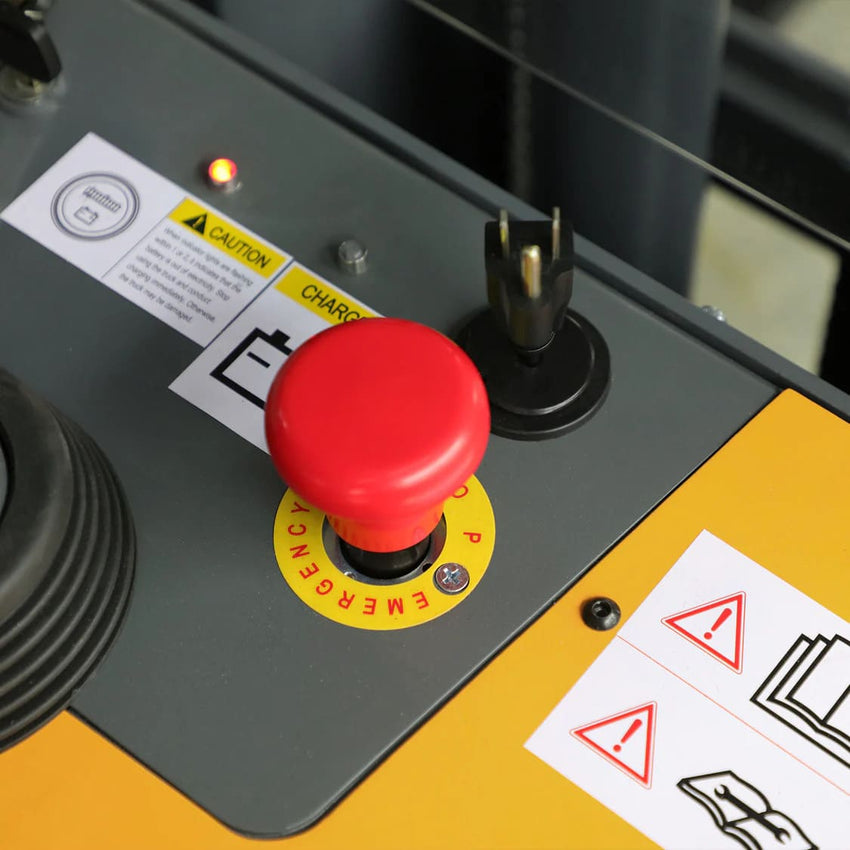

Regenerative braking, emergency stop, belly-reverse switch, high-lift speed limiter, key-switch lockout and automatic fault shutdown are all built in.
Common CTD15R parts are stocked at Raelon's Richmond, BC location. If something goes wrong, call or message first — a technician can help diagnose the issue over the phone before parts or service are arranged.
PRODUCT OVERVIEW
The CTD15R is a walk-behind stacker: you steer it and it does the lifting. It's built for moving pallets onto low racking, stacking product in a tight aisle, or getting loads up off the floor without a forklift.
New to this type of equipment? The Electric Pallet Stacker Beginner's Guide covers safe operation and pre-use checks.
The CTD15R combines a 3,300 lb rated capacity, 138 in maximum lift height and GEL battery power in a compact walk-behind stacker.
KEY FEATURES

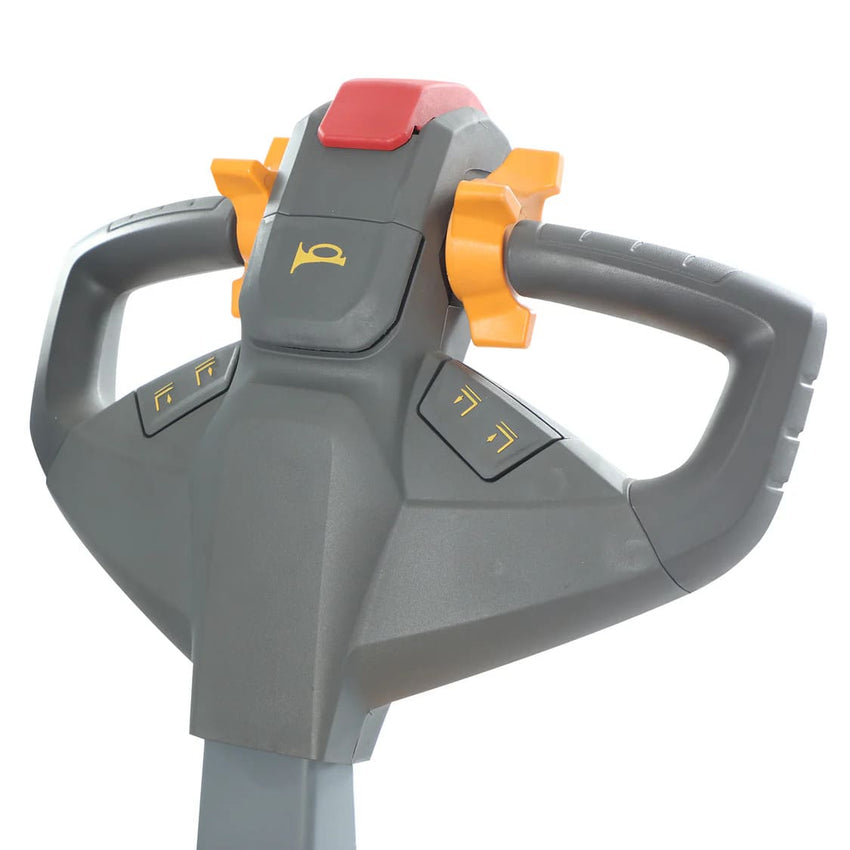

Powered travel and powered lifting are controlled from the walk-behind handle.
Rated for loads up to 3,300 lb when used within the specified load-centre and operating limits.
The current Canadian configuration provides a maximum lift height of 138 inches.
The current configuration uses a 24V/105Ah GEL battery — sealed and maintenance-free, with no watering or acid checks.
The straddle-leg layout supports suitable pallet-handling applications while maintaining a compact equipment format.
Fork spacing can be adjusted for compatible pallet and load requirements.
PALLET FIT
Before ordering, confirm the pallet entry style, fork spacing, straddle-leg clearance, load centre, required lift height and available turning space. A straddle stacker is not compatible with every pallet or rack configuration.
CANADA DELIVERY
The CTD15R ships from Richmond, British Columbia, with additional stock in Edmonton, Alberta. Freight is estimated during checkout and confirmed based on the destination, carrier and delivery requirements. Free local pickup is available from either location once your order is ready.
OWNERSHIP INFORMATION
The CTD15R is covered by a 12-month warranty on both the equipment and the battery.
View warranty detailsSplit your purchase into monthly payments with Shop Pay Installments. Your exact plan and payment amount are calculated automatically at checkout based on your order total and eligibility.
Learn more about financingUnopened products may be returned within 30 days, subject to a 15% restocking fee and applicable return conditions. The customer is responsible for non-damage return shipping costs; transit damage must be reported within 48 hours with the order details and photos.
Read the full return policyWARRANTY DETAILS
Core components are covered for 12 months from the day you receive your CTD15R: drive motor, lift motor, hydraulic system and battery. Coverage starts automatically — no registration required.
Wear items are excluded, including wheels, fork surface finish, and control buttons or switches, along with damage from misuse or unauthorized repair.
Call or email us with photos or video of the issue. Our repair team reviews the problem and gives you a repair plan. Before reaching out, the Electric Pallet Stacker Troubleshooting Guide covers common causes for the most frequent issues.
In Richmond or Edmonton, bring your unit to us for repair. An on-site service call is $150. Outside BC or Alberta, we'll help you find a local shop and can reimburse eligible repairs.
Warranty coverage begins the day you receive your CTD15R — no registration or activation needed.
EQUIPMENT COMPARISON
SEE IT IN ACTION
CUSTOMER REVIEWS
“The product has been reliable so far and fits our warehouse needs well.”
“Great to have a reliable supplier right here in Richmond. Dropped by their HQ to pick up a 4400lbs lithium pallet truck last week. The team was professional and helped us load it up. The machine is compact and perfect for our narrow aisles. Support local!”
“Very professional service and excellent support throughout the process. Shipping to Brampton was fast and efficient, and the equipment arrived in great condition. Since putting it into operation, it has performed reliably and handled the demands of our busy cross-docking hub extremely well. The build quality is solid, and it is clearly designed for tough daily use. We are extremely pleased with both the product and the service.”
COMMON QUESTIONS
The CTD15R is a full-electric, pedestrian-operated walkie straddle stacker with powered travel, powered lifting, straddle legs and adjustable forks.
The CTD15R is rated for 3,300 lb (1,500 kg) up to 98 in of lift. Above that, capacity steps down — at the full 138 in it's about 1,500 lb (680 kg) with a 24 in load centre. Check the load chart on the mast for the limit at your working height.

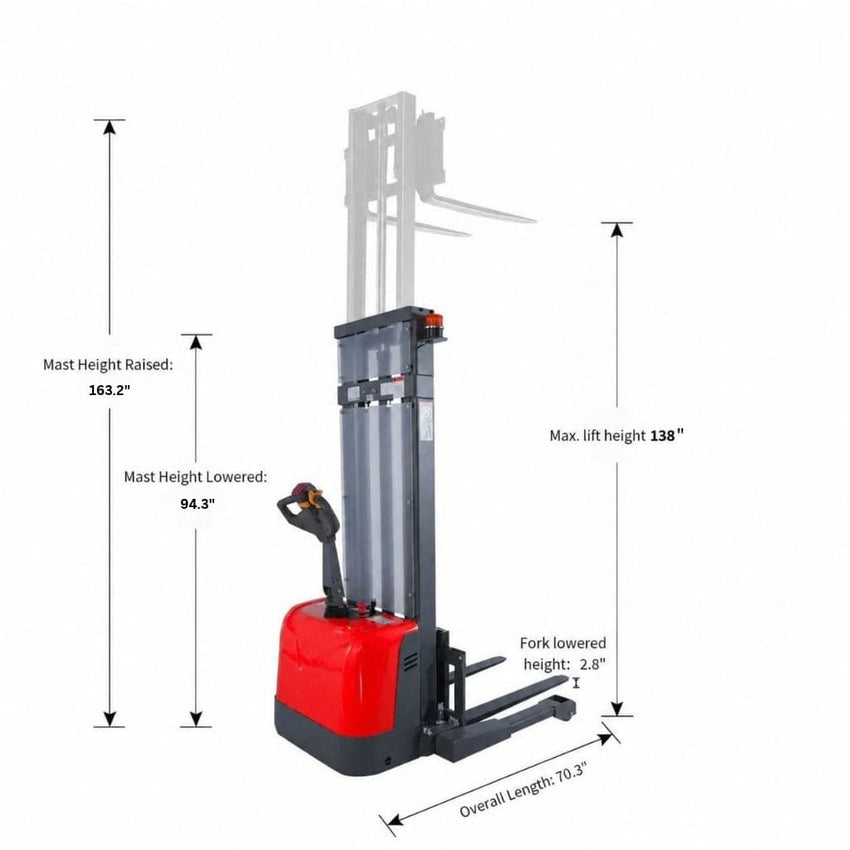

The current configuration reaches 138 in (3,500 mm). Mast height is 94.3 in lowered and 163.2 in raised — check doorways and overhead clearance before ordering.
A 24V/105Ah GEL battery with a built-in charger. It's sealed and maintenance-free — no watering or acid checks. A full charge takes about 10 hours and gives roughly 6–8 hours of typical use.

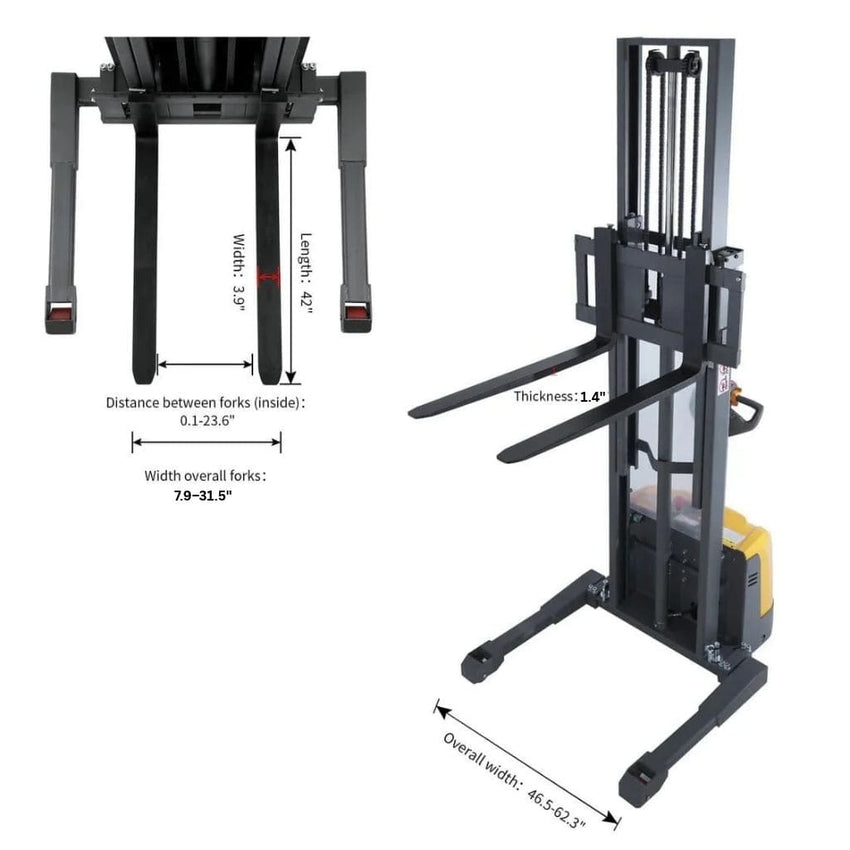

Yes. The straddle legs adjust from 46.5 to 62.3 in and the forks from 7.9 to 31.5 in, fitting standard 48×40 pallets, including closed-bottom types.
Yes — the CTD15R ships from stock in Richmond, BC and Edmonton, AB. Current availability is shown at the top of this page.
Raelon can arrange CTD15R shipping across Canada. Freight may be estimated, but the final amount is confirmed based on the destination, carrier and delivery requirements.
The GEL battery is sealed and maintenance-free — no watering or acid checks. Routine care is limited to keeping the forks and wheels clear of debris and checking tire wear. Contact us if you notice unusual noise, reduced lift speed, or warning lights.
Yes. Use the quantity selector to add more than one CTD15R, or request a quote for larger orders and we'll confirm pricing and delivery timing.
12 months on the equipment and 12 months on the battery.
The CTD15R works well for indoor stacking up to 138 in in aisles around 88 in wide. For loads on high beams, outdoor yards, trailer loading or all-day high-volume work, a forklift is the better fit.
Browse ForkliftsContact Raelon for help confirming pallet compatibility, lift requirements, shipping, Richmond pickup or current availability.
