Close-up of Raelon pallet jack handle with push-button control and safety switch

Raelon 3300lbs Li-ion Electric Pallet Jack – angled front view with ergonomic handle

Front view of Raelon electric pallet jack with dual lithium battery housing

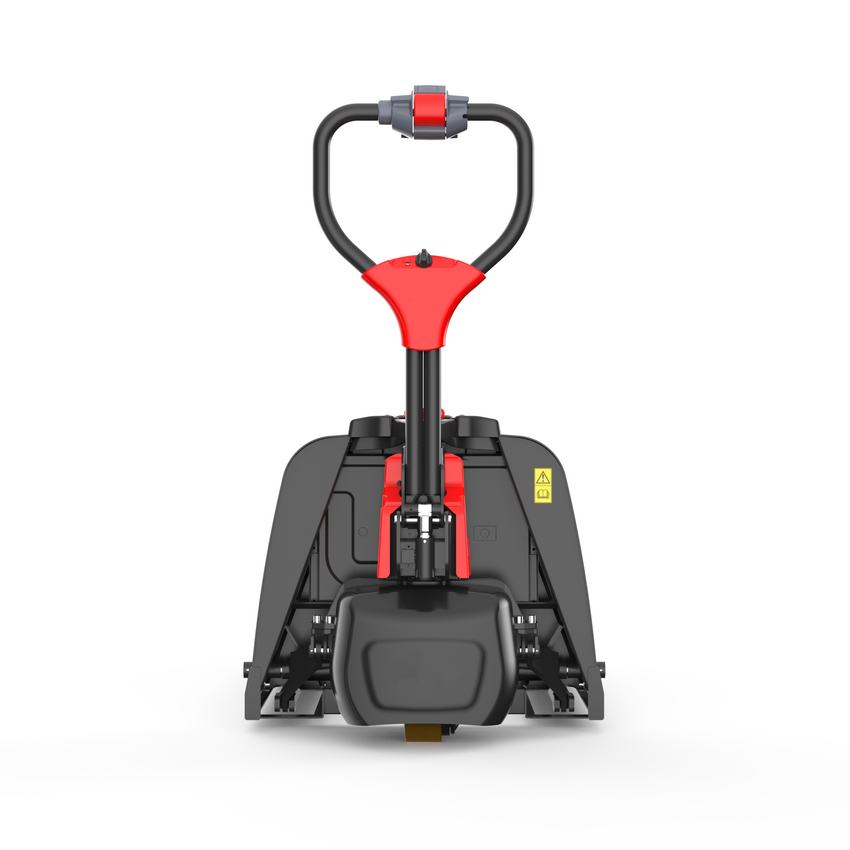

Rear view showing Raelon pallet jack’s handle and compact chassis design

Back corner angle of Raelon Li-ion pallet jack for warehouse use

Top-down front diagonal view of Raelon 3300lbs electric pallet truck

Top view showing Raelon pallet jack forks and steering arc

Fork close-up of electric pallet jack with reinforced tip and stable wheels

Electric pallet jack lifting view with extended forks – Raelon 3300lbs model

Raelon electric pallet jack with LED indicators for night-time operation

Raelon

Raelon 3300lbs Li-ion Electric Pallet Jack – Dual Battery, Compact Design

Name: Raelon 3300lbs Li-ion Electric Pallet Jack – Dual Battery, Compact Design
Brand: Raelon
SKU: EP F4
Price: 1850.0 CAD
Availability: InStock

In stock, ready to ship

$1,850.00 $2,190.00

Save 15%

Sale

Color: Green

Green

Power source: Electric

Electric

Full-Set Parts

Satisfaction Guaranteed

180 Days Warranty

Key Features

Effortlessly move heavier loads with the Li-ion Electric Pallet Truck, designed for versatility, efficiency, and cost-effective operations. Suitable for various warehouse applications, from light-duty handling to intensive operations.

Maximize Efficiency & Reduce Operator Effort

10-second battery swap minimizes downtime
Push-button lift controls & ergonomic handle for easy maneuvering
Reverse safety switch enhances operator protection
Maintenance-free lithium batteries with built-in charger
Up to 8 hours of operation per charge (depends on the workload)

Compact & Versatile Design

Lightweight & space-saving – Small frame for easy movement in narrow aisles
Lift Range: 3.1" - 7.5"
180° steering arc for seamless handling
Polyurethane wheels for smooth and non-marking operation
Stabilizing wheel option available to improve balance on uneven surfaces

Product Specifications

Load Capacity	Battery Type	Battery Capacity	Service Weight (lbs)	Drive Motor	Wheel Diameter
3,300 lbs	Li-ion	24V/20Ah	265	0.75 kW DC	8.3"/3.15"

* Includes Li-ion battery & built-in charger
* Lead time: 1-2 Days

Dimensions

Overall: 67.8" x 27" x 49.2" (L x W x H)
Forks: 48" x 27"
Fork Width: 6.3"
Fork Thickness: 2"
Distance Between Forks (Inside): 14.37"

Performance & Features

Non-marking polyurethane wheels
Max speed (unloaded): 2.98 mph
Max speed (loaded): 2.67 mph
Battery fully charges in 10 hours
Compatible with standard 110V-120V outlets
Operates in temperatures from -13°F to +104°F
