Raelon
Product Type: F4 (with 1 Battery)
Product Type: F4 (with 1 Battery)
In stock, ready to ship
Every battery comes with its own charger About 2 hours to charge About 5 hours per charge, light loads
Enter your Canadian postal code to get an estimated shipping cost for this product.
Shipping is an estimate only. Final shipping will be shown at checkout or confirmed by quote.
Local Pickup Available
Edmonton, AB Pickup
9837 42 Ave NW Edmonton
Edmonton AB T6E 0A3
Canada
No Shipping Fee
Usually ready in 24 hours
Check your heaviest pallet, your floor and your shift length against the two lists. If you cross a line, the F4-201 is the next step up.

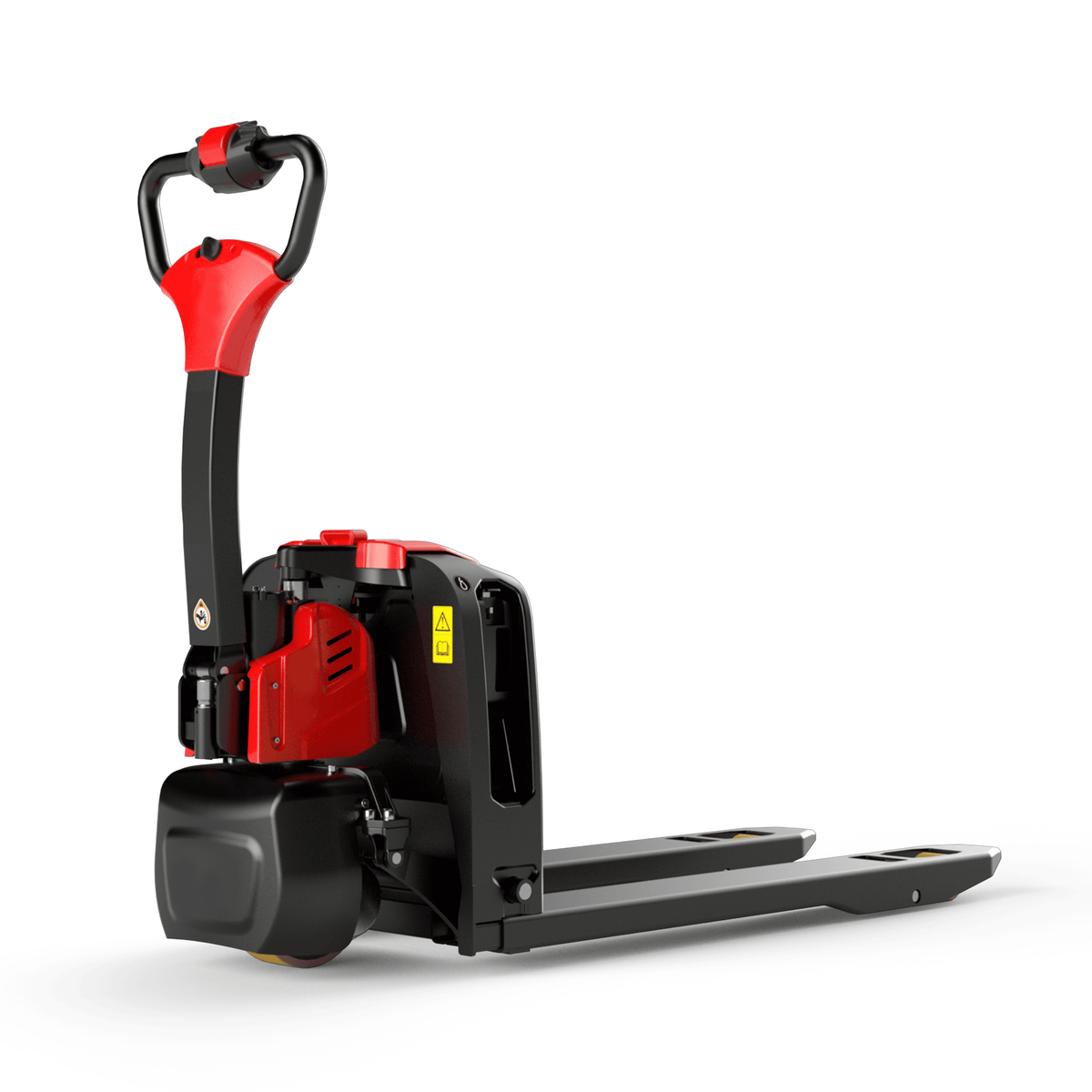

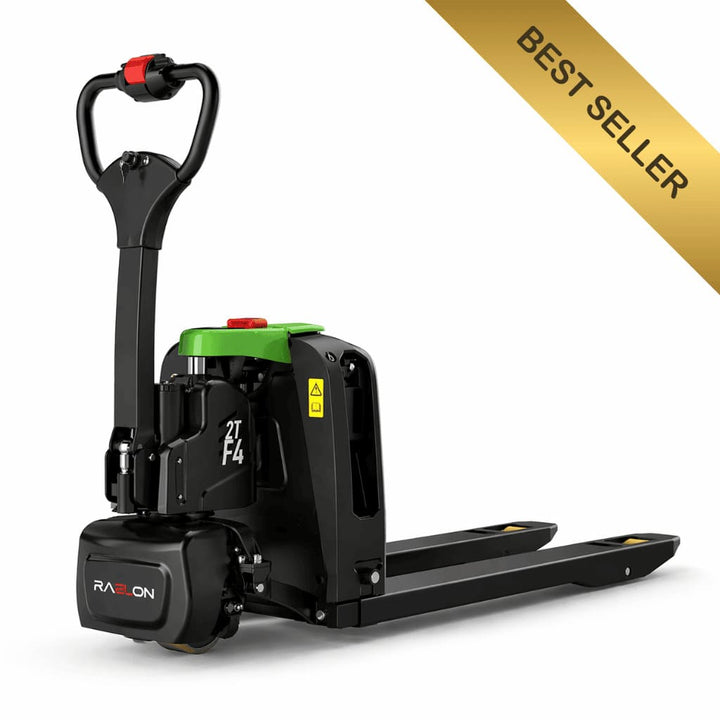

Raelon F4-201 4400 lb Lithium Electric Pallet Jack
$2,895.00
In Stock

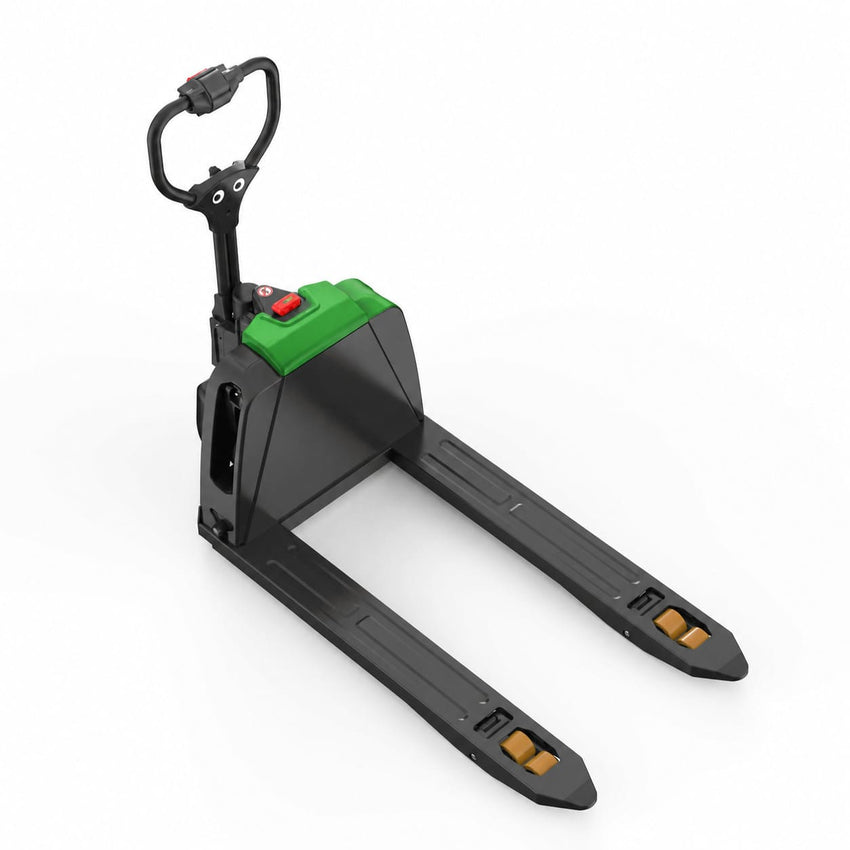

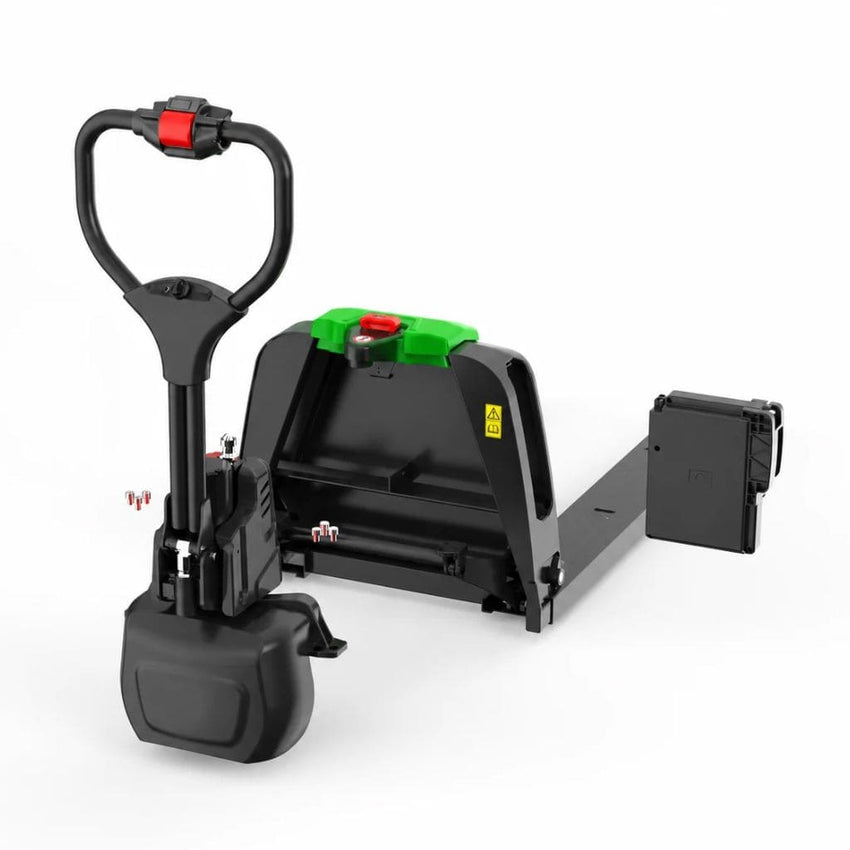

The F4 has two battery bays and one plug. Load two charged packs, run the first one flat, then move the plug by hand to the second and keep working. The “+ 1 Extra Battery” option ships with the second battery and its own charger.
64 in long, 27.4 in wide, and about 56 in to turn. Measure your tightest aisle against those three numbers before you order.

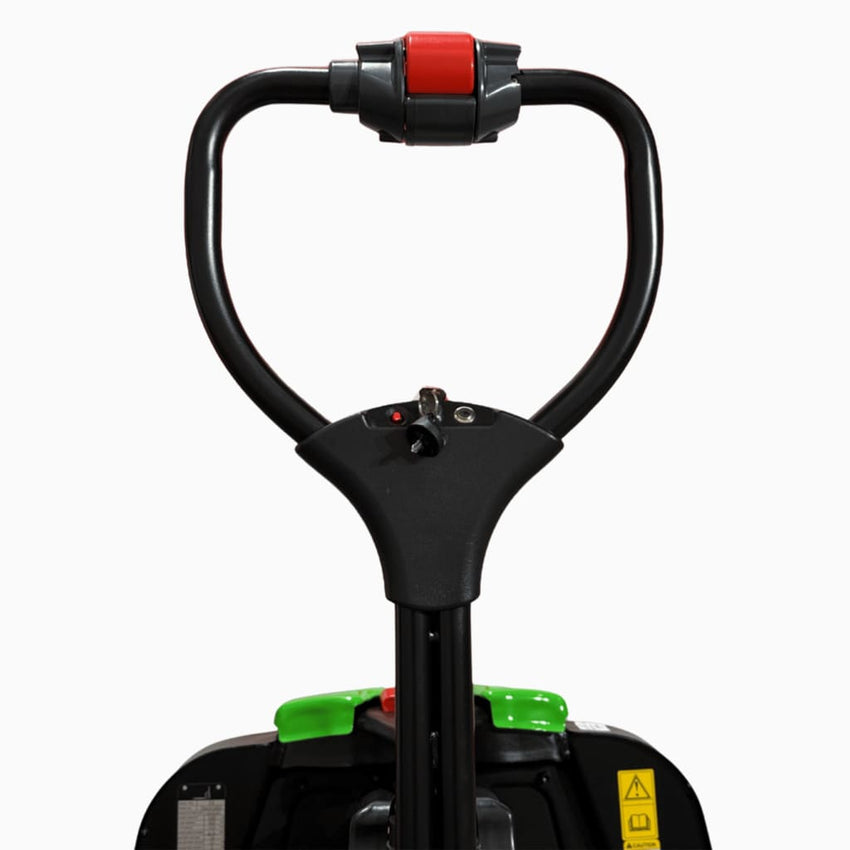

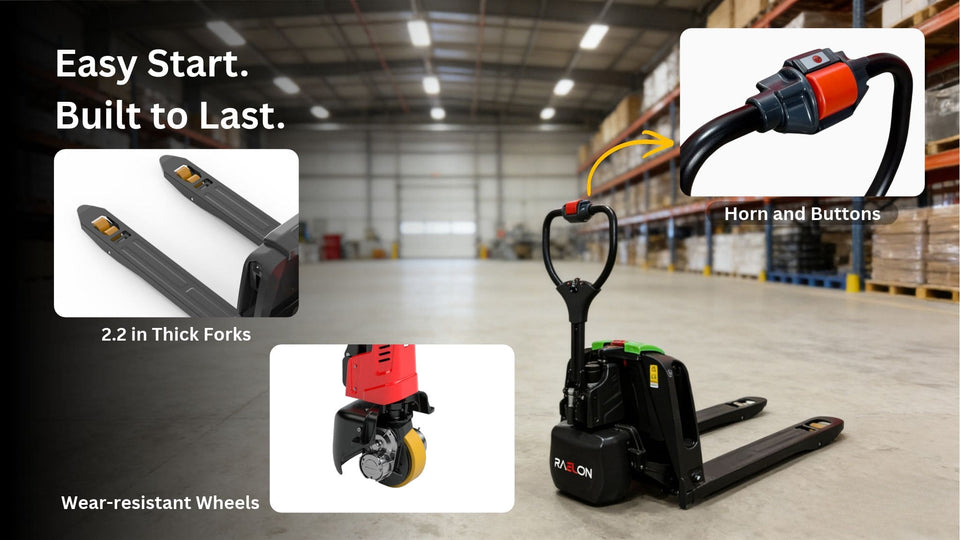

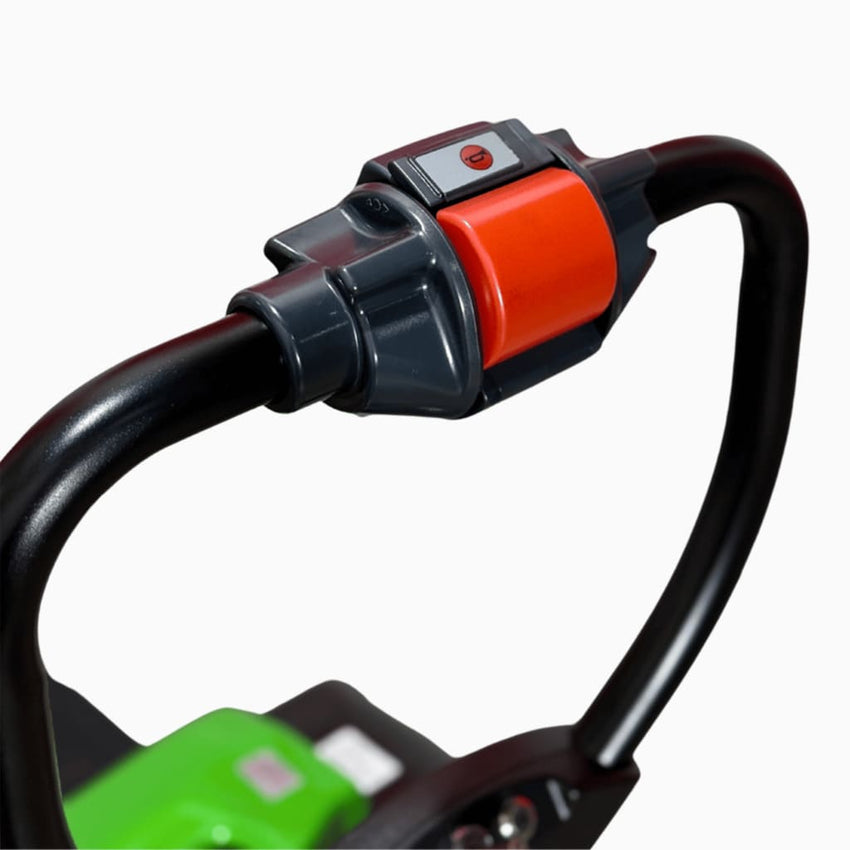

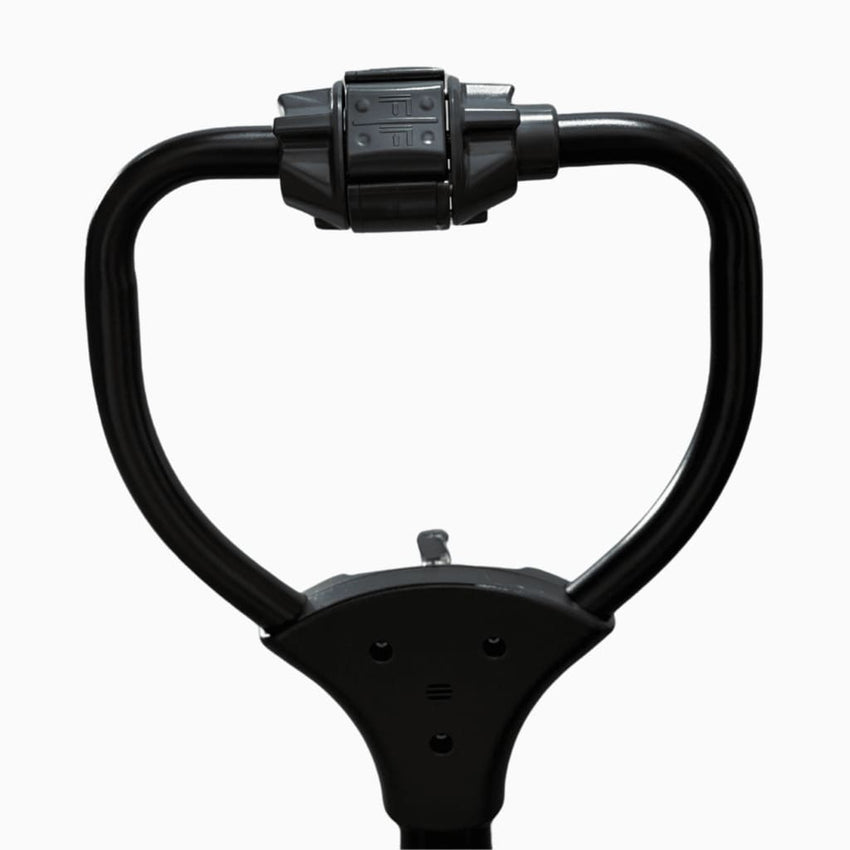

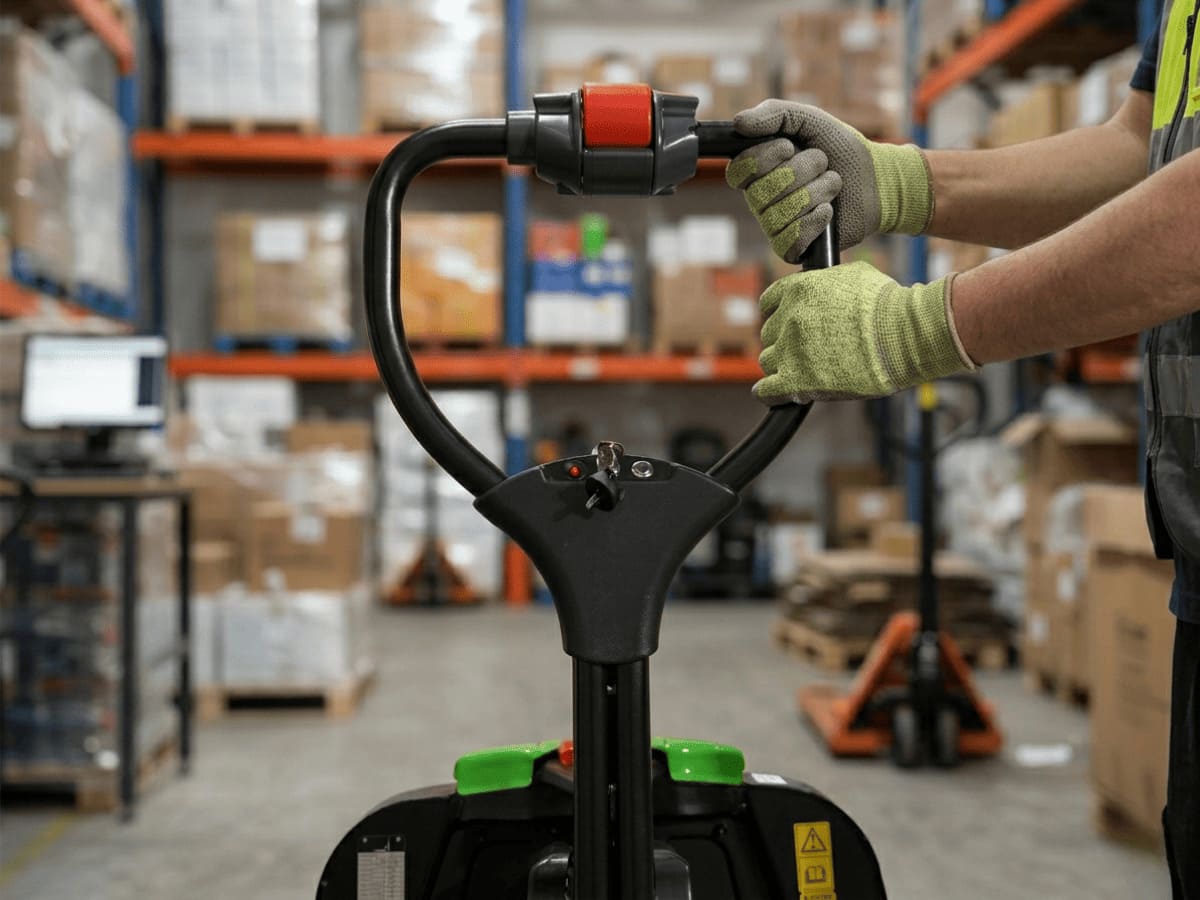

Throttle, horn, push-button lift and lower, and a reverse safety switch are all on the handle. The brake is electromagnetic, and the truck measures 74 dB(A) at the operator position, quiet enough for a retail backroom.

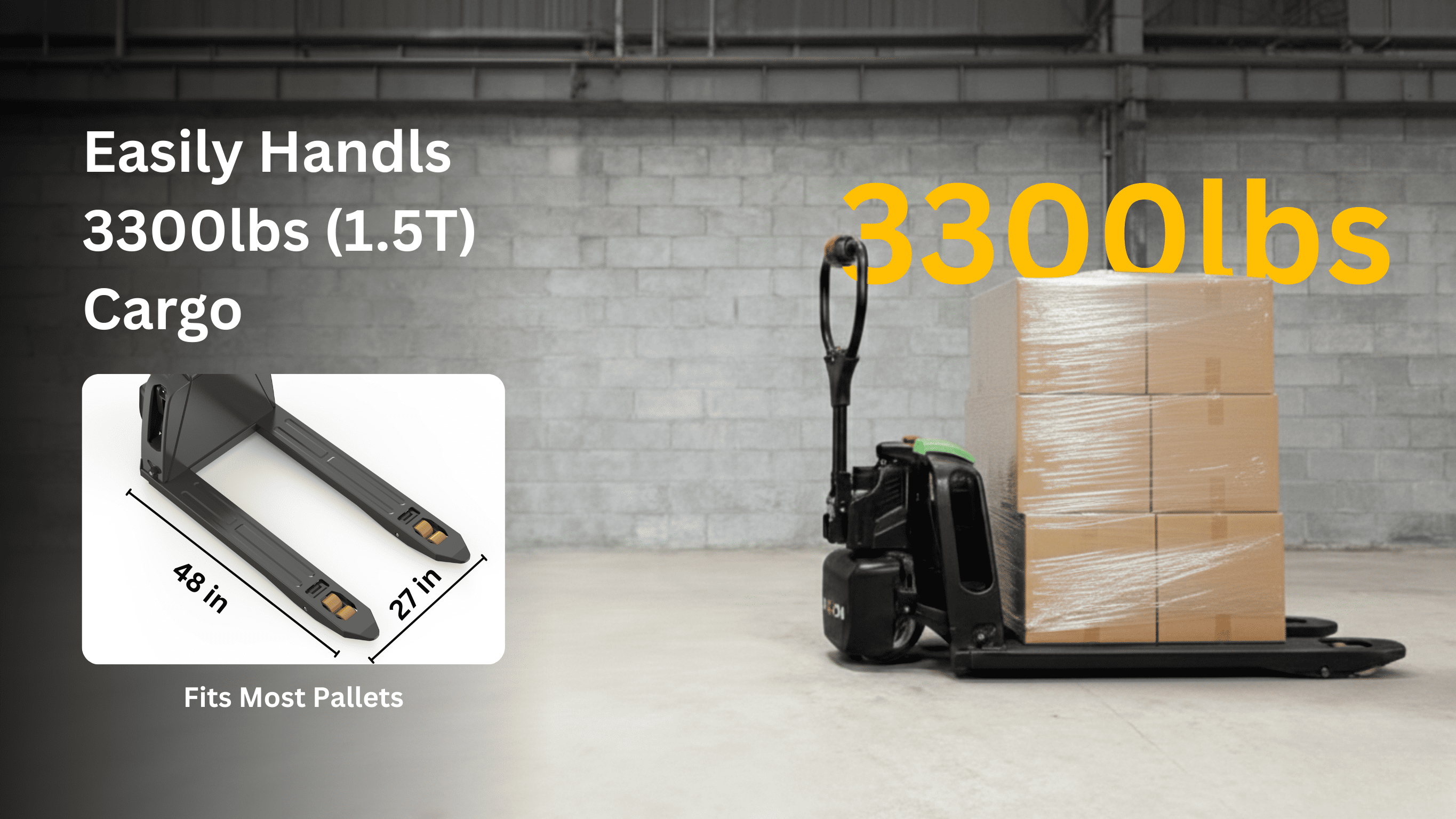

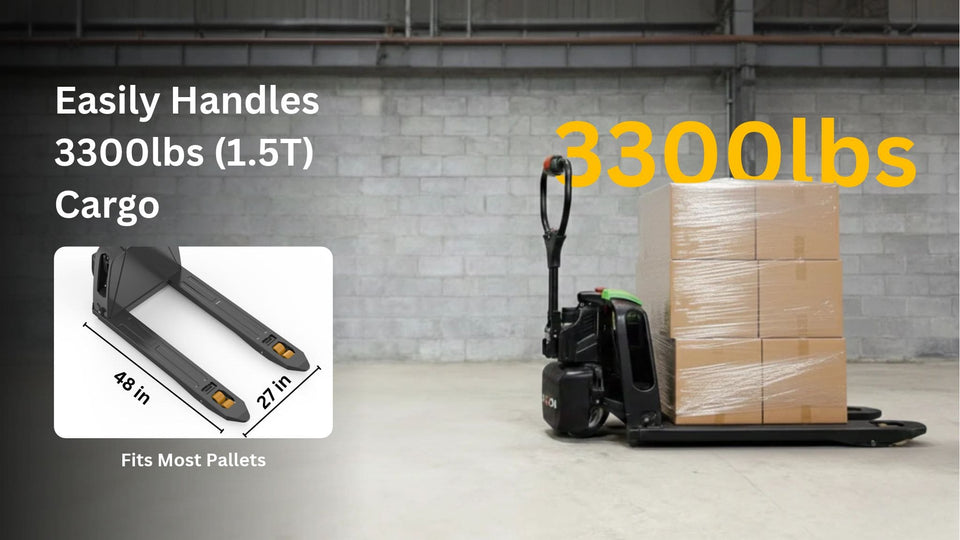

Forks are 48 × 27 in and 2.2 in thick, and sit 3.2 in off the floor when lowered. Rated 3,300 lb; if your heaviest pallet weighs more, look at the F4-201.
Weight. The F4 is rated 3,300 lb. Weigh your heaviest pallet first; if it is over, the F4-201 takes 4,400 lb.
Space. The truck is 64 in long and 27.4 in wide and needs about 56 in to turn. Measure your tightest aisle and your door openings. It cannot cross door thresholds.
Shift length. One charge gives about 5 hours with light loads. For a longer shift, choose “F4 (with 1 Battery) + 1 Extra Battery” and carry a charged spare.

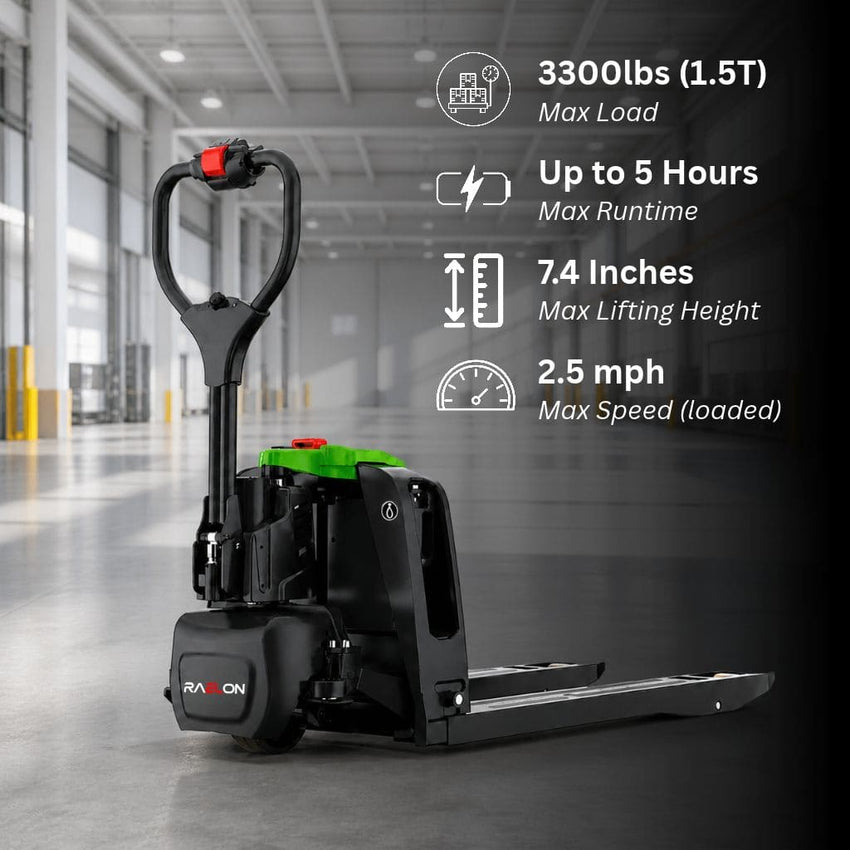

The 3,300 lb (1,500 kg) rating is measured at a 600 mm (23.6 in) load centre, which is about the middle of a 48 in pallet. If your heaviest pallet weighs more than 3,300 lb, the F4-201 is rated 4,400 lb.

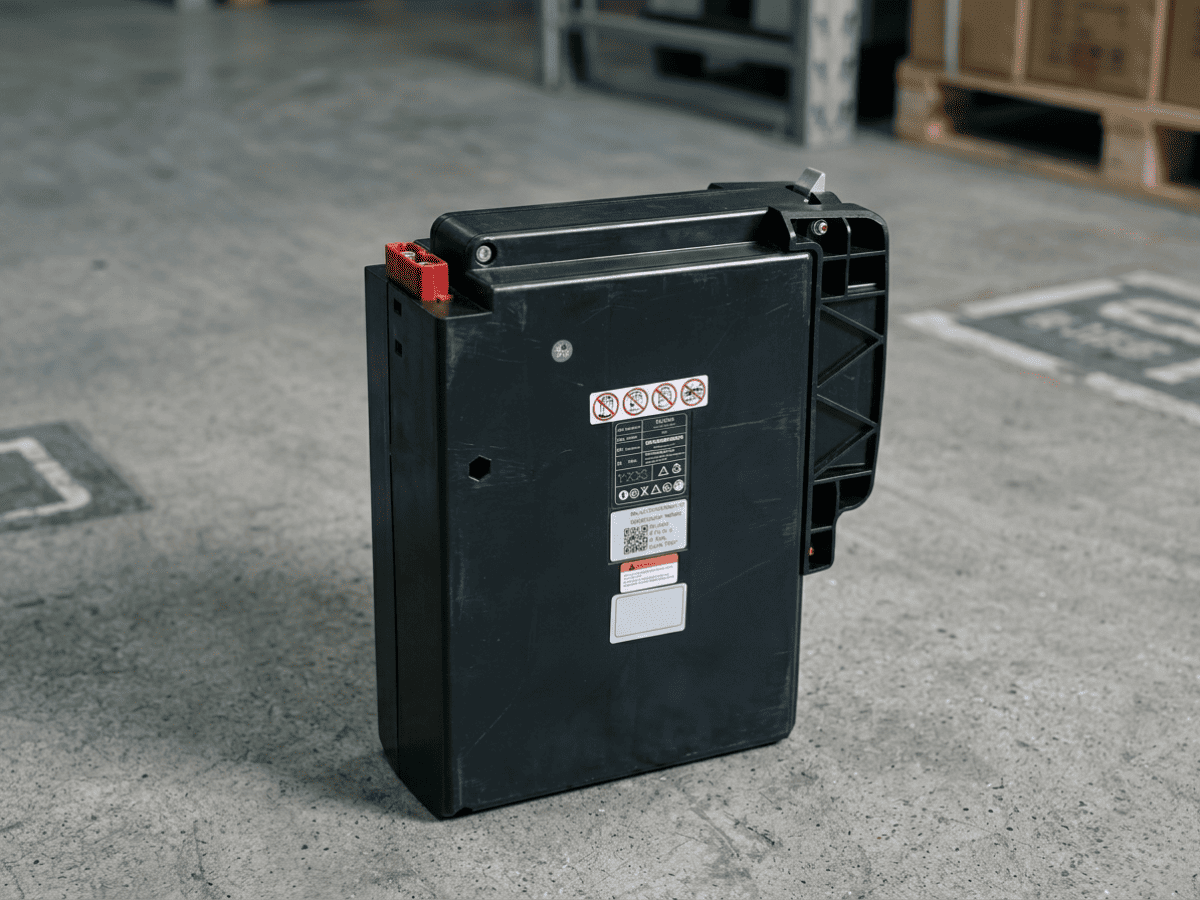

One pack weighs about 11 lb (5 kg) and can be taken out of the truck. The charger runs on 100–240V AC and needs about 2 hours per pack. One charge gives roughly 5 hours with light loads; heavy loads, long runs and cold rooms shorten that. Charge at room temperature, and take the pack out of a cold room when the truck is idle.

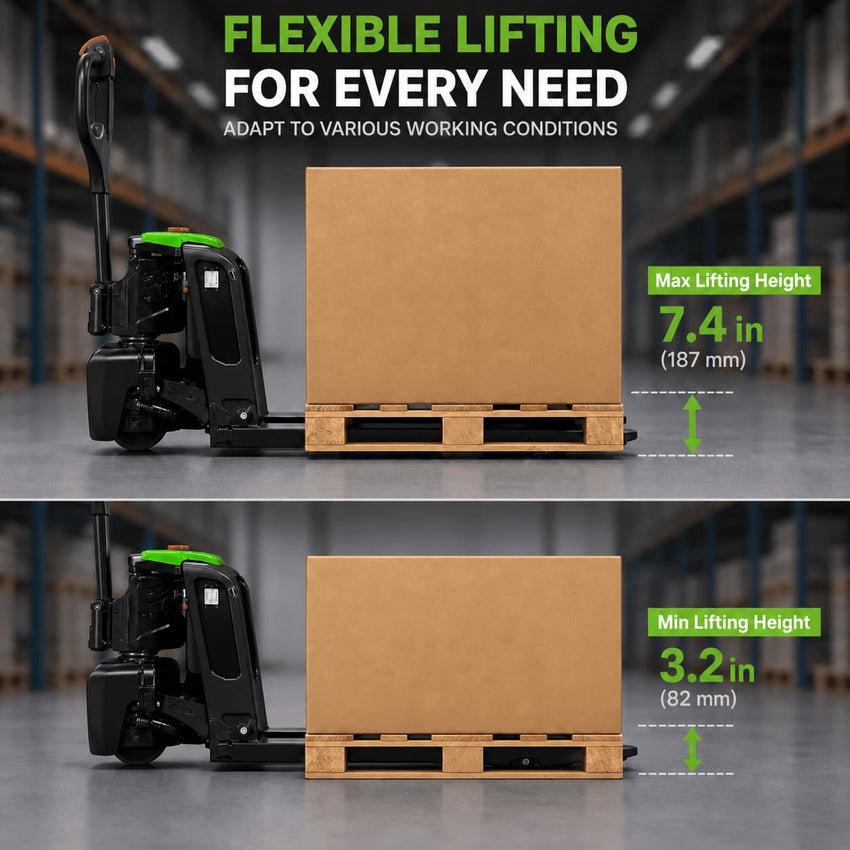

The forks lower to 3.2 in (82 mm) to slide into a pallet and rise to 7.4 in (187 mm) to carry it clear of the floor. A 0.5 kW motor does the lifting from push buttons on the handle. The F4 moves pallets along the floor; it does not stack them.

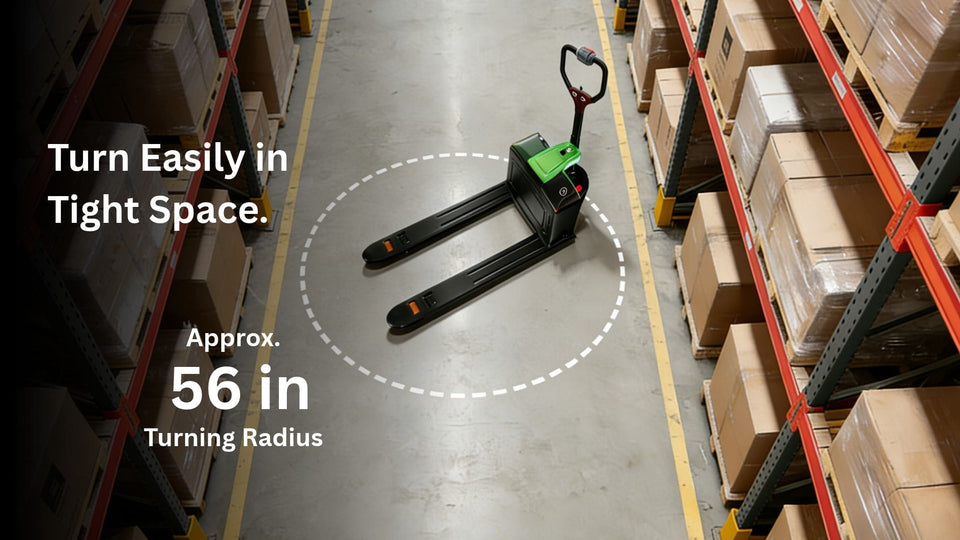

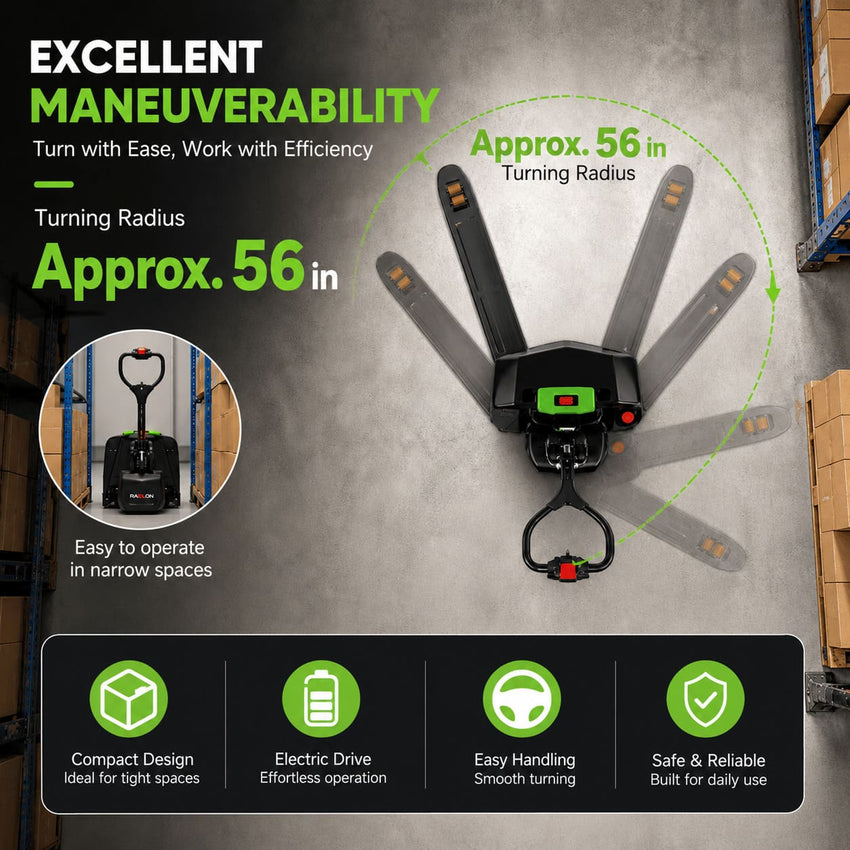

The turning radius is about 56 in, with a body 64 in long and 27.4 in wide. Find the tightest turn on your route and check it against the diagram before ordering.

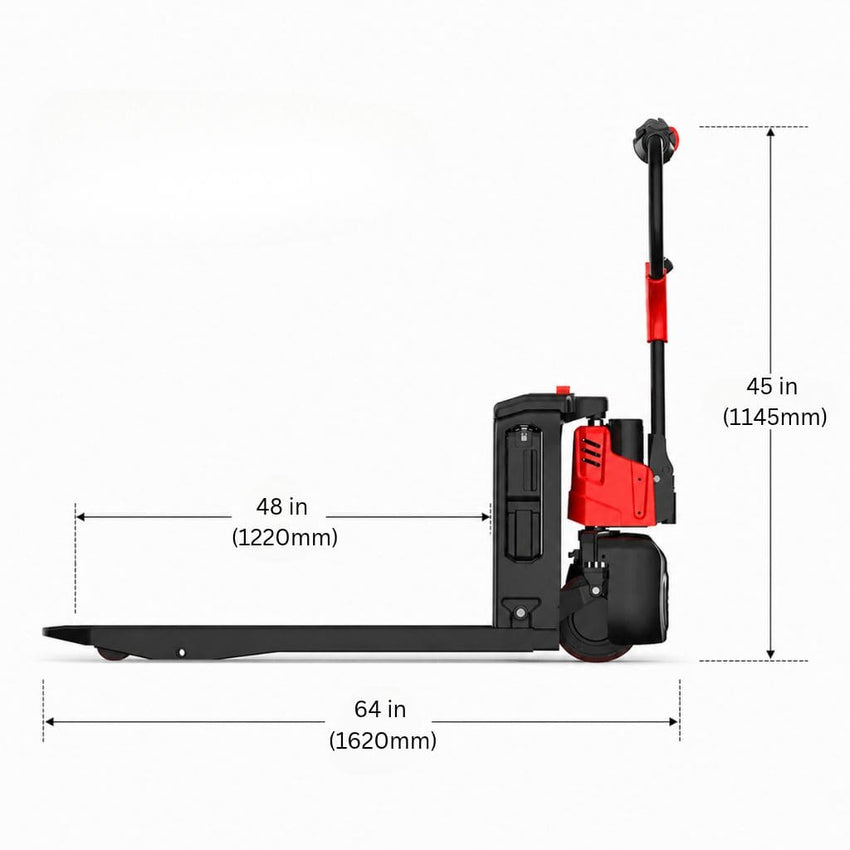

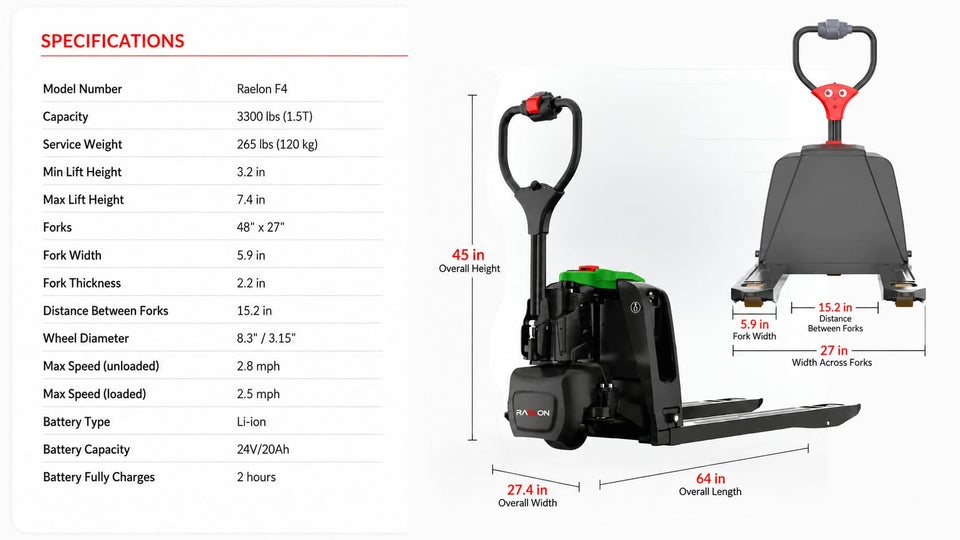

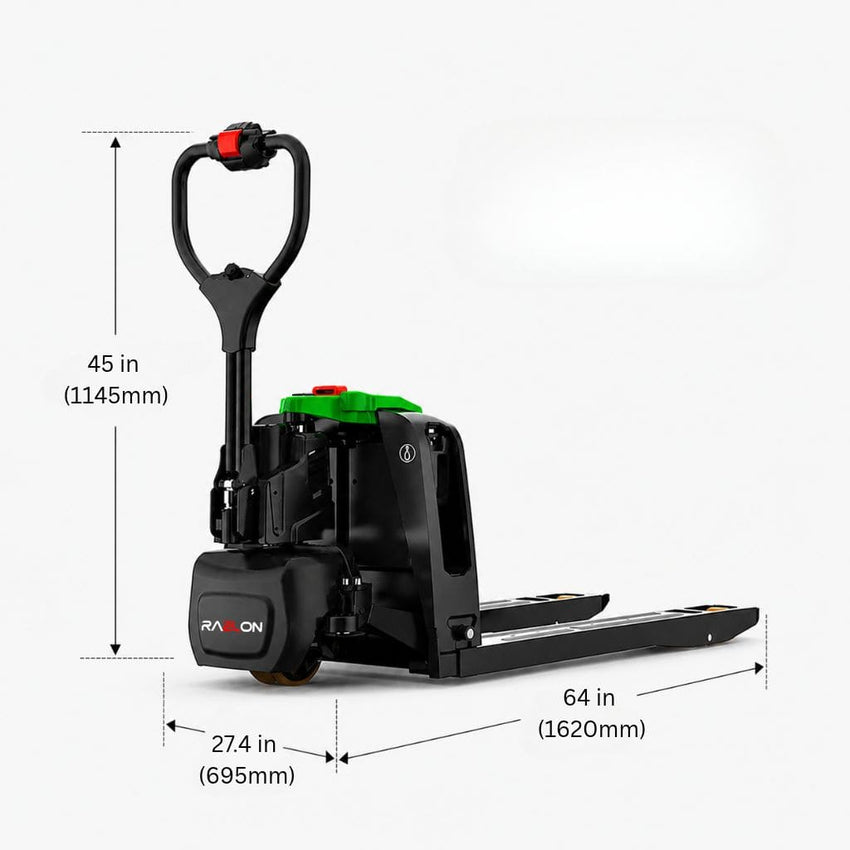

Overall size is about 64 in long, 27.4 in wide and 45 in tall with the handle up. The forks are 48 in long and 27 in across both forks; each fork is 5.9 in wide with 15.2 in between them. The truck cannot cross door thresholds, so keep the route flat.

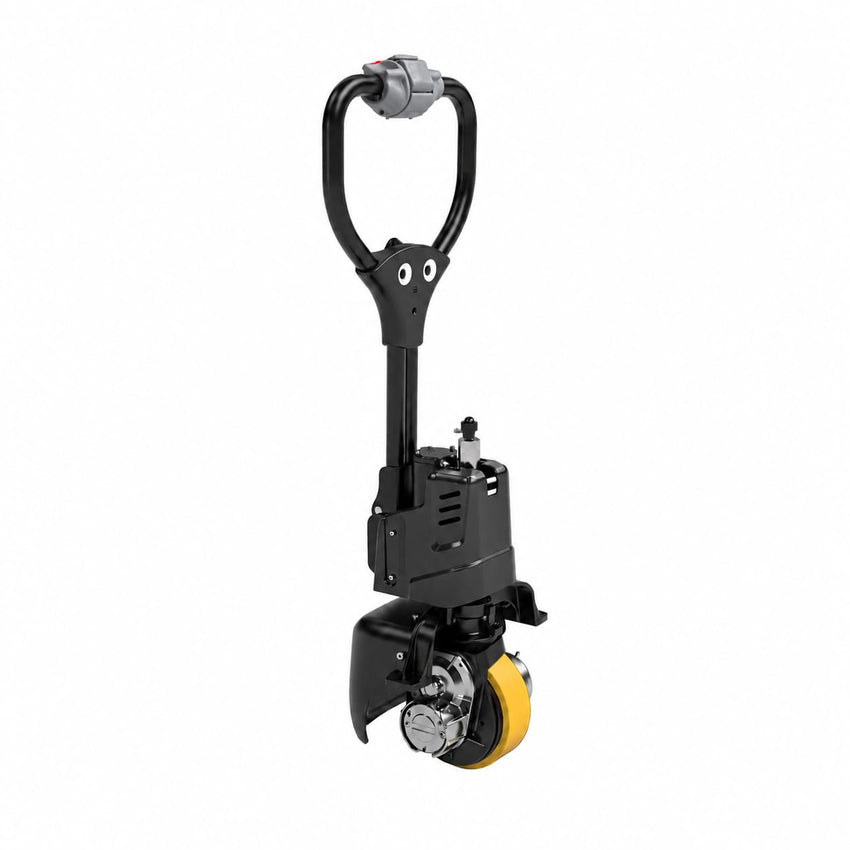

The wheels are non-marking polyurethane. They wear quickly on asphalt and uneven ground, so keep the F4 on smooth indoor floors. Wet floors are fine. The forks are 2.2 in thick, and an electromagnetic brake and a reverse safety switch are standard.
The F4-201 carries 1,100 lb more, climbs steeper ramps and runs on two batteries. If 3,300 lb is enough, the F4 does the job for less.
Swipe to compare models
In Stock
In Stock
Dimensions are approximate. The brochure and manual have the full tables.

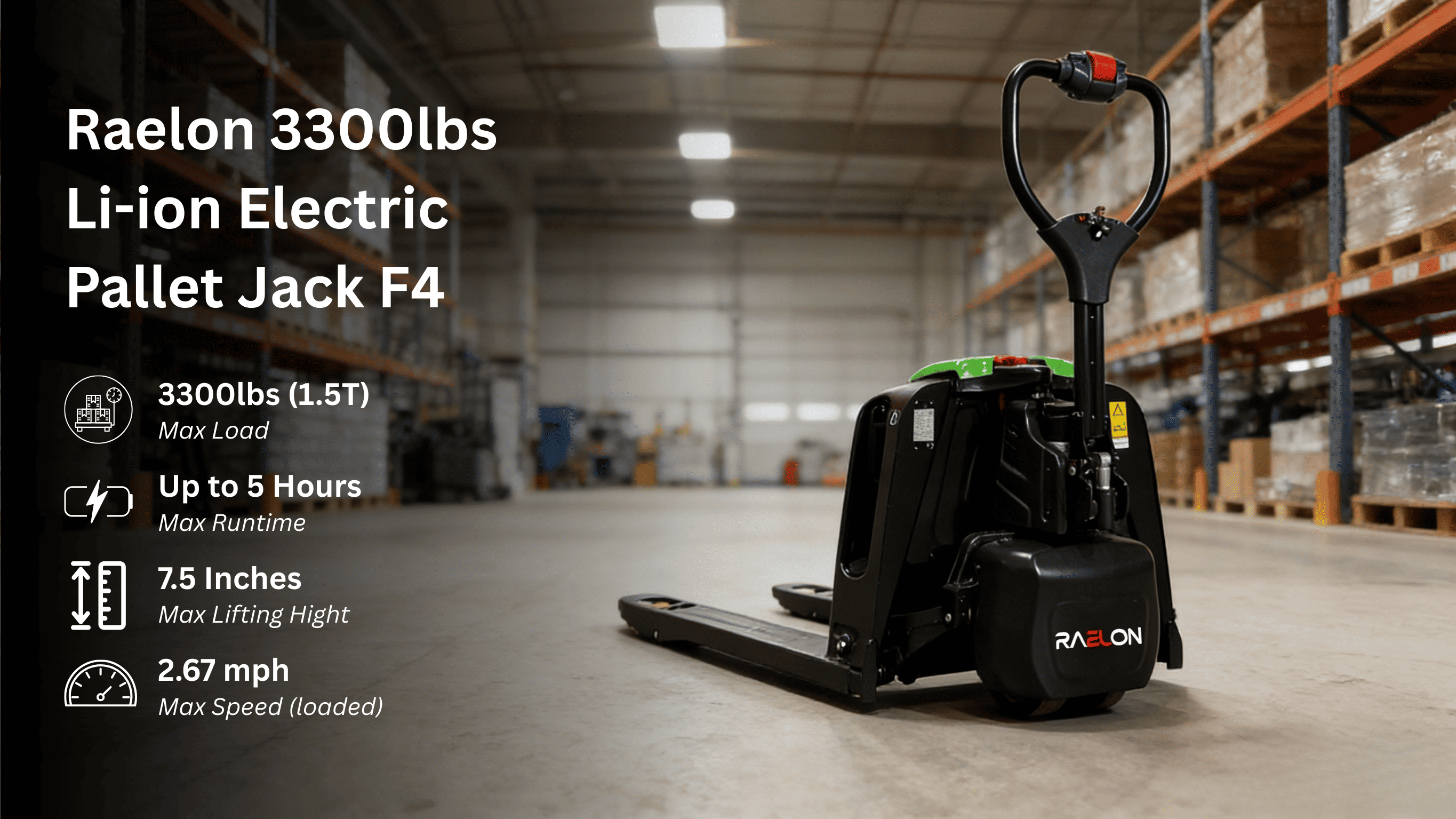

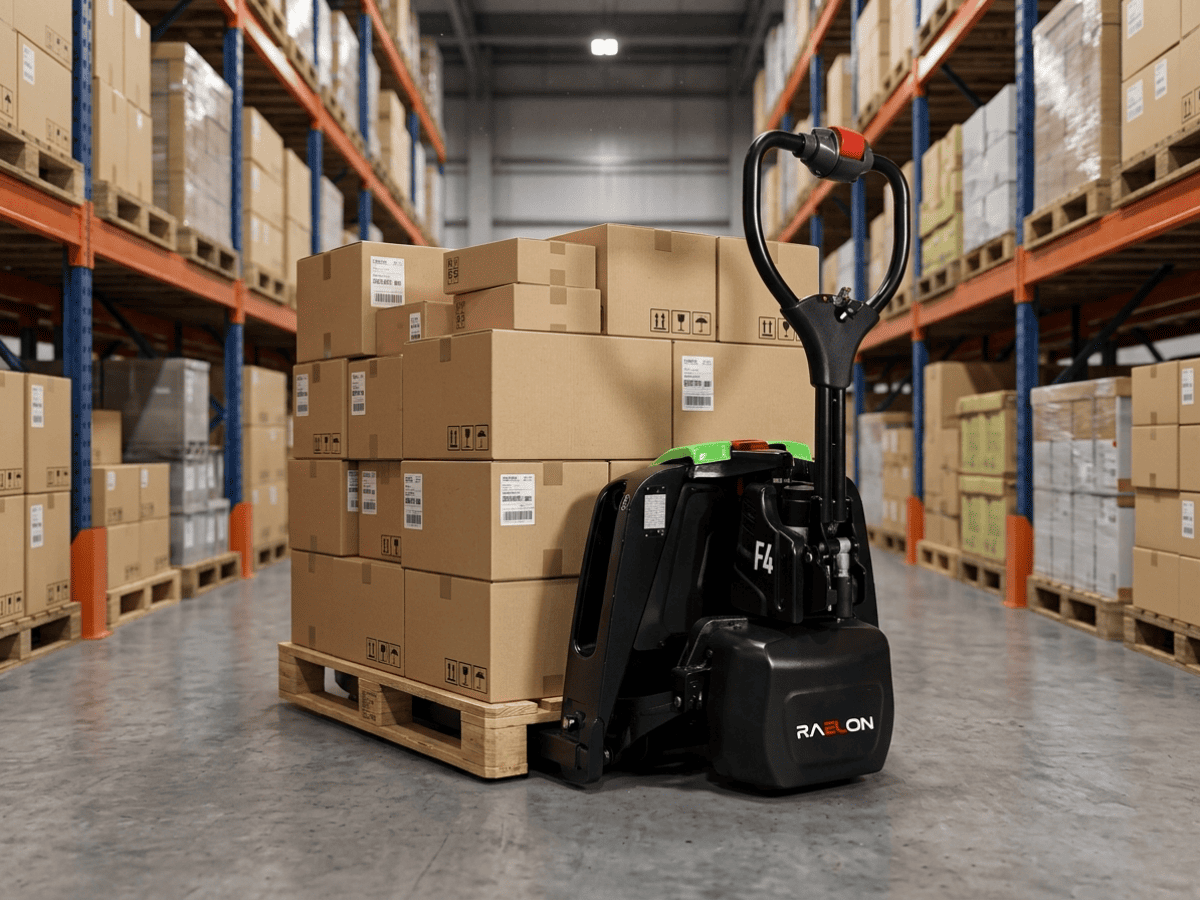

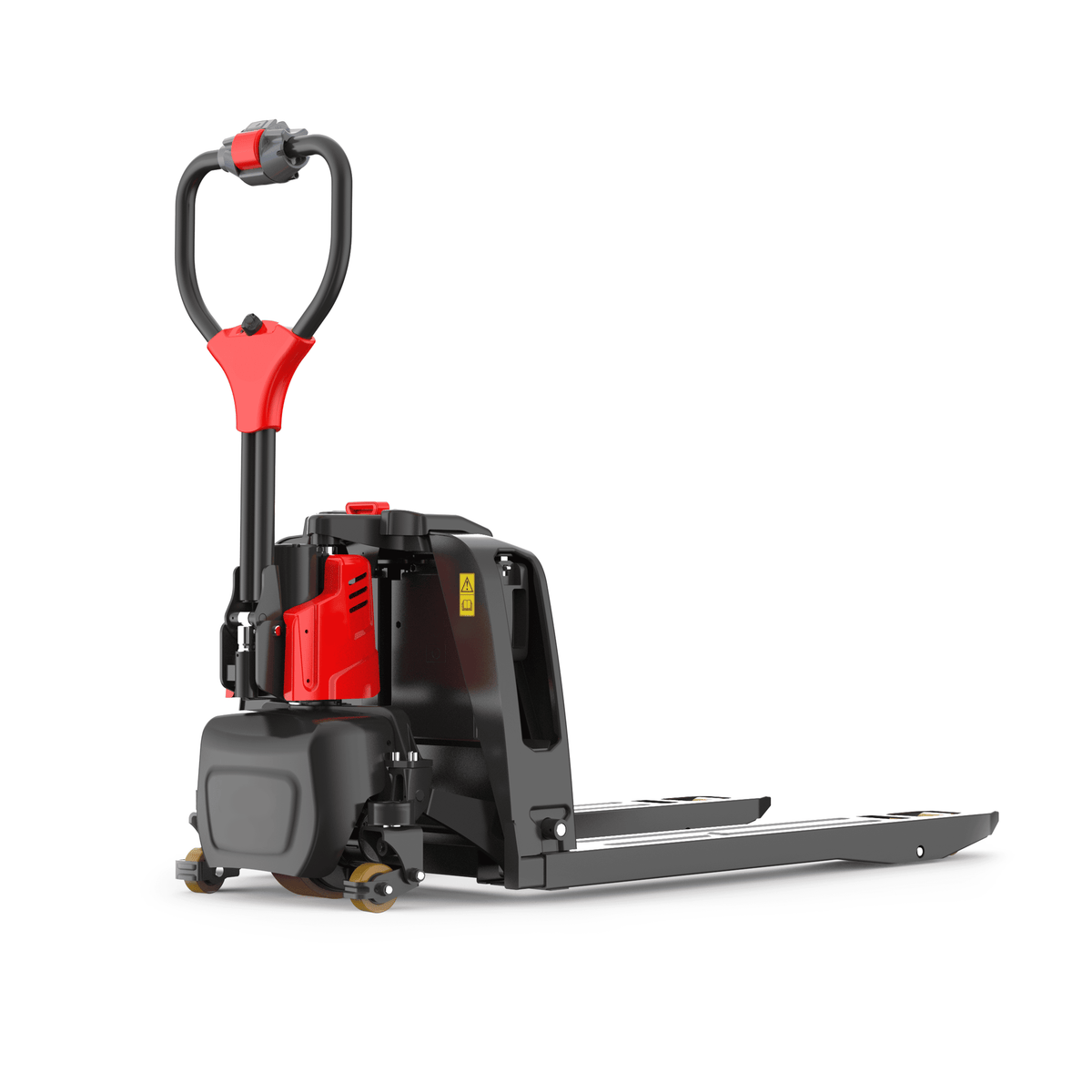

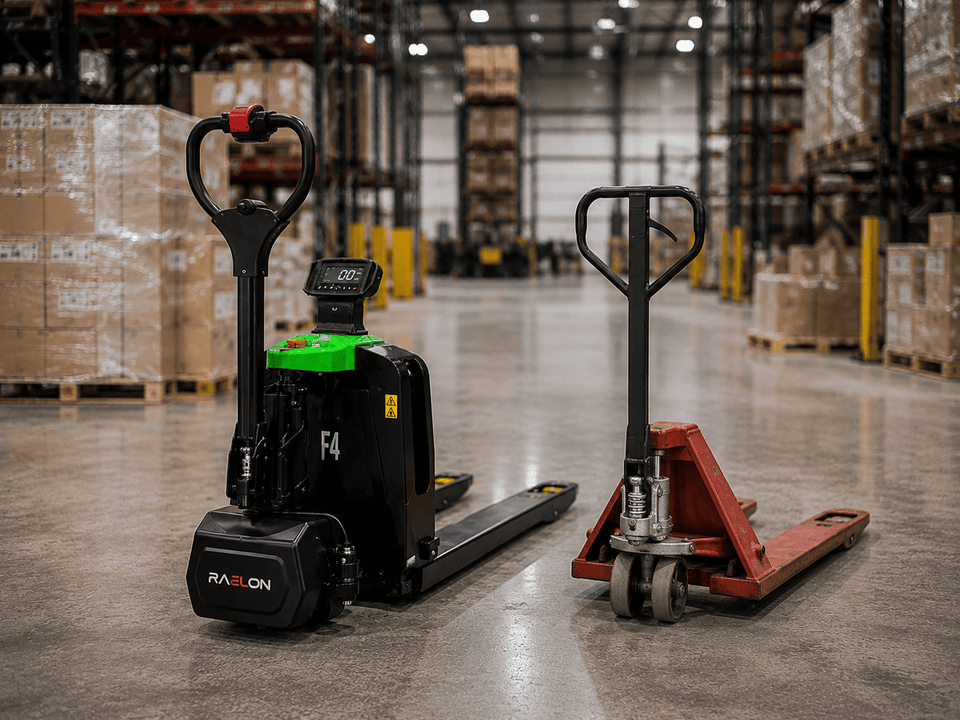

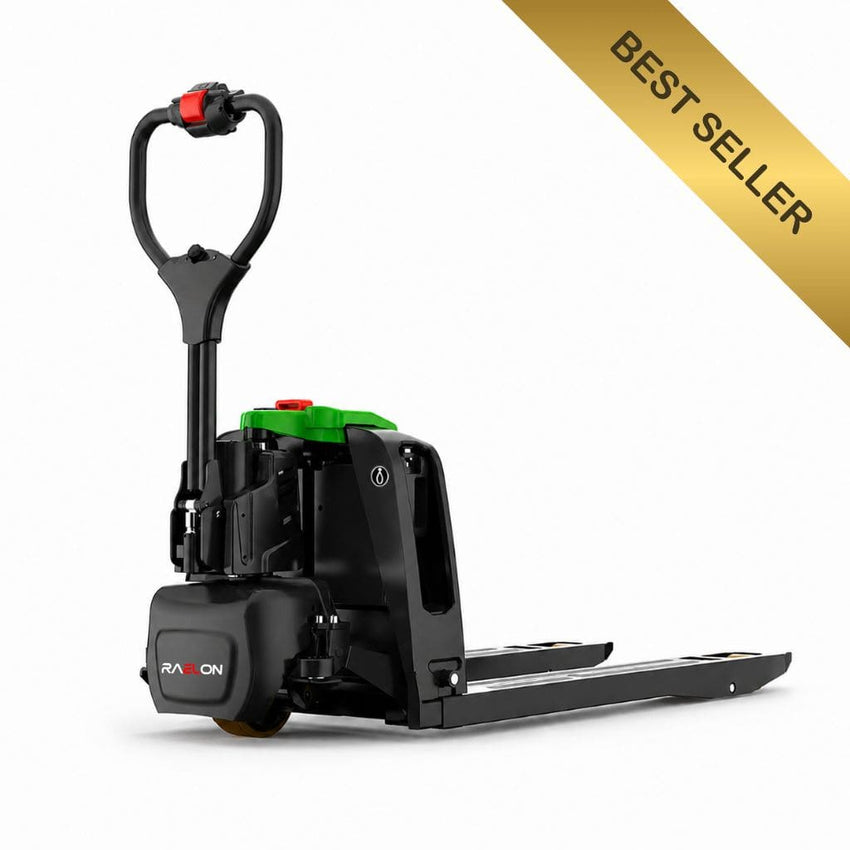

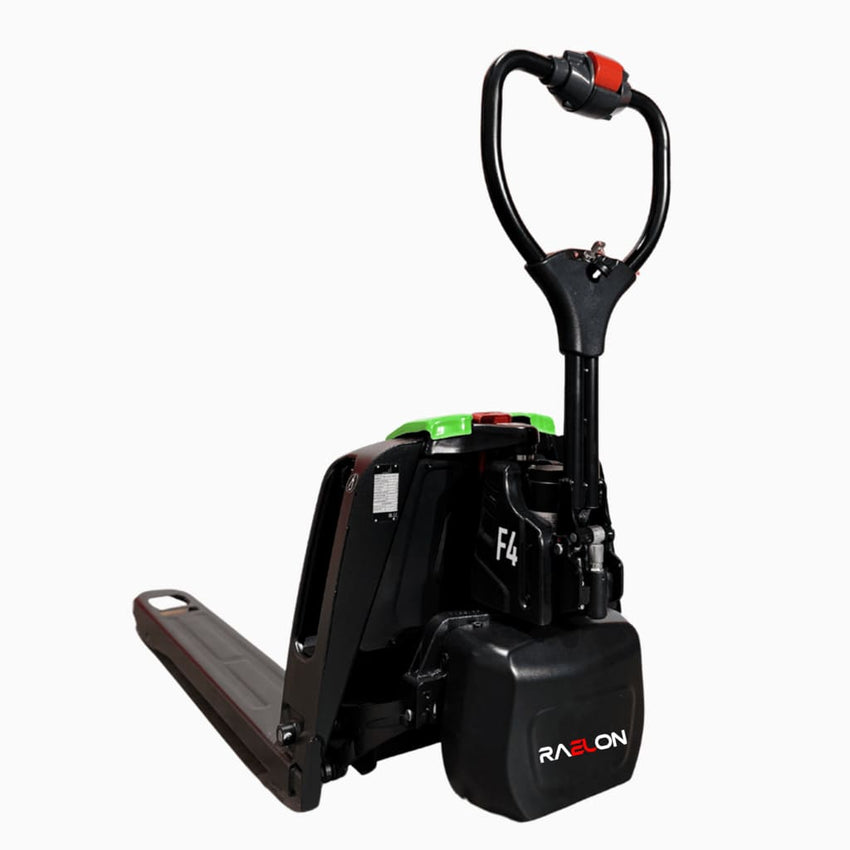

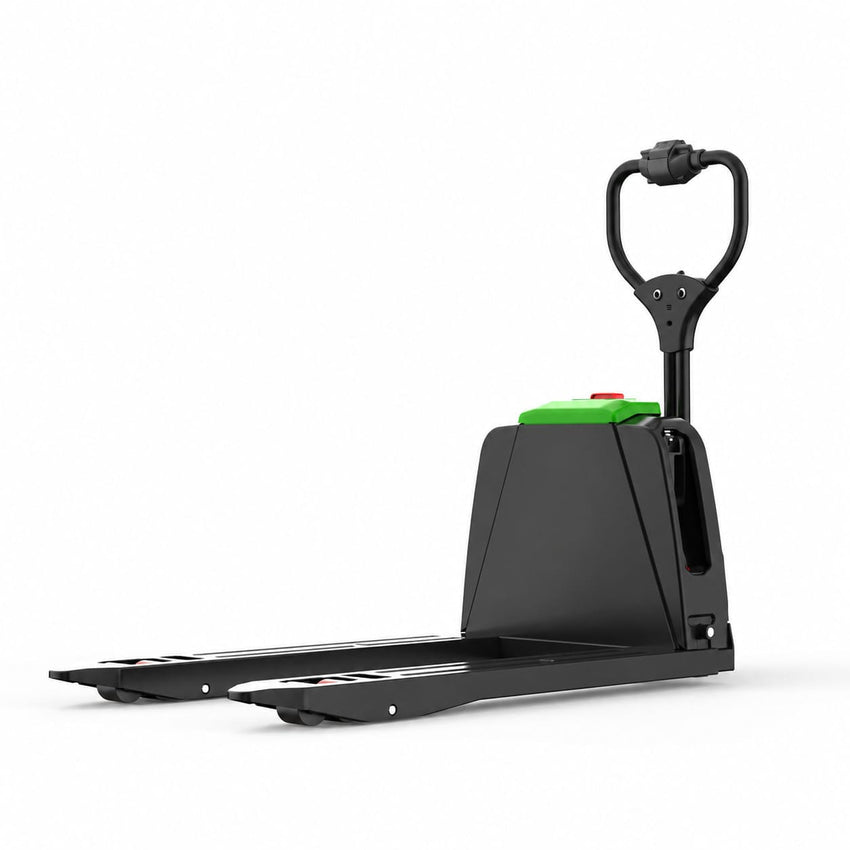

The Raelon F4 3,300 lb lithium electric pallet jack is a walk-behind pallet truck for indoor floors. It weighs about 265 lb, runs on a removable 24V / 20Ah lithium battery and carries standard 48 in pallets on 48 × 27 in forks. It replaces a manual pallet jack in stockrooms, receiving areas and retail backrooms, with powered drive and push-button lift and lower.

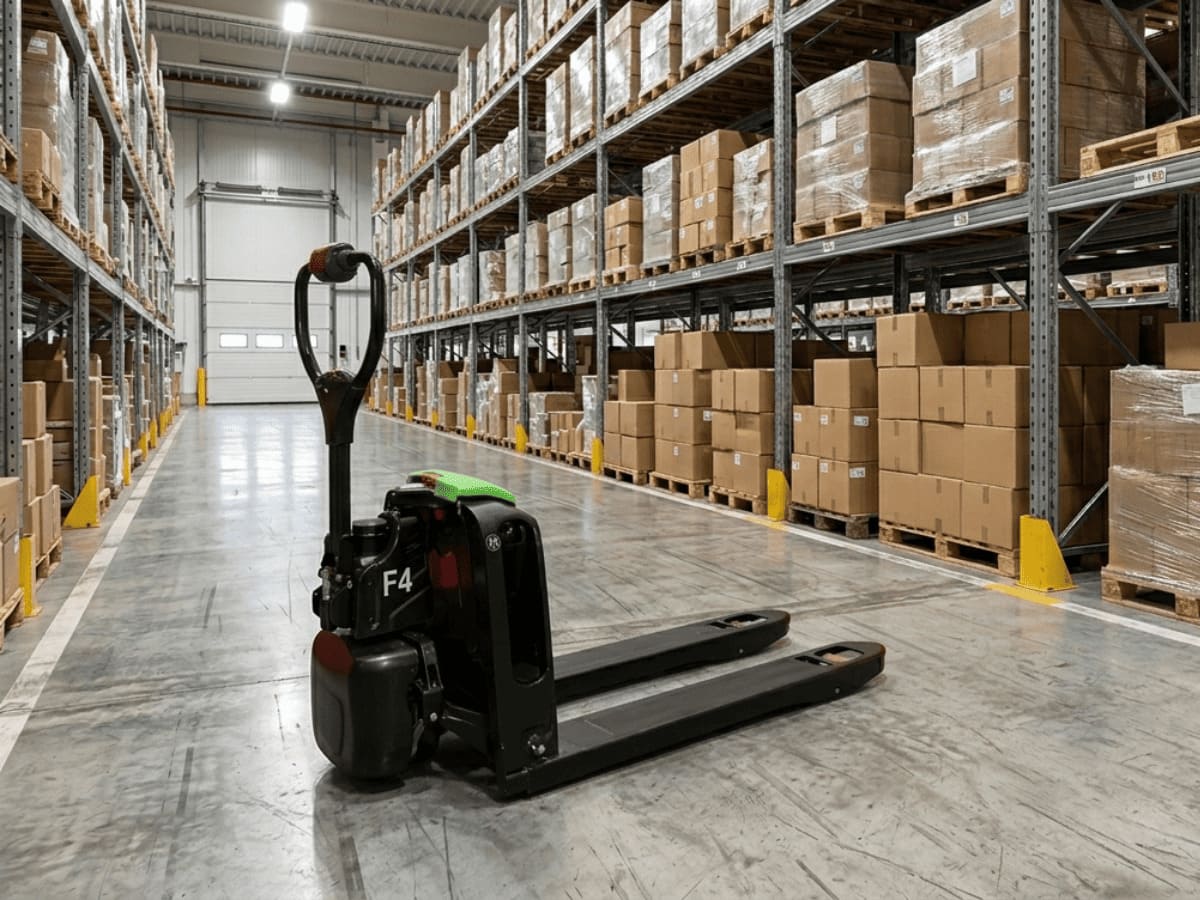

The truck is 64 in long and 27.4 in wide, and it turns in about 56 in, so it fits tight backrooms and narrow aisles. Check your route first: the F4 cannot cross door thresholds, so the floor needs to be flat.

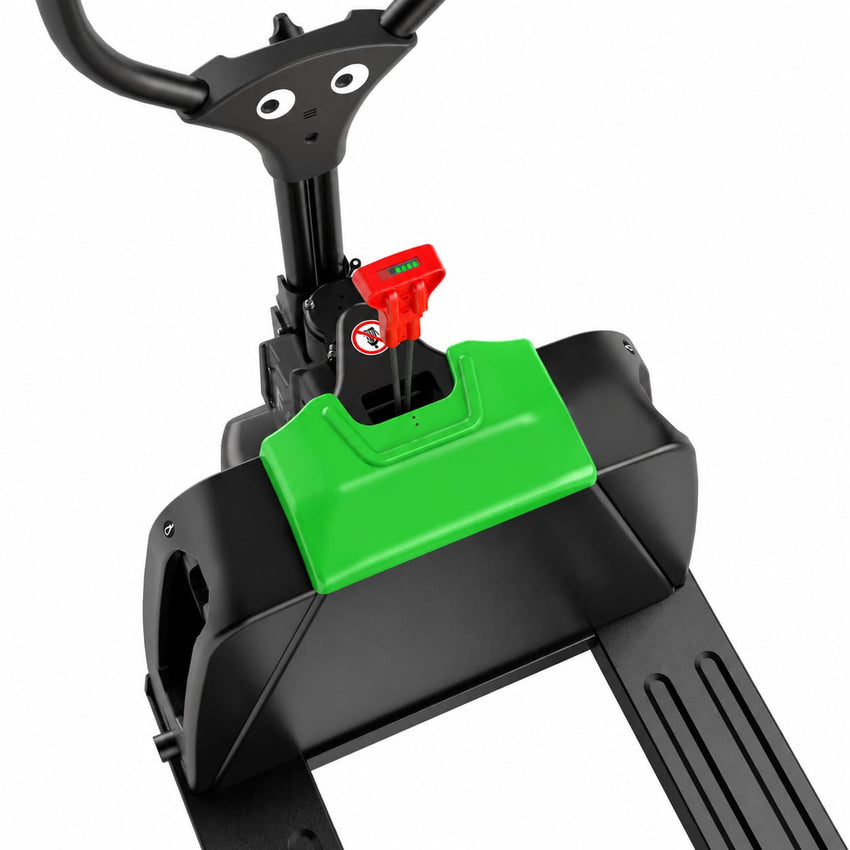

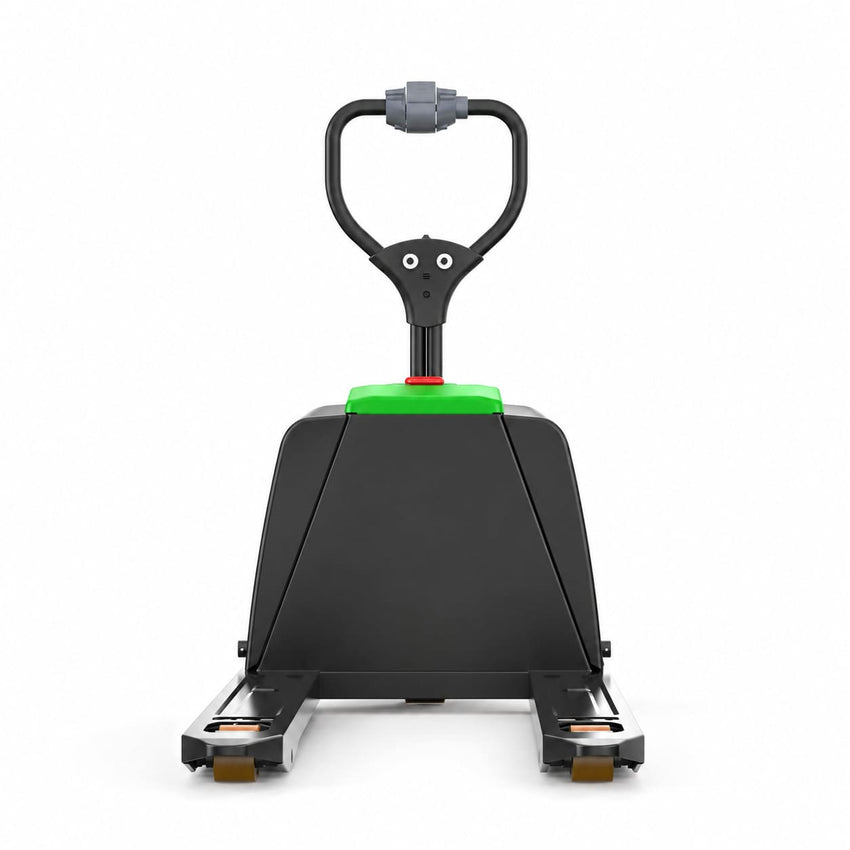

The F4 has two battery bays and one plug, so only one pack runs the truck at a time. Fit two charged packs, and when the first one runs flat, move the plug to the second by hand. You do not have to stop and wait for a recharge.

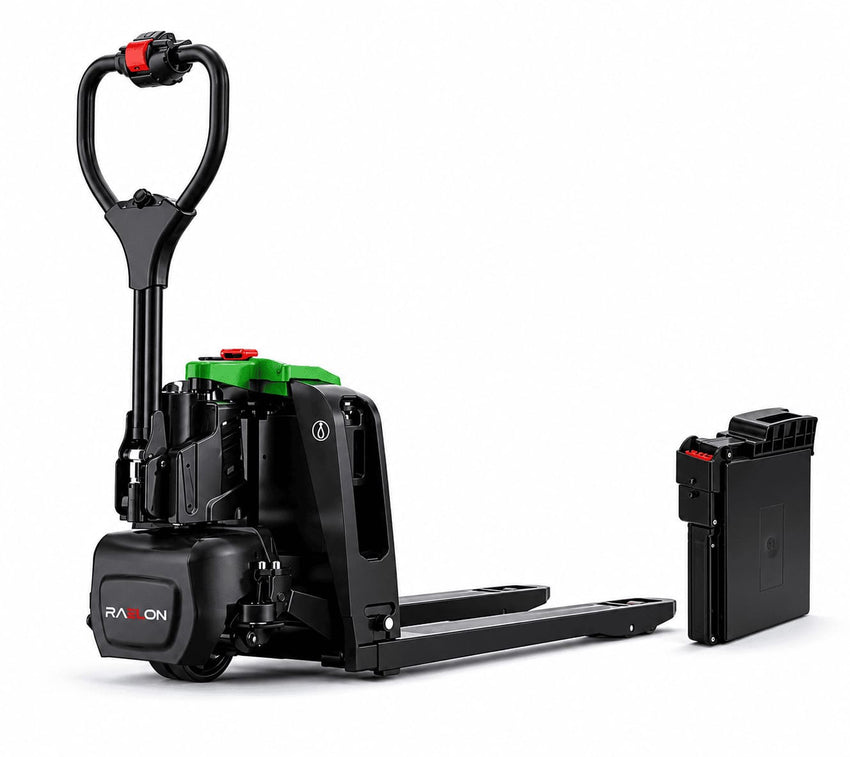

The "F4 (with 1 Battery)" option includes one battery and one charger. The "+ 1 Extra Battery" option includes two batteries and two chargers. With a dead battery the truck cannot be pushed, so keep a charged pack on hand.
One charge takes about 2 hours and gives about 5 hours of work with light loads. Heavy loads, long runs, ramps and cold rooms shorten that. Keep each charge to about 2 hours, charge at room temperature, and take the battery out of a cold room when the truck is idle. The charger is 24V DC, 10A, and plugs into a standard 100–240V AC outlet.

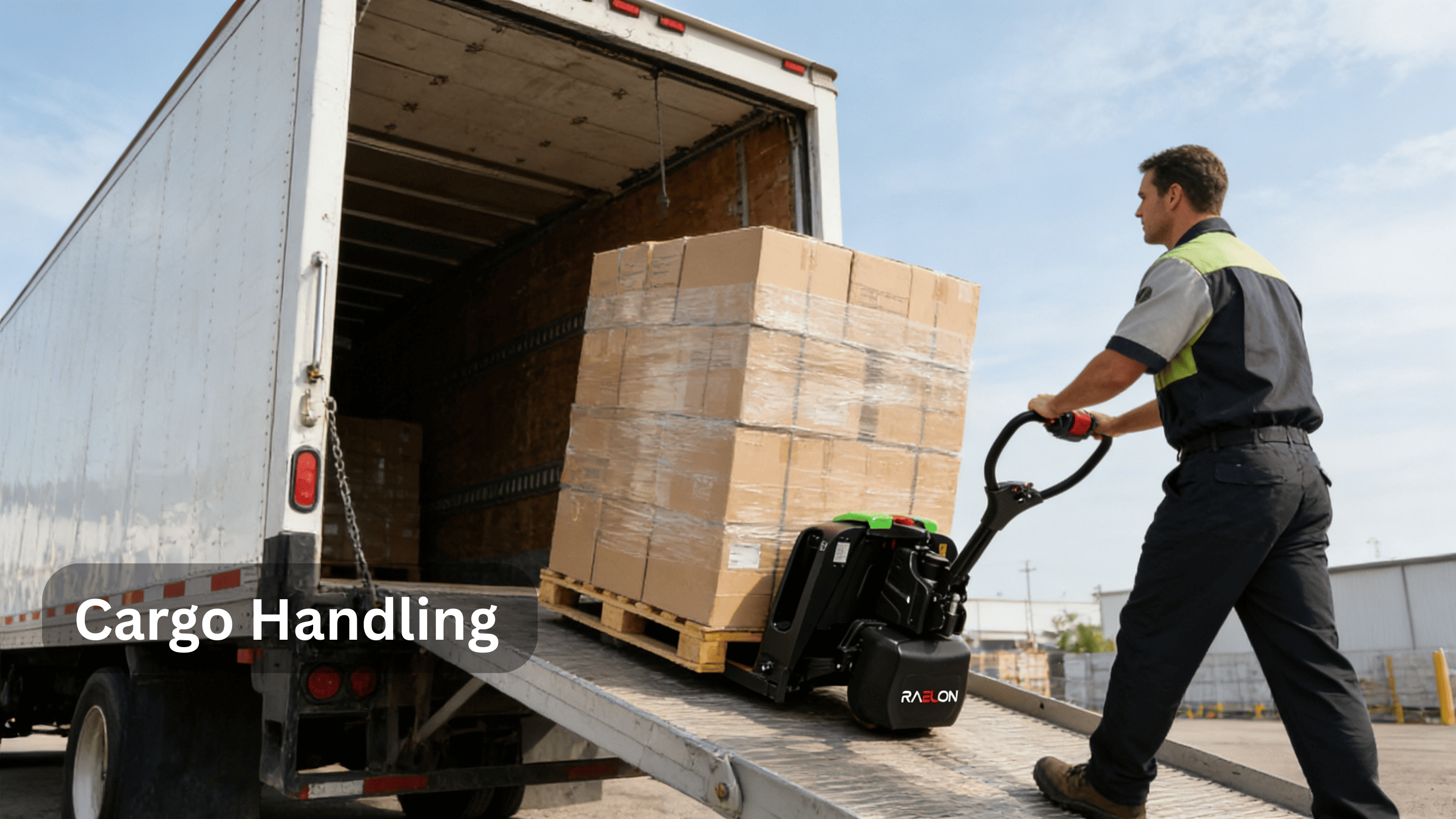

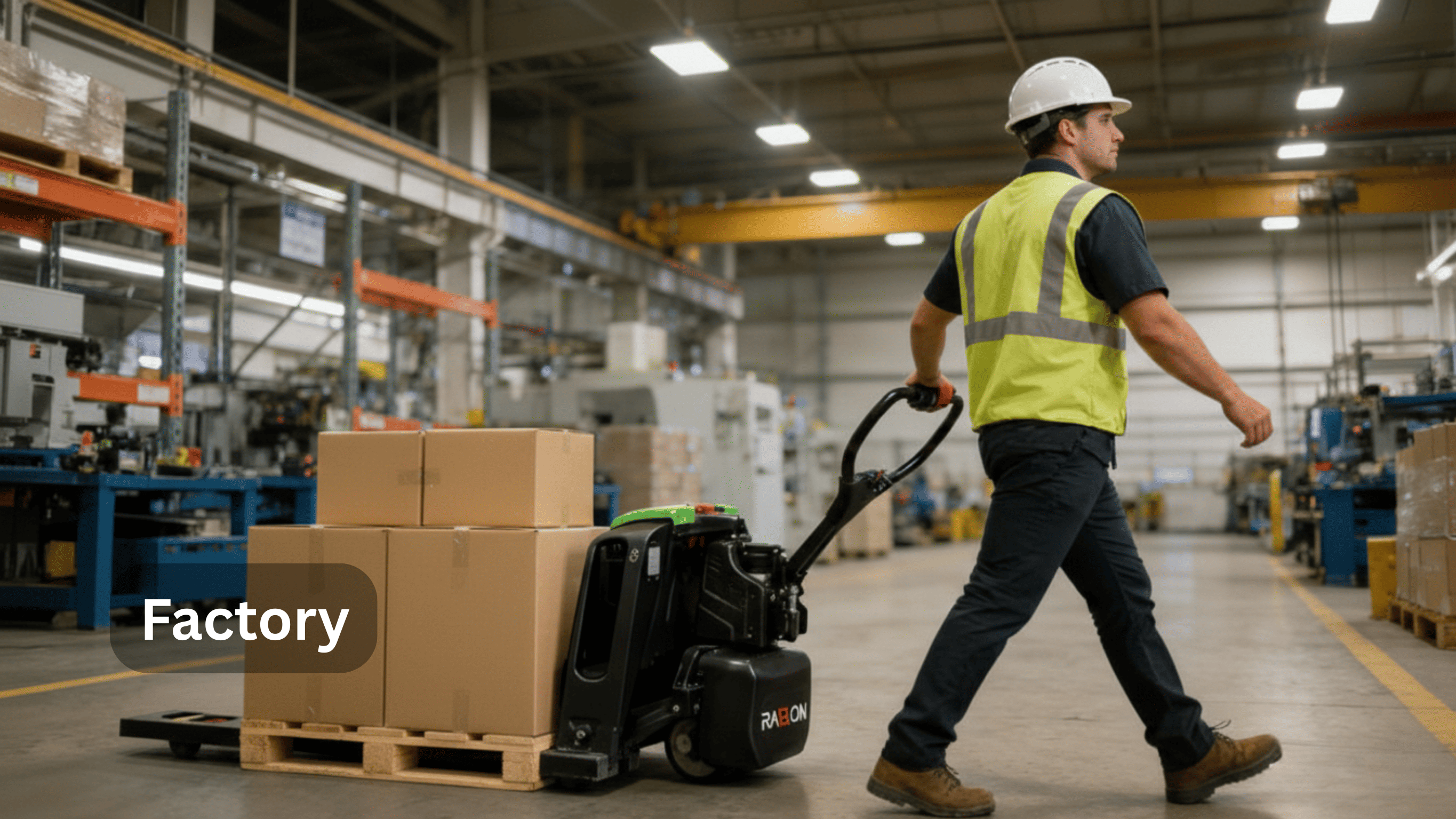

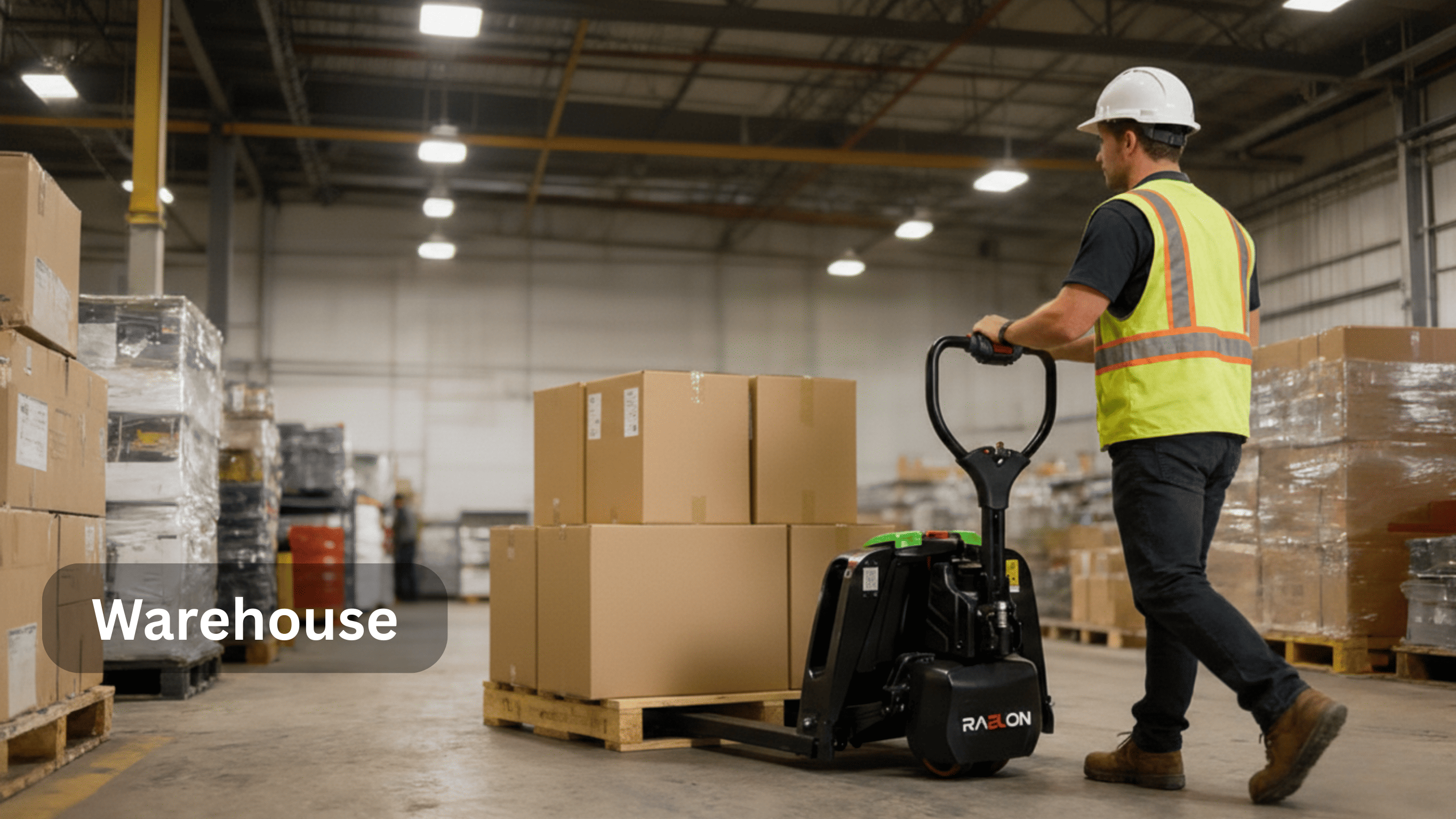

The F4 is built for smooth indoor floors: unloading at the dock, moving stock to racking, staging orders and shifting pallets around a shop or warehouse. Wet floors are fine. In a cold room it works, but the battery runs for less time. Ramps and dock plates are fine within the rated climb of 6% loaded and 16% empty. Raelon has not tested loaded climbs itself, so follow the manual.
Outdoor use is not recommended as a regular job. The polyurethane wheels wear quickly on asphalt and uneven ground, and they are the part that wears out first. At the operator position the truck measures 74 dB(A), quiet enough for a retail backroom.
The F4 is rated 3,300 lb at a 600 mm (23.6 in) load centre. If your heaviest pallet weighs more, step up to the F4-201 (4,400 lb). It also climbs steeper ramps (8% loaded) and comes with two batteries and two chargers.
The truck, battery and charger carry a one-year warranty from the delivery date (see the warranty terms). Orders ship within 2 business days of payment, and freight is quoted to your postal code by a third-party carrier. You can also pick up in Richmond, BC or Edmonton, AB, usually ready within 24 hours with no shipping fee.
An unopened, unused F4 can be returned within 30 days of delivery with Raelon's written approval. A 15% restocking fee applies and you pay the return freight; the full terms are in the refund policy.
View all Raelon electric pallet jacks to compare capacity, battery, pricing, pickup and shipping options.
Orders ship within 2 business days of payment. Freight goes by a third-party carrier and is quoted to your postal code; type it into the shipping estimator above for a figure.
Collect it yourself with no shipping fee. It is usually ready within 24 hours of ordering.
Current pickup locations: Richmond, BC Pickup, Edmonton, AB Pickup.
One year from the delivery date on the truck, the battery and the charger, subject to the warranty terms.
Spare batteries and the caster wheel set are sold on our site. For any other part, call 778-316-8133 or send a quote request with your model.
The F4 has two battery bays but one plug, so only one pack runs the truck at a time. Fit two charged packs (the “+ 1 Extra Battery” option comes with a second battery and its own charger). When the first pack runs flat, unplug it by hand and plug in the second. The truck does not have to stop for a recharge.
The truck cannot be pushed around with a dead battery; it needs a battery to move. Fit a charged pack first. The “+ 1 Extra Battery” option includes a second battery for this reason.
Yes. Its rated climb is 6% loaded and 16% empty, so plan the route around that grade. Door thresholds are different: the truck cannot get over them, so plan a flat route.
Wet floors are fine. A cold room works too, but the battery runs for less time. When the truck is idle, take the battery out and keep it at room temperature, and charge it at room temperature only, never in the cold room and never in extreme heat. Outdoor work is not recommended as a regular job: the polyurethane wheels wear quickly on rough ground and asphalt.

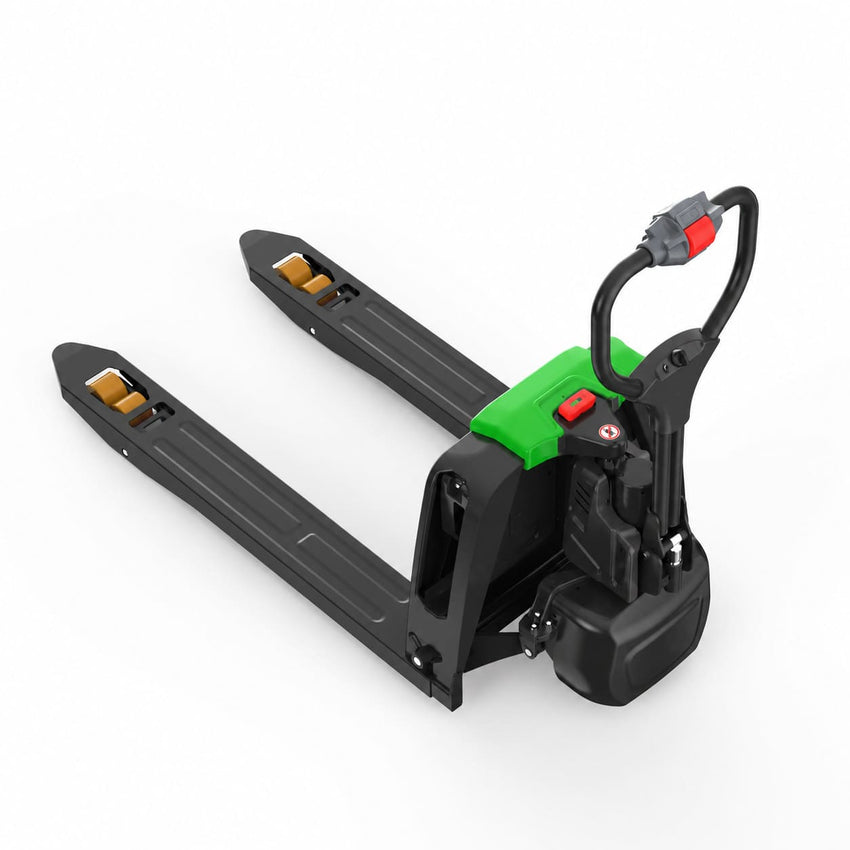

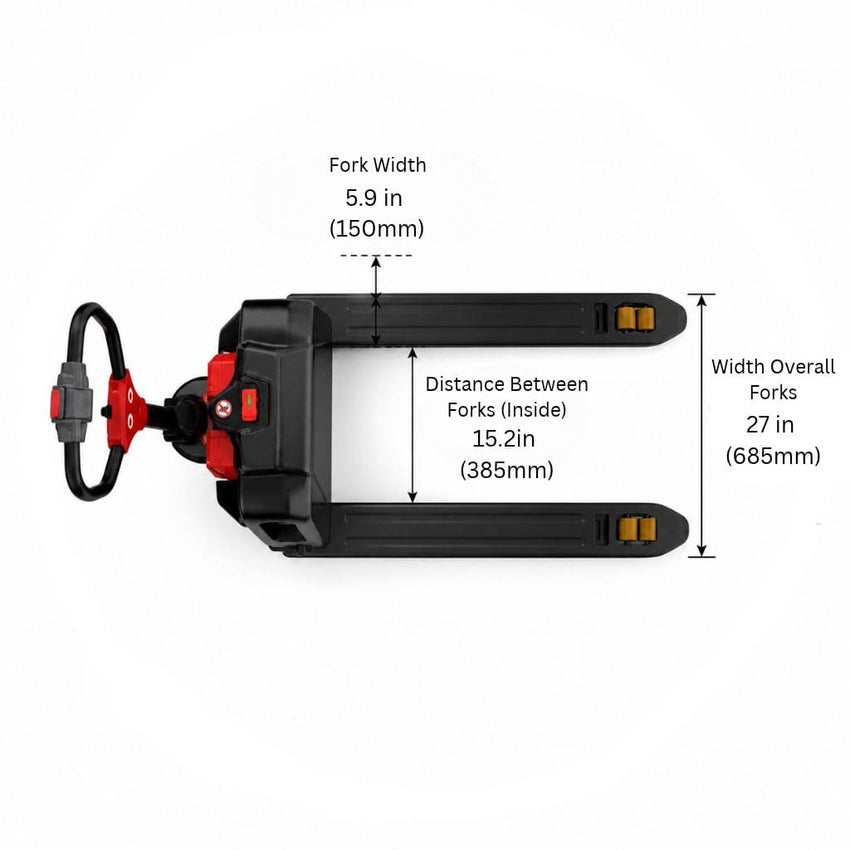

Standard 48 in pallets. The forks are 48 in long and 27 in across both forks, each fork 5.9 in wide with 15.2 in between. They are 2.2 in thick and sit 3.2 in off the floor when lowered, which works with common pallets.
About 5 hours of work per charge, measured with light loads rather than at the full 3,300 lb, so expect less with heavy loads, long runs or ramps. A charge takes about 2 hours. Keep each charge to about 2 hours, and avoid charging in heat or cold.
The wheels. Polyurethane wheels wear fast on asphalt and uneven ground, so use the F4 on smooth warehouse floors. Charge in a room-temperature space, about 2 hours at a time, and the battery should not need replacing in normal use.
One year from the delivery date on the truck, the battery and the charger, subject to the warranty terms.
Orders ship within 2 business days of payment. Freight goes by a third-party carrier and is quoted to your postal code; use the shipping estimator near the buy button. You can also pick it up in Richmond, BC or Edmonton, AB, usually ready within 24 hours with no shipping fee.
An unopened, unused F4 can be returned within 30 days of delivery with Raelon's written approval. A 15% restocking fee applies and you pay the return freight. Full terms are in the refund policy.
F4 PARTS
A second pack for the second bay. Older F4 and F4-201 trucks bought in 2025 use a different battery connector, so check which one you have before ordering.
