Pick it when your heaviest pallet is over 3,300 lb, or when your route has a ramp the F4 is not rated for. If nothing you move is that heavy, the F4 does the job for less.
Nothing you move is over 3,300 lb, your route is flat and you are happy with one battery. The F4 is rated 3,300 lb, runs on a single 24V pack and costs less. It is the same size to within an inch or two.

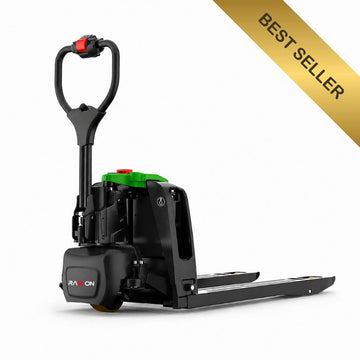

Raelon F4 3300 lb Lithium Electric Pallet Jack
$1,859.00
In Stock
Eight things to check against your pallets, your ramps and your shift.
The 4,400 lb (2,000 kg) rating is measured 23.6 in (600 mm) from the fork face, about the middle of a 48 in pallet. It covers the pallets between 3,300 and 4,400 lb that the F4 is not rated for.

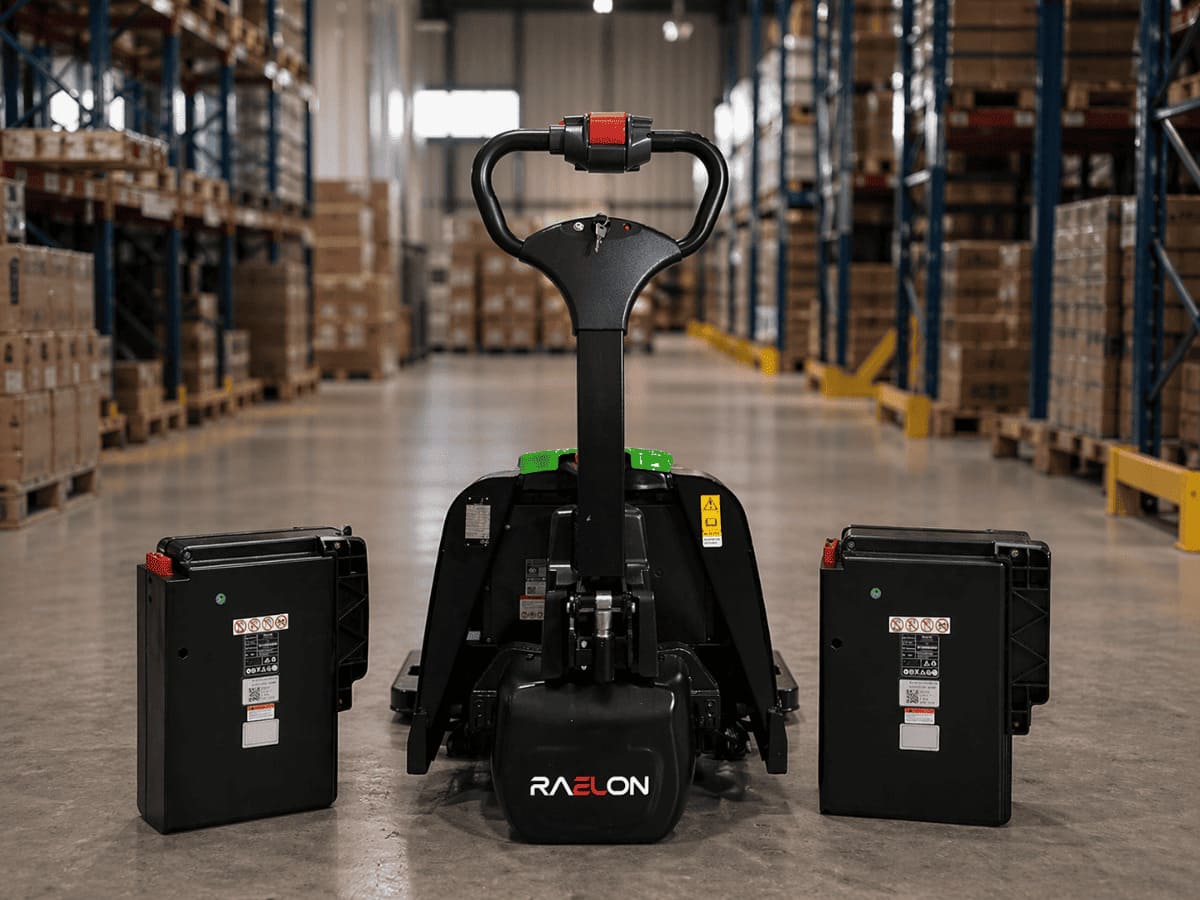

One 24V / 20Ah battery sits in each bay and the two are wired together to make 48V. Both must be fitted for the truck to move; it will not run on one.
The “+ 1 Extra Battery” option adds a third pack. If one of the two in the truck has a problem, swap in the spare and keep working. It does not run alongside the other two.
Take both batteries out and charge them together on the two included chargers. Keep each charge to about 2 hours, at room temperature, on a standard 100–240V AC outlet.
That figure is for light loads, not the full 4,400 lb. Heavy loads, long runs, ramps and cold rooms shorten it, so size your charging breaks to your heaviest shift.
The rated climb is 8% loaded and 16% empty, against 6% loaded on the F4. Measure your ramp and stay inside those numbers, especially with a heavy load.

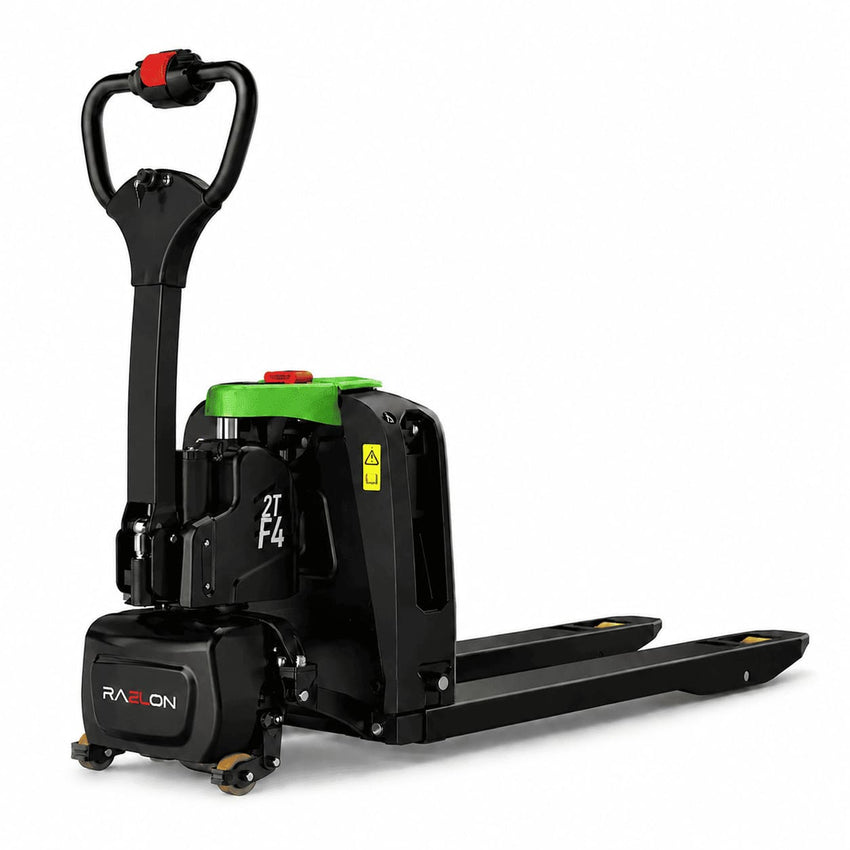

Above about 3,300 lb the truck can feel unsteady in a turn or on a slope. The “+ 2 Stabilizing Wheels” option adds two caster wheels to keep it planted.

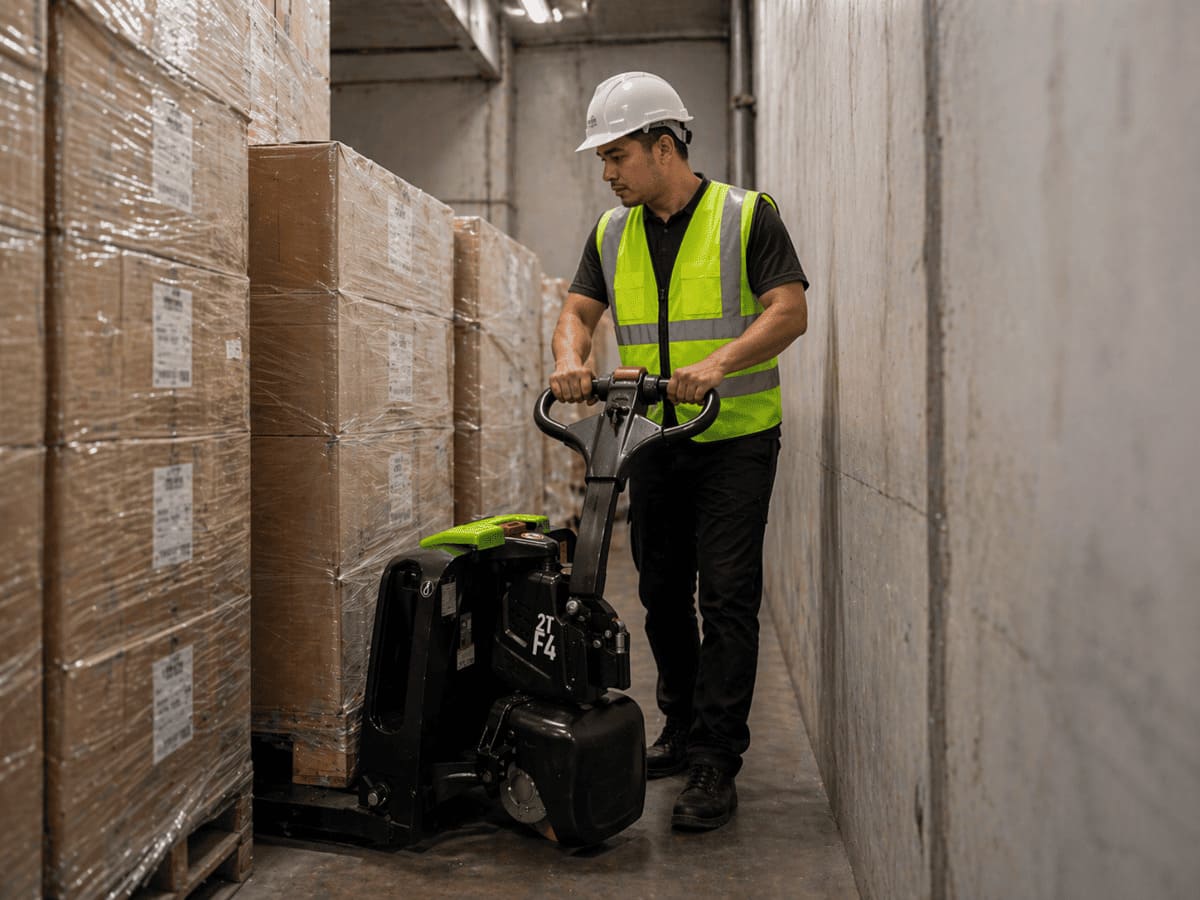

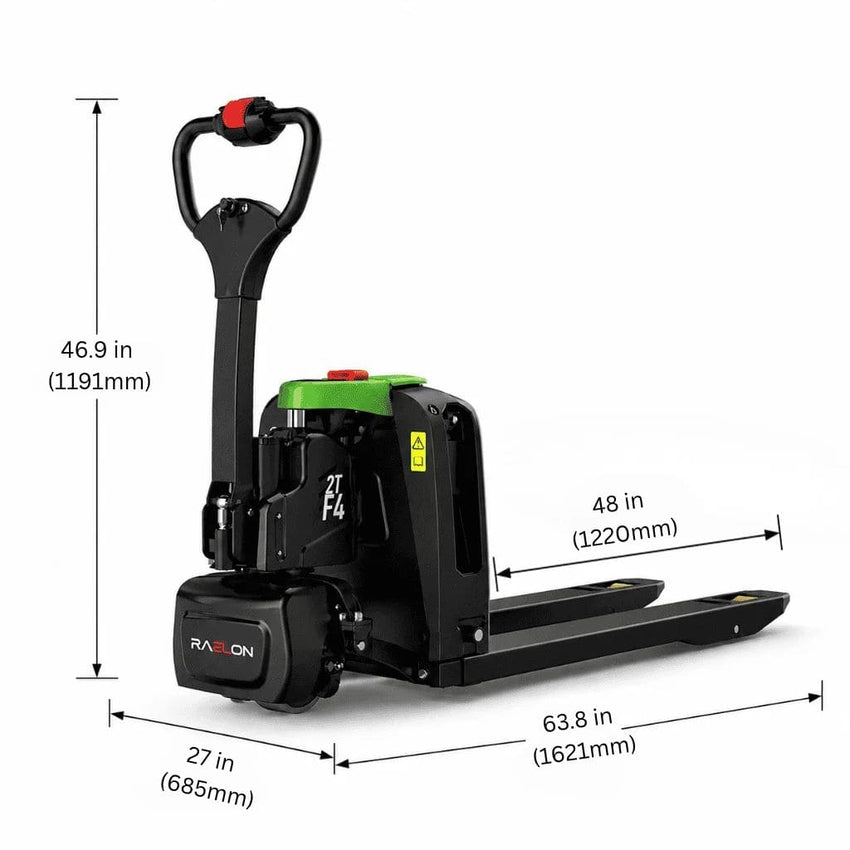

The truck is 63.8 in long, 27 in wide and turns in about 56 in. Measure your tightest aisle and turn against those numbers, and remember a pallet on the forks takes up room too.

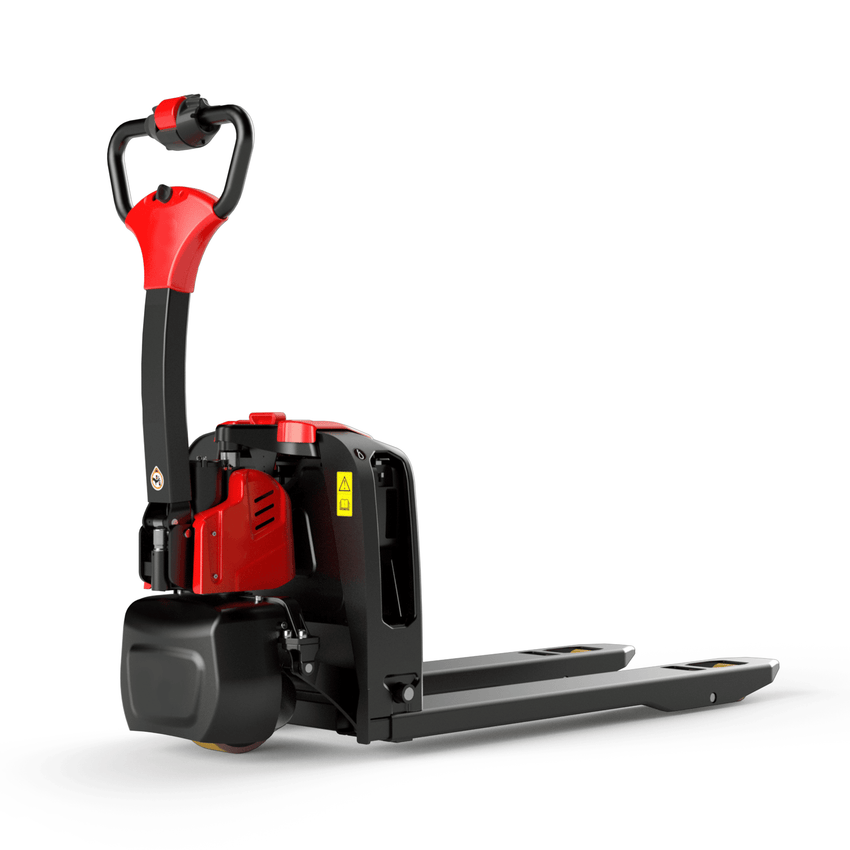

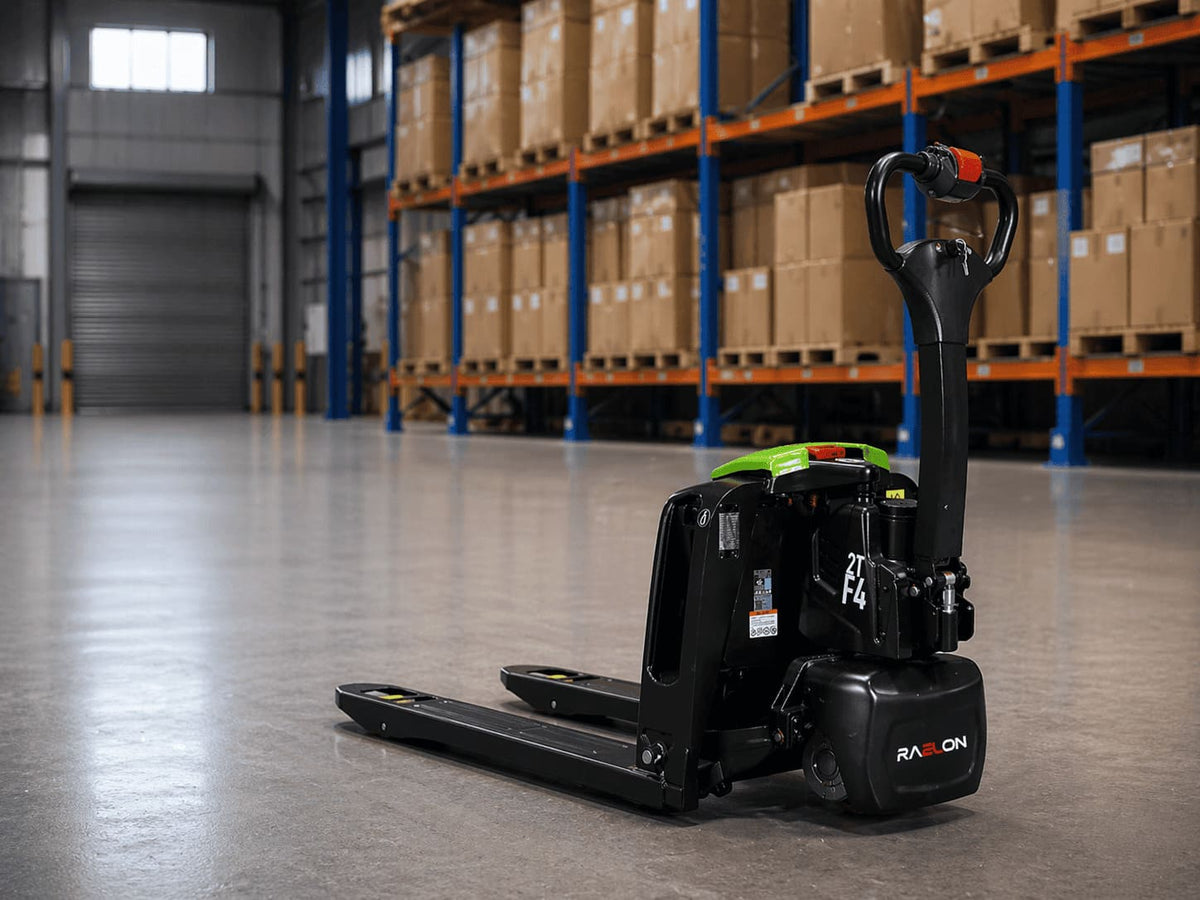

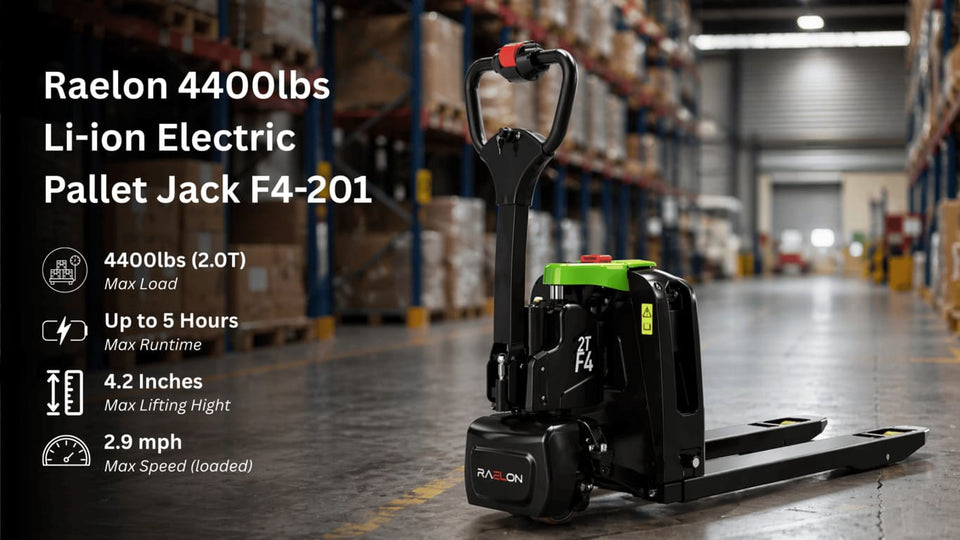

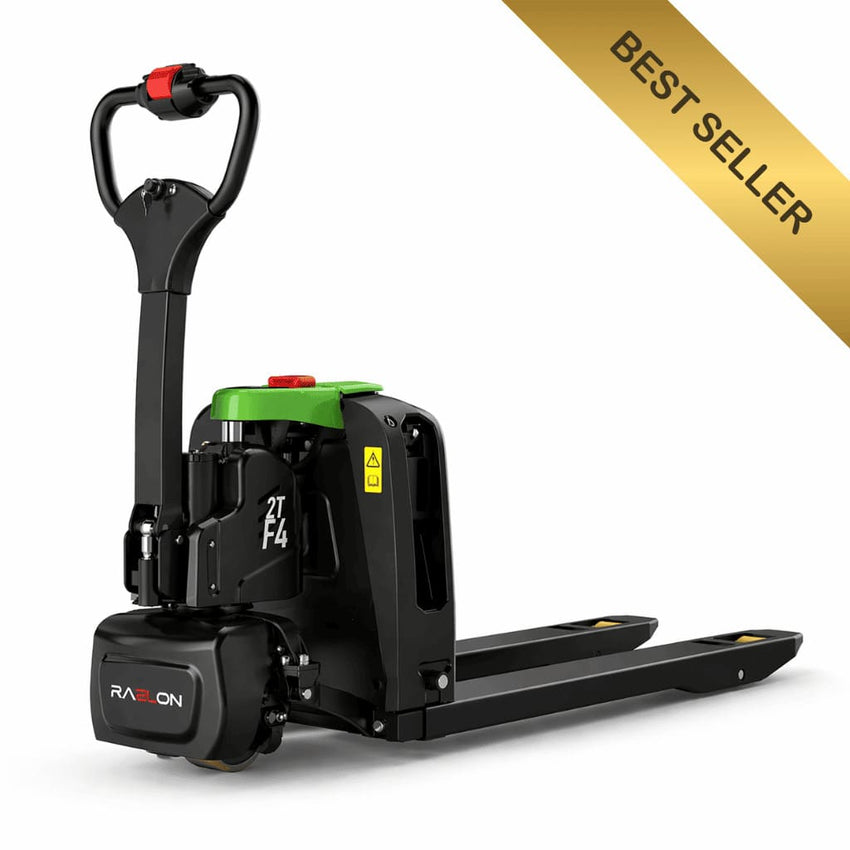

The F4-201 is a walk-behind electric pallet jack rated 4,400 lb. It is built for heavier pallets, and it needs both of its batteries to run.

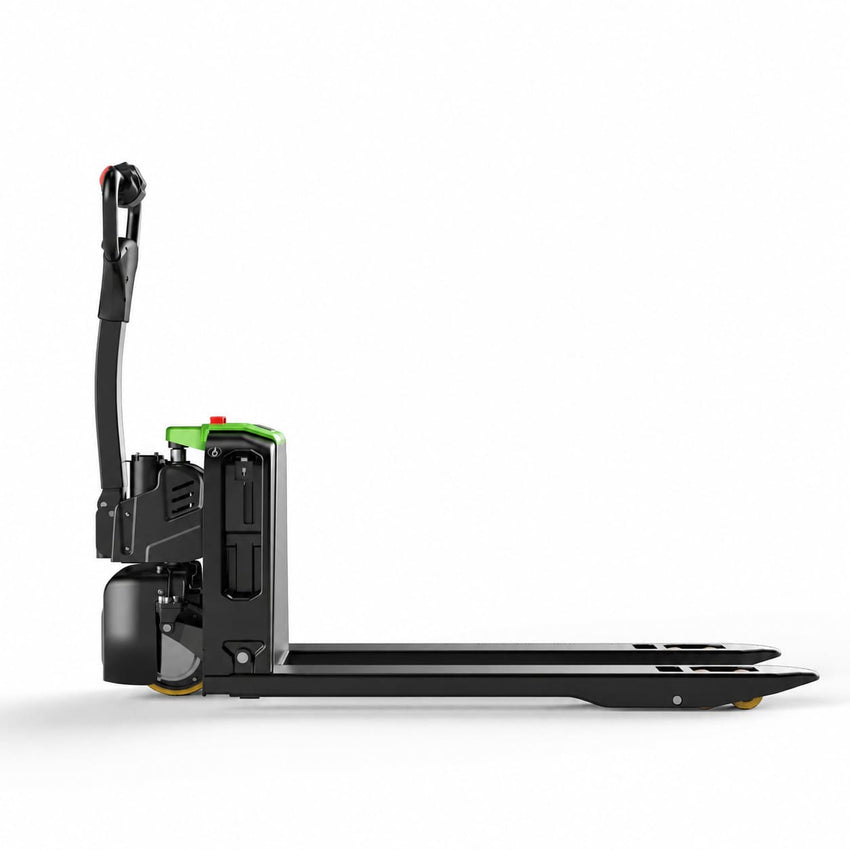

The rating is 4,400 lb (2,000 kg) at a 23.6 in load centre. The forks are 48 in long, 27 in across both forks and 2 in thick, and sit 3.2 in off the floor when lowered. Rated climb is 8% loaded and 16% empty. The truck moves pallets along the floor; it does not stack them.

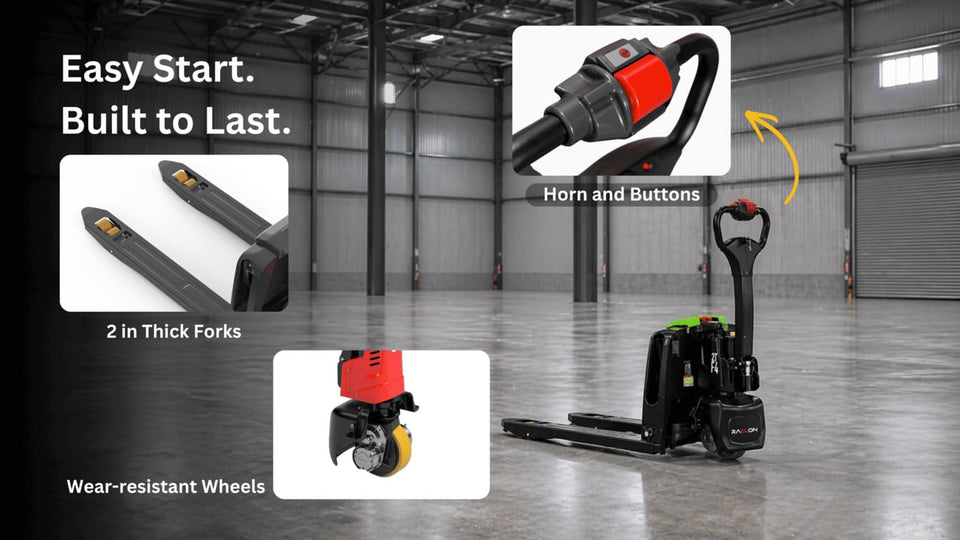

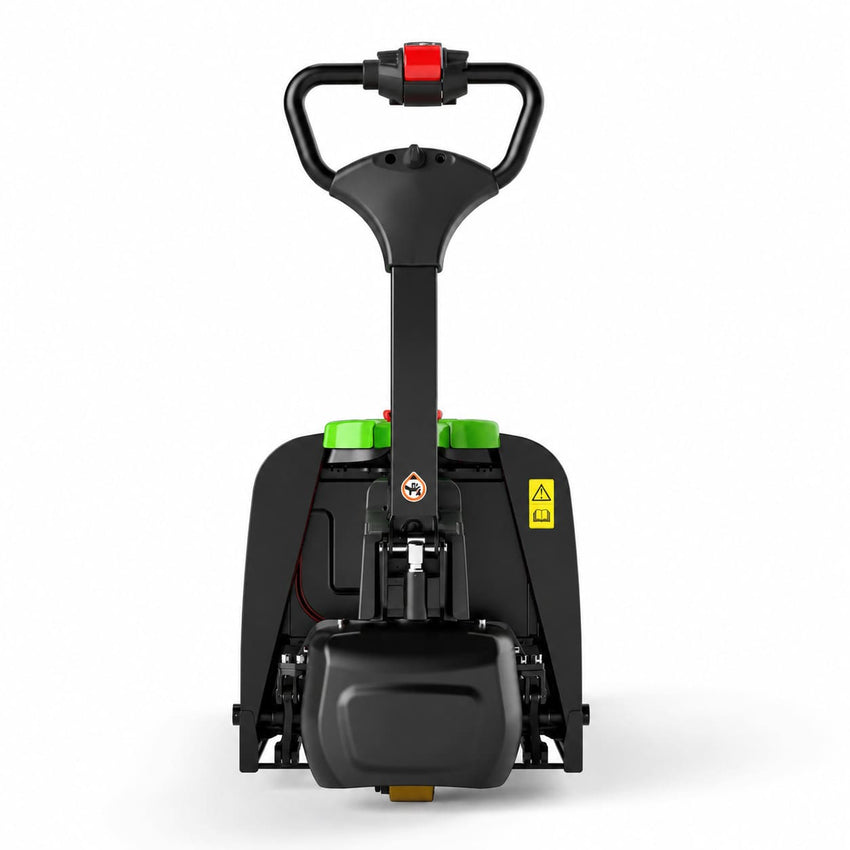

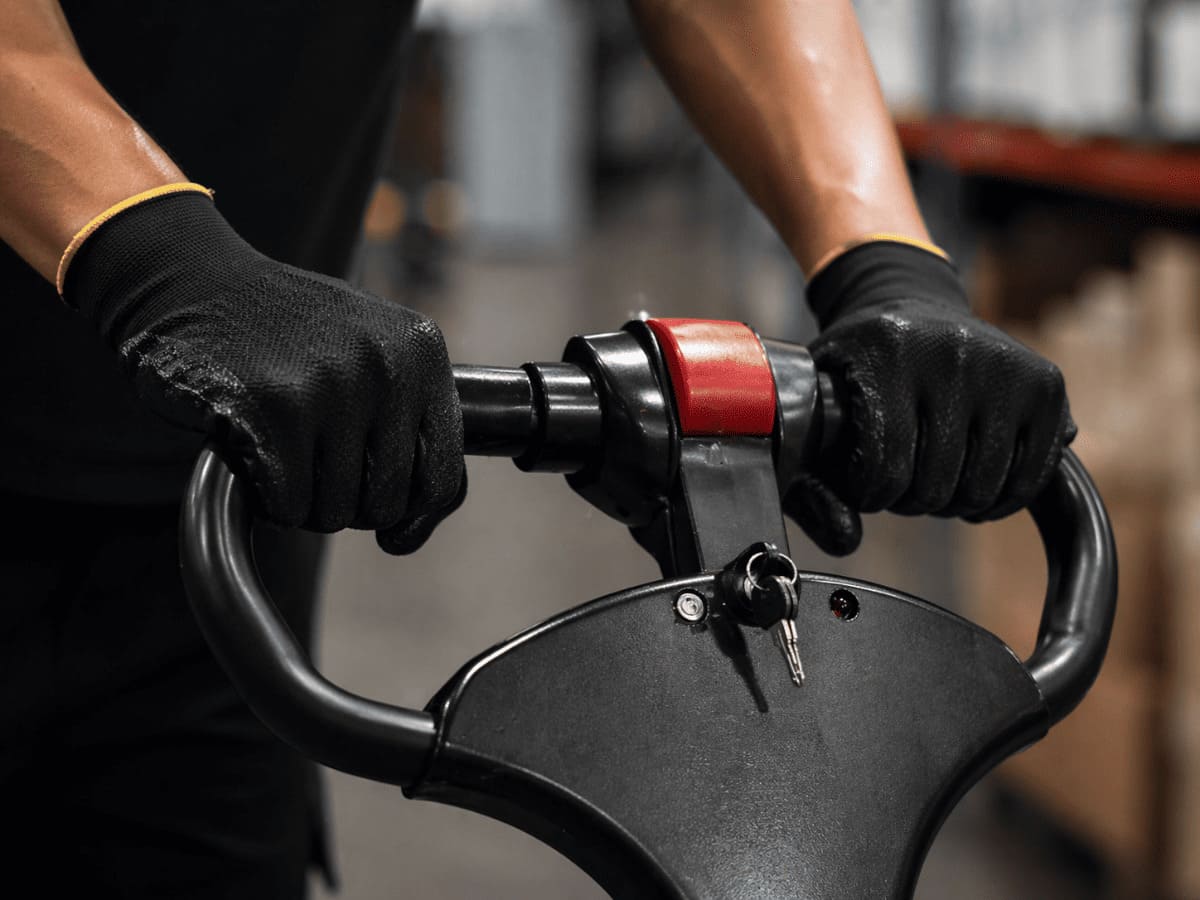

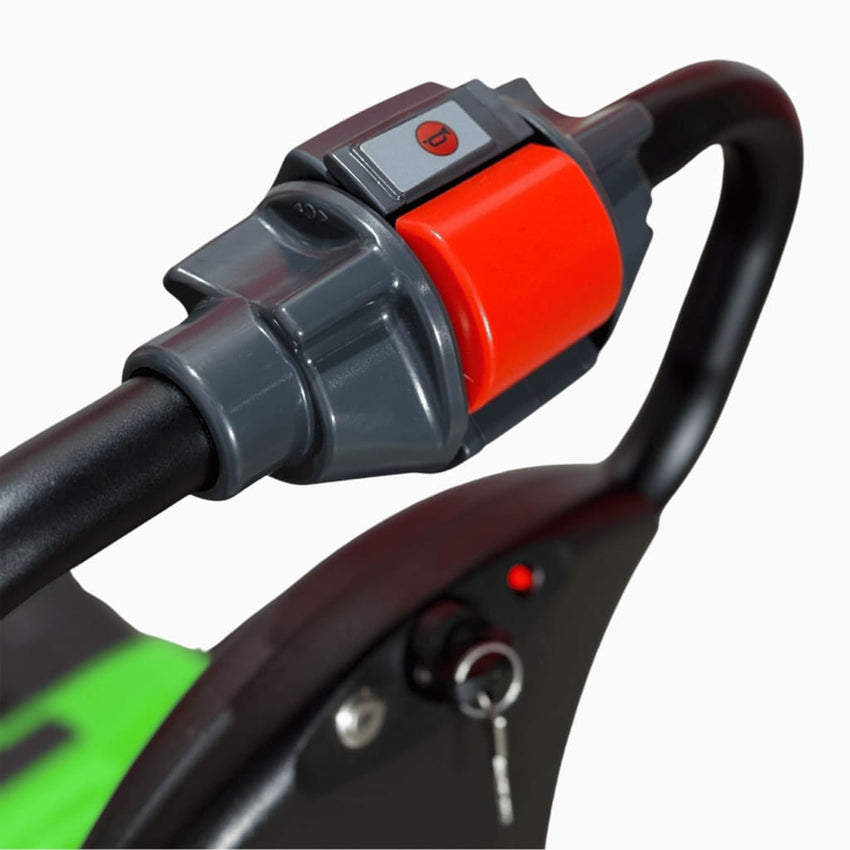

Throttle, horn and the push-button lift and lower are on the handle. The red emergency reverse switch is on the front of the handle, and the brake is electromagnetic. The wheels are polyurethane. The “+ 2 Stabilizing Wheels” option adds two caster wheels, worth having if you carry over 3,300 lb, turn with heavy loads or work on slopes.

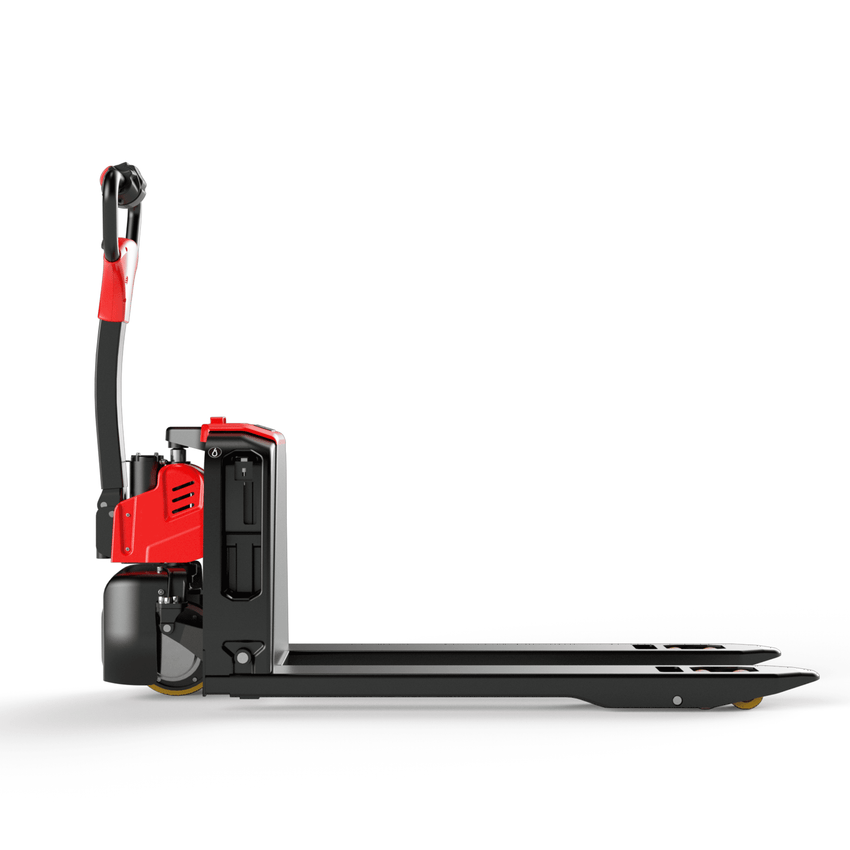

Each 24V / 20Ah lithium battery plugs into its own bay, and the two together make 48V, so the truck needs both. Take them out and charge them at the same time on the two included chargers, about 2 hours, no longer. One charge gives up to about 5 hours on light loads. With the “+ 1 Extra Battery” option, a spare pack is there for the day one of the two fails.
The truck turns in about 56 in, with a body 63.8 in long and 27 in wide. Find the tightest turn on your route and check it against those numbers before you order, leaving room for the pallet you will be carrying. The truck cannot cross door thresholds, so keep the route flat.
Rated weight, batteries, chargers and ramp rating, side by side.
Swipe to compare models
In Stock
In Stock
Dimensions are approximate. The brochure and manual have the full tables.
The Raelon F4-201 carries one 24V / 20Ah lithium battery in each of its two bays. The two are wired together to make a 48V system, so the truck only runs with both fitted. Take both out and charge them together on the two included chargers; each charge takes about 2 hours and should stay at about 2 hours. One charge gives up to about 5 hours on light loads, less with heavy loads, long runs, ramps or cold rooms.
The "+ 1 Extra Battery" option adds a third battery. It does not run alongside the other two. It is there to swap in if one of the two in the truck has a problem.
Rated for 4,400 lb (2,000 kg) at a 23.6 in load centre, the F4-201 is the step up from the F4 for pallets between 3,300 and 4,400 lb. It carries a standard 48 in pallet on forks 48 in long and 27 in across, and its rated climb is 16% empty and 8% loaded, against 6% loaded on the F4. That makes a dock ramp fine within those figures. The truck cannot cross door thresholds, so plan a flat route.
It is built for smooth indoor floors. Wet floors and cold rooms are fine, but the polyurethane wheels wear quickly on asphalt and rough ground, so outdoor use is not recommended as regular work.
Above about 3,300 lb the truck can feel unsteady in a turn or on a slope. The "+ 2 Stabilizing Wheels" option adds two caster wheels to keep it planted. If your pallets stay under 3,300 lb on flat floors, you do not need them.
Orders ship within 2 business days of payment by third-party freight, quoted to your postal code. You can also collect it in Richmond, BC or Edmonton, AB, usually ready within 24 hours with no shipping fee. The warranty is one year from the delivery date on the truck, both batteries and both chargers, subject to the warranty terms. An unopened, unused truck can be returned within 30 days of delivery with written approval; a 15% restocking fee applies and you pay the return freight. See the refund policy.
Full dimensions, motor output, turning radius and battery specifications are listed in the Specifications section below.
Orders ship within 2 business days of payment. Freight goes by a third-party carrier and is quoted to your postal code; type it into the shipping estimator above for a figure.
Collect it yourself with no shipping fee. It is usually ready within 24 hours of ordering.
Current pickup locations: Richmond, BC Pickup, Edmonton, AB Pickup.
One year from the delivery date on the truck, both batteries and both chargers, subject to the warranty terms.
Spare batteries are sold on our site. For any other part, call 778-316-8133 or send a quote request with your model.
No. The two 24V / 20Ah batteries are wired together to make the truck’s 48V system, one in each bay, so both must be fitted before it will move.

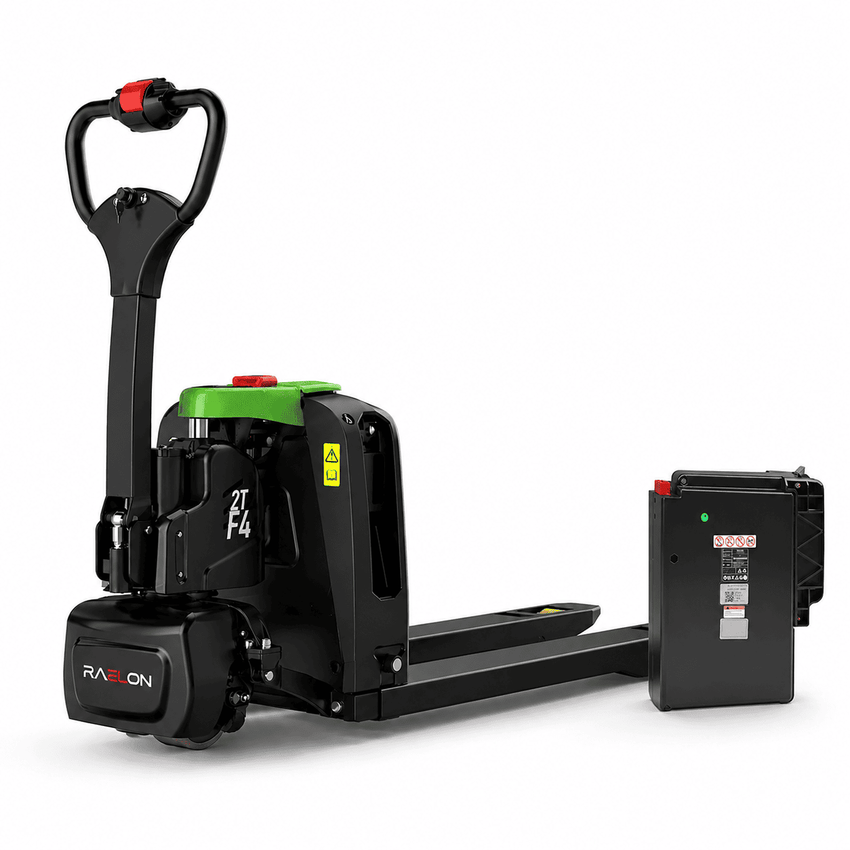

A third battery. It does not run alongside the other two. Keep it charged, and if one of the two in the truck has a problem, swap it in and keep working. The standard option comes with two batteries and two chargers.
Take both batteries out and charge them at the same time on the two included chargers, on a standard 100–240V AC outlet. Each takes about 2 hours, and each charge should stay at about 2 hours. Charge at room temperature, never in extreme heat or cold.
Up to about 5 hours, measured with light loads rather than at the full 4,400 lb. Heavy loads, long runs, ramps and cold rooms shorten it.
Take them if you regularly carry over about 3,300 lb, turn with heavy loads or work on slopes; at that weight the truck can feel unsteady in a turn or on a ramp. If your pallets stay under 3,300 lb on flat floors, the standard option is enough. The wheels come with the “+ 2 Stabilizing Wheels” option.

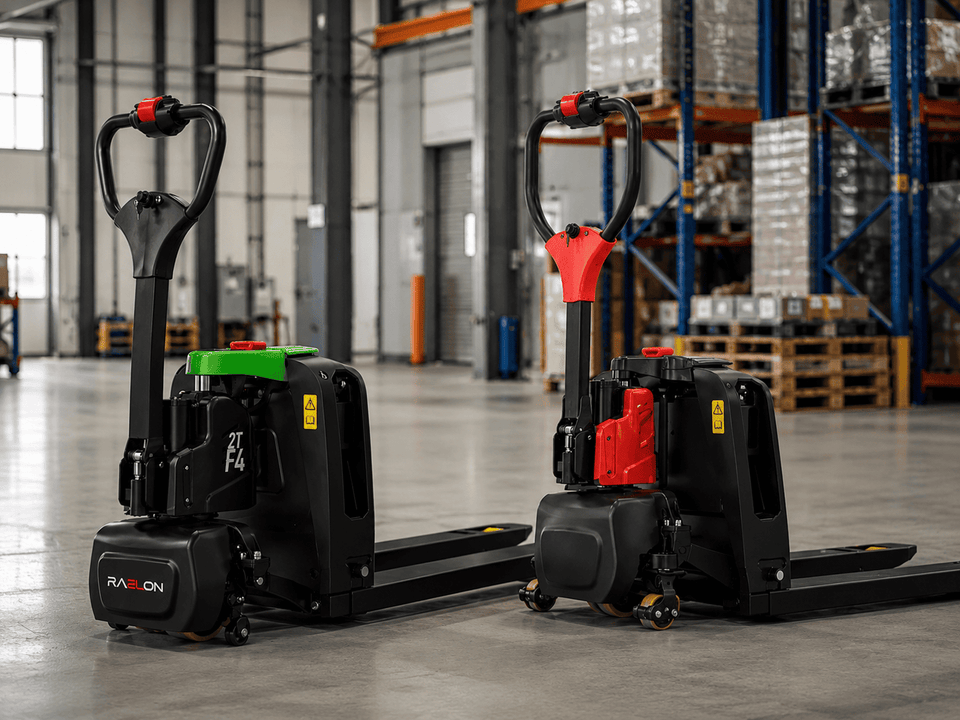

If your heaviest pallet is over 3,300 lb, the F4-201: it is rated 4,400 lb and 8% loaded on ramps, against 3,300 lb and 6% on the F4. If nothing you move is heavier than 3,300 lb, the F4 does the job on a single battery for less.
Yes, 8% loaded and 16% empty. Stay inside those numbers and consider the stabilizing wheels with a heavy load. Door thresholds are different: the truck cannot get over them, so plan a flat route.
Wet floors are fine. A cold room works too, but the batteries run for less time. When the truck is idle, take the batteries out and keep them at room temperature, and charge them at room temperature only, never in the cold room and never in extreme heat. Outdoor work is not recommended as a regular job: the polyurethane wheels wear quickly on rough ground and asphalt.

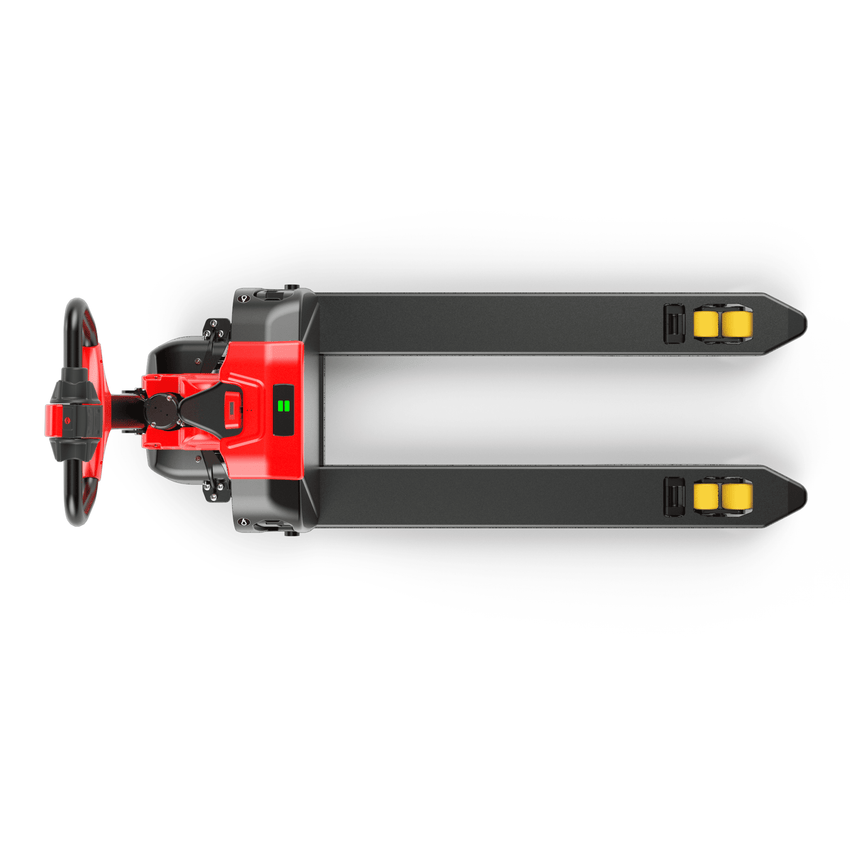

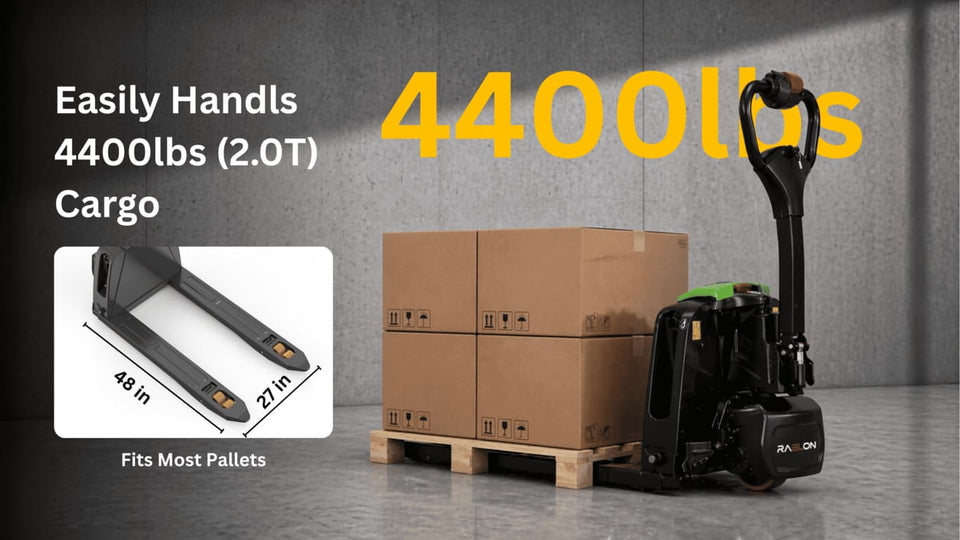

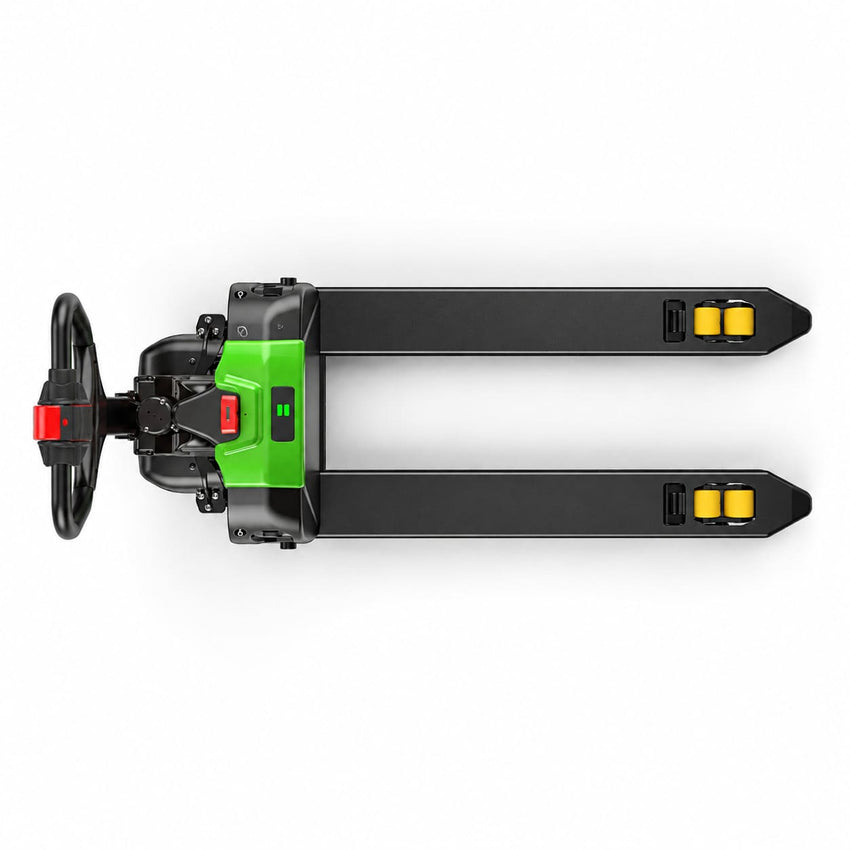

Standard 48 in pallets. The forks are 48 in long and 27 in across both forks, each fork 5.9 in wide with 15.2 in between. They are 2 in thick and sit 3.2 in off the floor when lowered, which works with common pallets.
The truck cannot be pushed around with flat batteries; it needs both fitted and charged to move. The part that wears is the wheels: polyurethane wheels wear fast on asphalt and uneven ground, so keep the F4-201 on smooth warehouse floors.
One year from the delivery date on the truck, both batteries and both chargers, subject to the warranty terms.
Orders ship within 2 business days of payment. Freight goes by a third-party carrier and is quoted to your postal code; use the shipping estimator near the buy button. You can also pick it up in Richmond, BC or Edmonton, AB, usually ready within 24 hours with no shipping fee.
An unopened, unused F4-201 can be returned within 30 days of delivery with Raelon’s written approval. A 15% restocking fee applies and you pay the return freight. Full terms are in the refund policy.
F4-201 PARTS
A third pack to swap in if one of the two fails; the truck needs both of its batteries to run. Trucks bought in 2025 use a different battery connector, so check which one you have before ordering.
