Reaches 189 in
The three-stage full-free-lift mast raises loads to 189 in. Check your highest rack beam and your door or trailer clearance before ordering.
Article ajouté à votre panier
Raelon
Raelon
80V lithium electric counterbalance forklift rated 5,500 lb, with a 189 in three-stage mast, fork positioner and sideshift, and a charger in the box. Built for dock-to-rack work indoors and on solid outdoor ground.
Il ne reste que 1 produits
Ramassage local offert
Ramassage à Edmonton (Alb.)
9837 42 Ave NW Edmonton
Edmonton AB T6E 0A3
Canada
Aucuns frais d’expédition
Habituellement prête en 24 heures
The three-stage full-free-lift mast raises loads to 189 in. Check your highest rack beam and your door or trailer clearance before ordering.
The 5,500 lb rating holds up to a lift height of 141.7 in at a 500 mm load centre. Above that the rating falls, so compare your heaviest pallet with the height you lift it to.
The truck is 45.4 in wide. Add your longest load to the length to the face of the forks and compare it with your narrowest aisle.
The charger is included with the forklift. Tell us what power is available where you will charge it, and we will confirm the charger input before you order.

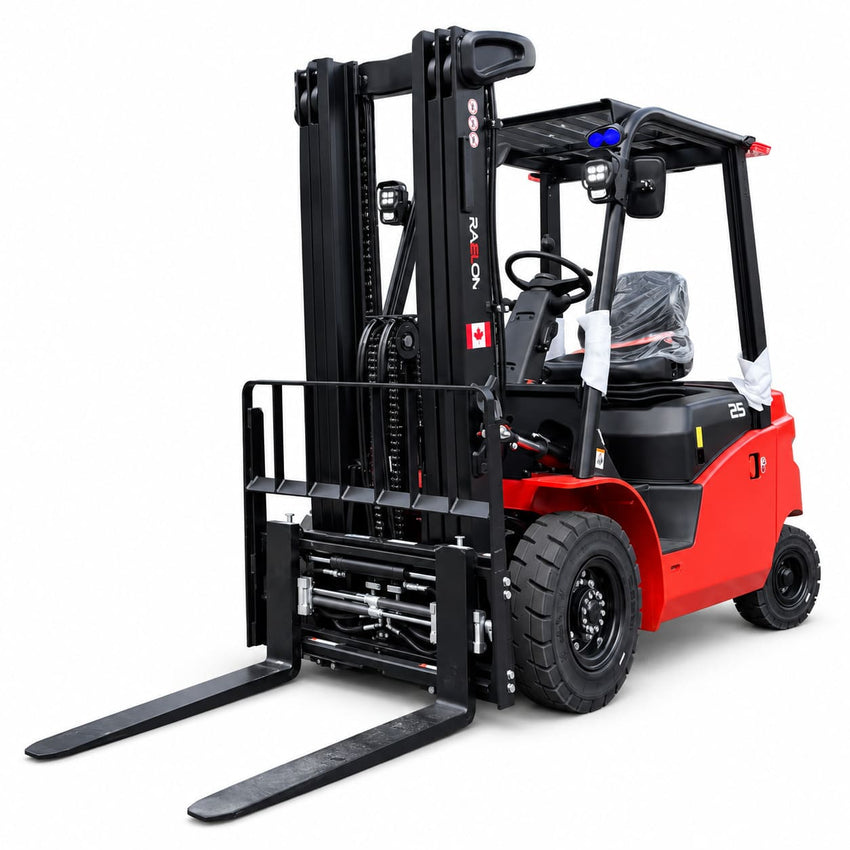

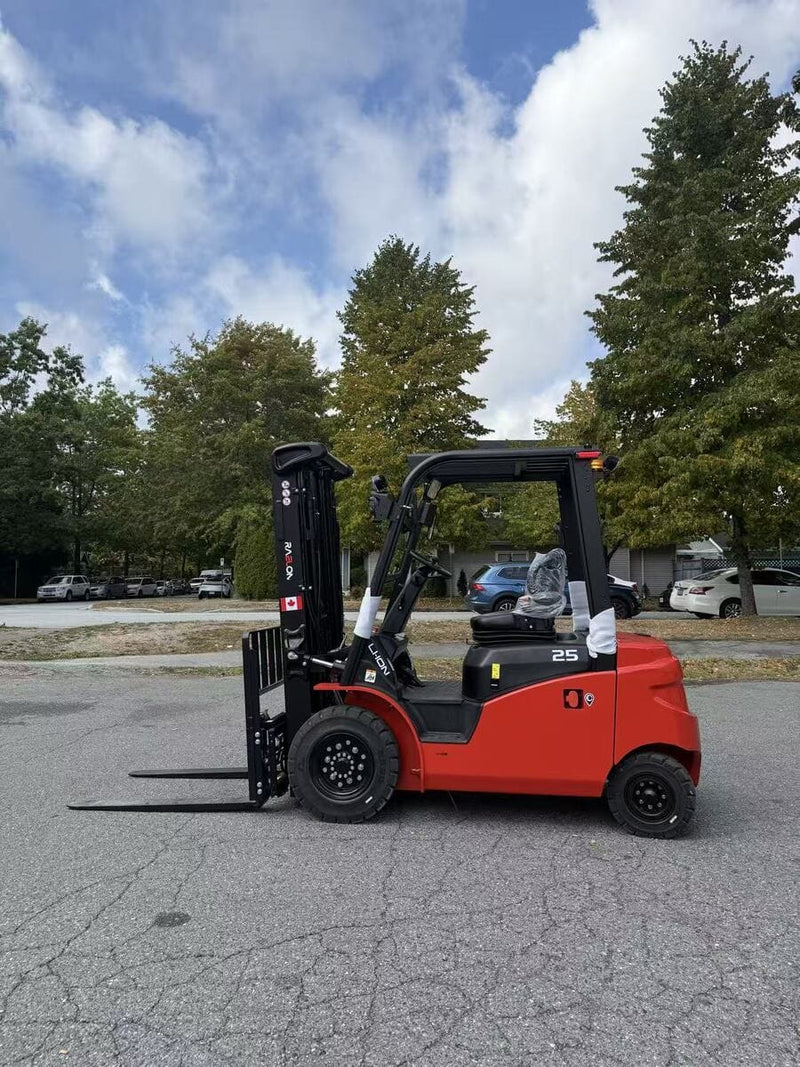

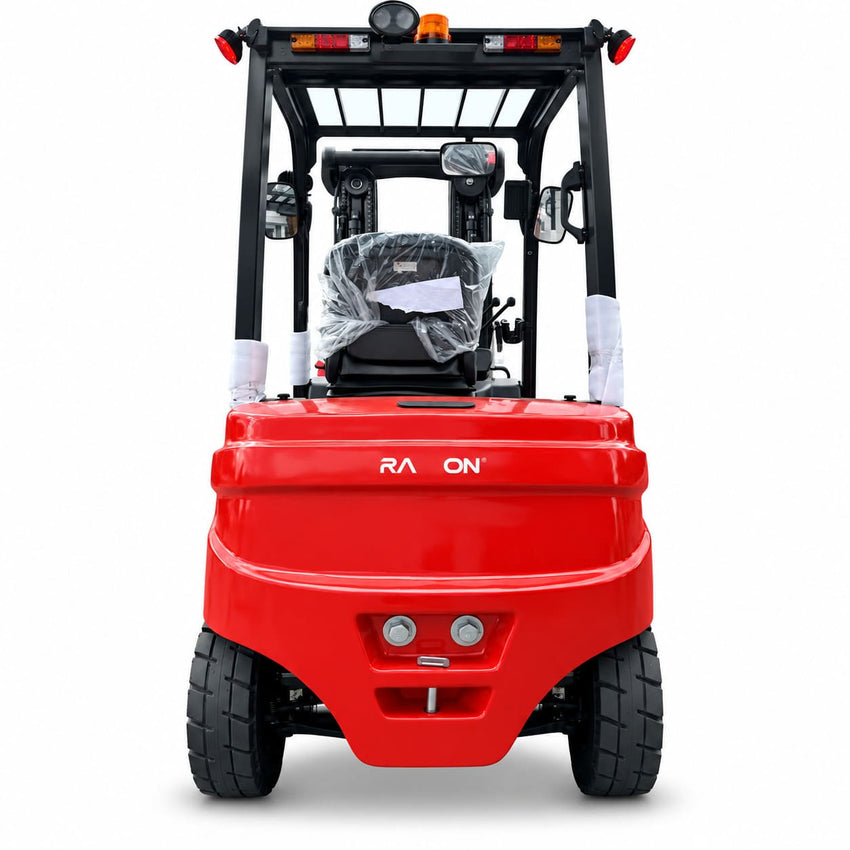

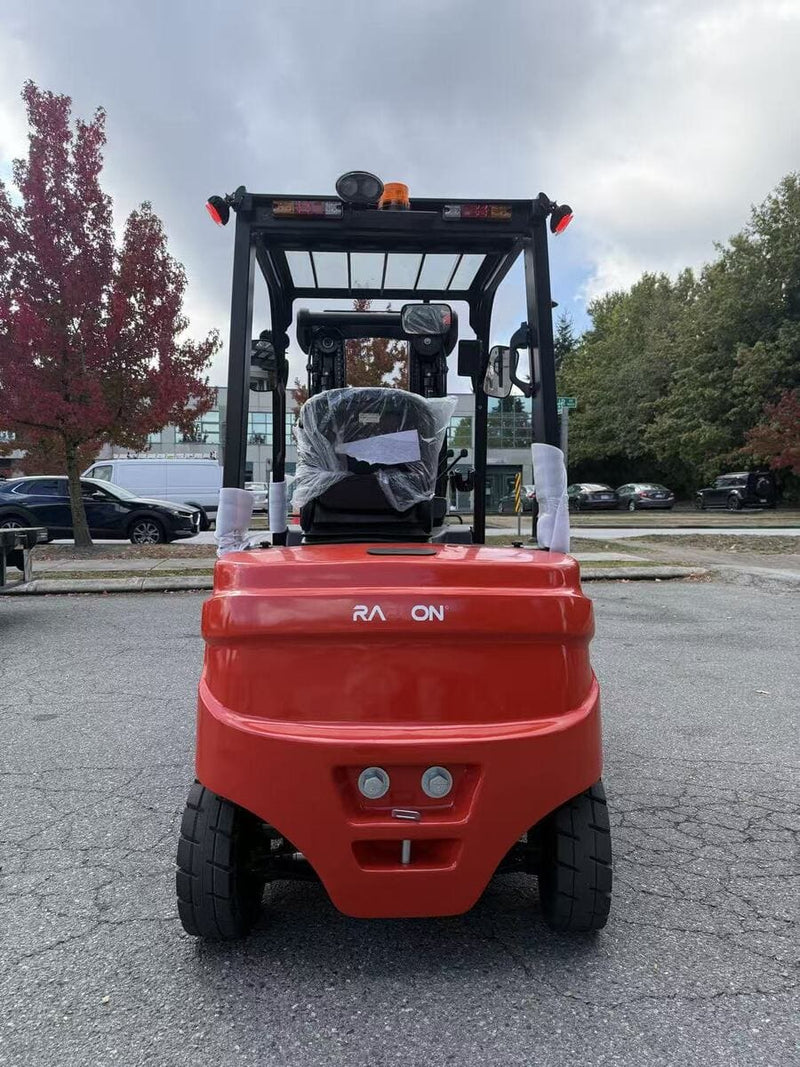

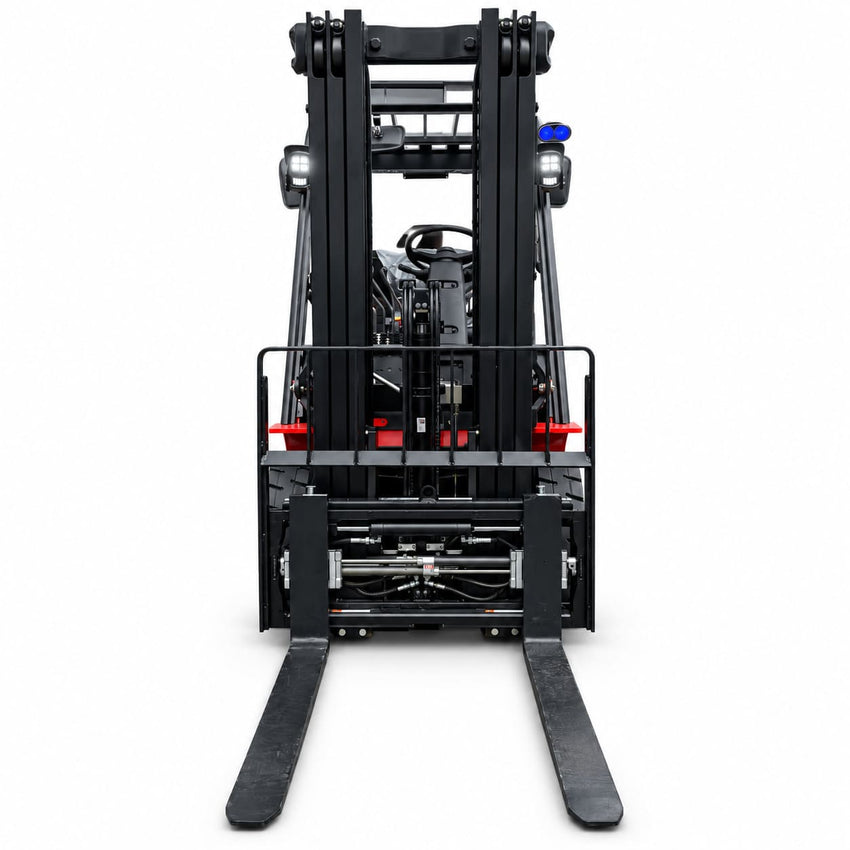

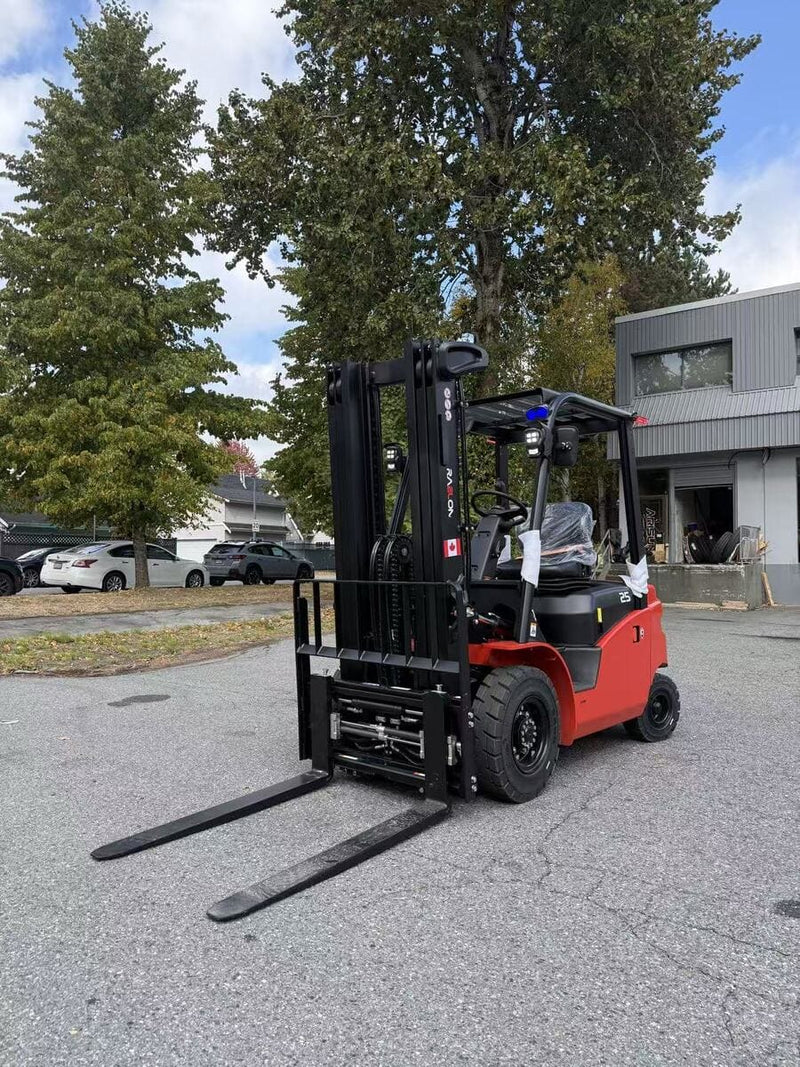

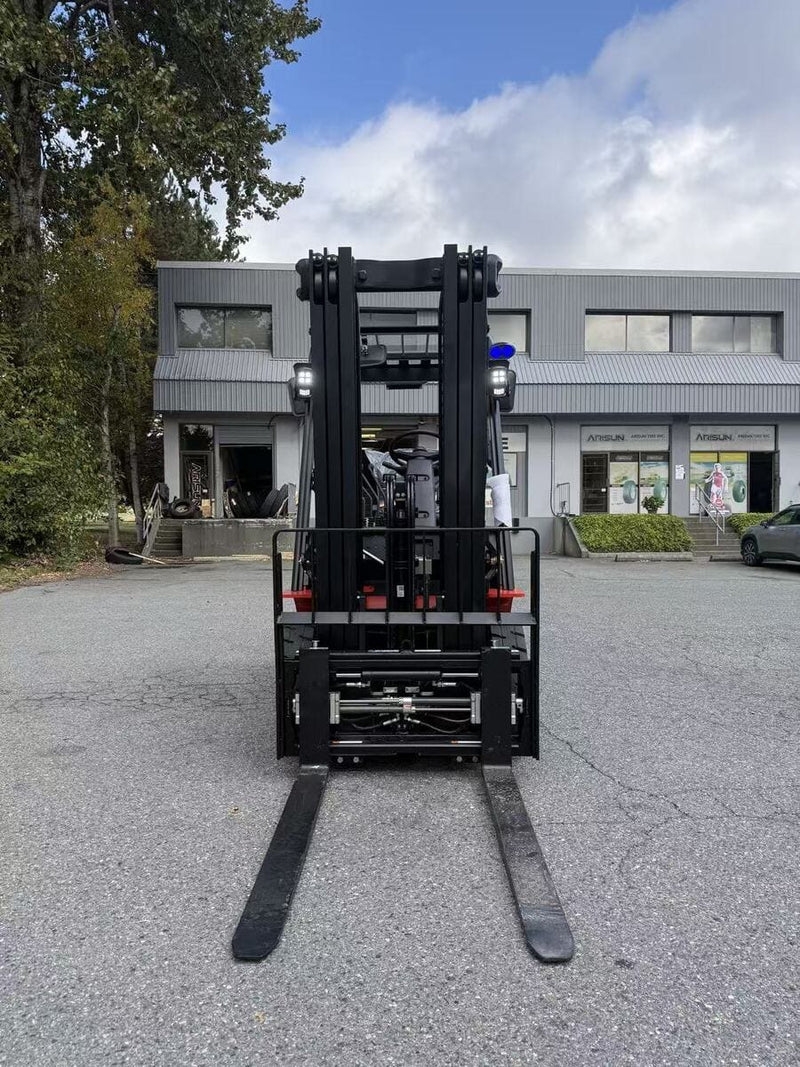

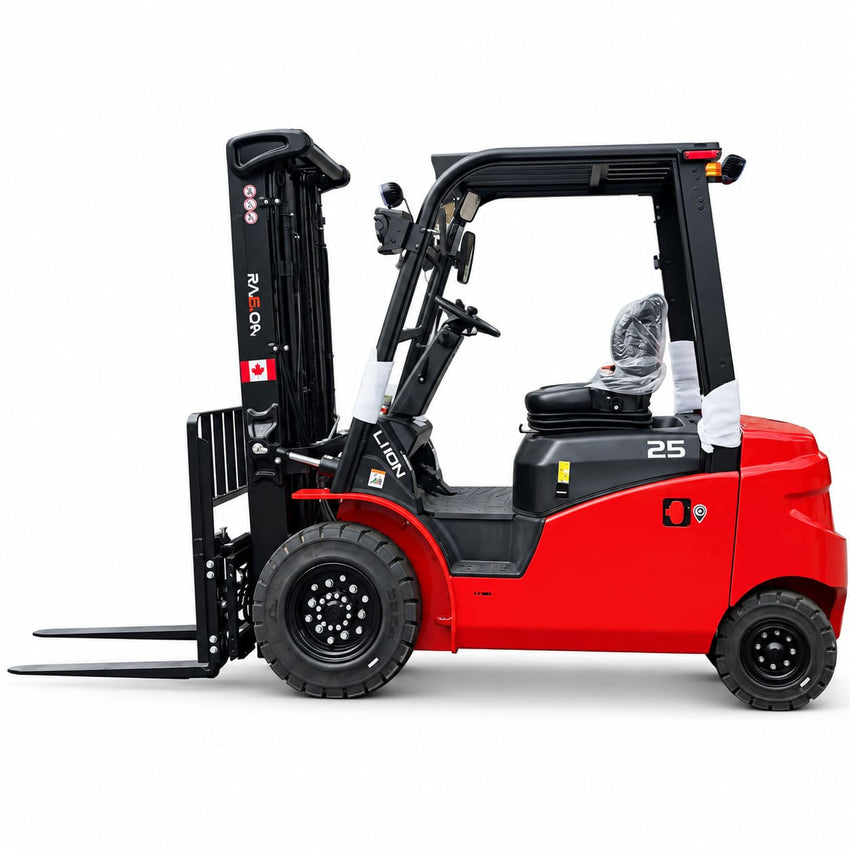

The Raelon EFL25 is a 5,500 lb (2,500 kg) four-wheel electric counterbalance forklift with an 80V 230Ah lithium-ion battery, a 189 in three-stage free-lift mast, and a fork positioner and sideshift. The charger is included. It is built for dock and warehouse work indoors and on solid outdoor ground.
The specifications above have the numbers. These checks decide whether the EFL25 fits your building and your loads.
1. Load and lift height. The 5,500 lb rating holds only up to a lift height of 141.7 in (3,600 mm), at a 500 mm load centre. Above that the capacity falls. Longer or bulkier loads sit further out and reduce capacity again. Send us your load weight, load size and highest rack beam and we will confirm the capacity at your height.
2. Aisle width. Aisle width depends on your pallet and how you stack it. For 1000 x 1200 mm pallets stacked crossways, the aisle needs about 157 in. Compare the length to the face of the forks and the turning radius in the specifications with your narrowest aisle, and measure your lowest doorway or trailer opening for the lowered mast.

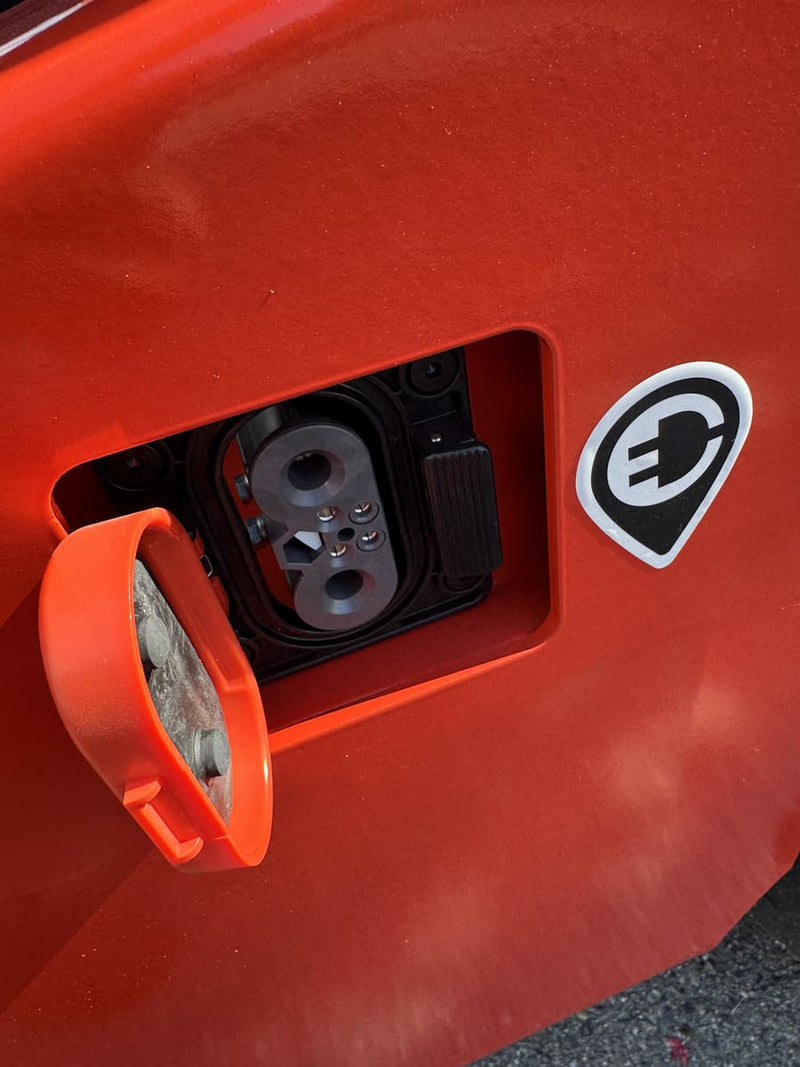

3. Power supply. The charger is included. Tell us what power is available where you will charge the forklift, and we will confirm the charger input before you order.
4. Floor and route. Solid tires never go flat and the truck rides high enough for level yards and loading areas, but they ride firmly. For soft, uneven or sloped ground, send us the surface and slope and we will tell you whether it suits.
Both are fitted at the factory. The operator changes fork spacing and shifts the load from the seat, which saves time when you handle mixed pallet sizes. A fourth hydraulic line and valve are also fitted for an additional attachment.

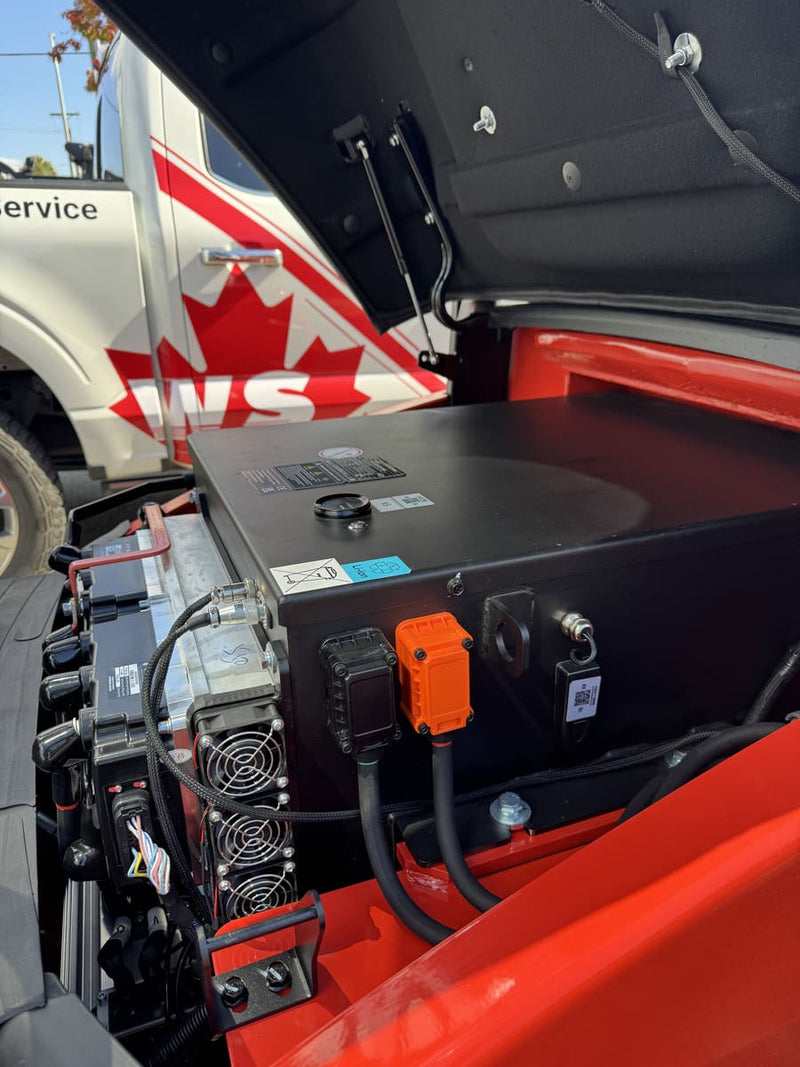

The lithium-ion pack has no watering schedule and gives off no fumes. Runtime depends on your work: heavy loads, frequent full-height lifts and long travel distances all shorten it.
If you routinely lift heavier loads or higher than this truck allows, compare the options in the Raelon forklift collection, which includes electric, LPG and diesel models.
| Specification | Raelon EFL25 |
|---|---|
| Forklift Type | Electric counterbalance forklift, 4-wheel |
| Mast Height, Lowered | 88.6 in (2,250 mm) |
| Mast Height, Extended | 230.1 in (5,845 mm), with backrest |
| Free Lift | 48.2 in (1,225 mm), with backrest |
| Overhead Guard Height | 85.2 in (2,165 mm) |
| Overall Length | 141.7 in (3,600 mm) |
| Aisle Width, 1000 x 1200 mm Pallet Crossways | 157.5 in (4,000 mm) |
| Aisle Width, 800 x 1200 mm Pallet Lengthways | 165.4 in (4,200 mm) |
| Drive Motor | 17 kW |
| Lift Motor | 26 kW |
| Battery Weight | 357 lb (162 kg) |
| Service Brake / Parking Brake | Hydraulic / Mechanical |
| Mast Tilt, Forward / Backward | 6° / 10° |
| Operator Station | Suspension seat with safety belt, operator presence system, working lights, dual side mirrors, reversing buzzer, 2 blue and 2 red warning lights |
| Sound Level at Operator Seat | Below 74 dB(A) |
Offert aux entreprises et aux particuliers. Remplissez une demande : nous la transmettons à notre partenaire prêteur, qui détermine l’acompte et le montant financé.
Options de financementCouvre les pièces non sujettes à l’usure. Diagnostic à distance d’abord. Apportez le chariot à notre entrepôt pour la main-d’œuvre de réparation gratuite; les visites sur place comportent des frais de déplacement de 150 $.
Détails de la garantieLes chariots en stock sont normalement expédiés dans la semaine suivant le paiement et la confirmation du transport. Livrés entièrement assemblés et prêts à l’emploi. Le client organise le déchargement.
Expédition et livraisonRamassage gratuit à Richmond, BC, normalement dans les 24 heures suivant le paiement réussi. Sans rendez-vous; nous aidons à charger votre véhicule.
Retrait sur placeDécouvrez les types de chariots élévateurs électriques, les prix au Canada et les situations où un gerbeur peut mieux convenir. Besoin d’aide? Indiquez à notre équipe le poids de vos charges, la hauteur de levage et la largeur des allées.
Différences entre les types de chariots élévateurs électriques, leurs batteries et leur recharge, points à vérifier avant chaque prise de poste, et...
Lire le guide →Les chariots élévateurs Raelon coûtent entre 34 500 $ et 39 000 $ CAD. Voici ce qui influence le prix des chariots...
Lire le guide →Un gerbeur peut remplacer un chariot élévateur pour certaines tâches, mais pas pour toutes. Voici les chiffres réels concernant la capacité, la...
Lire le guide →AUTRES CHARIOTS
Livraison partout au Canada
Livraison partout au Canada
Livraison partout au Canada
Livraison partout au Canada
5,500 lb (2,500 kg) at a 500 mm load centre, up to a lift height of 141.7 in. The mast reaches 189 in, and the rating is lower above 141.7 in. Send us your load weight and lift height and we will confirm the capacity at that height.
The truck is 45.4 in wide with a 90.7 in turning radius. Add your longest load to the length to the face of the forks and compare it with your narrowest aisle or doorway. Send us the aisle width and we will check it with you.
The charger is included with the forklift. Tell us what power is available where you will charge it, and we will confirm the charger input for your site before you order.
Yes, on solid ground. The truck has solid tires and 4.5 in of ground clearance, so it suits level yards and loading areas. For soft, uneven or sloped ground, send us the surface and slope and we will tell you whether it suits.

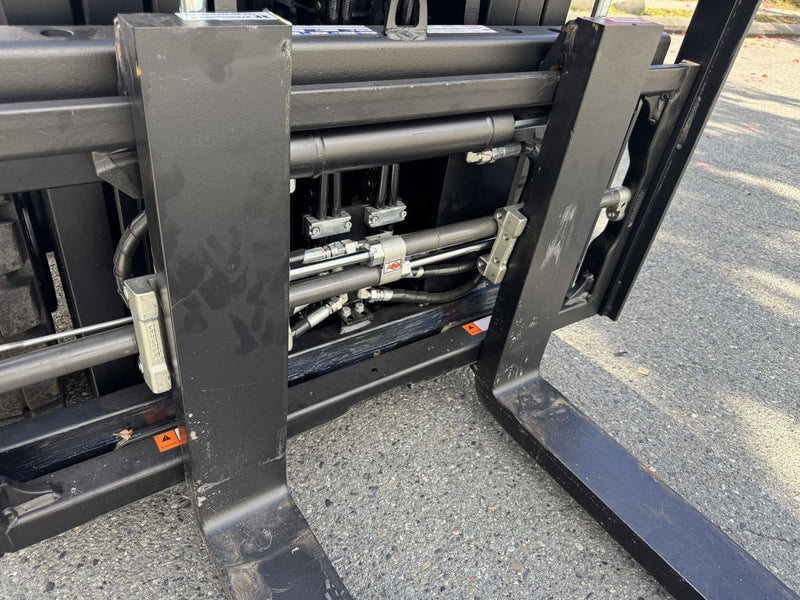

Yes. The EFL25 has a fork positioner and sideshift fitted, so you can change fork spacing and shift the load from the seat. The forks are 42.1 in long.
Gradeability is 20% loaded. If your route includes a steep ramp or a long incline, send us the slope and we will tell you whether it suits.
2-year warranty on the equipment, battery and charger, terms apply. Freight is quoted by destination and confirmed before you pay. Pickup is available at our Richmond, BC and Edmonton, AB locations, normally within 24 hours of successful payment. Please confirm with our team. 0% APR financing for up to 24 months is available to qualified customers.
