Rated Capacity
4400lbs
Article ajouté à votre panier

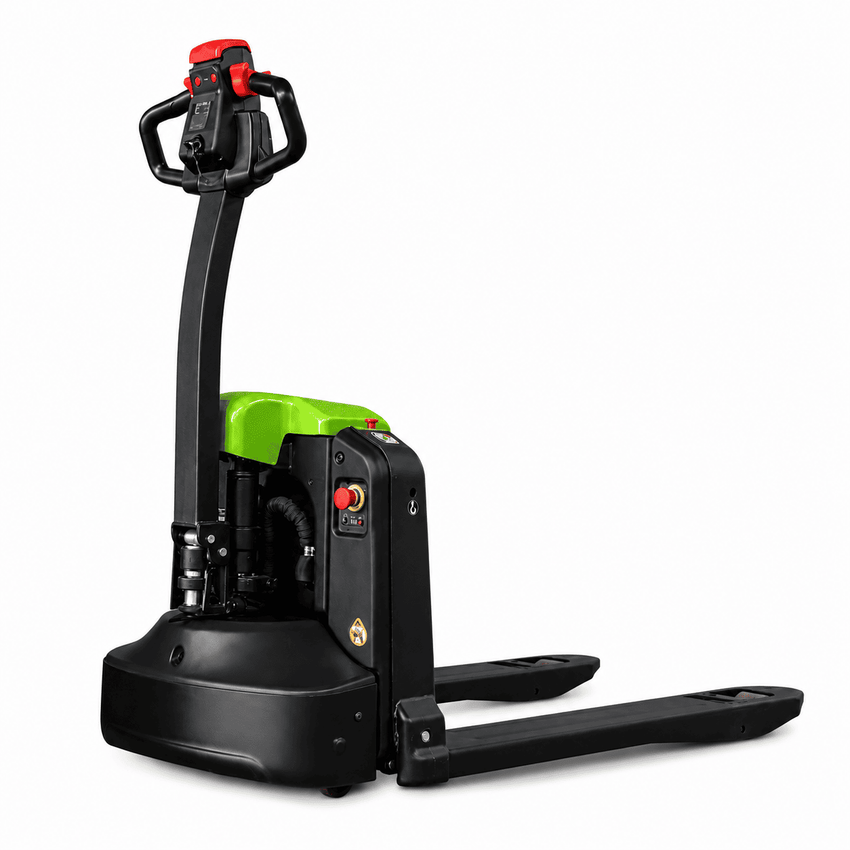

Raelon EPL205 4400lbs Li-ion Electric Pallet Jack Green is a Raelon electric pallet jack designed for commercial pallet movement in warehouses, receiving areas, stockrooms and material handling operations in Canada.
Il ne reste que 5 produits
Estimate Shipping
Enter your Canadian postal code to estimate shipping for this product.
Shipping is an estimate only. Final shipping will be shown at checkout or confirmed by quote.
Local Pickup Available
Vancouver, BC Head office
4751 Shell Road
Unit 11
Richmond BC V6X 3H4
Canada
No Shipping Fee
Habituellement prête en 24 heures
Review the key capacity, battery and operating features of this Raelon electric pallet jack.
4400lbs
Li-ion
Local Pickup Available
Review the capacity, battery, dimensions and operating specifications before ordering.
Handle heavier pallet movement with the Raelon EPL205 Li-ion Electric Pallet Jack, a compact and efficient walk-behind pallet truck designed for daily warehouse, logistics, retail, and loading area operations. With a 2T marked capacity, 48V lithium-ion power system, integrated charger, and durable PU wheels, the EPL205 is built to improve productivity while keeping operation simple and reliable.
This model is a practical solution for businesses that need stronger load handling than a light-duty electric pallet jack, while still maintaining easy operation, convenient charging, and smooth maneuverability in tight working spaces.
The Raelon EPL205 is equipped with a 48V / 20Ah lithium-ion battery and a built-in 10A integrated charger, making daily charging easier and helping reduce downtime between shifts. The plug-in and out battery design is made for convenient use, simplified maintenance, and flexible warehouse operation.
Built with a 0.9 kW driving motor, 0.84 kW lifting motor, and Curtis controller, the EPL205 delivers stable performance for everyday pallet movement. Its second-generation drive technology and brushless DC motor design help reduce maintenance needs while supporting smooth and powerful operation.
The Raelon EPL205 is designed for easy handling in warehouses, stockrooms, and loading areas. Its optimized structure, pedestrian operation, and polyurethane wheels help operators move pallets smoothly and quietly on flat indoor surfaces.
| Load Capacity | Battery Type | Battery Capacity | Charger | Controller | Wheel Type |
|---|---|---|---|---|---|
| 4400 lbs / 2T marked | Li-ion | 48V / 20Ah | 10A integrated charger | Curtis controller | PU wheels |
Includes 48V lithium-ion battery & integrated charger

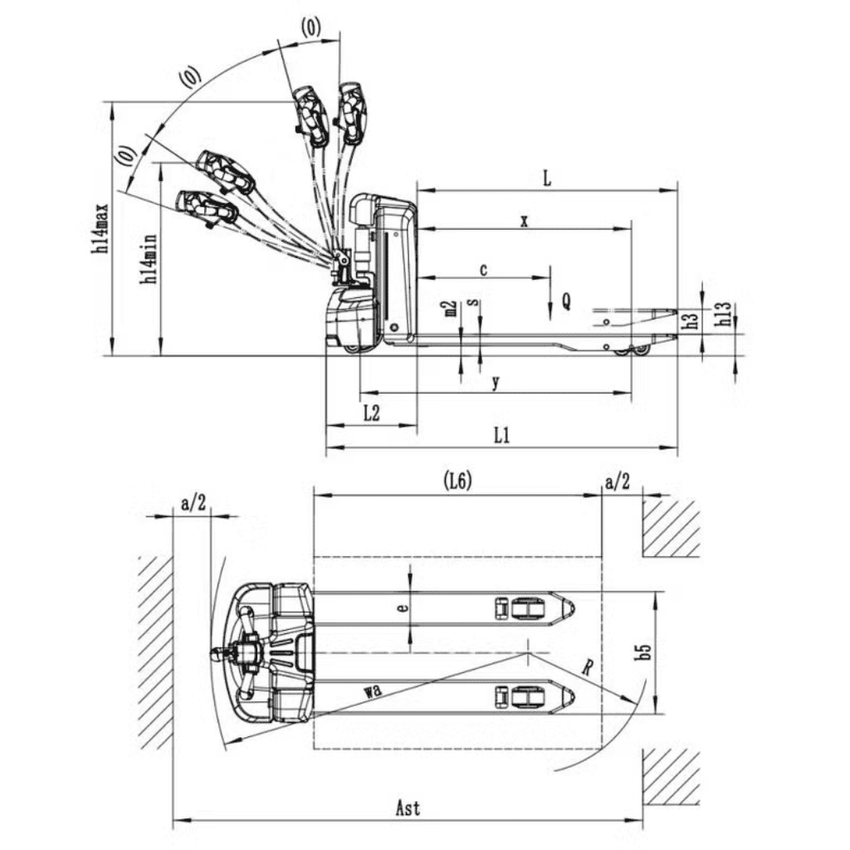

| Specification | Raelon EPL205 |
|---|---|
| Model | EPL205 |
| Drive Type | Electric |
| Power | DC Motor |
| Load Capacity | 4400 lbs / 2T marked |
| Load Center | 600 mm / 23.6" |
| Overall Width | 685 mm / 27" |
| Fork Size | 1220 x 685 mm / 48" x 27" |
| Fork Length | 1220 mm / 48" |
| Single Fork Width | 150 mm / 5.9" |
| Lift Height | 115 mm / 4.5" |
| Lowered Height | 85 mm / 3.35" |
| Ground Clearance | 35 mm / 25 mm |
| Wheelbase | 1268 mm / 49.9" |
| Turning Radius | 1485 mm / 58.5" |
| Service Weight | 205 kg / 452 lbs |
| Battery Voltage / Capacity | 48V / 20Ah Li-ion |
| Charger | 10A integrated charger |
| Driving Motor | 0.9 kW |
| Lifting Motor | 0.84 kW |
| Controller | Curtis controller |
| Wheel Material | PU |
| Certification | CE / ISO9001 |
Still comparing models? View all Raelon electric pallet jacks to compare 3300 lb and 4400 lb options.
Shipping options are available for eligible electric pallet jacks across Canada. Rates and delivery timing depend on the product, destination and current inventory.
Pickup availability depends on the selected product, variant and current inventory location. Confirm availability before travelling.
Eligible Raelon equipment and batteries include limited warranty coverage subject to the applicable product and warranty terms.
Replacement batteries, chargers, wheels and selected compatible parts are available for supported models.
Compare the rated capacity, fork size, battery system, turning space and expected daily workload with your facility and pallet-handling requirements.
Canada-wide shipping is available for eligible products. Shipping costs and delivery timing depend on the product, destination and current inventory.
Local pickup depends on the selected product, variant and current inventory location. Check the product page or contact Raelon before travelling.
Warranty coverage depends on the product and battery configuration and is subject to the applicable Raelon warranty terms.
Replacement batteries, chargers, wheels and selected parts are available for supported models. Review the Compatible Parts section or contact Raelon to confirm compatibility.
