Capacity You Can Check
The load plate lists the 3,000 kg rating, the mast-height steps and the 200 kg sideshift deduction.
Article ajouté à votre panier
Raelon
6,600 lb class LPG forklift with a Kubota engine and a 189 in three-stage mast. Fork positioner, sideshift and a filled LPG tank are included. Capacity depends on mast height and sideshift, so we confirm it for your lift.
Il ne reste que 1 produits
Ramassage local offert
Ramassage à Richmond (C.-B.)
4751 Shell Road
Unit 10
Richmond BC V6X 3H4
Canada
Aucuns frais d’expédition
Habituellement prête en 24 heures
The load plate lists the 3,000 kg rating, the mast-height steps and the 200 kg sideshift deduction.
28×9-15 solid front tires with a tread pattern and no punctures to repair.

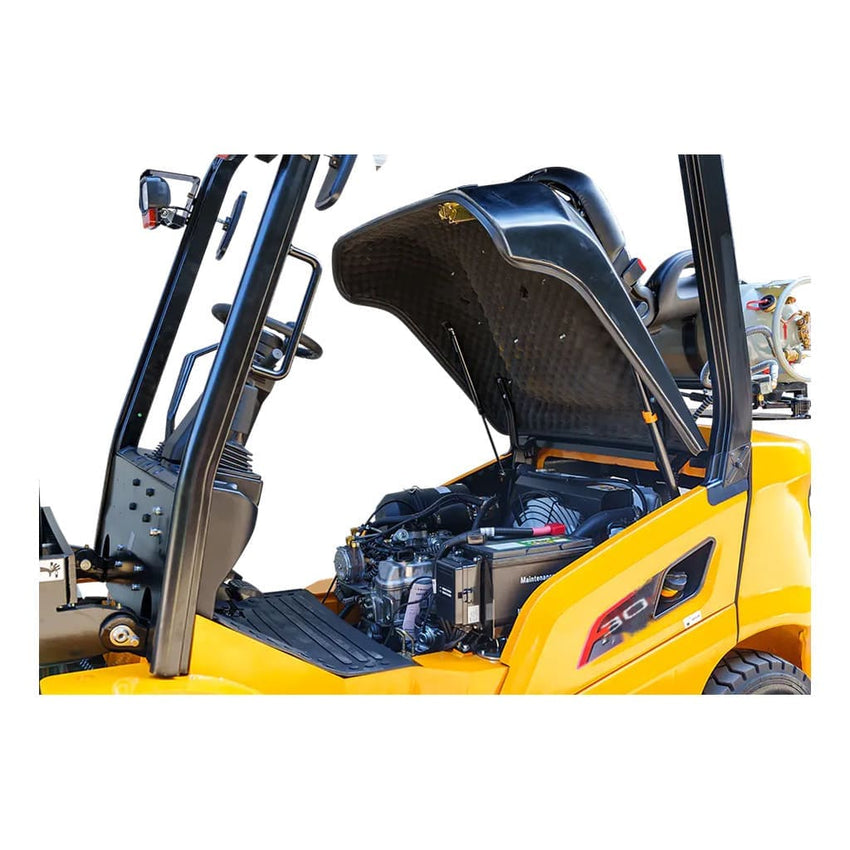

LPG-only Kubota power, with a filled tank in the price.

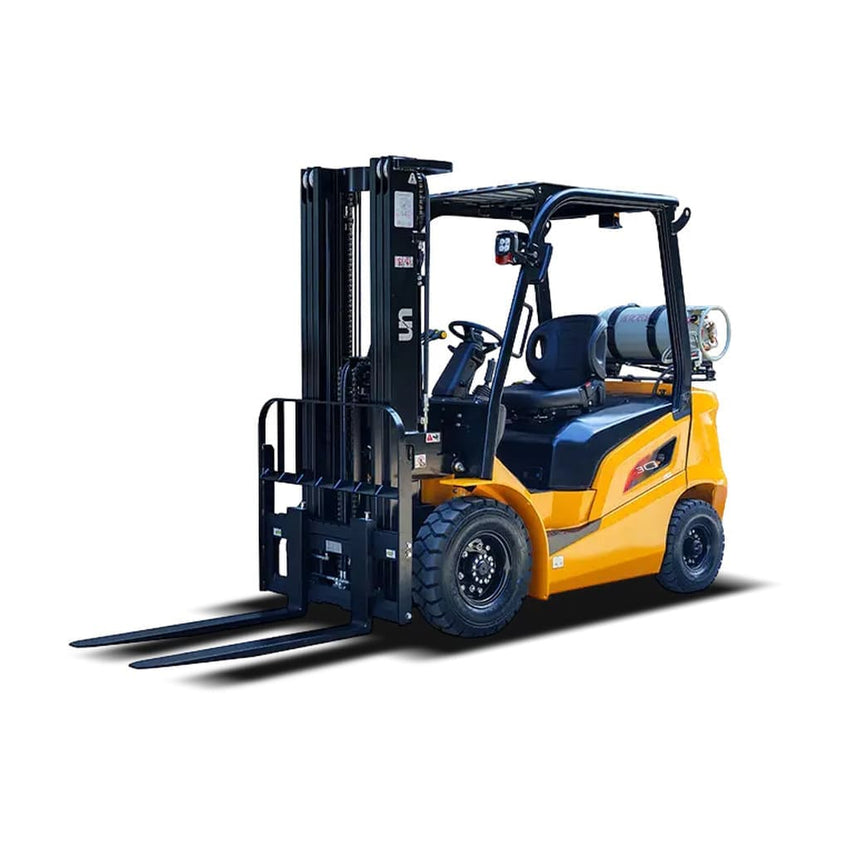

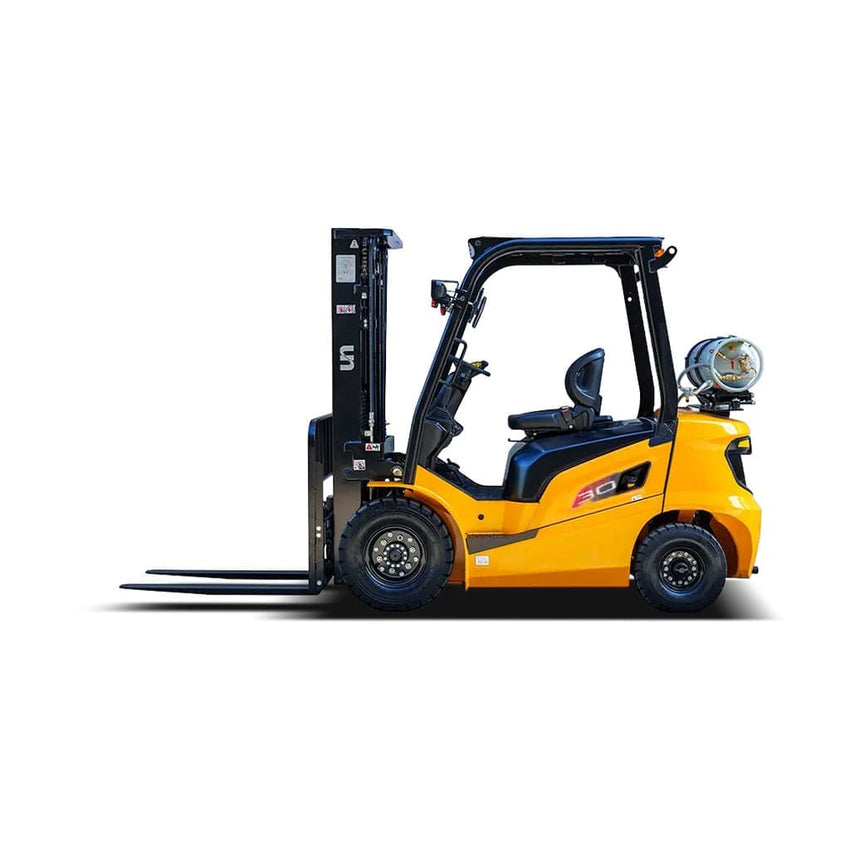

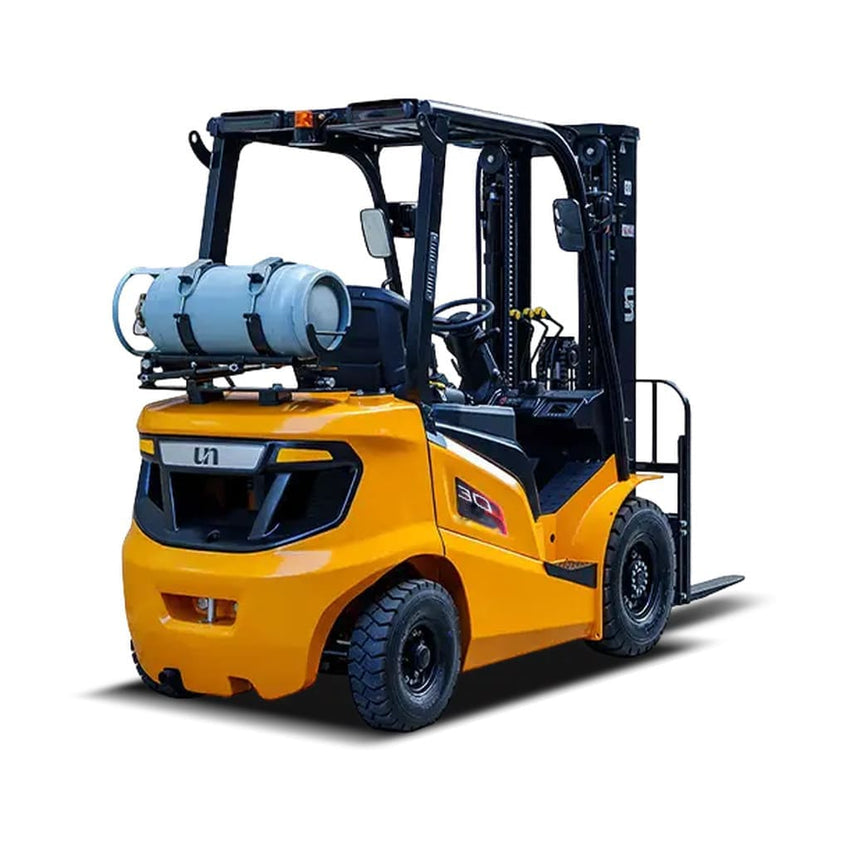

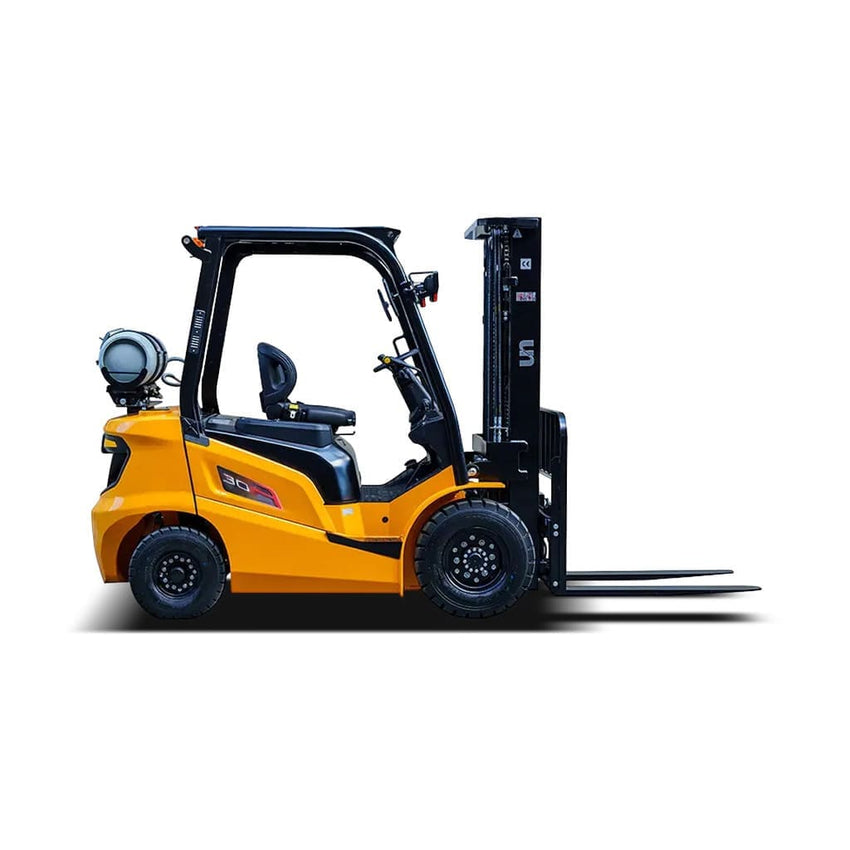

The mid-size LPG forklift in the range, with a Kubota engine, a three-stage 189 in mast, and a fork positioner and sideshift fitted as standard. A filled LPG tank comes with it.
Read the load plate before comparing it with other trucks. It rates 3,000 kg (6,614 lb) at a 500 mm load centre for masts up to 3,500 mm, steps the rating down for taller masts, and takes 200 kg off when a sideshift is fitted. The 189 in mast is taller than 3,500 mm, so the rating at that height is not the 3,000 kg figure. Ask us for the capacity at your lift height before you order.
It runs on solid tread-pattern tires, 28×9-15 at the front. It is 1,220 mm wide with a 2,425 mm outside turning radius. More trucks are in the LPG and diesel forklift range.
| Fuel | LPG (propane) |
|---|---|
| Engine | Kubota |
| Class rating | 6,600 lb (3,000 kg) at 500 mm (19.7 in) load centre, masts up to 3,500 mm |
| Sideshift deduction | 200 kg, per the load plate |
| Mast | Three-stage, 189 in (15.7 ft) |

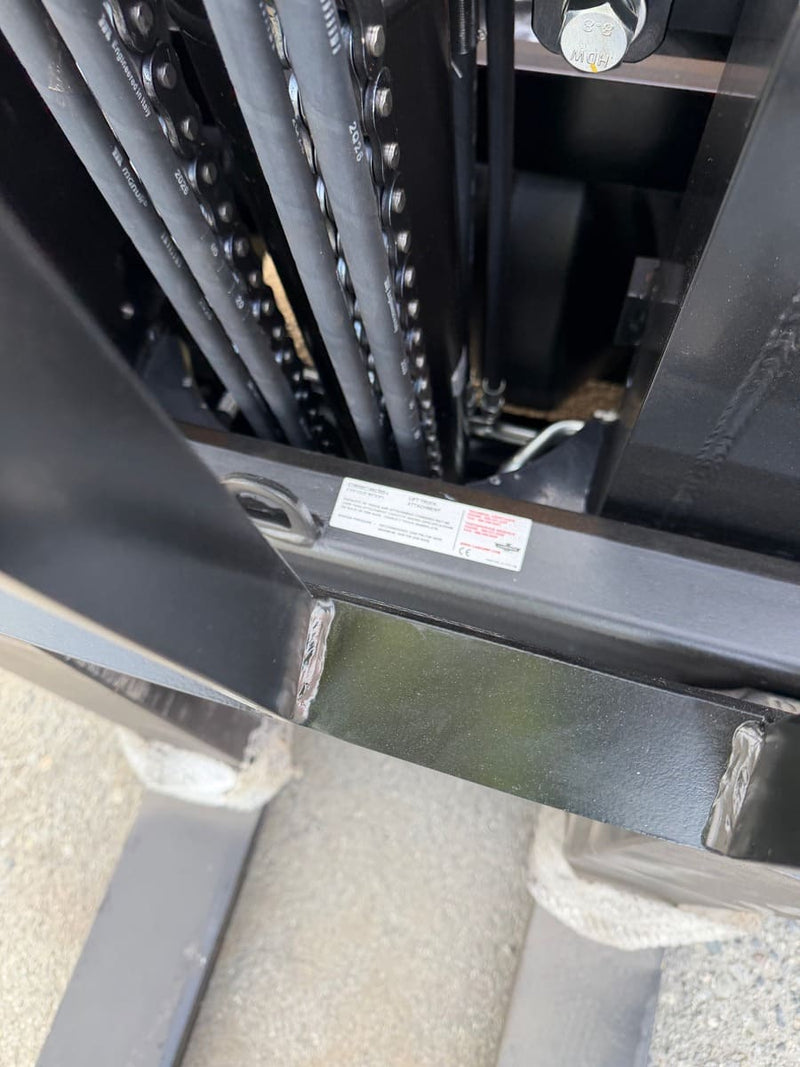

| Attachments | Fork positioner and sideshift, standard |
| Tires | Solid, tread pattern. Front 28×9-15, rear 6.50-10 |

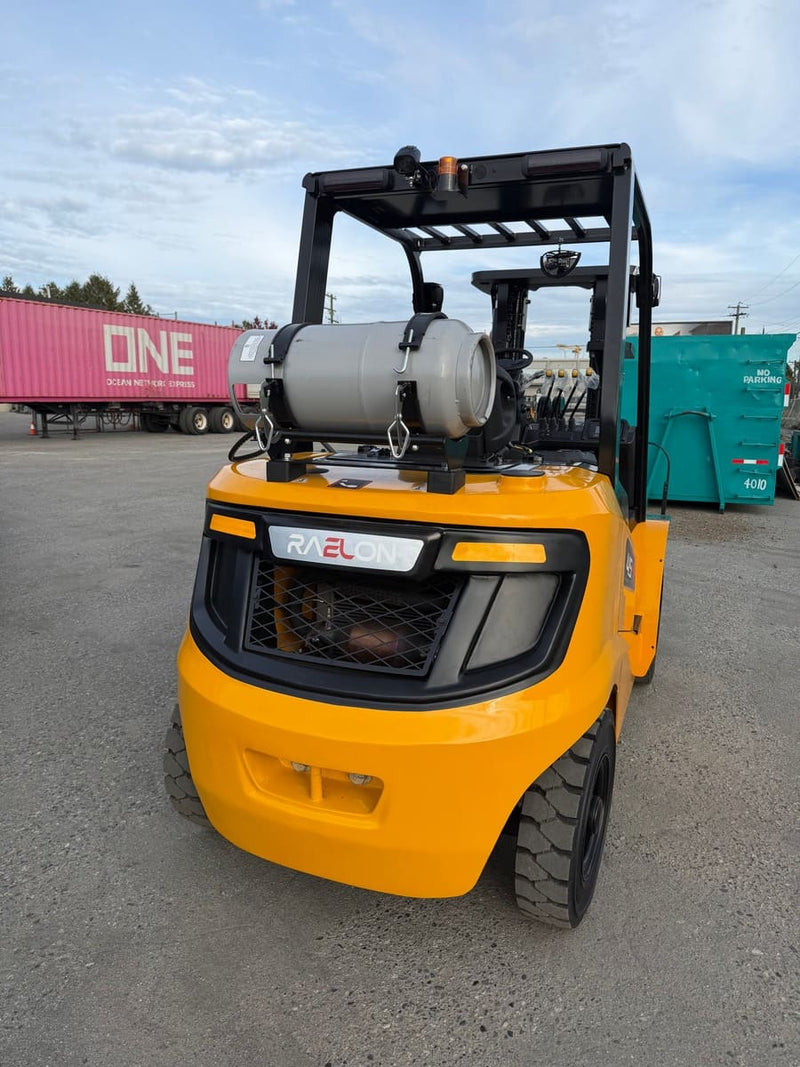

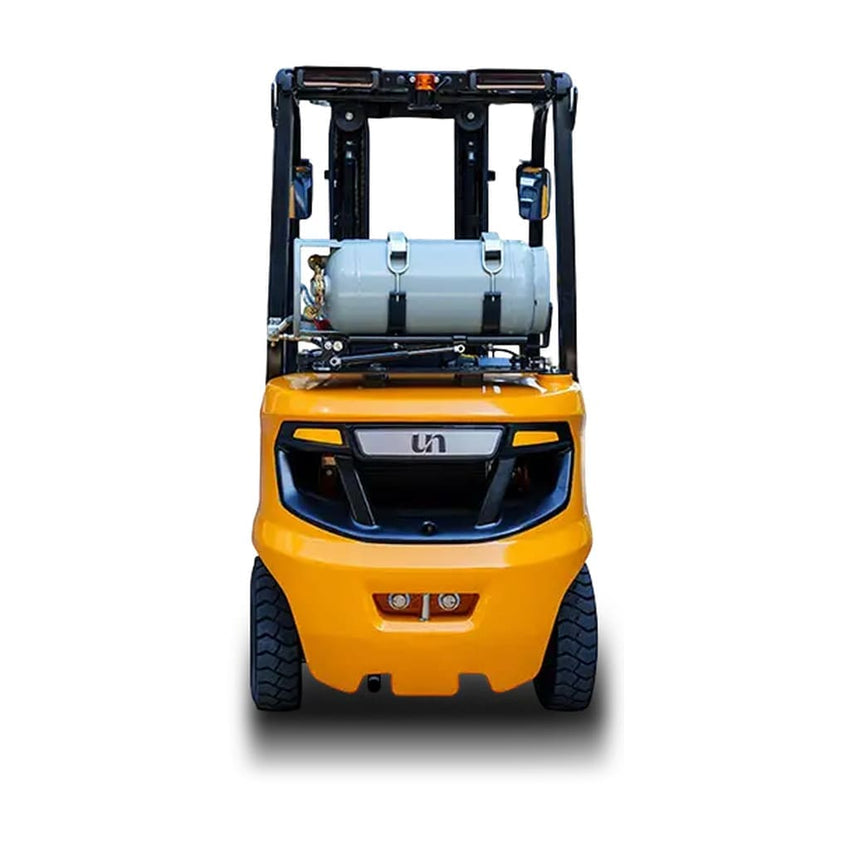

| LPG tank | Included, filled |
| Overall width | 1,220 mm (48.0 in) |
| Overhead guard height | 2,235 mm (88.0 in) |
| Outside turning radius | 2,425 mm (95.5 in) |
| Wheelbase | 1,700 mm (66.9 in) |
Offert aux entreprises et aux particuliers. Remplissez une demande : nous la transmettons à notre partenaire prêteur, qui détermine l’acompte et le montant financé.
Options de financementThe equipment is covered for 1 year or 2,000 operating hours. Frame, mast, drive axle and transmission parts are covered for up to 2 years or 3,000 hours, parts only after year one.
Détails de la garantieLes chariots en stock sont normalement expédiés dans la semaine suivant le paiement et la confirmation du transport. Livrés entièrement assemblés et prêts à l’emploi. Le client organise le déchargement.
Expédition et livraisonFree pickup in Richmond, BC, normally within 24 hours of successful payment. No appointment needed; we help load your vehicle.
Retrait sur placeCompare forklift prices in Canada and learn when a pallet stacker or forklift fits the job. Share your load weight, lift height and aisle width with our team for help choosing.
Les chariots élévateurs Raelon coûtent entre 34 500 $ et 39 000 $ CAD. Voici ce qui influence le prix des chariots...
Lire le guide →Un gerbeur peut remplacer un chariot élévateur pour certaines tâches, mais pas pour toutes. Voici les chiffres réels concernant la capacité, la...
Lire le guide →AUTRES CHARIOTS
Livraison partout au Canada
Livraison partout au Canada
Livraison partout au Canada
Livraison partout au Canada
The load plate rates 3,000 kg at a 500 mm load centre for masts up to 3,500 mm and subtracts 200 kg with a sideshift. The 189 in mast is taller than that group, so the 3,000 kg figure does not apply at full height. Tell us your load weight and lift height and we will confirm.
Solid tires with a tread pattern, 28×9-15 at the front and 6.50-10 at the rear. Solid tires cannot puncture.
Yes, filled and included in the price.
As long as the space is well ventilated. LPG exhaust contains carbon monoxide, so keep doors or windows open or use mechanical ventilation, as the operator manual requires.
1,220 mm (48.0 in) wide, with a 2,425 mm (95.5 in) outside turning radius and a 1,700 mm (66.9 in) wheelbase.
Equipment can be returned within 30 days with written approval. A 15% restocking fee applies and the customer pays return freight. Report any shipping damage within 48 hours of delivery.
1-year limited warranty on the equipment, up to 2 years on frame and drivetrain parts, terms apply. Freight is quoted by destination and confirmed before you pay. Pickup is available from Richmond, BC and Edmonton, AB. 0% APR financing for up to 24 months is available to qualified customers, subject to lender approval.
