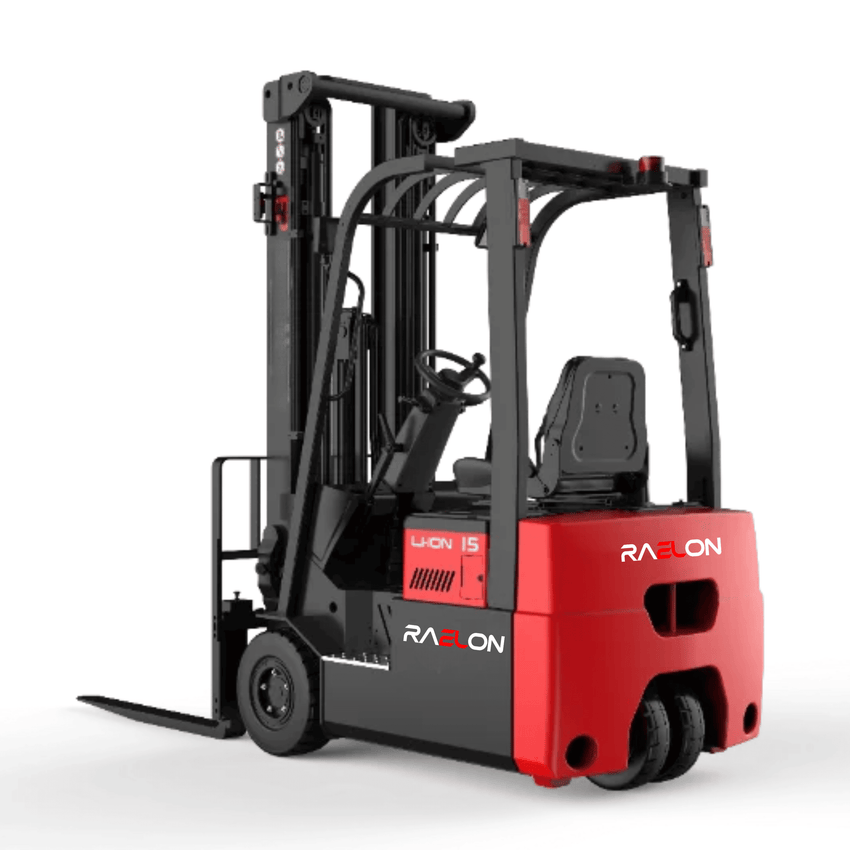

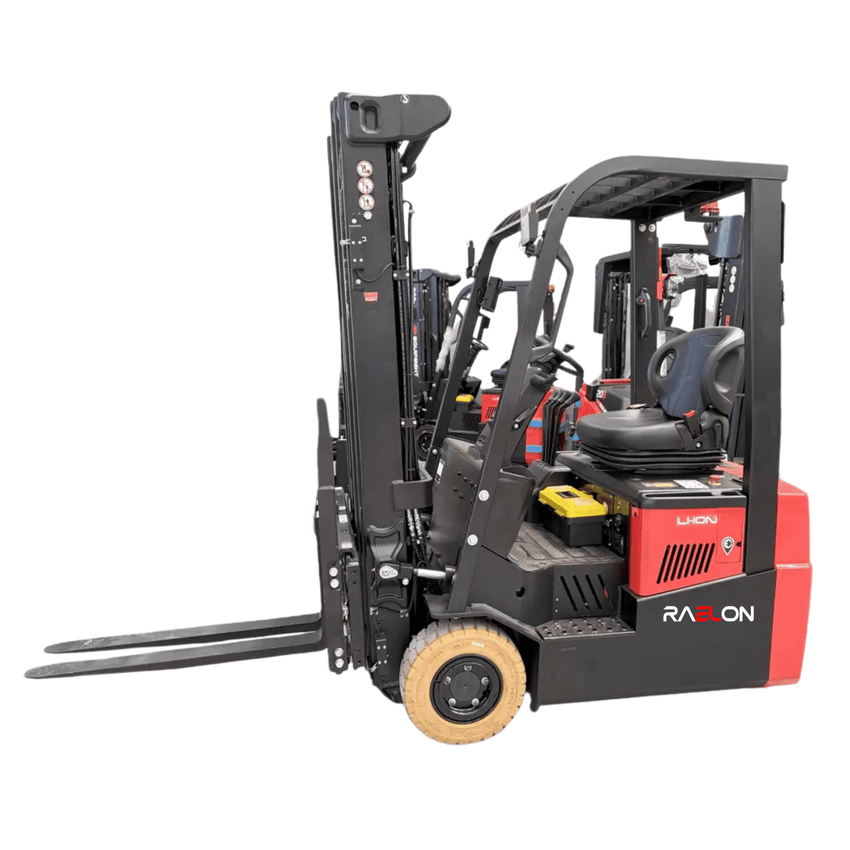

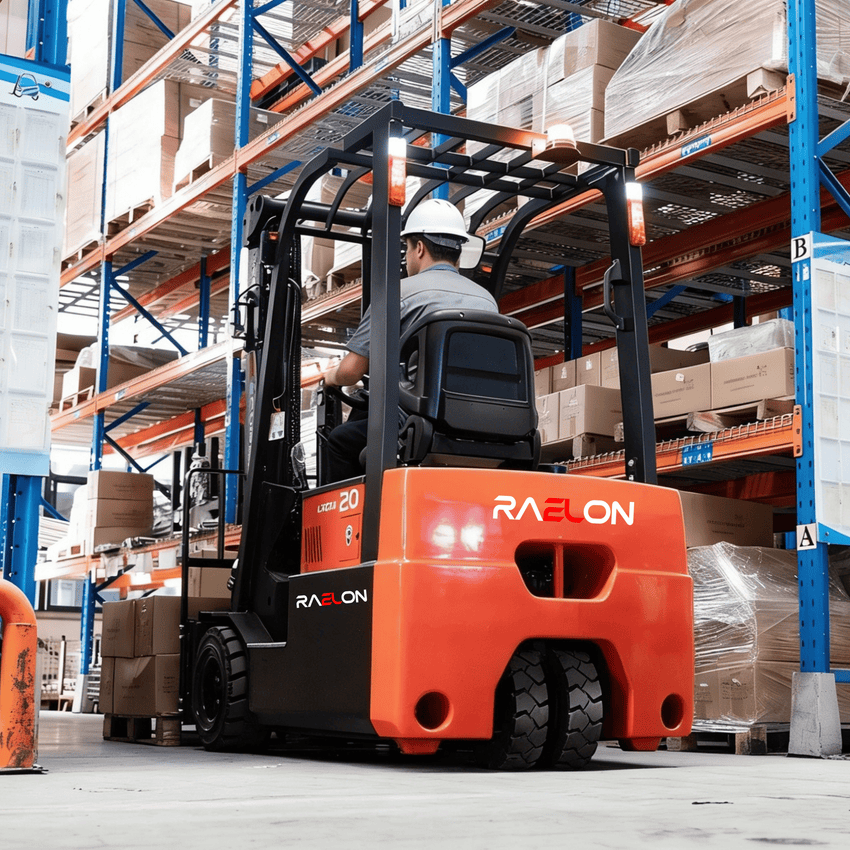

The Raelon CPD15 is a compact 3-wheel electric forklift built for tight indoor warehouse aisles. It combines a 1500kg (3300lb) rated capacity with a 189in three-stage free-lift mast, giving operators strong vertical reach without sacrificing maneuverability.

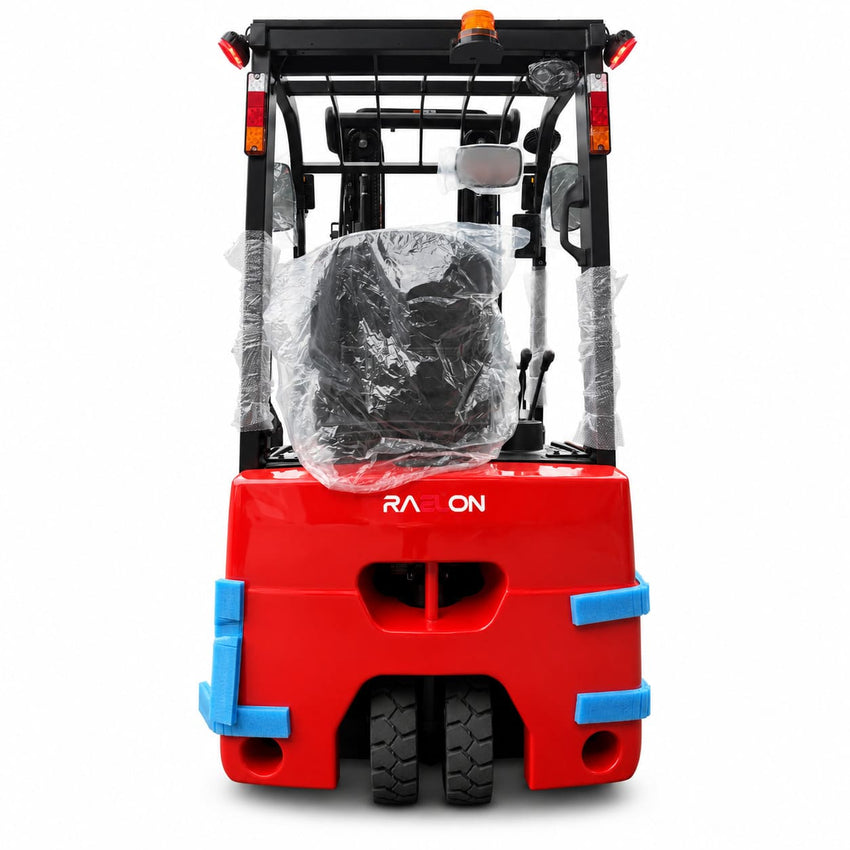

The 3-wheel front-drive layout gives the CPD15 a 57.1in (1450mm) turning radius — noticeably tighter than a standard 4-wheel counterbalance truck of similar capacity. This makes it a practical fit for narrow-aisle warehouses, retail backrooms, and receiving areas where space is limited.

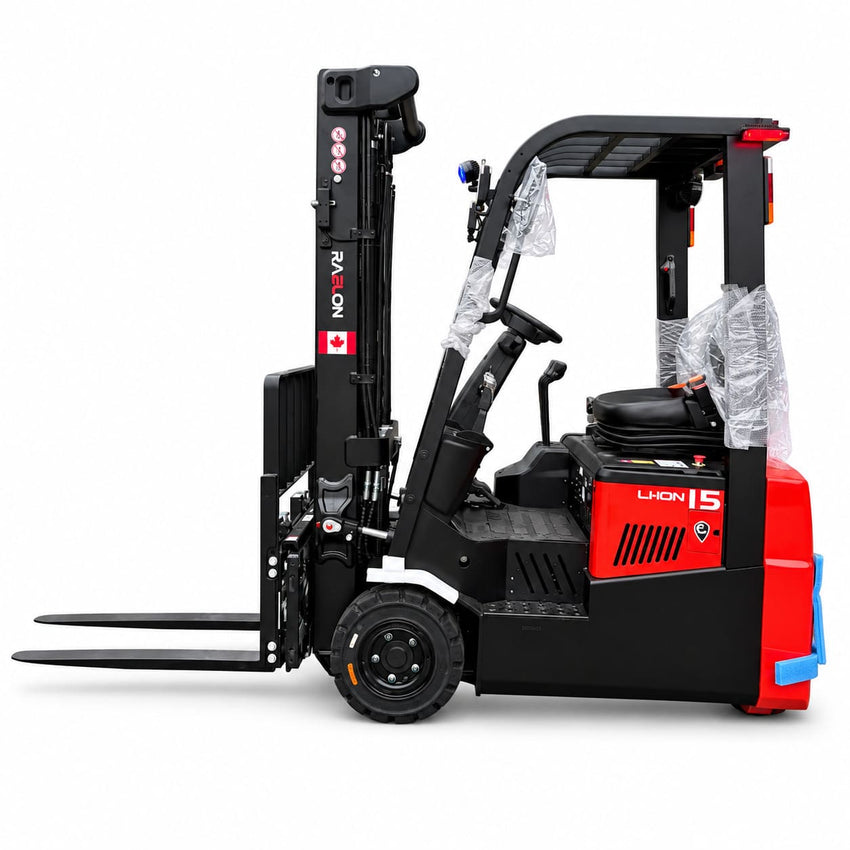

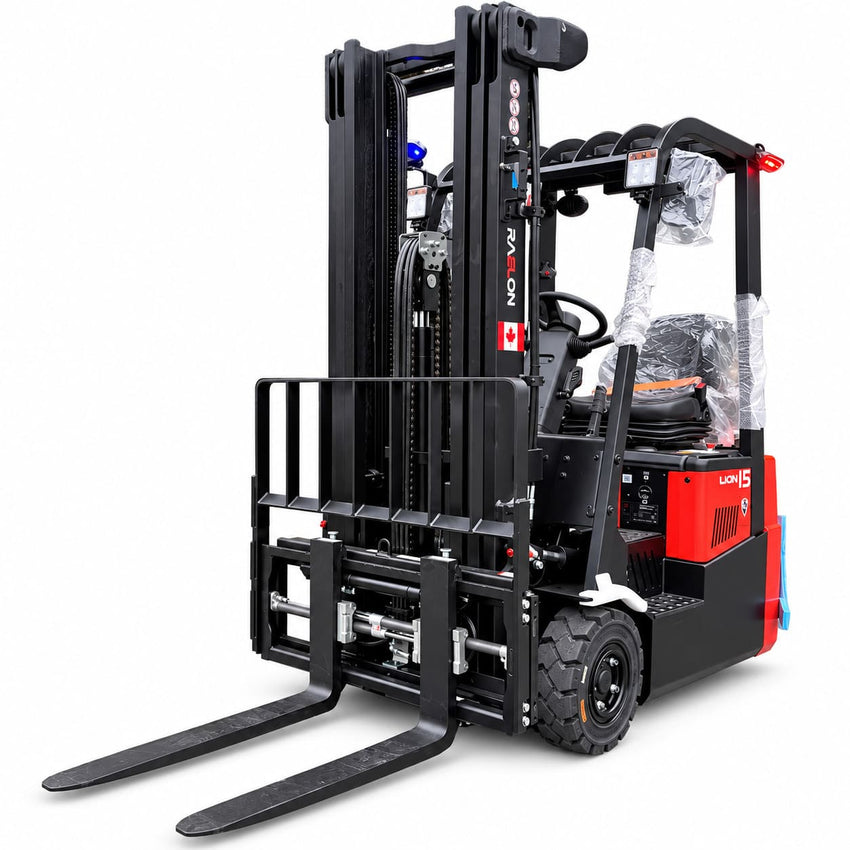

The three-stage full-free-lift mast reaches 189in (4800mm) fully extended while still lowering to a compact height for doorway and trailer clearance. Load capacity does taper with height and load center — the CPD15 carries up to 3090lb at 142in lift height, tapering to 2425lb at full 189in extension with the load center at 500mm. Confirm the exact capacity for your load size and lift height before purchase.

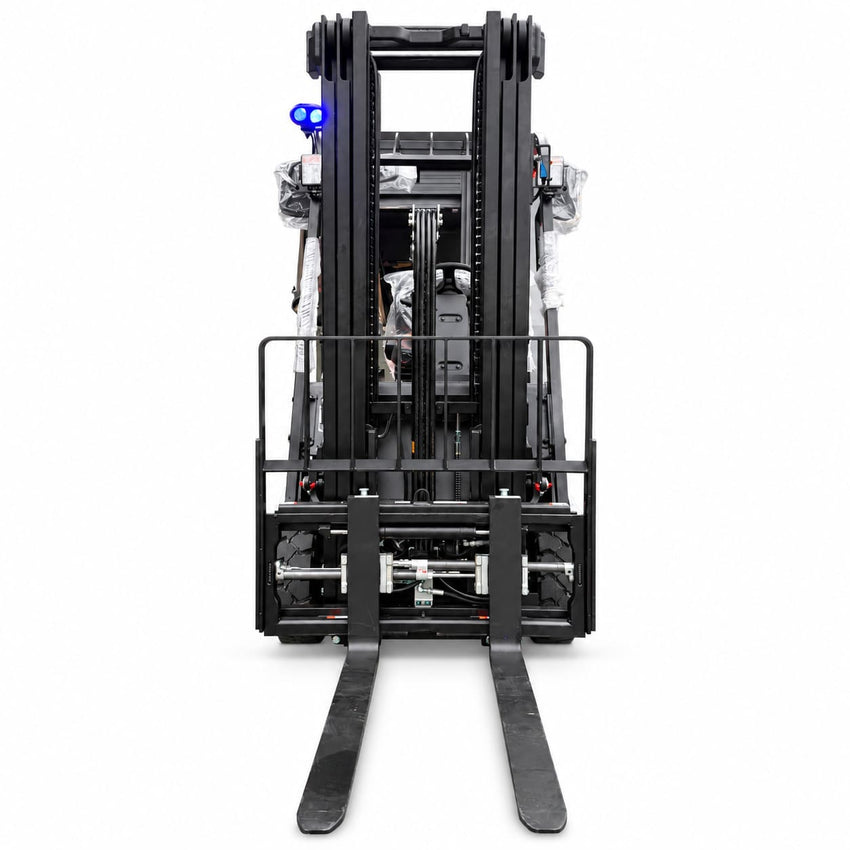

The CPD15 ships with a factory-fitted fork positioner and sideshift as a single combined attachment, rather than two separate add-ons. This lets operators adjust fork spacing and shift the load laterally from the seat, cutting down on repositioning time when handling mixed pallet sizes.

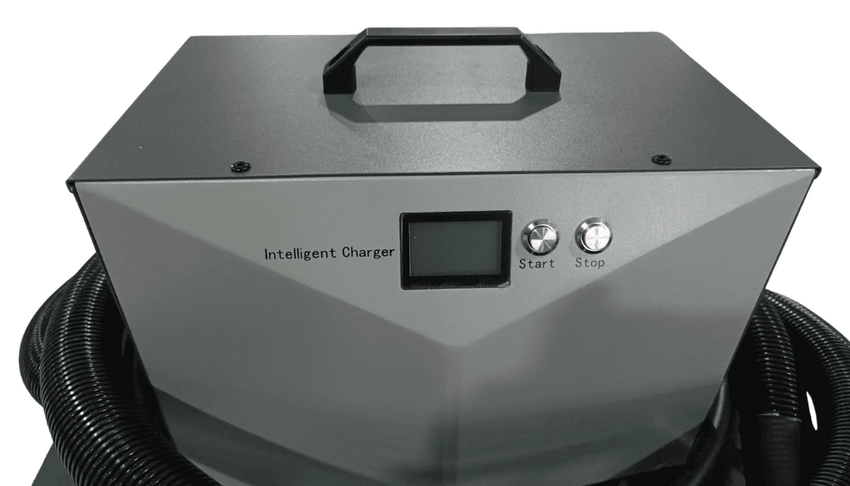

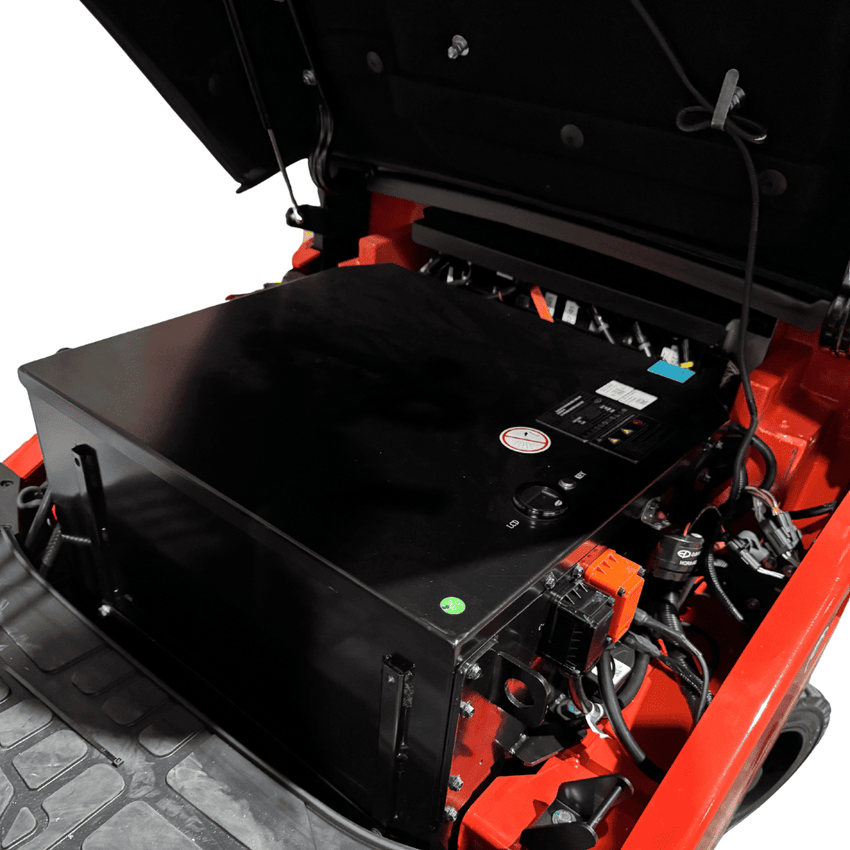

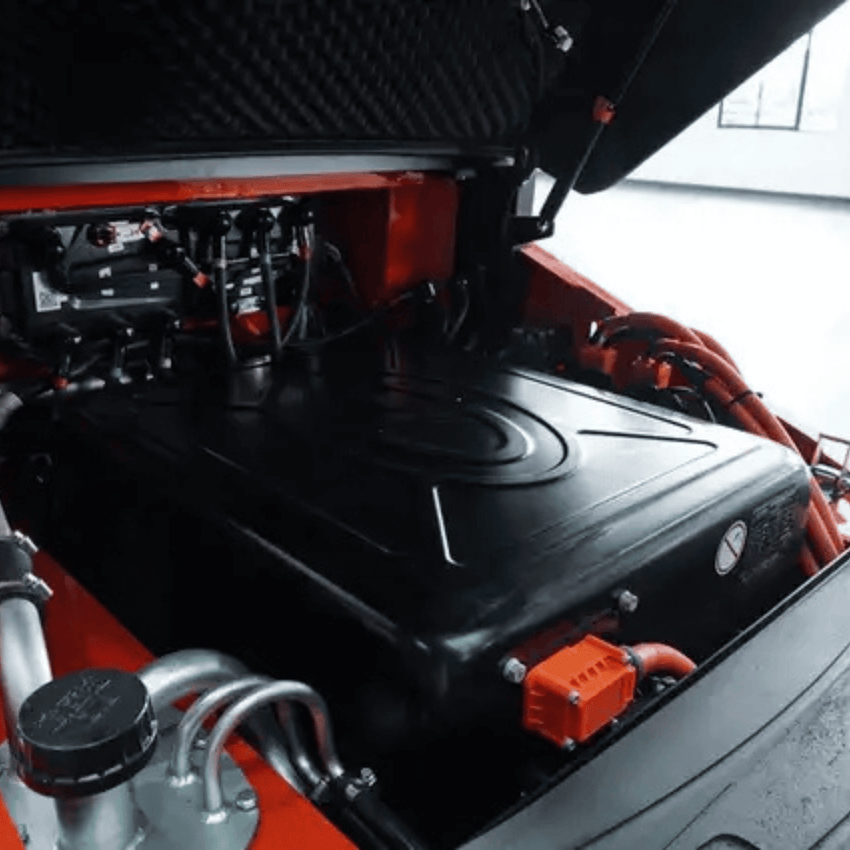

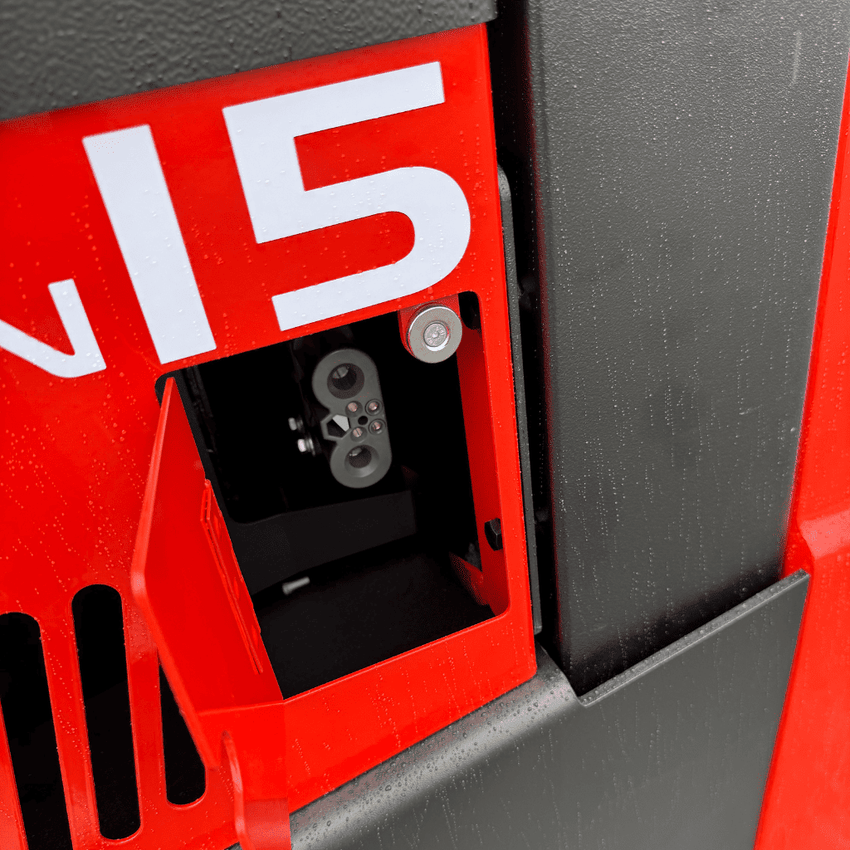

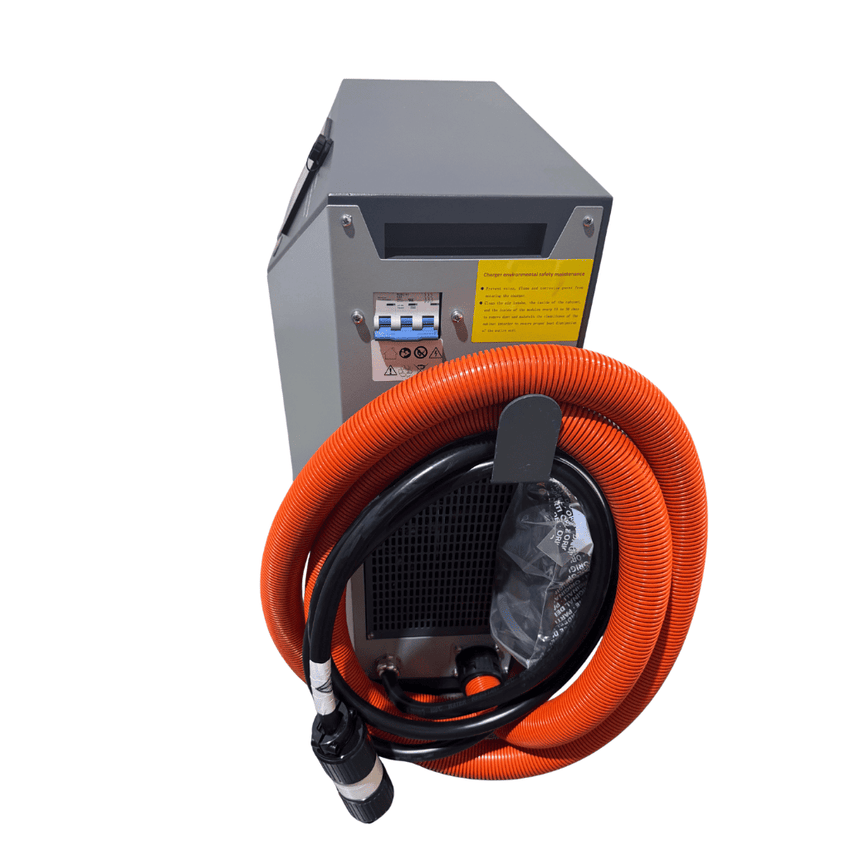

An 80V lithium-ion battery replaces the lead-acid packs found on older electric forklift models, cutting maintenance and avoiding the fumes and watering schedule that come with flooded lead-acid batteries. The CPD15 pairs the battery with a UL-certified 80V/100A three-phase charger (220V), bringing a full charge from empty to roughly 2.8 hours. EP rates the system for approximately 6 working hours per charge under typical warehouse conditions; actual runtime will vary with load, lift cycles, and travel distance.
Two 5.0kW front drive motors and an 11kW lift motor give the CPD15 a laden travel speed of 13km/h and a 10% max gradeability when loaded — enough for most dock ramps and warehouse inclines. Solid tires (18x7-8 front, 15x4.5-8 rear) are standard, trading a firmer ride for puncture resistance in typical warehouse floors.

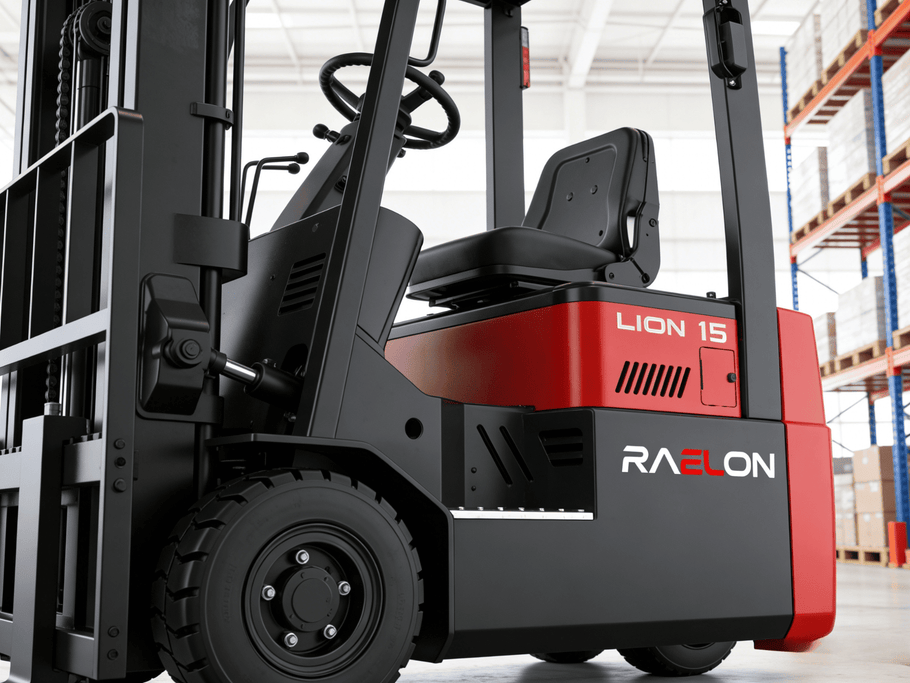

The CPD15 includes a standard operator seat with safety belt, along with a full safety lighting package — working lights, dual side mirrors, reversing buzzer, and pedestrian-awareness blue/red warning lights. Hydraulic service brakes and a mechanical parking brake round out the safety package. Sound level at the driver's seat is rated at 68dB(A), quiet enough for extended indoor shifts.
| Specification | Raelon CPD15 |
|---|---|
| Forklift Type | Electric Counterbalance Forklift, 3-Wheel |
| Rated Capacity | 1500kg / 3300lb @ 500mm load center |
| Mast Type | 3-Stage Full-Free-Lift Triplex |
| Maximum Lift Height | 189in / 4800mm |
| Capacity at 189in Lift (500mm LC) | 2425lb / 1100kg |
| Capacity at 142in Lift (500mm LC) | 3090lb / 1400kg |
| Fork Dimensions | 42.1in / 1070mm |
| Attachments | Integrated Fork Positioner + Sideshift |
| Battery | 80V / 280Ah Li-ion |
| Runtime | Approx. 6 Hours per Charge (typical use) |
| Drive Motors | 2 x 5.0kW |
| Lift Motor | 11kW |
| Travel Speed (Laden) | 13km/h / 8.1mph |
| Max Gradeability (Laden) | 10% |
| Tires | Solid — Front 18x7-8, Rear 15x4.5-8 |
| Turning Radius | 57.1in / 1450mm |
| Overall Width | 43.3in / 1100mm |
| Service Brake / Parking Brake | Hydraulic / Mechanical |
| Sound Level at Operator Seat | 68dB(A) |
| Unladen Weight | 3290kg (with battery) |
