Fits 48 x 40 in pallets
Enter the 48 in side and the 48 in forks run the full pallet depth. Enter the 40 in side and about 8 in of fork tip sticks out the far side.
Item added to your cart
Raelon

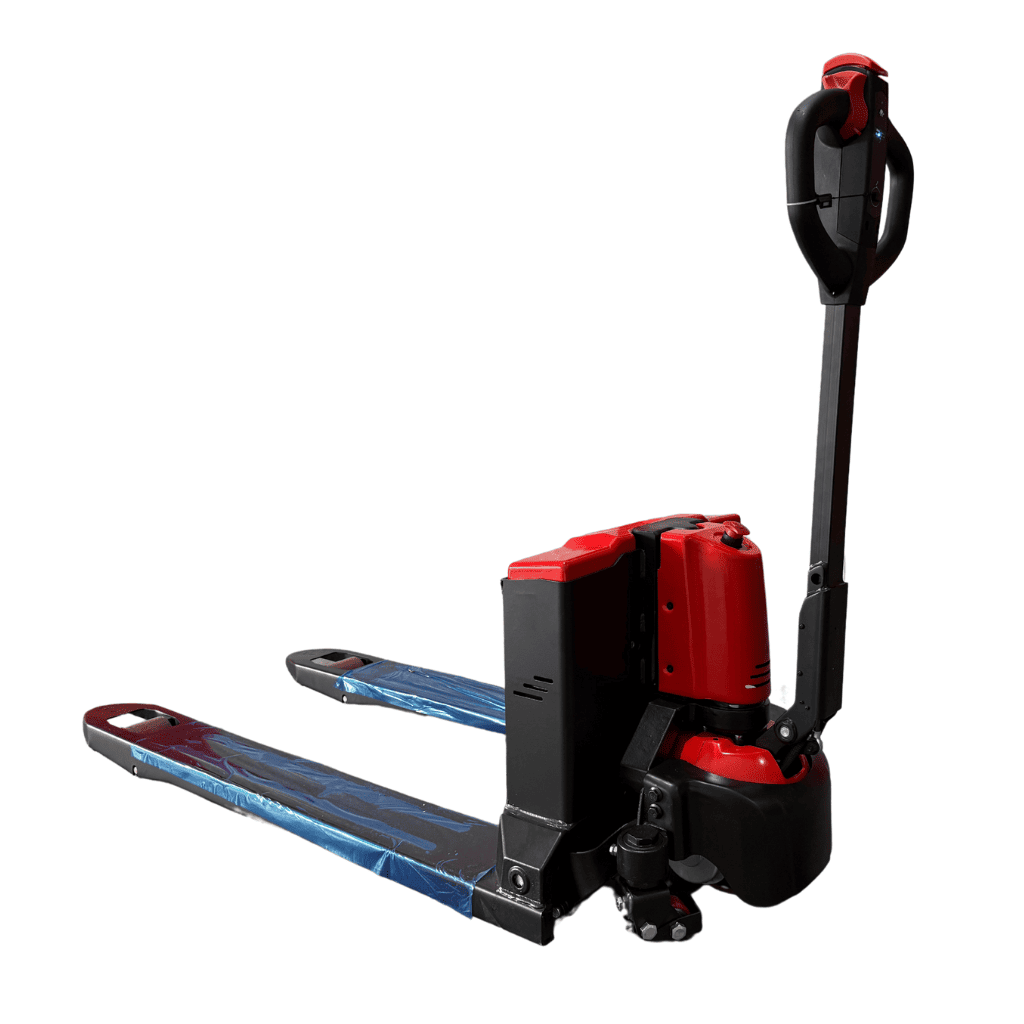

24V 25Ah lithium walkie pallet jack rated 3,300 lb, with 48 x 27 in forks, a 55.7 in turning radius and a charger in the box. Built for dock-to-rack moves on flat concrete floors.
Only 3 products left
Estimate Shipping
Enter your Canadian postal code to get an estimated shipping cost for this product.
Shipping is an estimate only. Final shipping will be shown at checkout or confirmed by quote.
Local Pickup Available
Richmond, BC Pickup
4751 Shell Road
Unit 10
Richmond BC V6X 3H4
Canada
No Shipping Fee
Usually ready in 24 hours
Four things to check against your pallets, your aisles and your shift.
Enter the 48 in side and the 48 in forks run the full pallet depth. Enter the 40 in side and about 8 in of fork tip sticks out the far side.
The forks need a pallet opening of at least 3.2 in. Measure your worn or block pallets before ordering.
Add your longest load to the 63.6 in truck length and compare with your narrowest aisle.
About 3 hours to charge from a standard 110V outlet, and 4-5 hours of light-duty runtime. Heavy loads and ramps will shorten that.

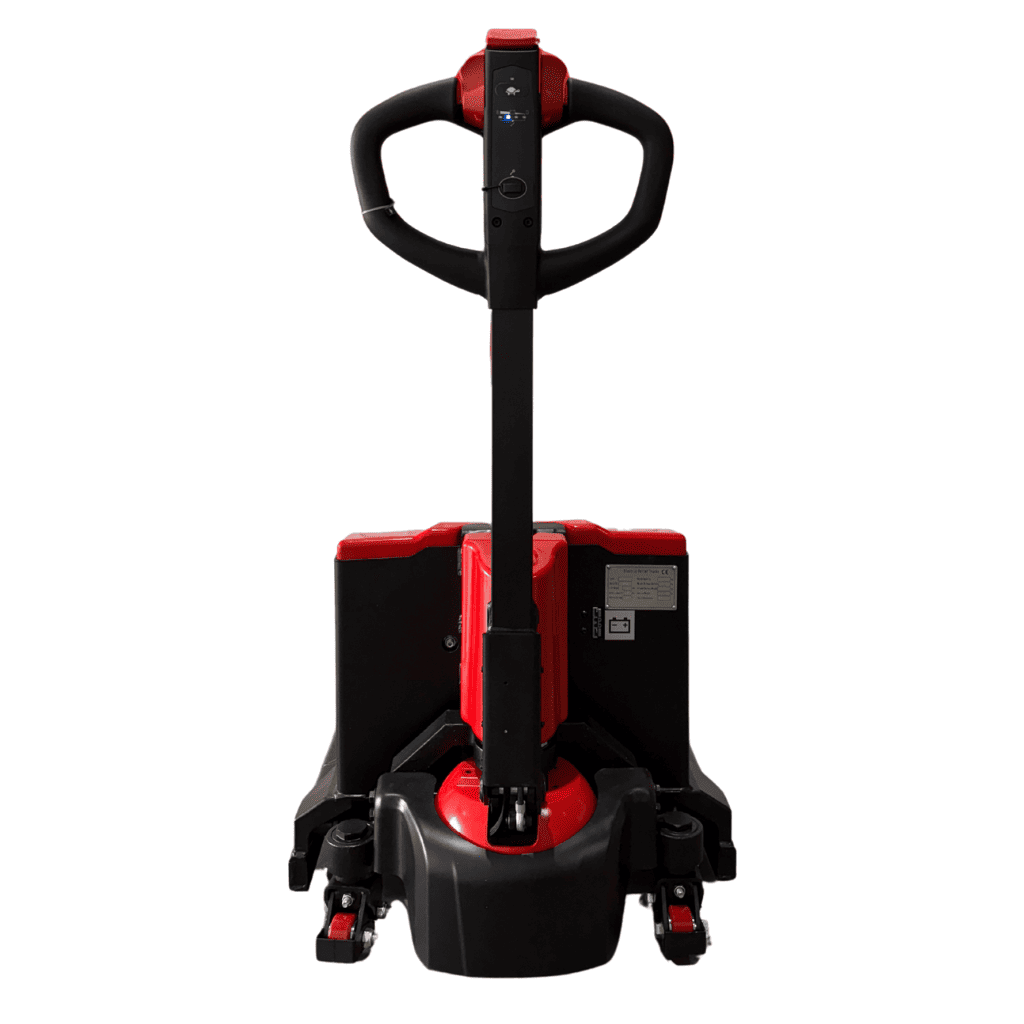

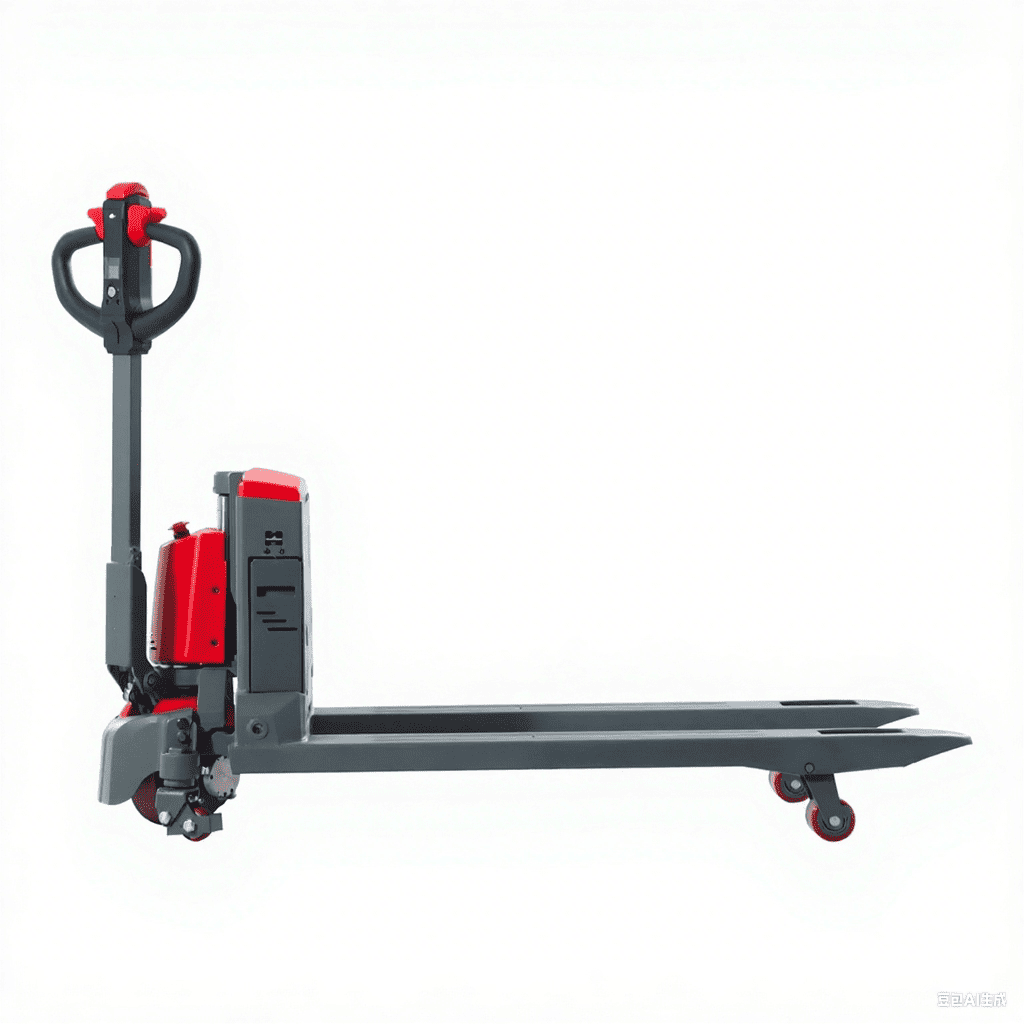

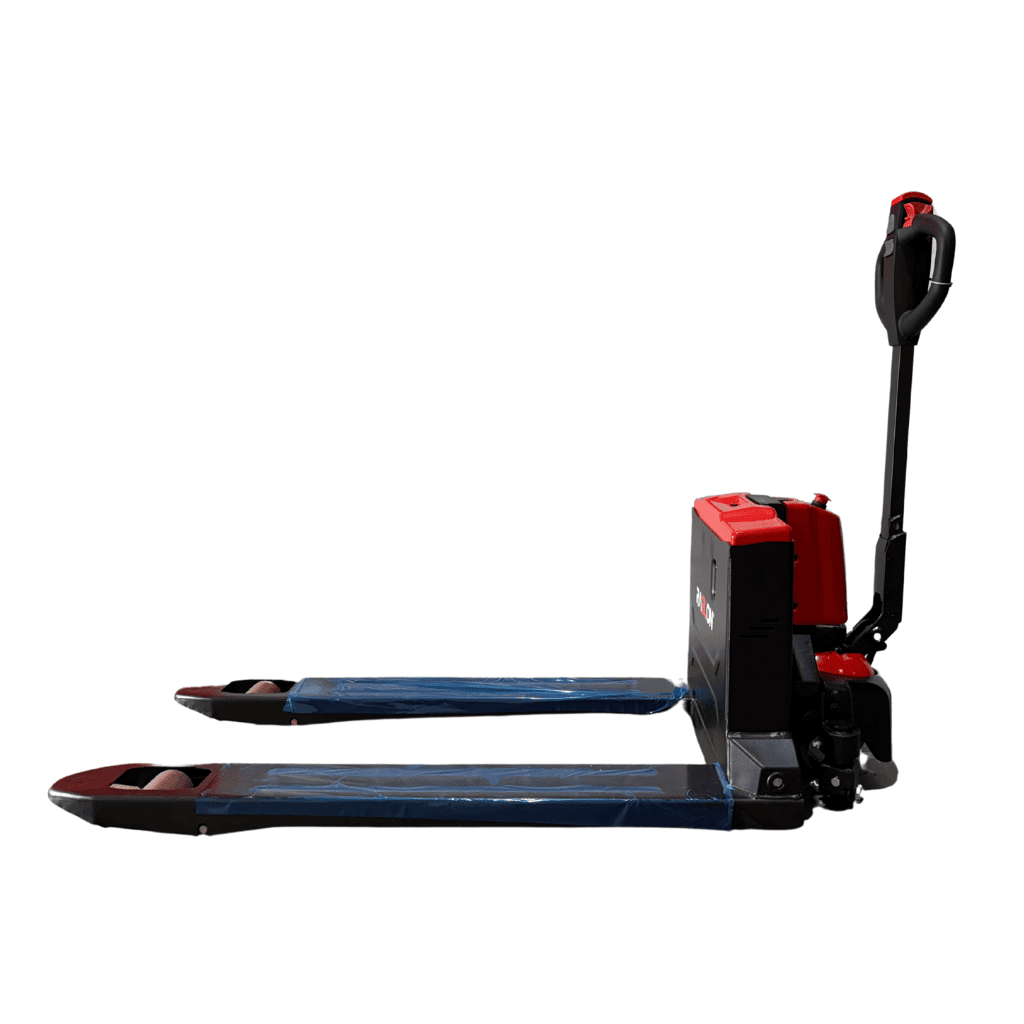

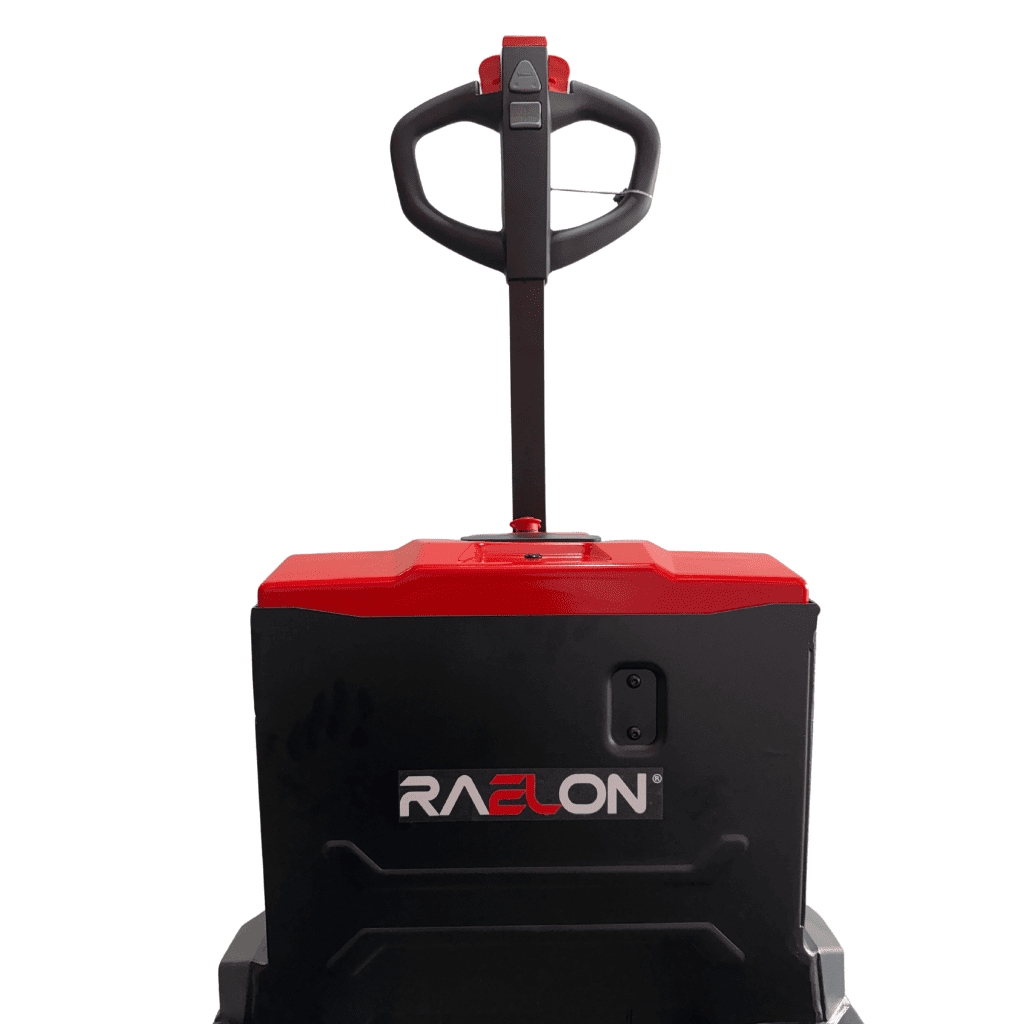

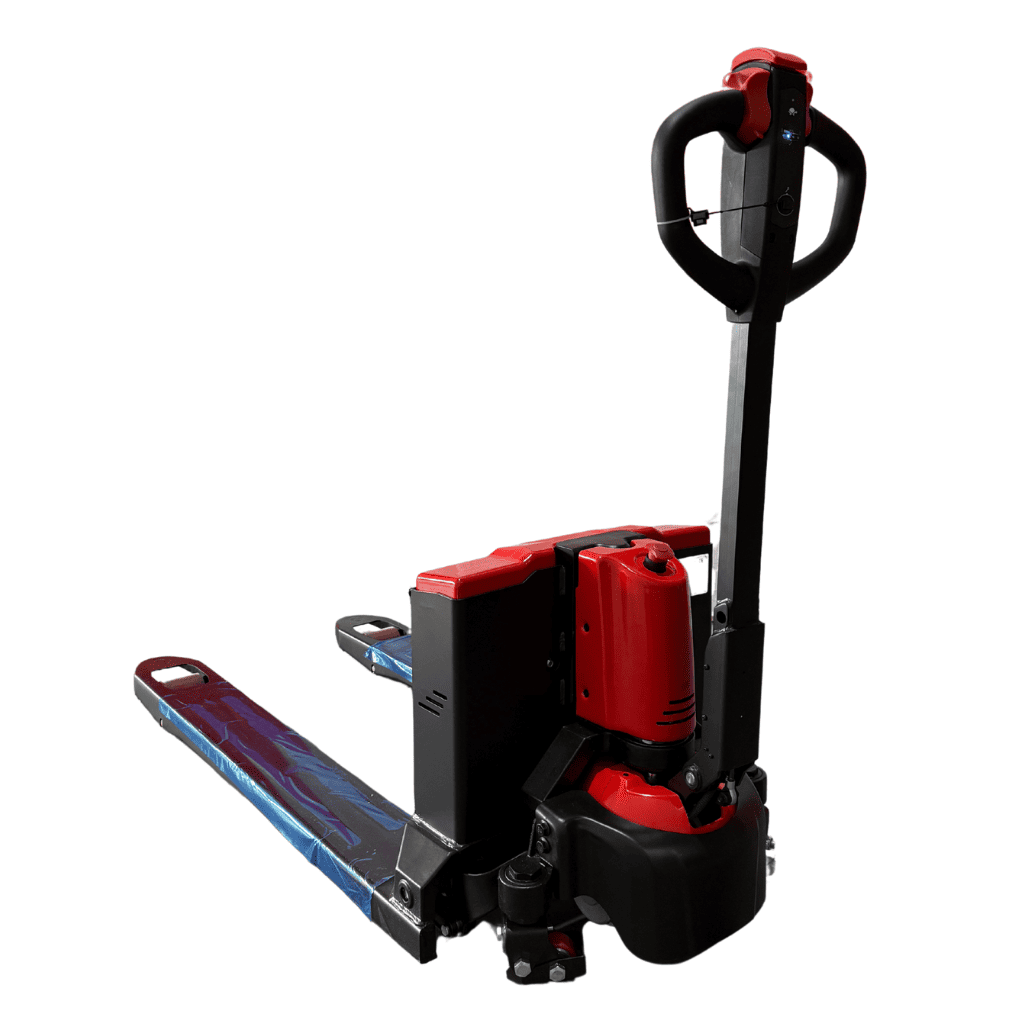

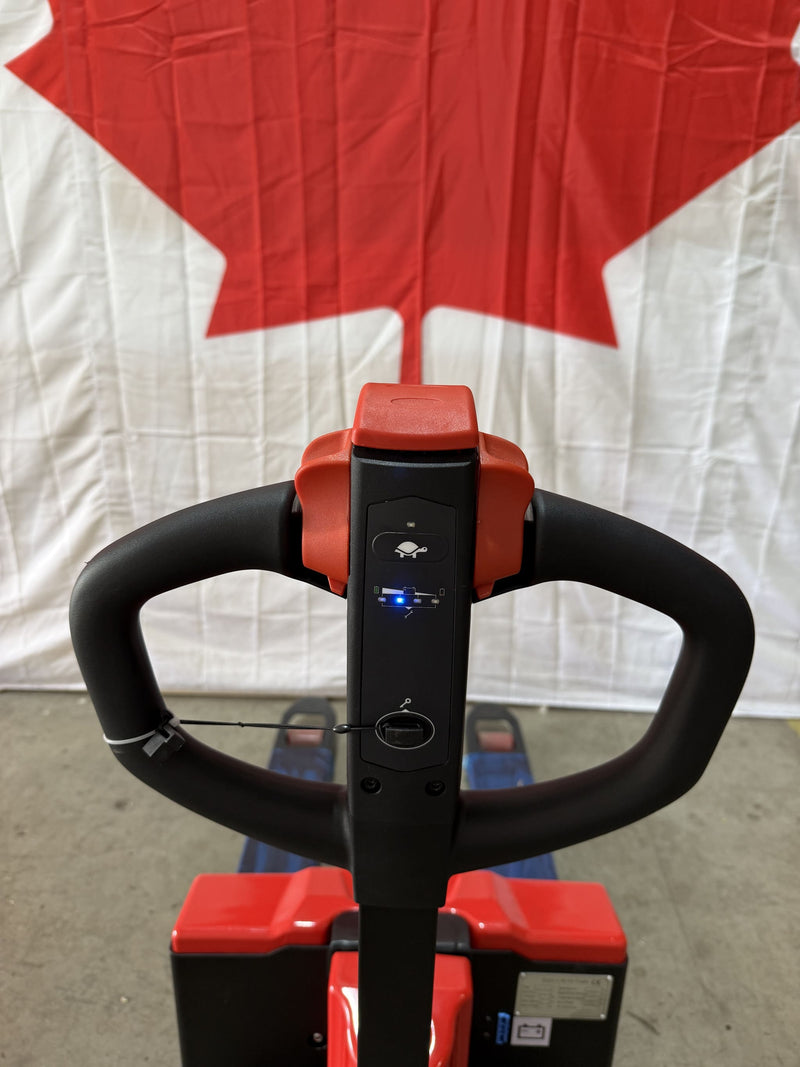

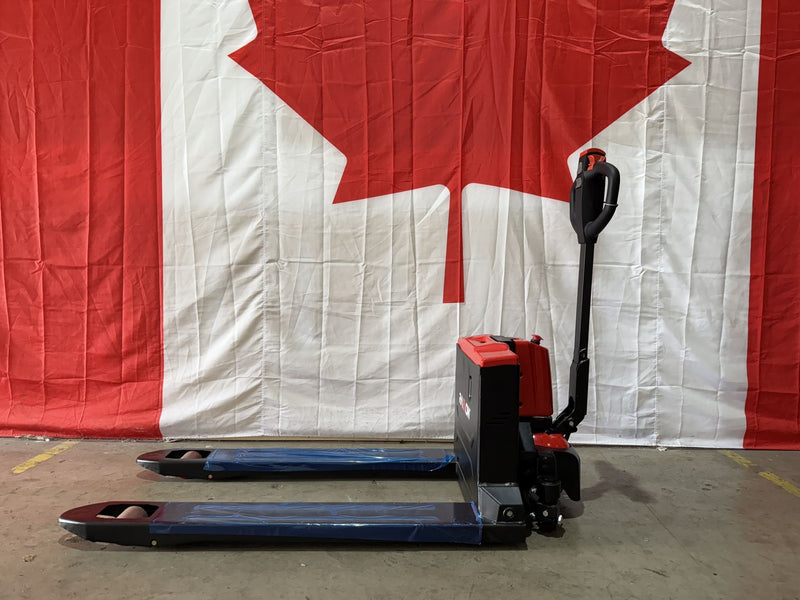

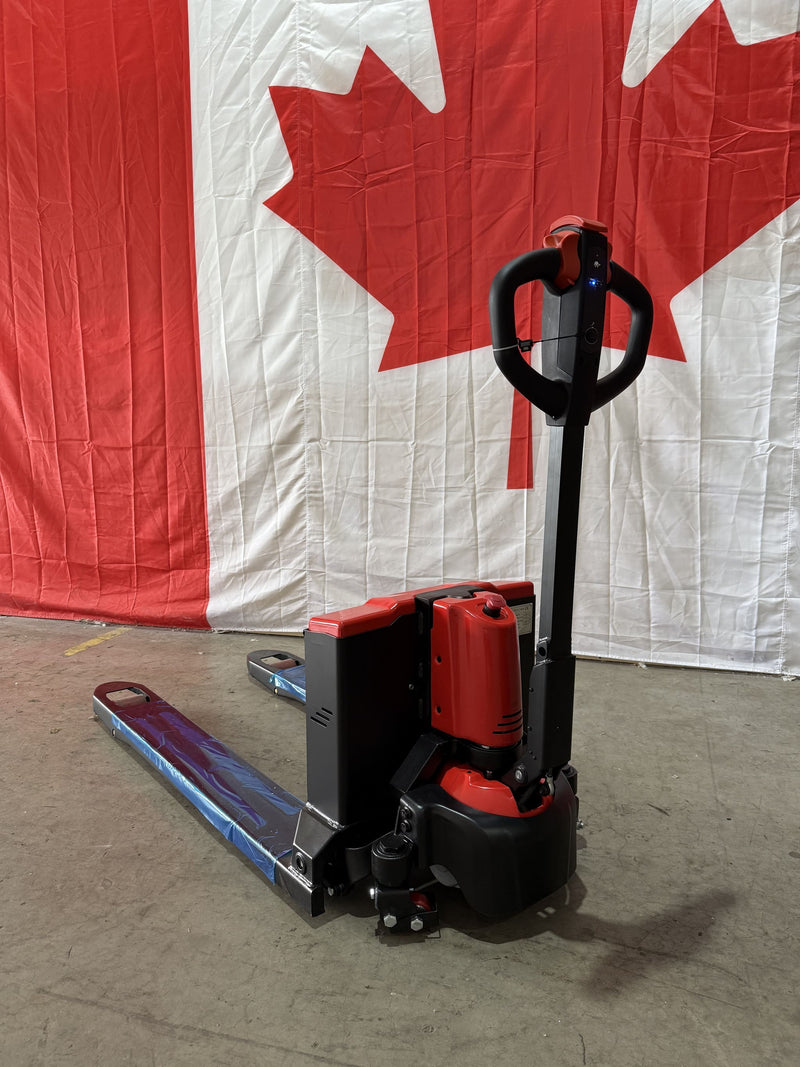

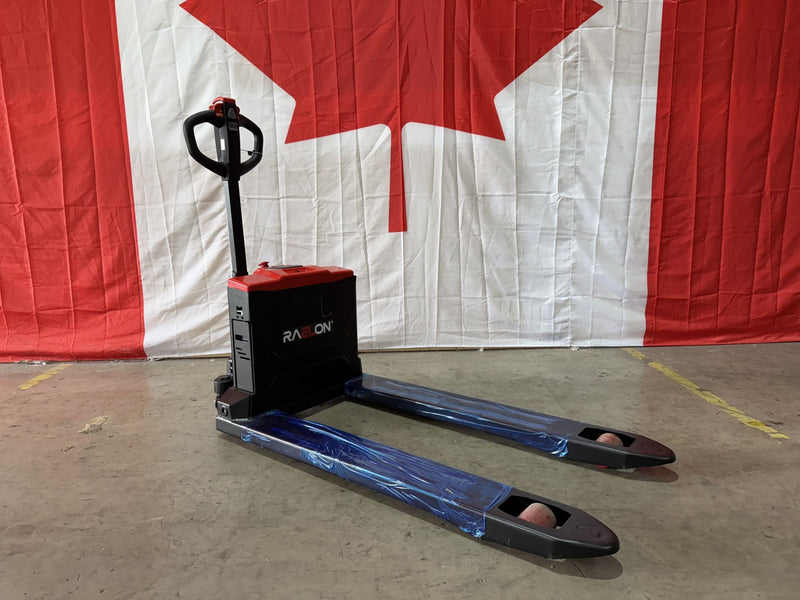

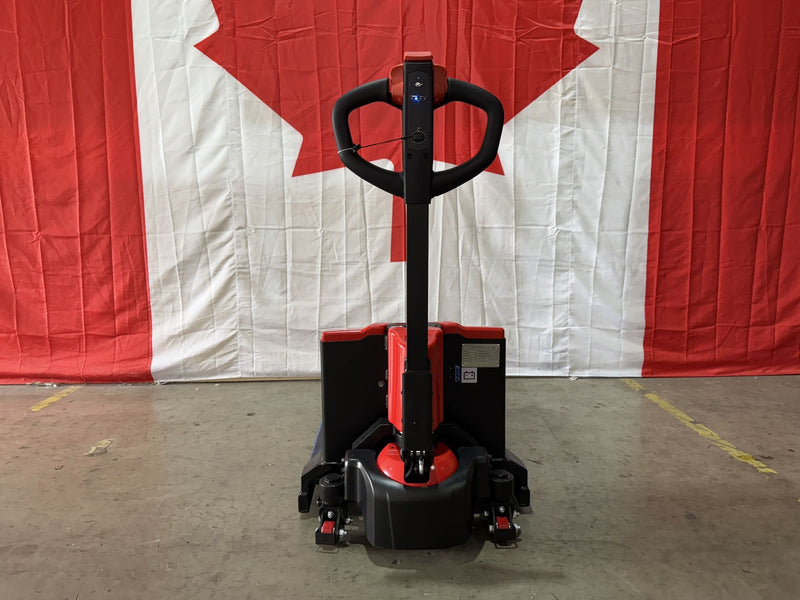

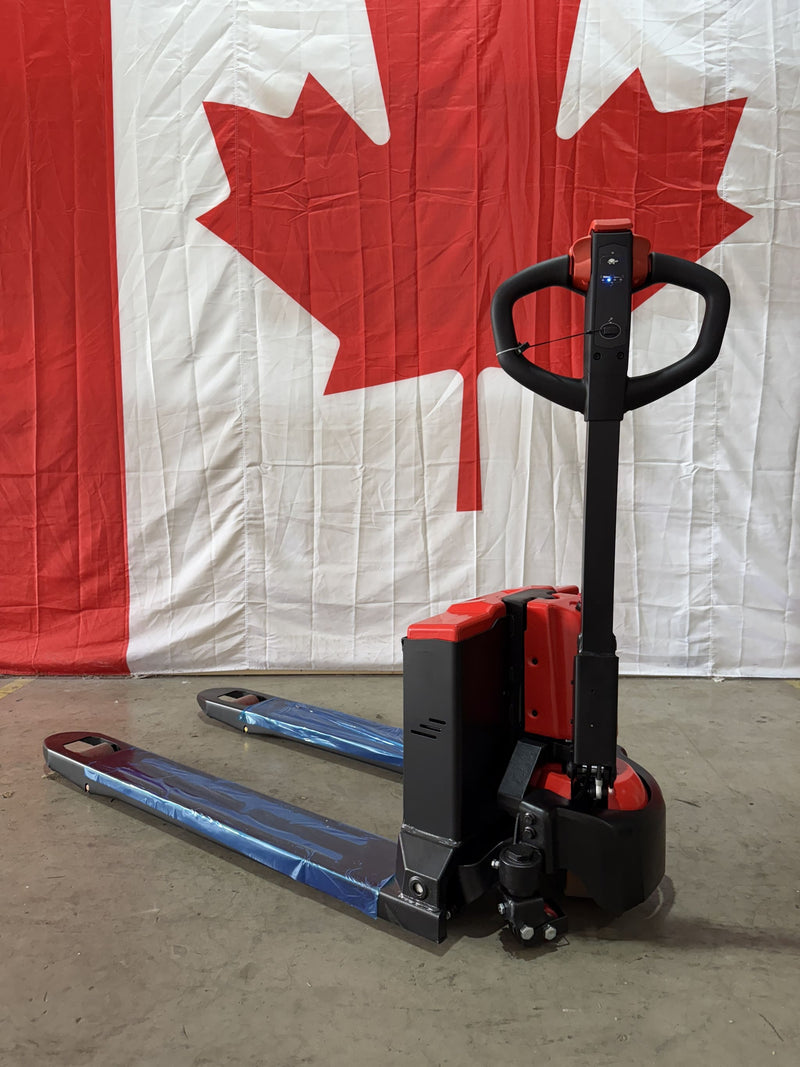

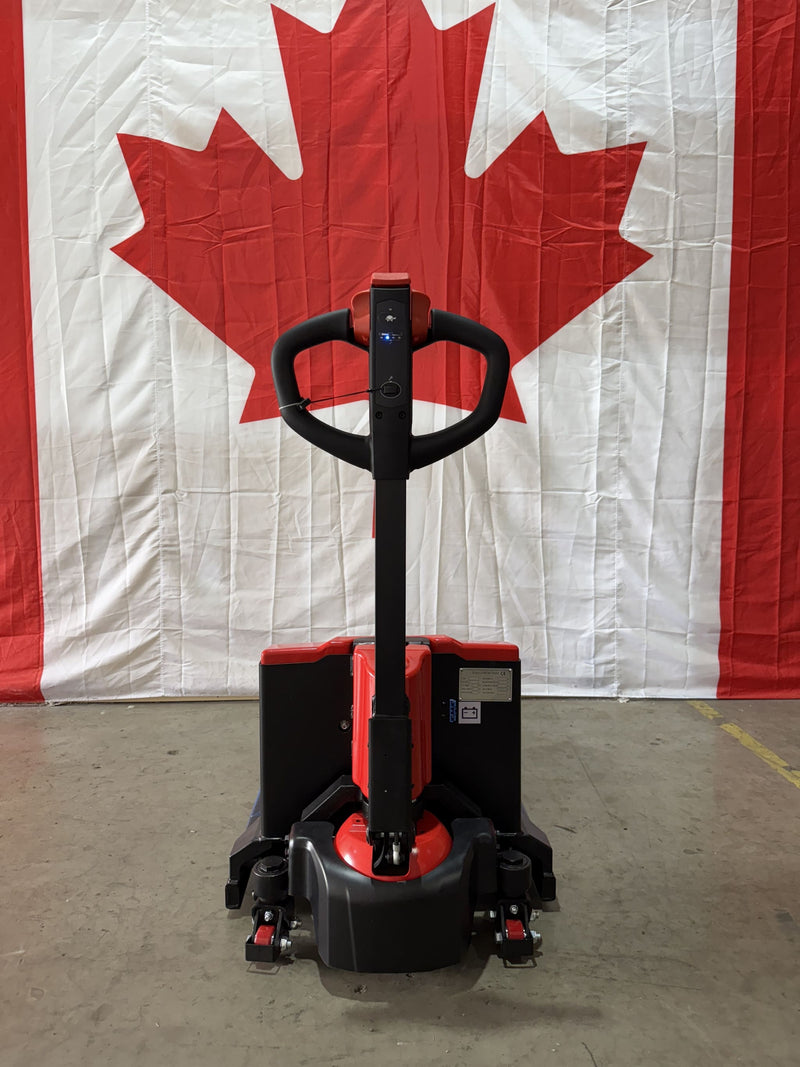

Real photos of this unit, taken before it ships.
Check these numbers against your pallets, your aisles and your heaviest load before ordering.

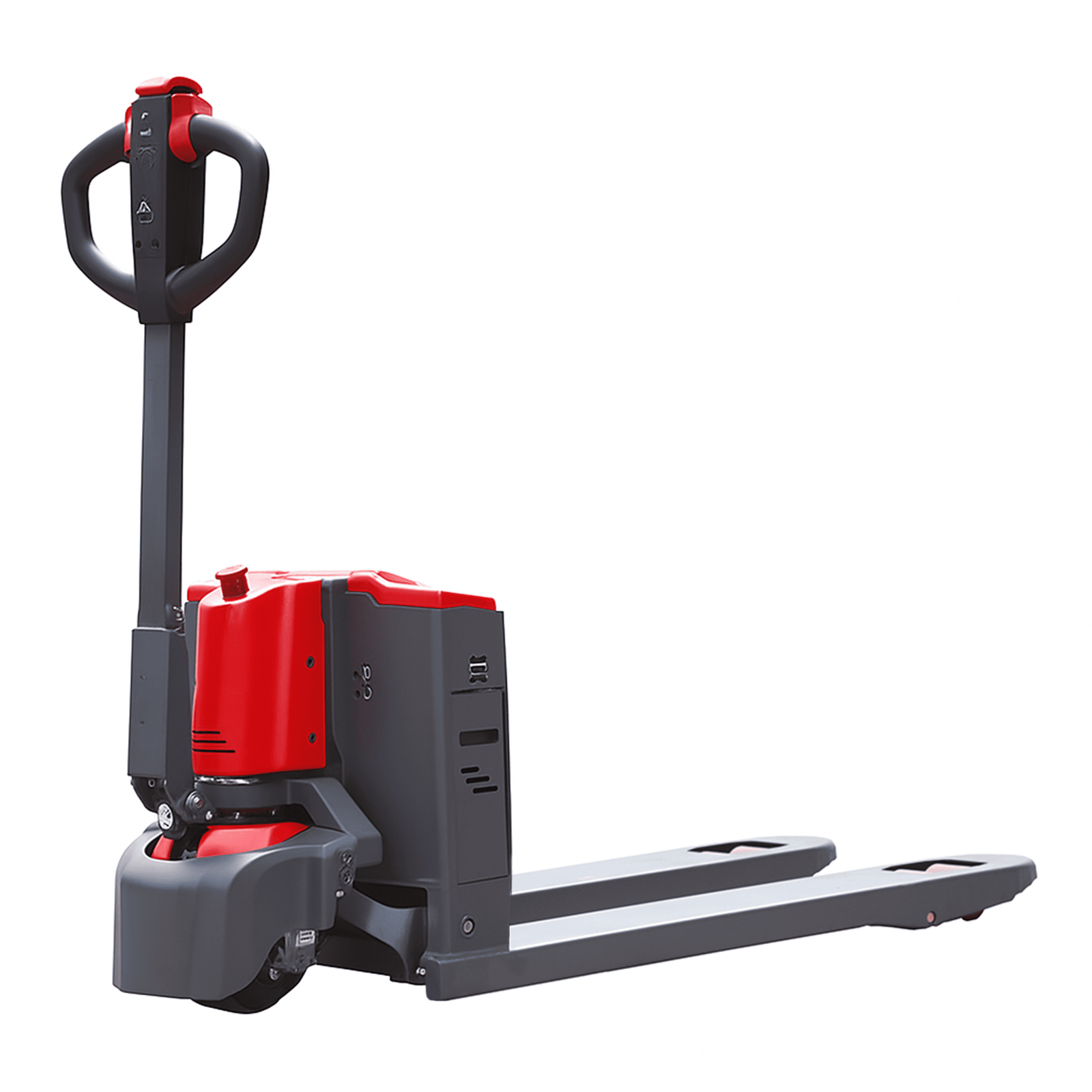

The CBD15W-II is a 3,300 lb walkie electric pallet jack with a 24V 25Ah lithium battery and a charger in the box. Four checks decide whether it fits your building and your aisles.
The specification grid above has the numbers. These checks decide whether the CBD15W-II fits your building.

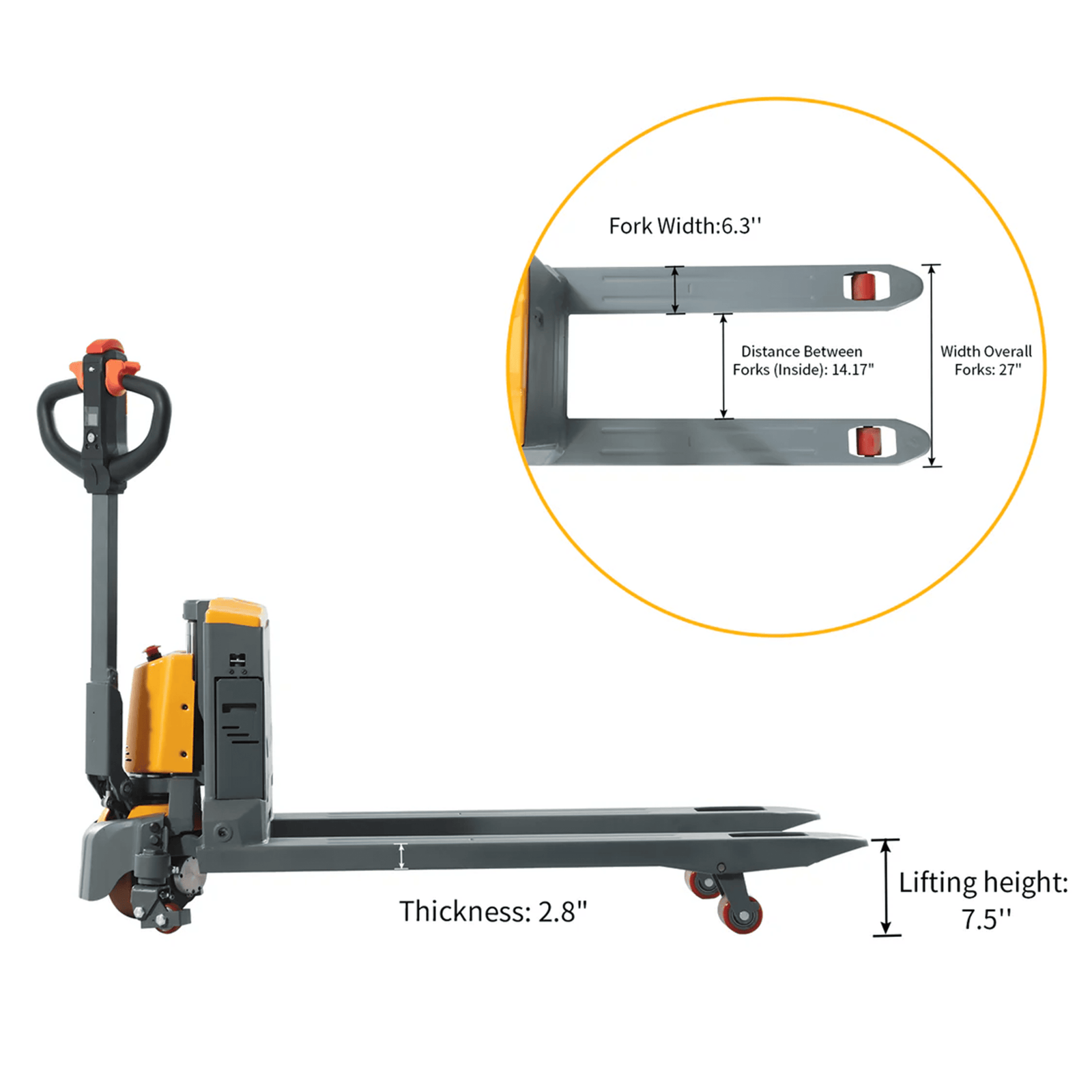

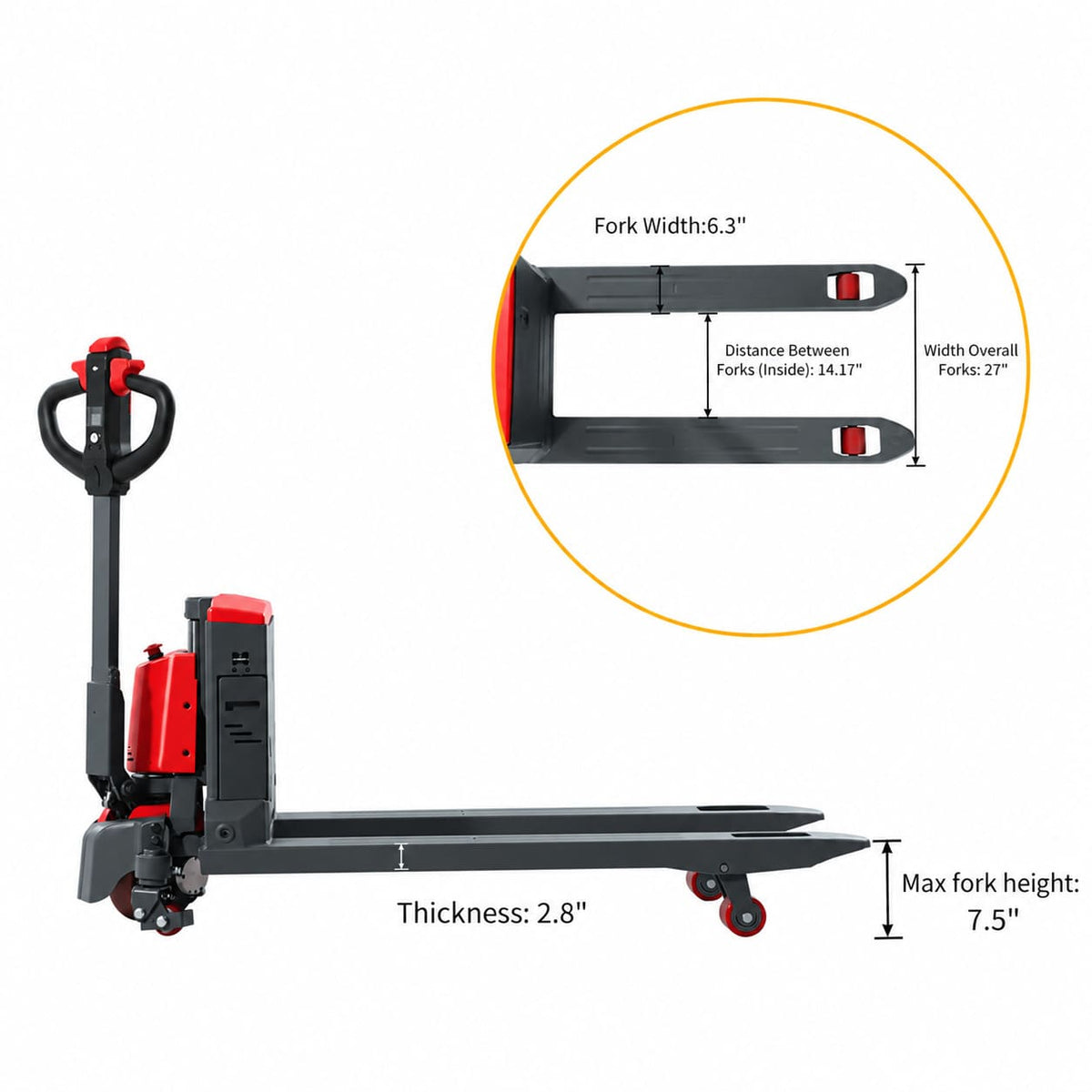

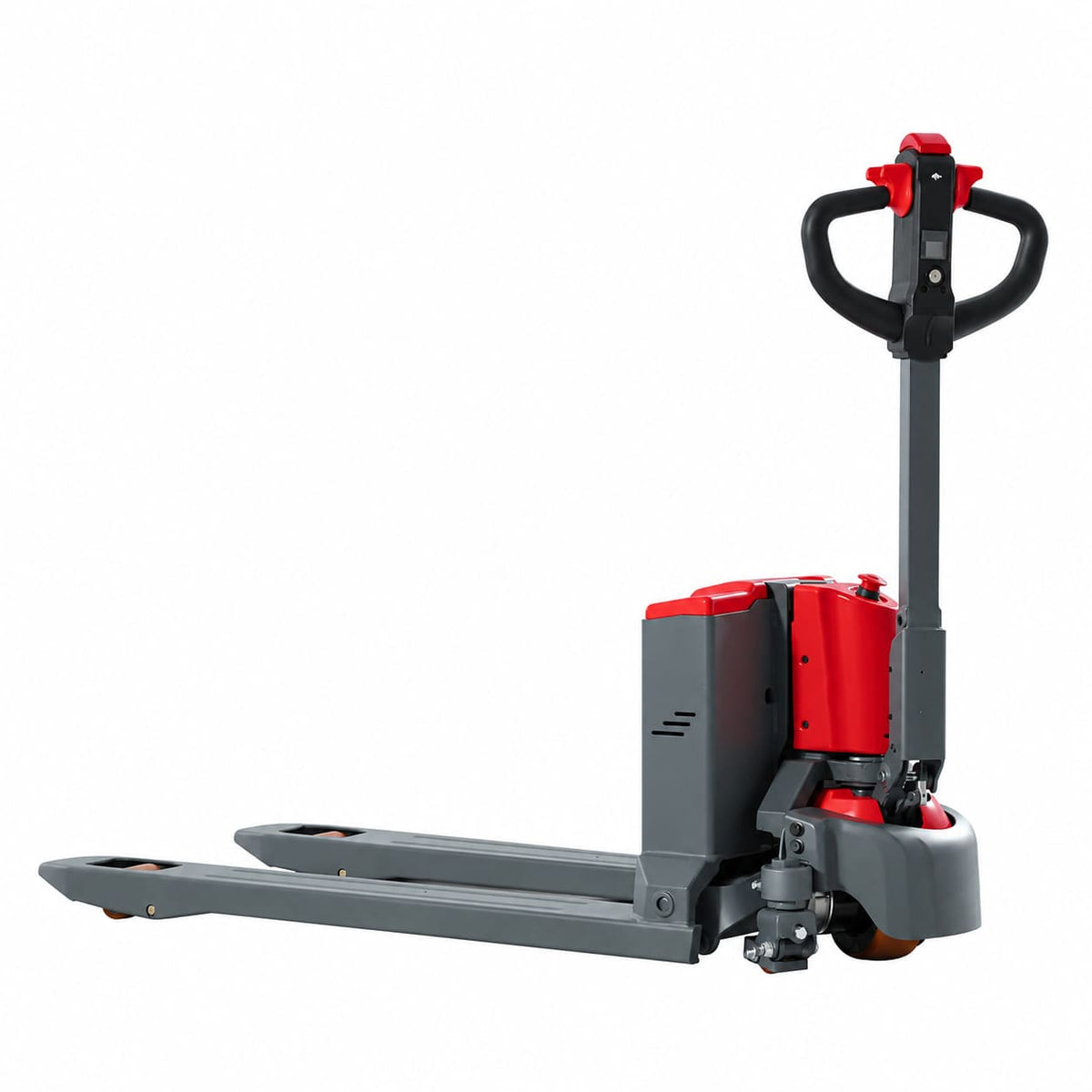

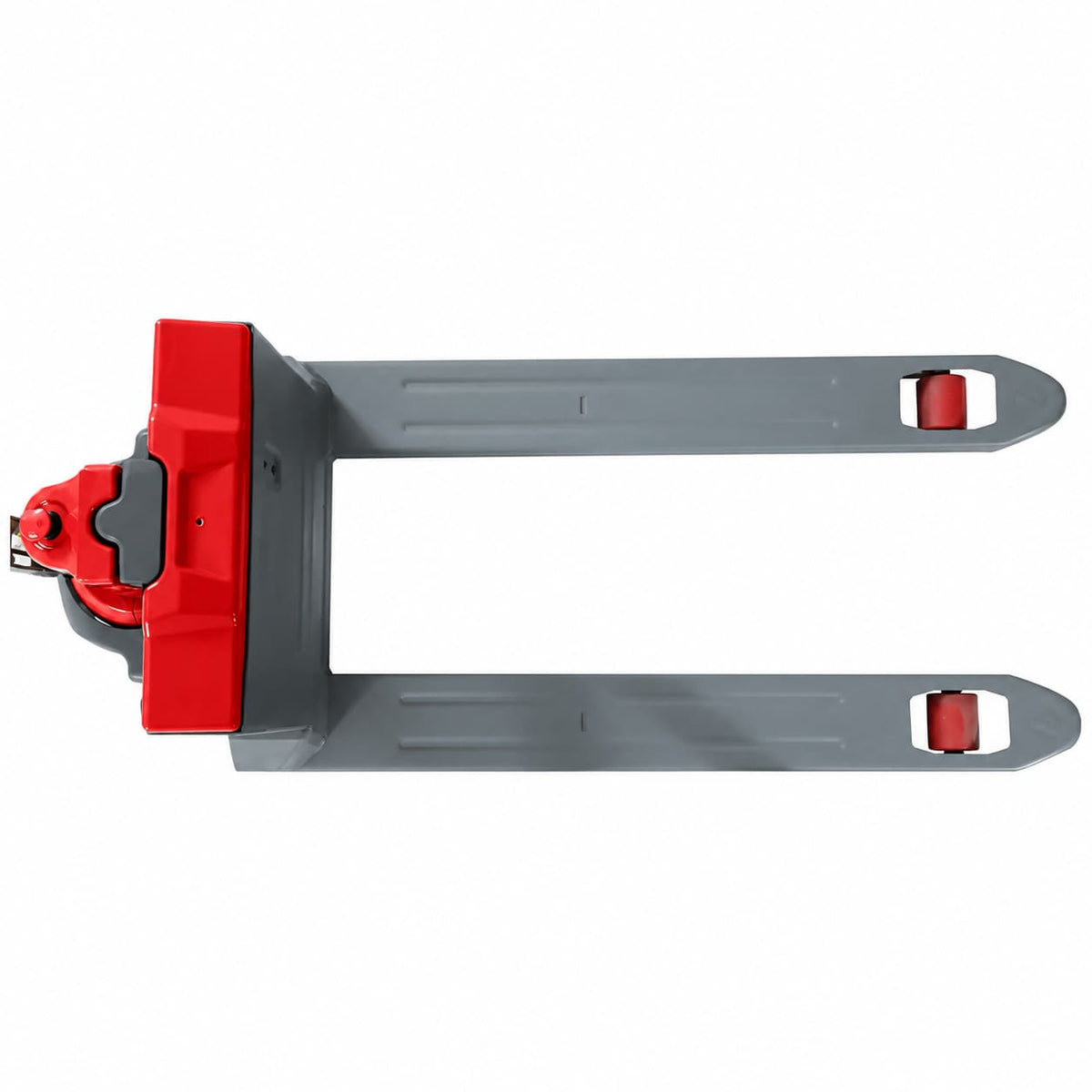

1. Pallet entry. The forks are 48 in long, 27 in wide overall and 2.8 in thick, with 14.2 in between them. Entering a 48 x 40 in pallet from the 48 in side, the forks run the full depth. From the 40 in side, about 8 in of fork tip comes out the far end, so check what is behind the pallet. Lowered fork height is 3.2 in, so a pallet opening lower than that will not take the forks.

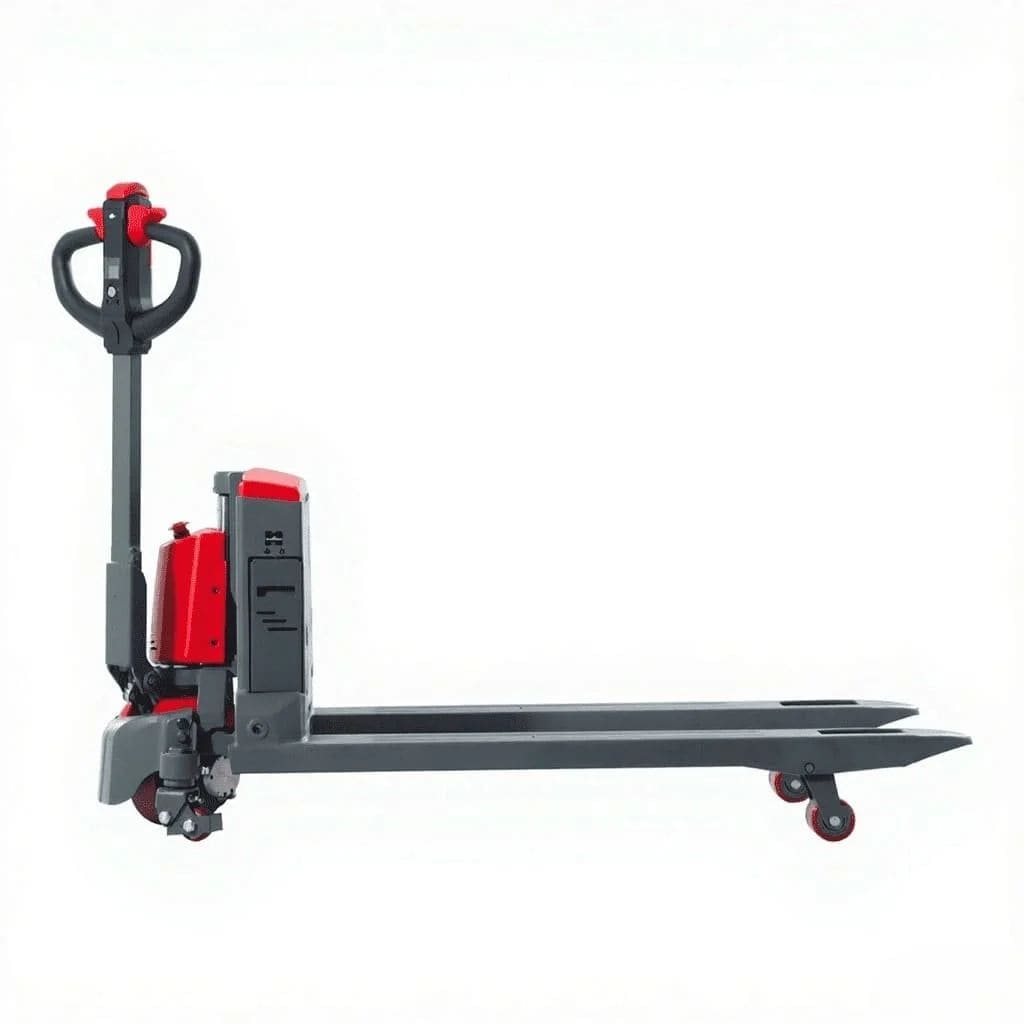

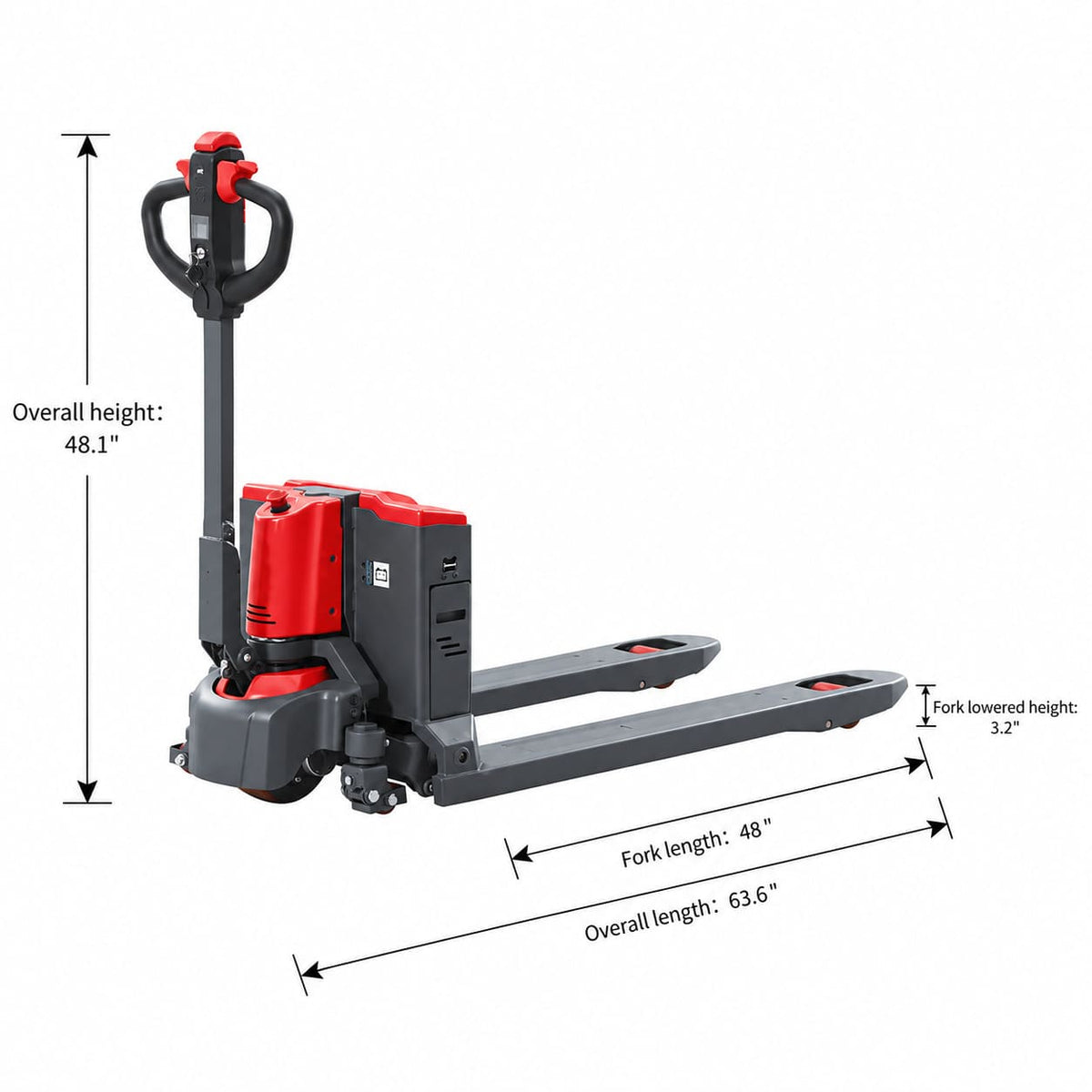

2. Aisle width. Turning radius is 55.7 in and overall length is 63.6 in. Add your longest load to the truck length and compare it with your narrowest aisle or doorway. With the handle upright the truck stands 48.1 in tall.
3. Floor and ramps. Gradeability is 5% fully loaded, so plan this truck for flat concrete. If your route includes a dock plate or ramp, send us the grade and we will tell you whether this truck suits it.

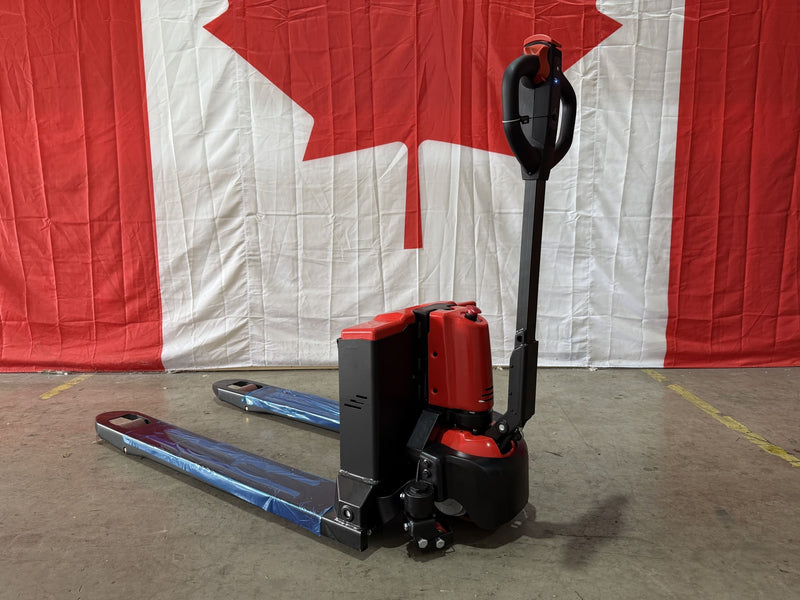

4. Lift height. The forks rise from 3.2 in to 7.5 in. That clears the floor and moves pallets. It is not a stacking height, so racked or elevated loads need a stacker.

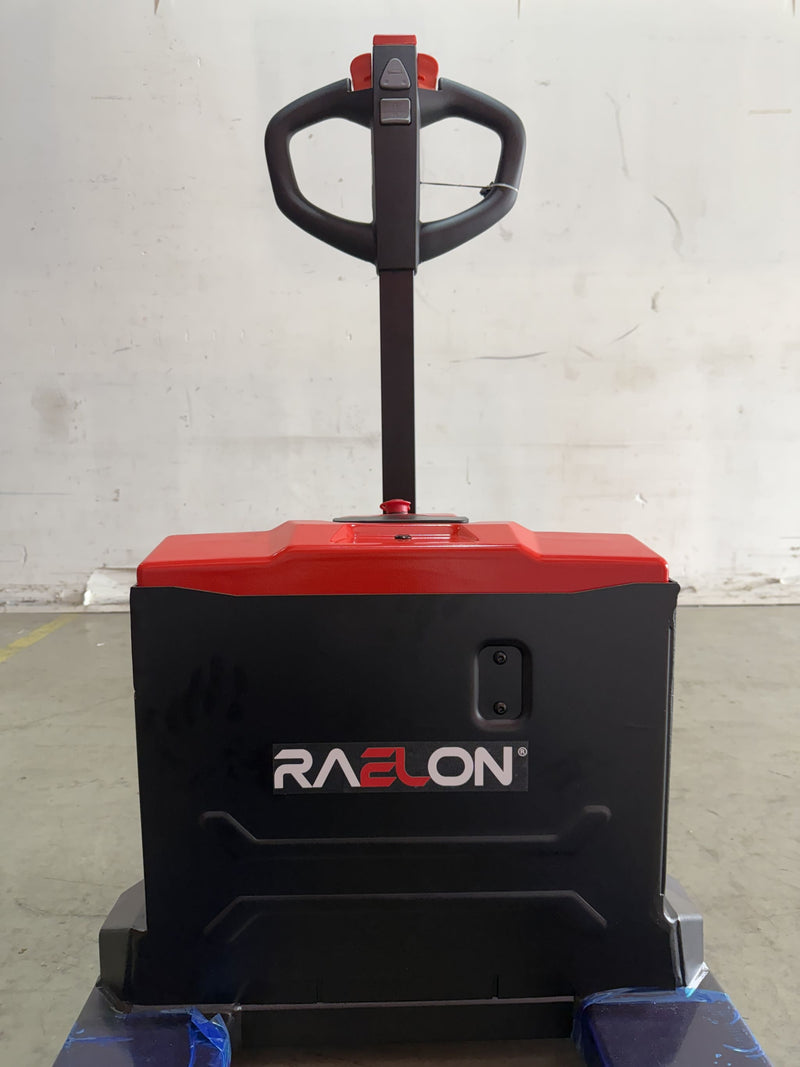

The charger is in the box. The Leamover JRC29F6LP plugs into a standard 110V outlet and outputs 24V 6A for the 24V 25Ah lithium pack. A full charge takes about 3 hours and gives 4-5 hours of light-duty use. Heavy loads or ramps will shorten the runtime. Charger light: green flashing is standby, red solid is charging, green solid is full, red flashing is a bad battery.
Orders ship within 2 business days. Pickup is available from Richmond, BC, and orders can be ready for pickup within 24 hours. Warranty is 90 days on the truck, battery and charger together.
If you routinely move more than 3,300 lb, look at the CBD20W-II, rated 4,400 lb. For other fork lengths or a built-in scale, see the electric pallet jack collection.
Orders ship within 2 business days by freight truck, anywhere in Canada. Delivery after dispatch depends on your province and the carrier schedule, so ask for a transit estimate to your postal code before ordering.
Read the shipping policyFree pickup from our Richmond, BC warehouses. Orders are normally ready within 24 hours. Wait for the ready-for-pickup email before you travel.
See local pickup details90 days on truck, 1 year on battery and charger
Read the warranty termsReplacement batteries, chargers and load wheels are stocked for this model. Tell us the model and we will confirm the exact part before you order it.
Browse replacement partsStart with the cost and capacity guides if you are still shopping. If a truck is already on your floor and something feels off, the troubleshooting post covers the usual causes. Still stuck after reading? Send us your aisle width and the weight you move, and we will tell you which model fits.
April 30, 2026
There's no single best electric pallet jack — only the one that matches your load, floor, and budget. Here's how Raelon's lineup...
Read the guideMarch 03, 2026
Step-by-step guide to using a manual or electric pallet jack safely, from pre-use checks and controls to turning, stopping and charging.
Read the guideApril 01, 2025
Manual or electric — and if electric, lithium-ion or lead-acid/AGM? Here's what each type actually is and where it fits.
Read the guideSeptember 28, 2026
Prices for Raelon's electric pallet jacks range from $1,859 to $6,900. Here's what actually drives that difference, model by model.
Read the guideSeptember 29, 2026
Most issues come down to three things: charging, speed settings, and battery level. Here's how to tell which one you're dealing with,...
Read the guideJune 02, 2026
Five signs your team has outgrown a manual pallet jack, and the checks to run before you buy an electric one.
Read the guide3,300 lb (1,500 kg) at the rated load centre. Forks rise from 3.2 in to 7.5 in, enough to clear the floor and move a pallet but not to stack one. If you need to place loads on racking, you need a stacker rather than a pallet jack.
Yes. The forks are 48 in long with 14.17 in of clear space between them. From the 48 in side the forks run the full pallet depth. From the 40 in side about 8 in of fork tip comes out the far end, so check what is behind the pallet.

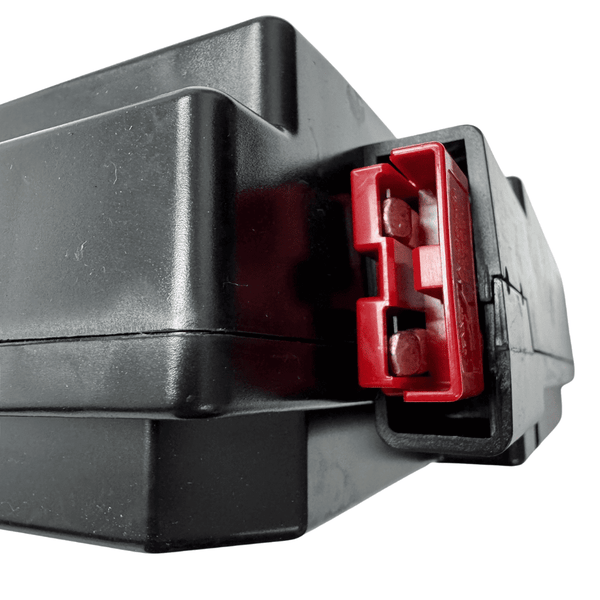

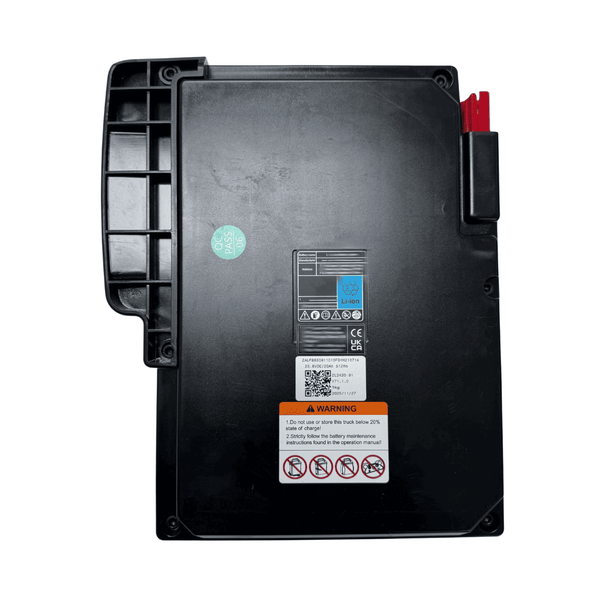

A 24V 25Ah lithium-ion pack and a Leamover JRC29F6LP charger, both included. The charger runs from a standard 110V outlet at 5A and outputs 24V 6A. A full charge takes about 3 hours and gives 4-5 hours of light-duty running.
Gradeability is 5% fully loaded, so plan this truck for flat concrete indoors. If your route includes a ramp with a loaded pallet, send us the slope and we will tell you whether it suits.
Turning radius is 55.7 in and overall length is 63.6 in. Add your longest load to the truck length and compare that with your narrowest aisle or doorway. Treat that as your starting calculation.
90 days on the truck, the battery and the charger together, on every pallet jack we sell. Orders ship within 2 business days by freight anywhere in Canada. Free pickup is available from Richmond, BC, normally ready within 24 hours.
