Compact for Tight Spaces
A 53.5 in turning radius and a 27.4 in wide body for stockrooms, delivery areas and truck trailers.
Item added to your cart
Raelon
24V 20Ah lithium walkie pallet jack rated 3,300 lb, with 45.3 x 21.7 in forks, a 53.5 in turning radius and a charger in the box. Built for tight stockrooms, trailers and flat indoor floors.
Only 2 products left
Estimate Shipping
Enter your Canadian postal code to get an estimated shipping cost for this product.
Shipping is an estimate only. Final shipping will be shown at checkout or confirmed by quote.
Local Pickup Available
Richmond, BC Pickup
4751 Shell Road
Unit 10
Richmond BC V6X 3H4
Canada
No Shipping Fee
Usually ready in 24 hours
Four things to check against your pallets, your aisles and your shift.
A 53.5 in turning radius and a 27.4 in wide body for stockrooms, delivery areas and truck trailers.
A 24V / 20Ah pack with an auto-lock handle for quick replacement, charged from a standard 110–120V outlet.
Rated 6% loaded and 16% empty on climbs, and made for flat indoor surfaces.
Check these numbers against your pallets, your aisles and your heaviest load before ordering.

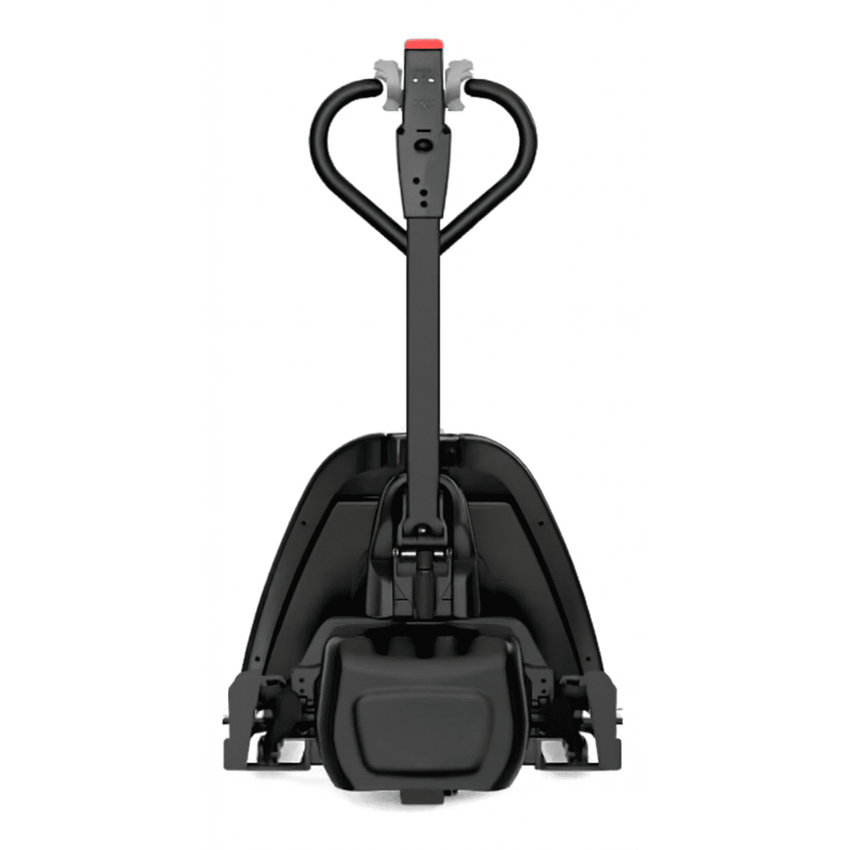

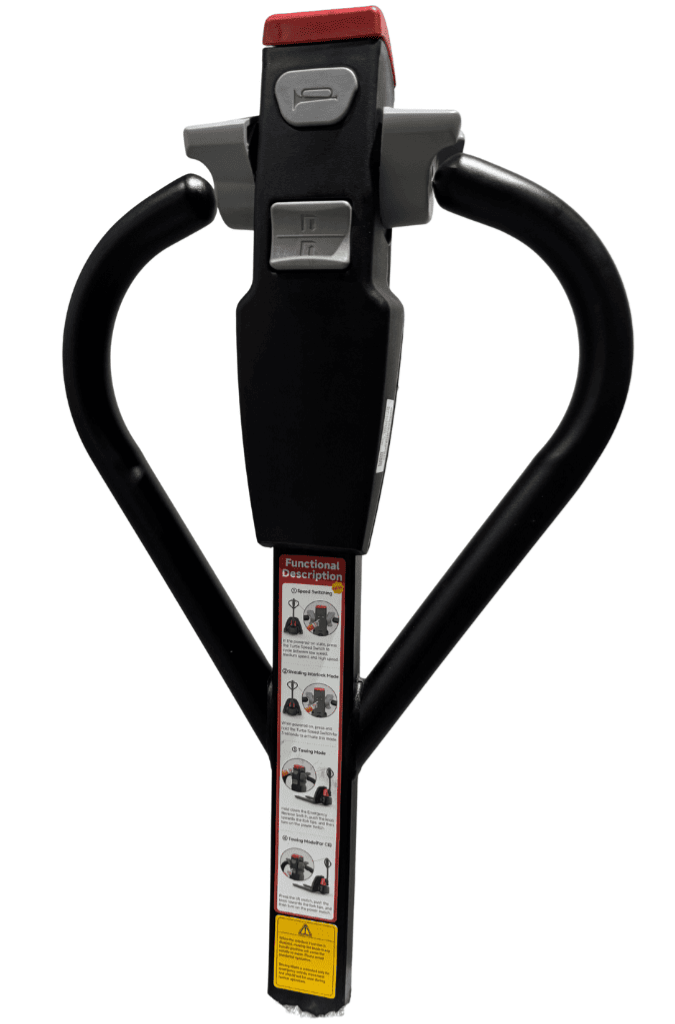

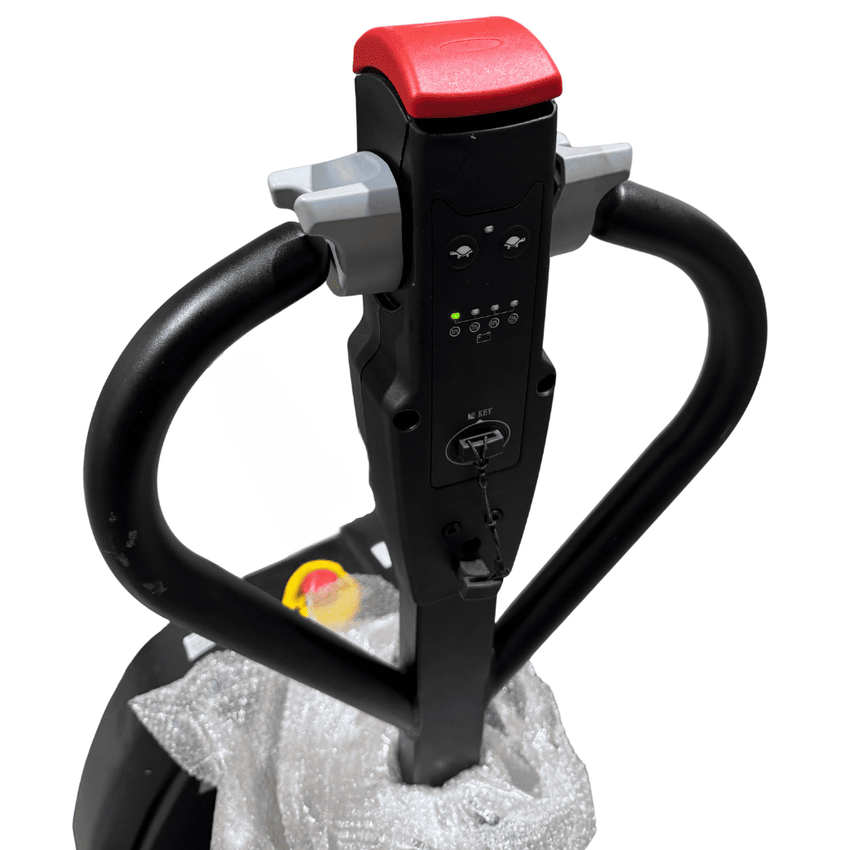

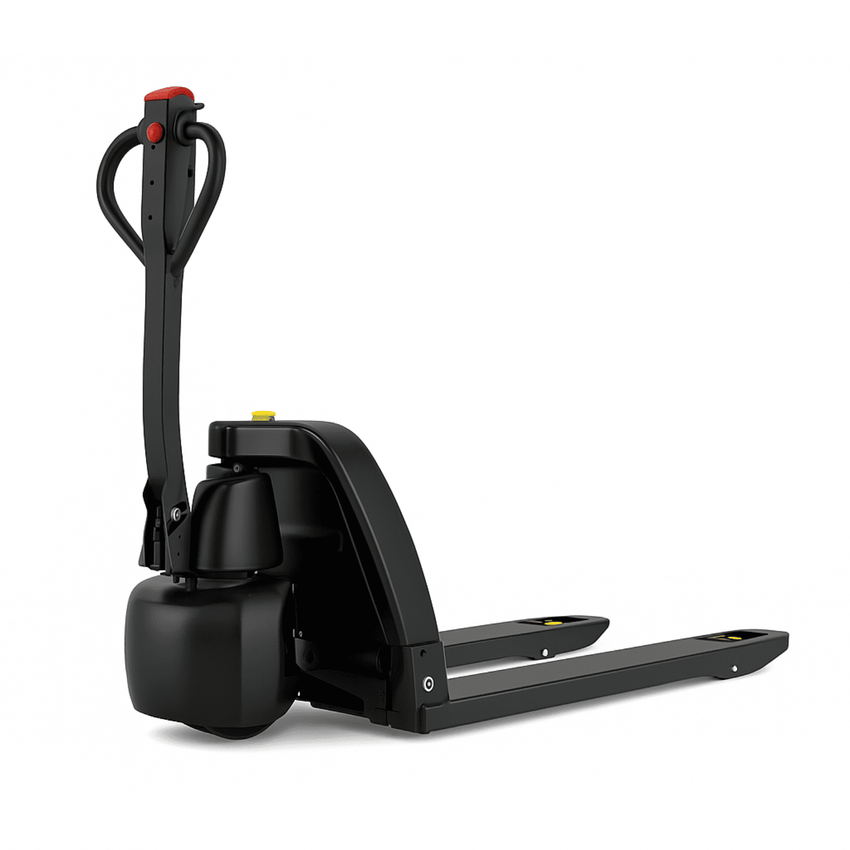

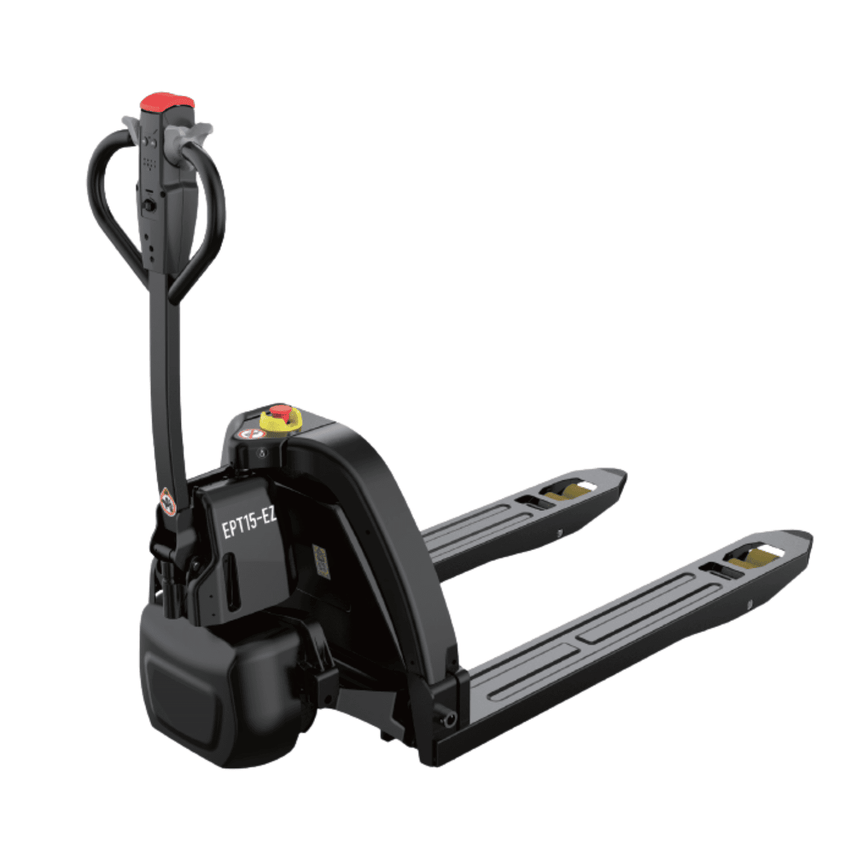

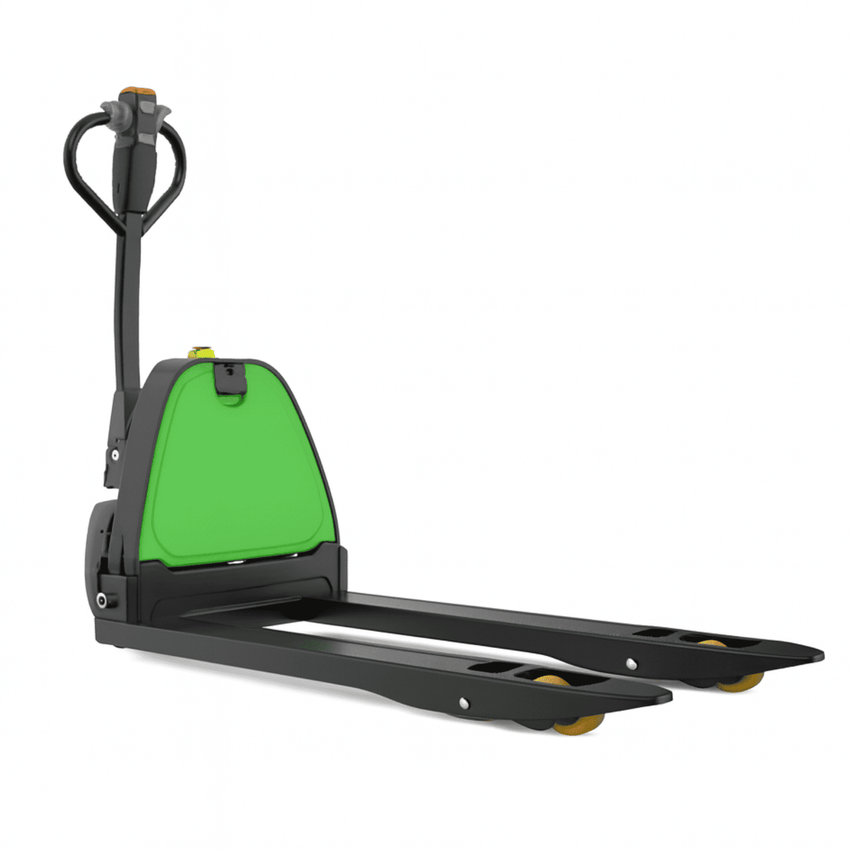

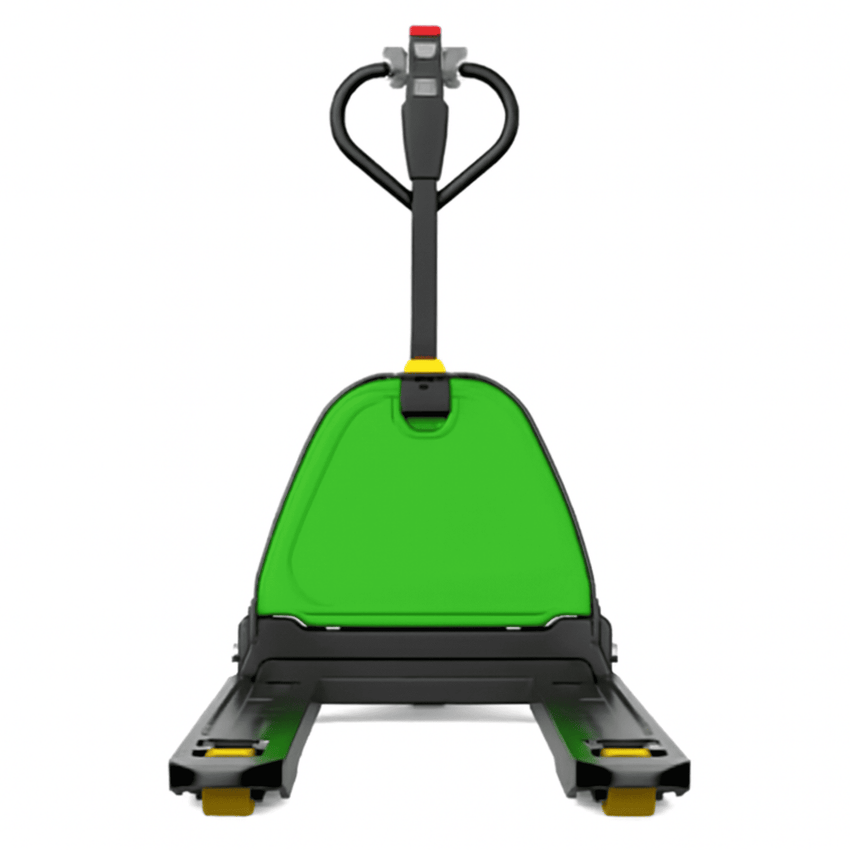

The Raelon EPT15-EZ is a 3,300 lb (1,500 kg) walkie electric pallet jack built for stockrooms, delivery areas and truck trailers. The truck is 61 in long and 27.4 in wide, turns in 53.5 in, and has an ergonomic tiller head. The forks are 45.3 in long and 21.7 in across, shorter and narrower than the 48 × 27 in forks on our CBD15W-II.

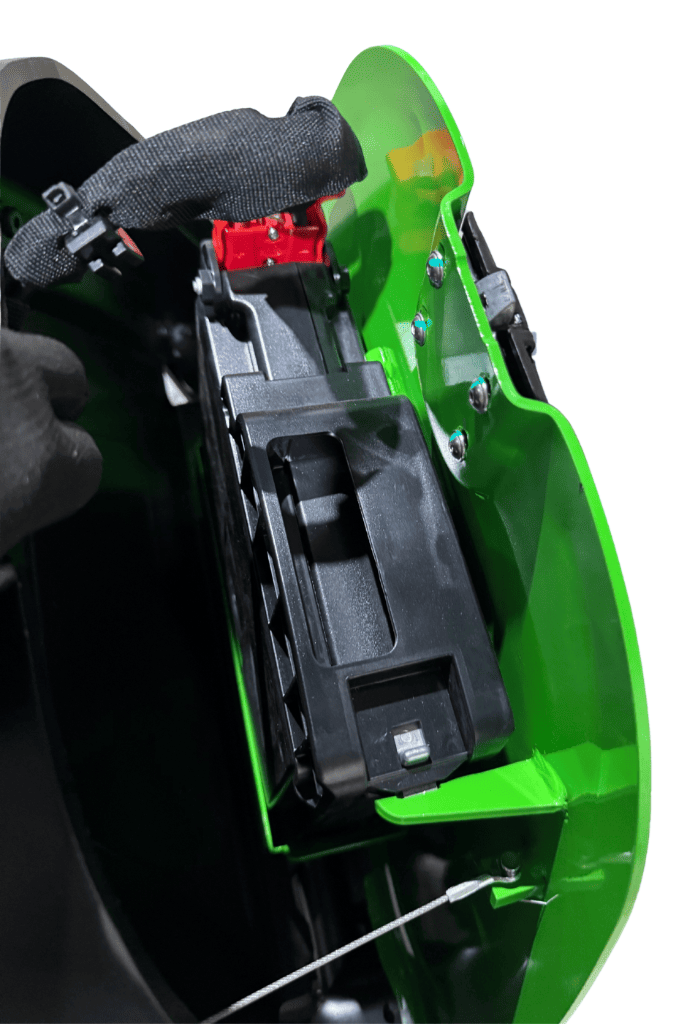

It runs on a 24V / 20Ah lithium-ion battery with an auto-lock handle for quick replacement. The charger is in the box and plugs into a standard 110–120V outlet. A full charge takes about 10 hours, so plan to charge it overnight or between shifts.
Rated climb is 6% loaded and 16% empty. The truck is made for flat indoor surfaces, so avoid potholes and steep ramps. The lowered fork height is 3.23 in, so a pallet opening lower than that will not take the forks. The wheels are polyurethane, the brake is electromagnetic, and the truck weighs 254 lb (115 kg). Noise level is 74 dB(A). The warranty is 90 days on the truck and 1 year on the battery and charger, subject to the warranty terms.
Still comparing models? Compare our electric pallet jacks in 3,300 lb and 4,400 lb ratings.
Orders ship within 2 business days by freight truck, anywhere in Canada. Delivery after dispatch depends on your province and the carrier schedule, so ask for a transit estimate to your postal code before ordering.
Read the shipping policyFree pickup from our Richmond, BC warehouses. Orders are normally ready within 24 hours. Wait for the ready-for-pickup email before you travel.
See local pickup details90 days on truck, 1 year on battery and charger
Read the warranty termsReplacement batteries, chargers and load wheels are stocked for this model. Tell us the model and we will confirm the exact part before you order it.
Browse replacement partsStart with the cost and capacity guides if you are still shopping. If a truck is already on your floor and something feels off, the troubleshooting post covers the usual causes. Still stuck after reading? Send us your aisle width and the weight you move, and we will tell you which model fits.
April 30, 2026
There's no single best electric pallet jack — only the one that matches your load, floor, and budget. Here's how Raelon's lineup...
Read the guideMarch 03, 2026
Step-by-step guide to using a manual or electric pallet jack safely, from pre-use checks and controls to turning, stopping and charging.
Read the guideApril 01, 2025
Manual or electric — and if electric, lithium-ion or lead-acid/AGM? Here's what each type actually is and where it fits.
Read the guideSeptember 28, 2026
Prices for Raelon's electric pallet jacks range from $1,859 to $6,900. Here's what actually drives that difference, model by model.
Read the guideSeptember 29, 2026
Most issues come down to three things: charging, speed settings, and battery level. Here's how to tell which one you're dealing with,...
Read the guideJune 02, 2026
Five signs your team has outgrown a manual pallet jack, and the checks to run before you buy an electric one.
Read the guide3,300 lb (1,500 kg) at a 23.6 in load centre.
About 10 hours for a full charge on the included charger, from a standard 110–120V outlet.

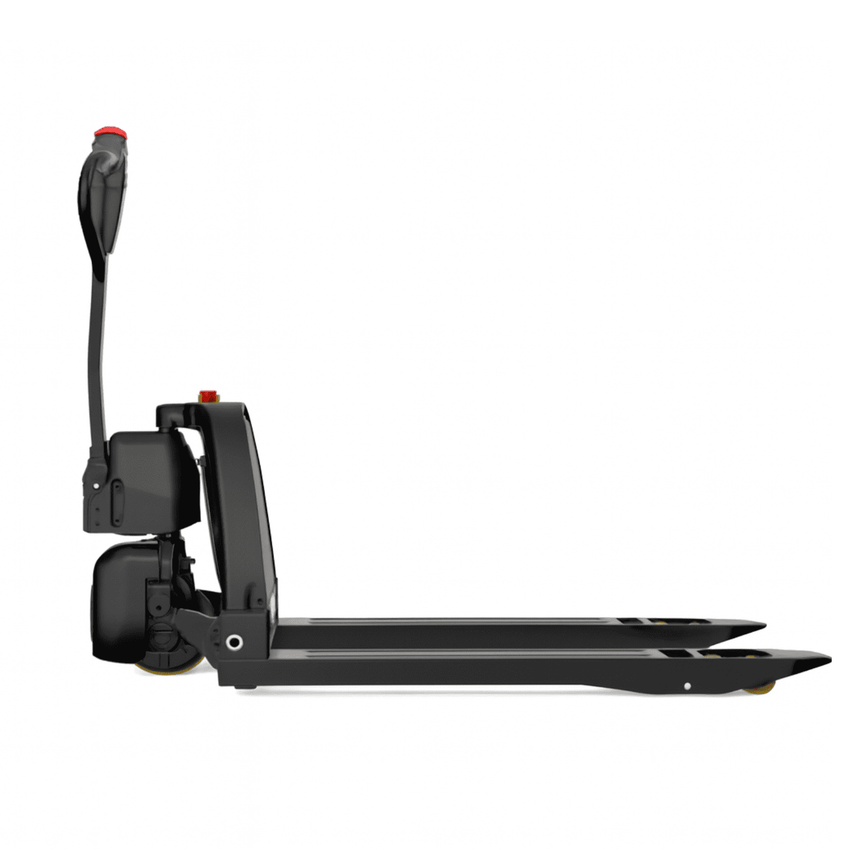

The forks are 45.3 in long, 21.7 in across both forks and 2 in thick, and sit 3.23 in off the floor when lowered. A pallet opening lower than that will not take them.
Rated climb is 6% loaded and 16% empty. The truck is made for flat warehouse surfaces, so avoid potholes and steep ramps.
Both are rated 3,300 lb. The EPT15-EZ has shorter 45.3 in forks and a replaceable 24V 20Ah battery that takes about 10 hours to charge. The CBD15W-II has 48 in forks and a 24V 25Ah battery that charges in about 3 hours.
90 days on the truck, and 1 year on the battery and charger, subject to the warranty terms.
