Reaches 189 in
The three-stage full-free-lift mast raises loads to 189 in. Check your highest rack beam and your door or trailer clearance before ordering.
Item added to your cart
Raelon
Raelon
80V lithium electric counterbalance forklift rated 7,700 lb, with a 189 in three-stage mast, fork positioner and sideshift, and a charger in the box. Built for dock-to-rack work indoors and on solid outdoor ground.
Only 1 product left
Local Pickup Available
Edmonton, AB Pickup
9837 42 Ave NW Edmonton
Edmonton AB T6E 0A3
Canada
No Shipping Fee
Usually ready in 24 hours
The three-stage full-free-lift mast raises loads to 189 in. Check your highest rack beam and your door or trailer clearance before ordering.
The 7,700 lb rating holds up to a lift height of 137.8 in at a 500 mm load centre. Above that the rating falls, so compare your heaviest pallet with the height you lift it to.
The truck is 47.6 in wide. Add your longest load to the length to the face of the forks and compare it with your narrowest aisle.
The charger is included with the forklift. Tell us what power is available where you will charge it, and we will confirm the charger input before you order.

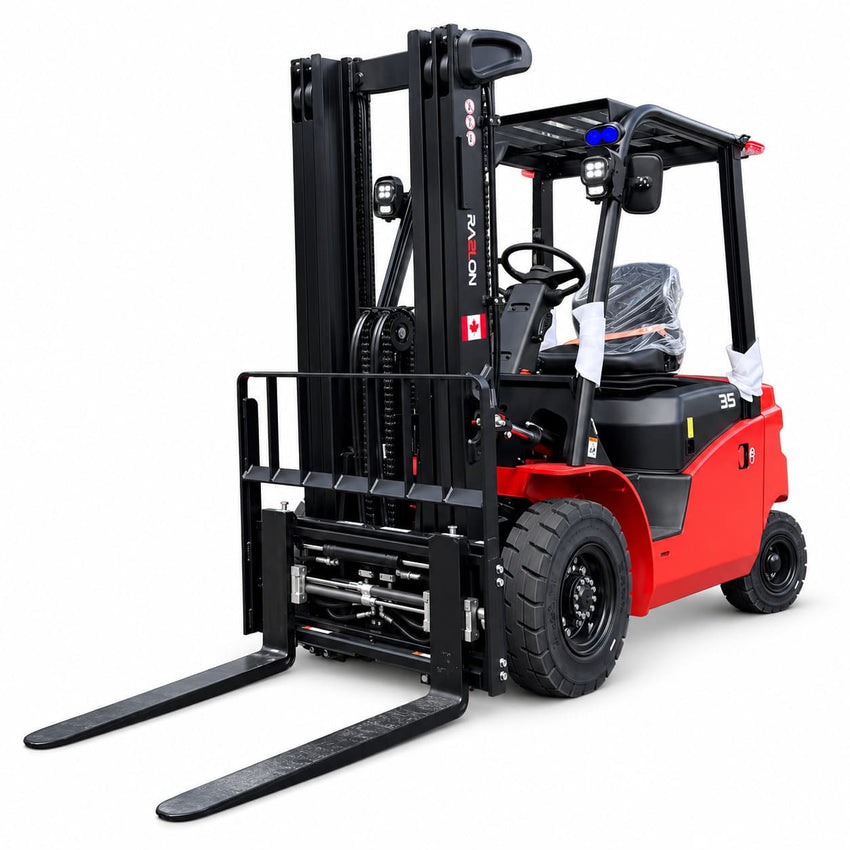

The Raelon EFL35 is a 7,700 lb (3,500 kg) four-wheel electric counterbalance forklift with an 80V 280Ah lithium-ion battery, a 189 in three-stage free-lift mast, and a fork positioner and sideshift. The charger is included. It is built for dock and warehouse work indoors and on solid outdoor ground.
The specifications above have the numbers. These checks decide whether the EFL35 fits your building and your loads.
1. Load and lift height. The 7,700 lb rating holds only up to a lift height of 137.8 in (3,500 mm), at a 500 mm load centre. Above that the capacity falls, and at the full 189 in it is well below the rated figure. Longer or bulkier loads sit further out and reduce capacity again. Send us your load weight, load size and highest rack beam and we will confirm the capacity at your height.
2. Aisle width. Aisle width depends on your pallet and how you stack it. For 1000 x 1200 mm pallets stacked crossways, the aisle needs about 161 in. Compare the length to the face of the forks and the turning radius in the specifications with your narrowest aisle, and measure your lowest doorway or trailer opening for the lowered mast.
3. Power supply. The charger is included. Tell us what power is available where you will charge the forklift, and we will confirm the charger input before you order.
4. Floor and route. Solid tires never go flat and the truck rides high enough for level yards and loading areas, but they ride firmly. For soft, uneven or sloped ground, send us the surface and slope and we will tell you whether it suits.

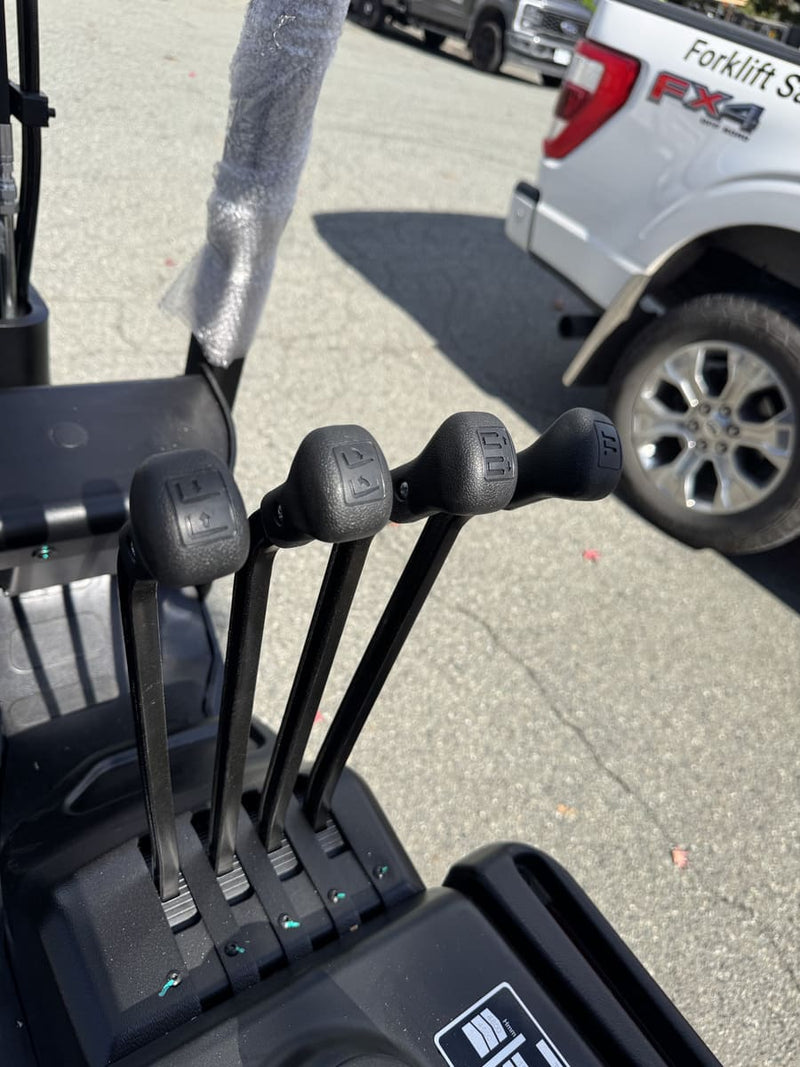

Both are fitted at the factory. The operator changes fork spacing and shifts the load from the seat, which saves time when you handle mixed pallet sizes. A fourth hydraulic line and valve are also fitted for an additional attachment.
The lithium-ion pack has no watering schedule and gives off no fumes. Runtime depends on your work: heavy loads, frequent full-height lifts and long travel distances all shorten it.
If you routinely lift heavier loads or higher than this truck allows, compare the options in the Raelon forklift collection, which includes electric, LPG and diesel models.
| Specification | Raelon EFL35 |
|---|---|
| Forklift Type | Electric counterbalance forklift, 4-wheel |
| Mast Height, Lowered | 89.4 in (2,270 mm) |
| Mast Height, Extended | 233.3 in (5,925 mm), with backrest |
| Free Lift | 46.3 in (1,175 mm), with backrest |
| Overhead Guard Height | 85.8 in (2,180 mm) |
| Overall Length | 145.2 in (3,688 mm) |
| Aisle Width, 1000 x 1200 mm Pallet Crossways | 161.1 in (4,091 mm) |
| Aisle Width, 800 x 1200 mm Pallet Lengthways | 169.0 in (4,291 mm) |
| Drive Motor | 17 kW |
| Lift Motor | 26 kW |
| Battery Weight | 410 lb (186 kg) |
| Service Brake / Parking Brake | Hydraulic / Mechanical |
| Mast Tilt, Forward / Backward | 6° / 10° |
| Operator Station | Suspension seat with safety belt, operator presence system, working lights, dual side mirrors, reversing buzzer, 2 blue and 2 red warning lights |
| Sound Level at Operator Seat | Below 74 dB(A) |
Available to businesses and individuals. Submit an application and we’ll forward it to our lending partner, who determines the down payment and financed amount.
Financing OptionsCovers non-wear parts. We diagnose issues remotely first. Bring the forklift to our warehouse for free repair labour; on-site visits have a $150 call-out fee.
Warranty DetailsIn-stock forklifts normally dispatch within one week of payment and freight confirmation. Delivered fully assembled and ready to use. Customers arrange unloading.
Shipping and DeliveryFree pickup in Richmond, BC or Edmonton, AB, normally within 24 hours of successful payment. No appointment needed; we help load your vehicle.
Local PickupRead about electric forklift types, pricing in Canada, and when a pallet stacker may be the better fit. Need help choosing? Share your load weight, lift height and aisle width with our team.
How electric forklift types, batteries and charging differ, what to check before each shift, and how to match a truck to your...
Read the Guide →Raelon forklifts run CAD $34,500 to $39,000. Here is what drives forklift price in Canada and how to compare quotes fairly.
Read the Guide →A pallet stacker can replace a forklift for some jobs, not all of them. Real capacity, lift height and price numbers to...
Read the Guide →MORE FORKLIFTS
Canada-Wide Shipping
Canada-Wide Shipping
Canada-Wide Shipping
Canada-Wide Shipping
7,700 lb (3,500 kg) at a 500 mm load centre, up to a lift height of 137.8 in. The mast reaches 189 in, and the rating is lower above 137.8 in. Send us your load weight and lift height and we will confirm the capacity at that height.
The truck is 47.6 in wide with a 94.7 in turning radius. Add your longest load to the length to the face of the forks and compare it with your narrowest aisle or doorway. Send us the aisle width and we will check it with you.
The charger is included with the forklift. Tell us what power is available where you will charge it, and we will confirm the charger input for your site before you order.
Yes, on solid ground. The truck has solid tires and 5.1 in of ground clearance, so it suits level yards and loading areas. For soft, uneven or sloped ground, send us the surface and slope and we will tell you whether it suits.
Yes. The EFL35 has a fork positioner and sideshift fitted, so you can change fork spacing and shift the load from the seat. The forks are 42.1 in long.
Gradeability is 18% loaded. If your route includes a steep ramp or a long incline, send us the slope and we will tell you whether it suits.
2-year warranty on the equipment, battery and charger, terms apply. Freight is quoted by destination and confirmed before you pay. Pickup is available at our Richmond, BC and Edmonton, AB locations, normally within 24 hours of successful payment. Please confirm with our team. 0% APR financing for up to 24 months is available to qualified customers.
