4,400 lb with a load backrest
Rated 2,000 kg at a 23.6 in load centre. The backrest stops a tall load from sliding back toward the handle but does not raise the rating. Weigh your heaviest pallet before ordering.
Item added to your cart
Raelon
24V lithium walkie pallet jack rated 4,400 lb (2,000 kg), with a load backrest, three wheels across the front and 48 x 27 in forks. In stock in Richmond, BC.
Price Comparison
Indicative market pricing at time of publishing; prices may change.
Only 2 products left
Estimate Shipping
Enter your Canadian postal code to get an estimated shipping cost for this product.
Shipping is an estimate only. Final shipping will be shown at checkout or confirmed by quote.
Local Pickup Available
Richmond, BC Pickup
4751 Shell Road
Unit 10
Richmond BC V6X 3H4
Canada
No Shipping Fee
Usually ready in 24 hours
Four things to check against your pallets, your aisles and your shift.
Rated 2,000 kg at a 23.6 in load centre. The backrest stops a tall load from sliding back toward the handle but does not raise the rating. Weigh your heaviest pallet before ordering.
One drive wheel and two castor wheels sit at the front, so a heavy pallet is carried on more contact points than a single-wheel front end. Gradeability is 10% loaded and 16% unloaded, so plan this truck for flat floors and send us the grade if your route has a ramp.
A 24V 100Ah pack (about 2,400 Wh) weighing 40 to 44 kg, with a 30A integrated charger, so a full charge from empty takes about 3.3 hours. Ask us before ordering if you run back-to-back shifts.
On a 48 x 40 in pallet entered from the 48 in side, the forks run about the full pallet depth. From the 40 in side about 8 in of fork tip comes out the far end. The forks rise 4.9 in.

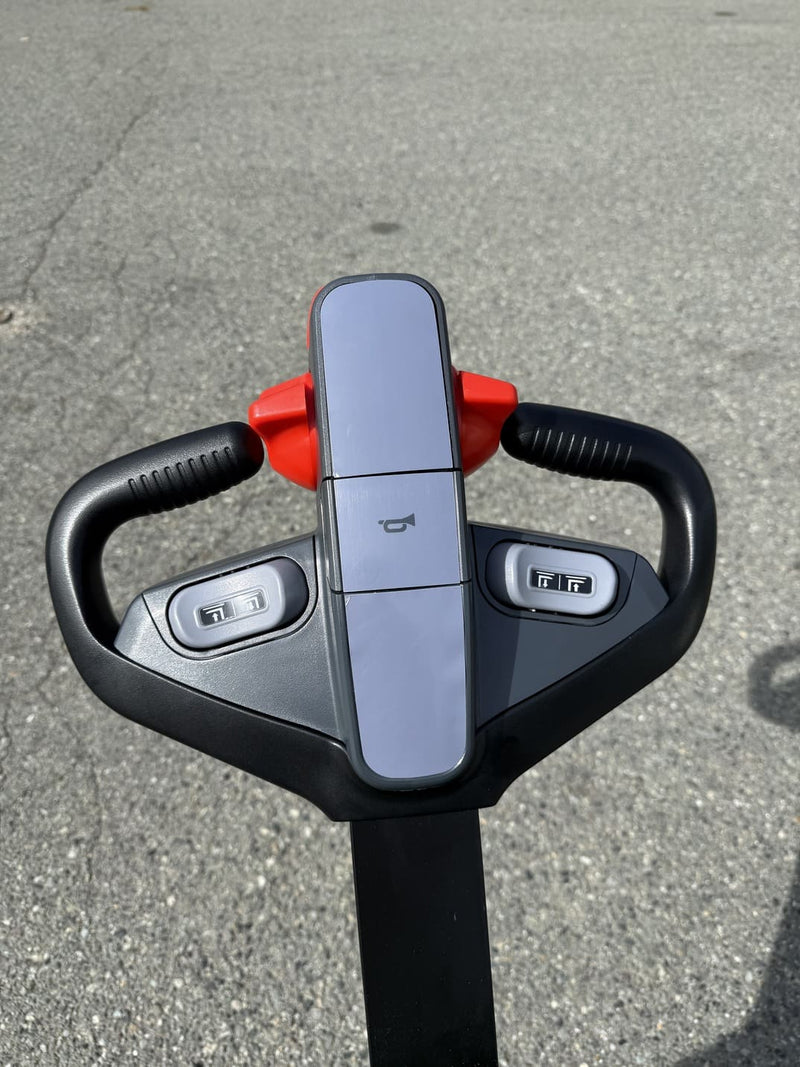

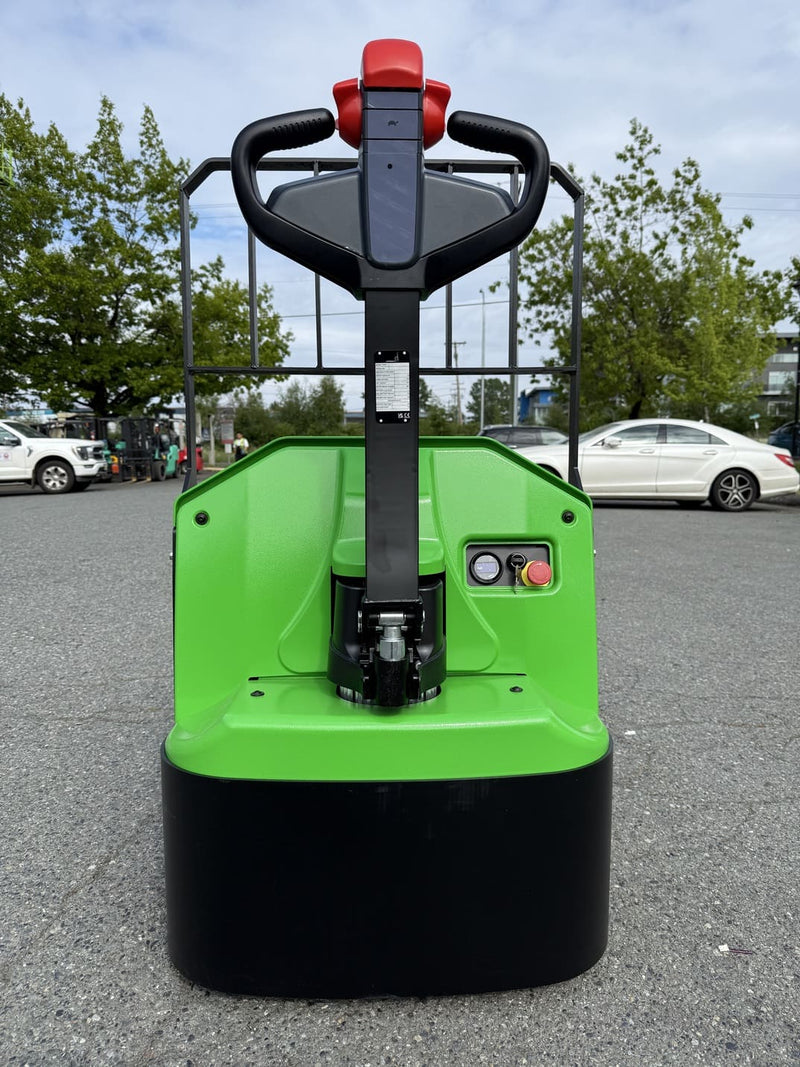

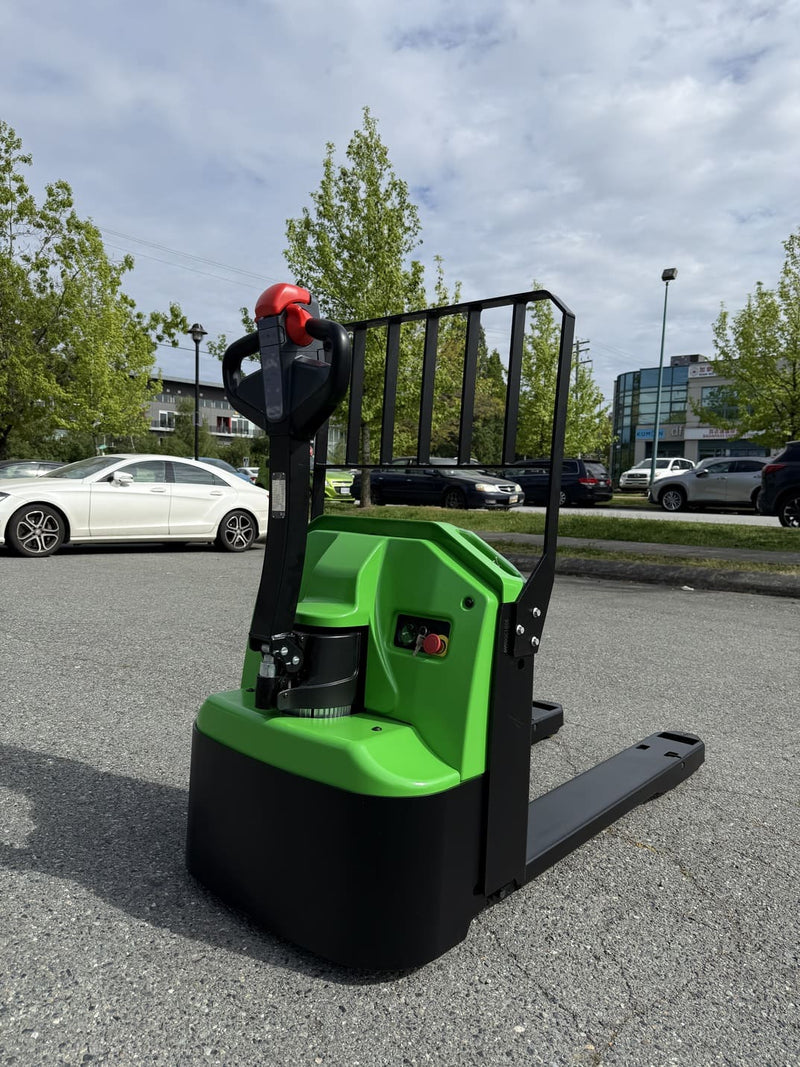

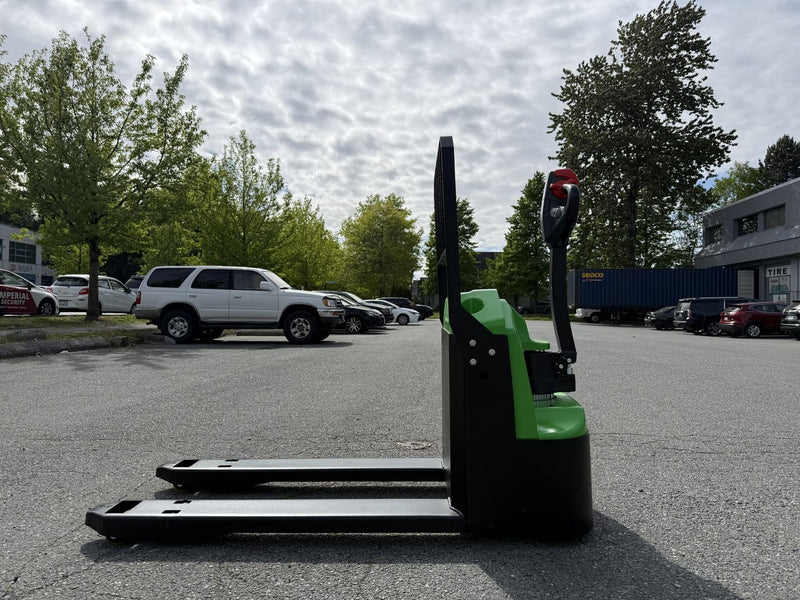

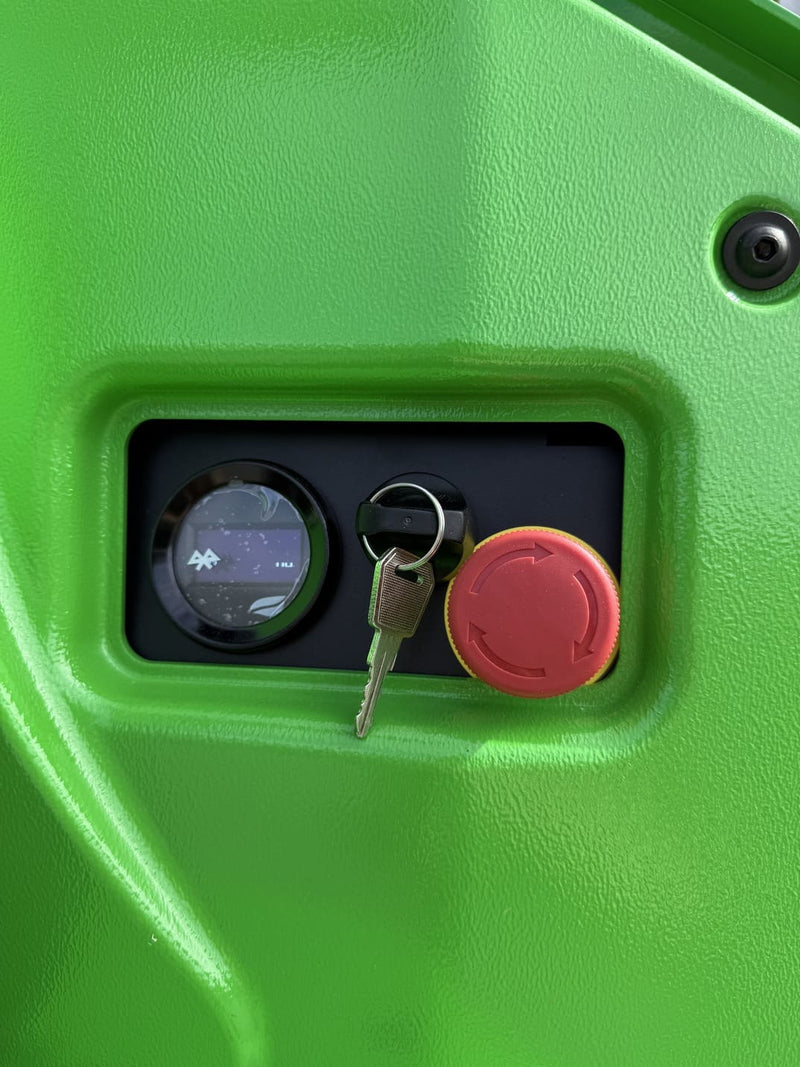

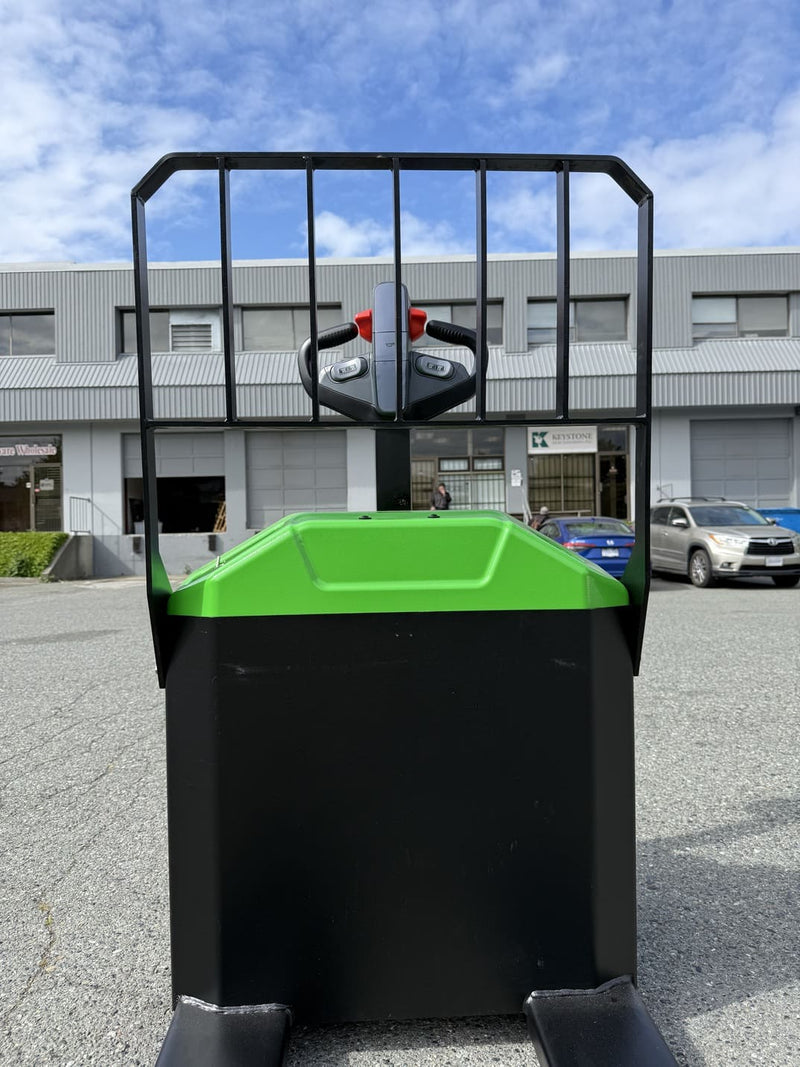

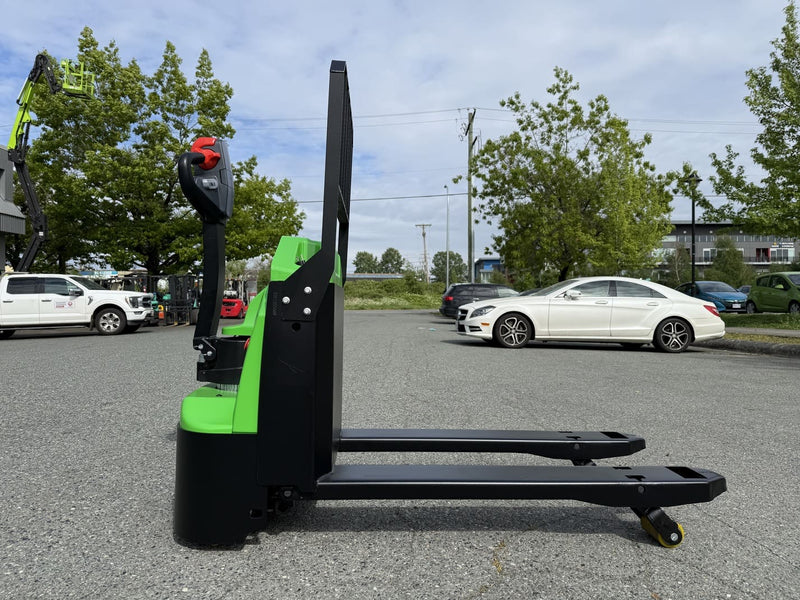

Real photos of this unit, taken before it ships.
Check these numbers against your pallets, your aisles and your heaviest load before ordering.

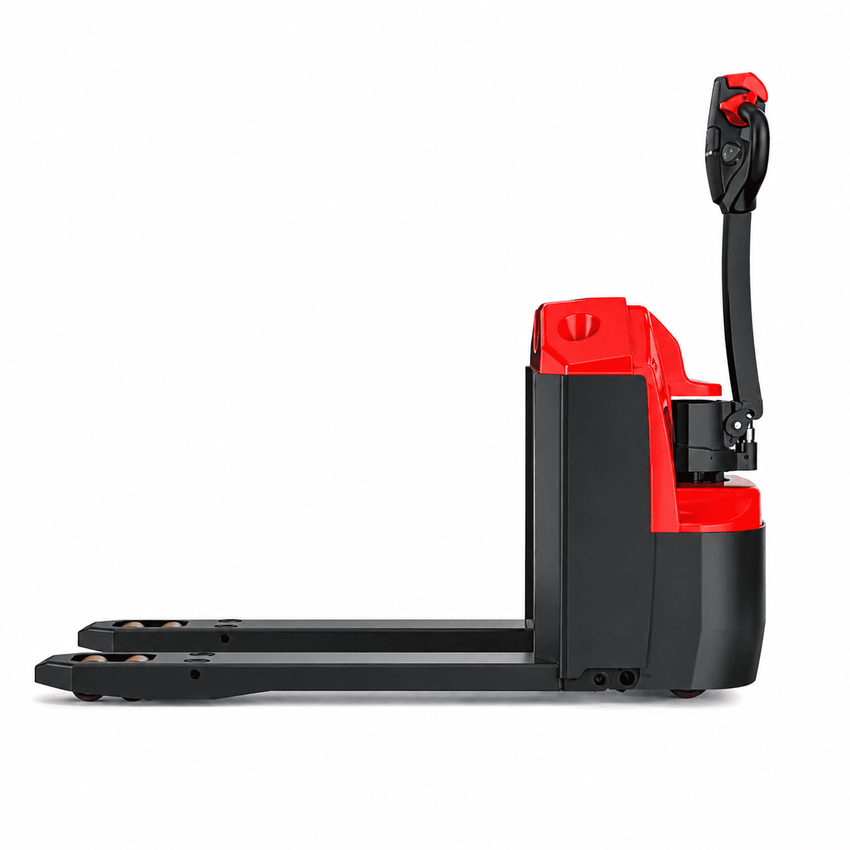

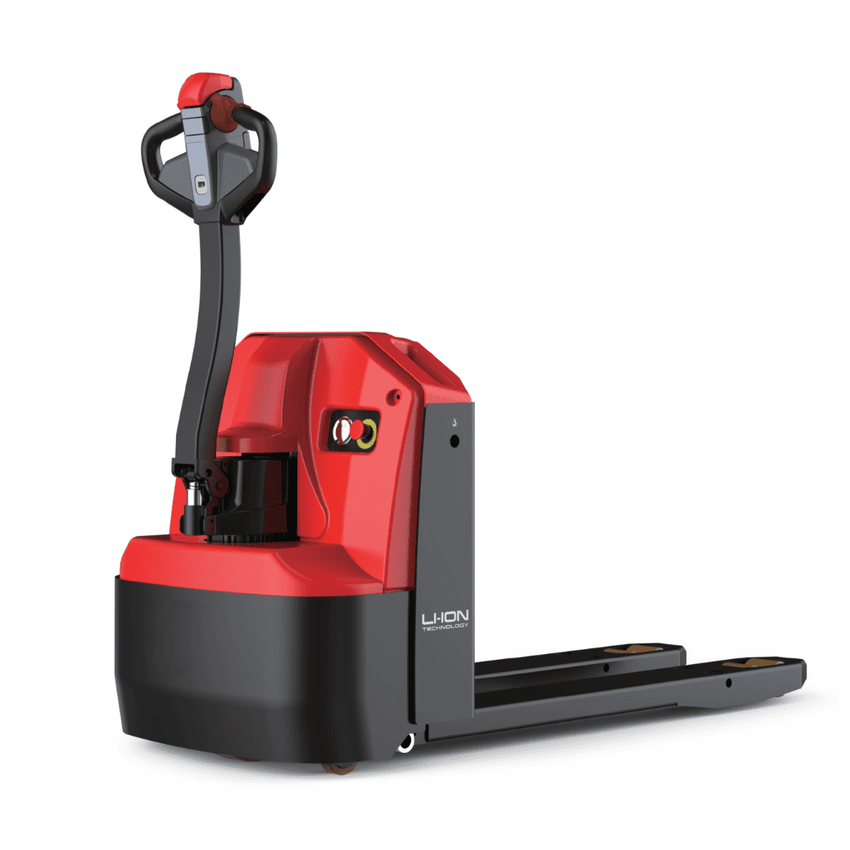

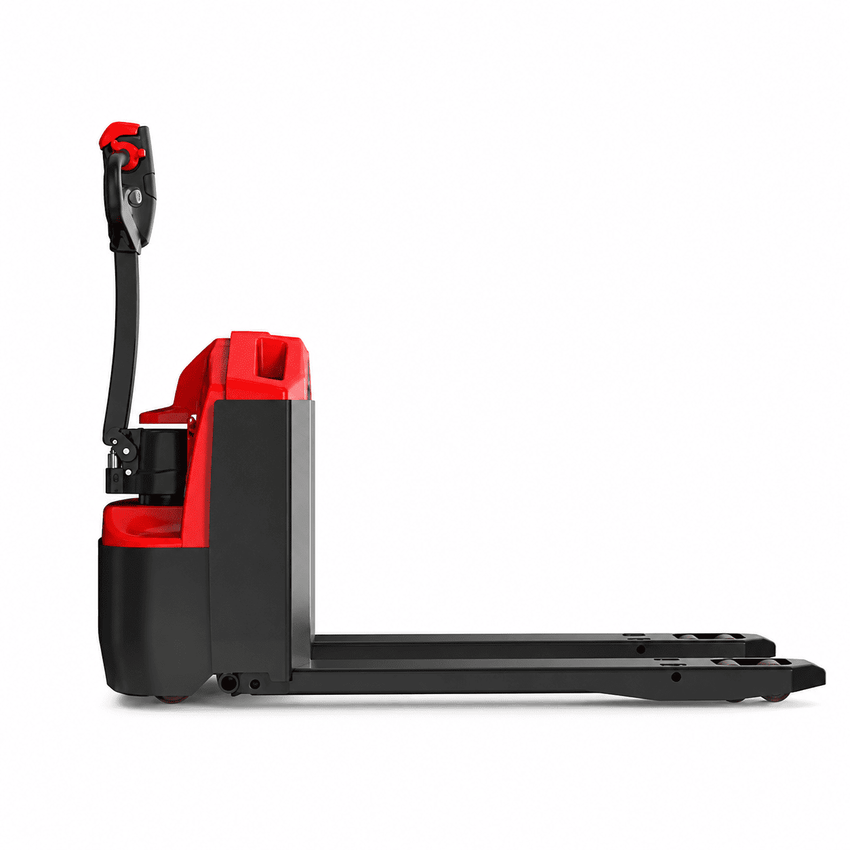

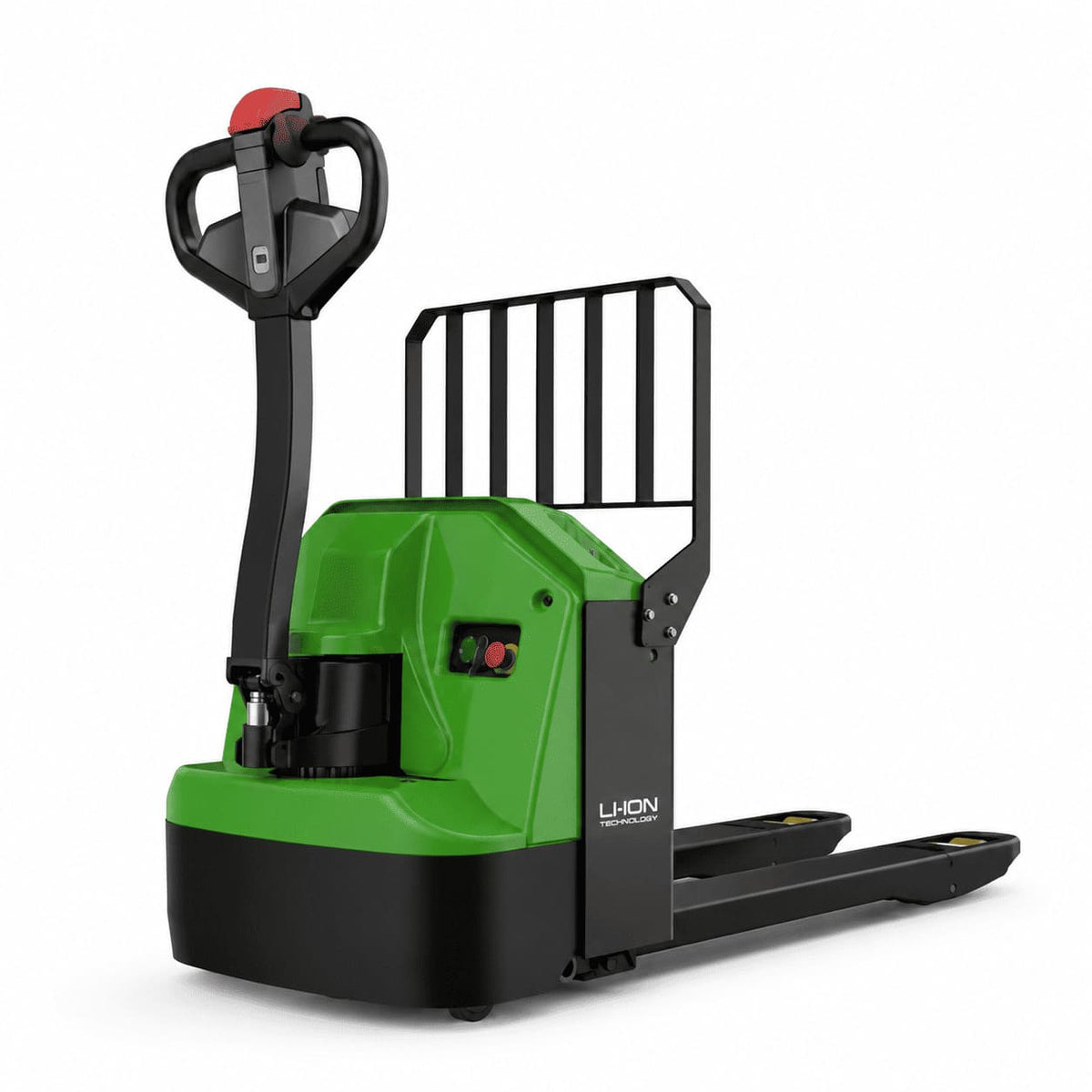

The WPL202 is a 4,400 lb (2,000 kg) walkie electric pallet jack with a load backrest, a 24V lithium battery and three wheels across the front. Four checks decide whether it fits your pallets, your aisles and your shifts.
1. Your heaviest pallet. The WPL202 is rated at 2,000 kg (4,400 lb) at a 600 mm (23.6 in) load centre. The truck itself weighs 345 kg (761 lb) with the battery in and 305 kg (672 lb) without. Weigh your heaviest pallet, not the average one, and keep the load centred on the forks. The backrest keeps a tall load from sliding back toward you, but it does not raise the rating.

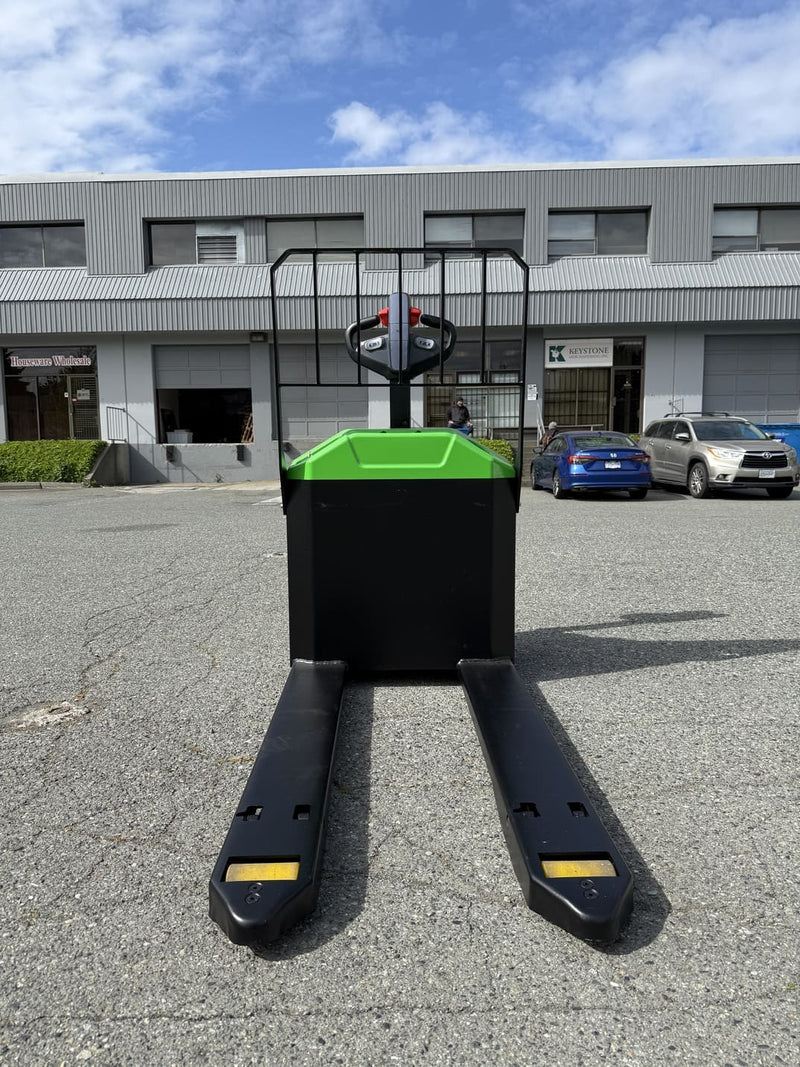

2. Pallet entry. The forks are 48 in long and 27 in wide overall, each fork is about 7 in wide, and the gap between them is about 14 in. On a 48 x 40 in pallet entered from the 48 in side, the forks run about the full pallet depth. From the 40 in side about 8 in of fork tip comes out the far end, so check what is behind the pallet.The forks rise 4.9 in (125 mm) from a lowered height of 3.3 in (85 mm), enough to clear the floor and move a pallet, not to stack one.
3. Aisle width. Overall length is just under 67 in. With the handle upright the truck stands over 50 in tall, and 52 in at the load backrest. Add your longest load to the truck length and compare it with your narrowest aisle or doorway. Send us your narrowest aisle width and we will tell you whether this truck turns in it.
4. Battery and charging. The truck runs on a 24V 100Ah lithium-ion battery, about 2,400 Wh, weighing 40 to 44 kg (88 to 97 lb), with an integrated 30A charger. A full charge from empty takes about 3.3 hours. Ask us before ordering if you run back-to-back shifts.
The WPL202 has one drive wheel and two castor wheels at the front. Gradeability is 10% loaded and 16% unloaded, travel speed is 5.5 km/h (3.4 mph) loaded and 6 km/h (3.7 mph) unloaded, the fork is 2.2 in thick and the drive power is 1.6 kW.
If your pallets are lighter or you do not need a backrest, see the electric pallet jack collection to compare. Or send us your heaviest pallet weight and your aisle width and we will tell you which model fits.
Orders ship within 2 business days by freight truck, anywhere in Canada. Delivery after dispatch depends on your province and the carrier schedule, so ask for a transit estimate to your postal code before ordering.
Read the shipping policyFree pickup from our Richmond, BC warehouses. Orders are normally ready within 24 hours. Wait for the ready-for-pickup email before you travel.
See local pickup details90 days on truck, 1 year on battery and charger

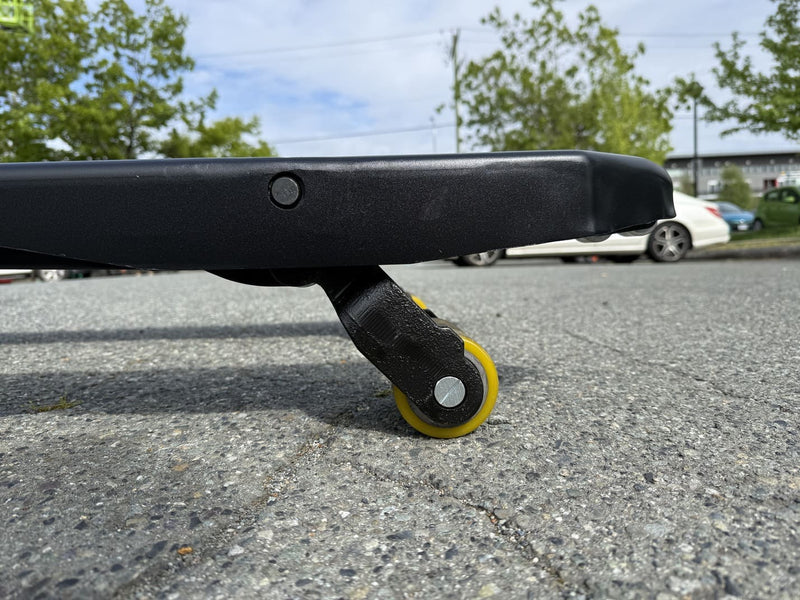

Read the warranty termsReplacement batteries, chargers and load wheels are stocked for this model. Tell us the model and we will confirm the exact part before you order it.
Browse replacement partsStart with the cost and capacity guides if you are still shopping. If a truck is already on your floor and something feels off, the troubleshooting post covers the usual causes. Still stuck after reading? Send us your aisle width and the weight you move, and we will tell you which model fits.
April 30, 2026
There's no single best electric pallet jack — only the one that matches your load, floor, and budget. Here's how Raelon's lineup...
Read the guideMarch 03, 2026
Step-by-step guide to using a manual or electric pallet jack safely, from pre-use checks and controls to turning, stopping and charging.
Read the guideApril 01, 2025
Manual or electric — and if electric, lithium-ion or lead-acid/AGM? Here's what each type actually is and where it fits.
Read the guideSeptember 28, 2026
Prices for Raelon's electric pallet jacks range from $1,859 to $6,900. Here's what actually drives that difference, model by model.
Read the guideSeptember 29, 2026
Most issues come down to three things: charging, speed settings, and battery level. Here's how to tell which one you're dealing with,...
Read the guideJune 02, 2026
Five signs your team has outgrown a manual pallet jack, and the checks to run before you buy an electric one.
Read the guideIt is rated at 2,000 kg (4,400 lb) at a 23.6 in load centre. The forks rise 4.9 in (125 mm), enough to clear the floor and move a pallet, not to stack one. If you need to place loads on racking, you need a stacker.

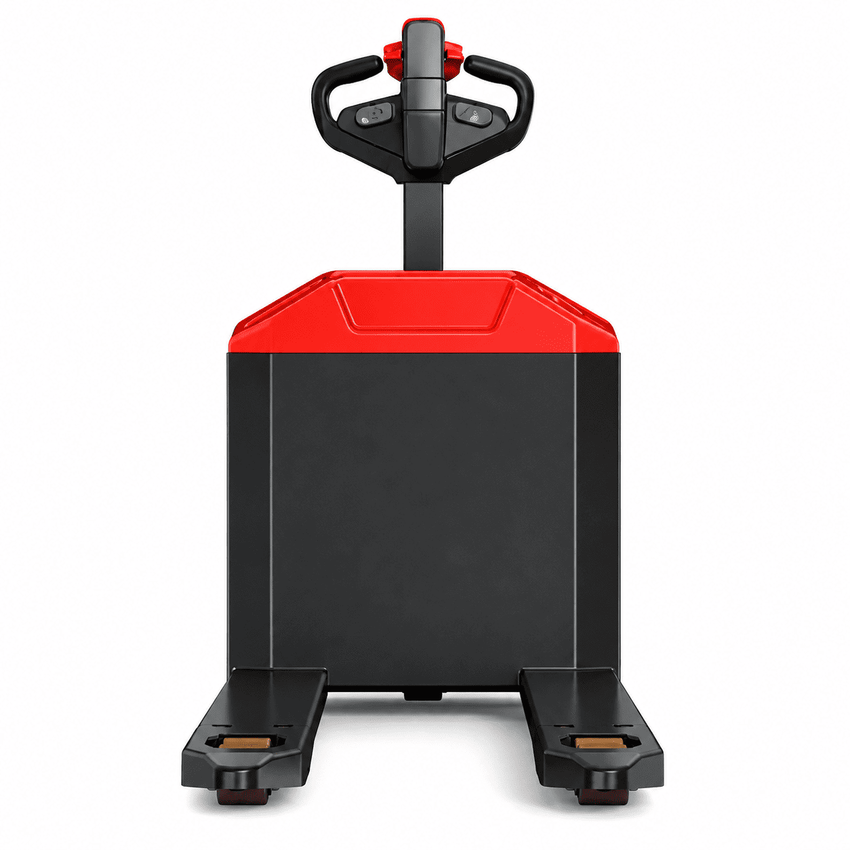

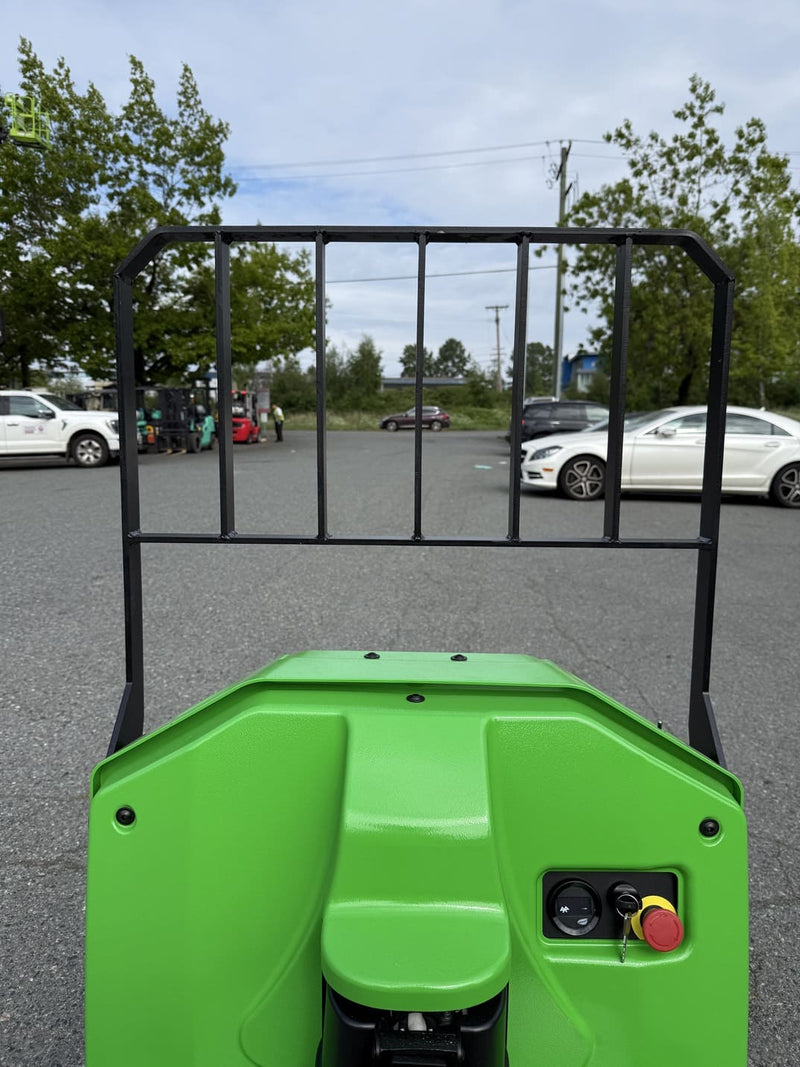

It sits at the handle end of the forks and stops a tall or loose load from sliding back toward the operator. It does not change the 4,400 lb rating, so weigh your heaviest pallet before ordering.
Yes, with one thing to know. The forks are 48 in long. Entered from the 48 in side they run about the full pallet depth, and from the 40 in side about 8 in of fork tip comes out the far end, so check what is behind the pallet.
A 24V 100Ah lithium-ion battery weighing 40 to 44 kg (88 to 97 lb) with an integrated 30A charger. A full charge from empty takes about 3.3 hours.
Gradeability is 10% loaded and 16% unloaded. Plan this truck for flat floors, and send us the grade of your route if it includes a ramp or dock plate.
90 days on the truck, the battery and the charger together, on every pallet jack we sell. Orders ship within 2 business days by freight anywhere in Canada. Free pickup is available from Richmond, BC, where this truck is in stock, normally ready within 24 hours.
