4,400 lb rating
Rated 2,000 kg at a 23.6 in load centre, carried by a truck that weighs 386 lb. Weigh your heaviest pallet before ordering and keep the load centred on the forks.
Item added to your cart
48V lithium walkie pallet jack rated 4,400 lb (2,000 kg), with 48 x 27 in forks and a charger in the box. Built for heavy pallets on flat floors, with in-stock pickup in Richmond, BC.
Only 4 products left
Estimate Shipping
Enter your Canadian postal code to get an estimated shipping cost for this product.
Shipping is an estimate only. Final shipping will be shown at checkout or confirmed by quote.
Local Pickup Available
Richmond, BC Pickup
4751 Shell Road
Unit 10
Richmond BC V6X 3H4
Canada
No Shipping Fee
Usually ready in 24 hours
Four things to check against your pallets, your aisles and your shift.
Rated 2,000 kg at a 23.6 in load centre, carried by a truck that weighs 386 lb. Weigh your heaviest pallet before ordering and keep the load centred on the forks.
On a 48 x 40 in pallet entered from the 48 in side, the forks run about the full pallet depth. From the 40 in side about 8 in of fork tip comes out the far end. The forks rise 4.5 in.
The battery weighs 10.5 kg (23 lb). Ask us before ordering if you run long shifts..
Fitted as standard to keep the truck steadier on slightly uneven floors. Plan this truck for flat floors, and send us the grade if your route has a ramp.
Check these numbers against your pallets, your aisles and your heaviest load before ordering.

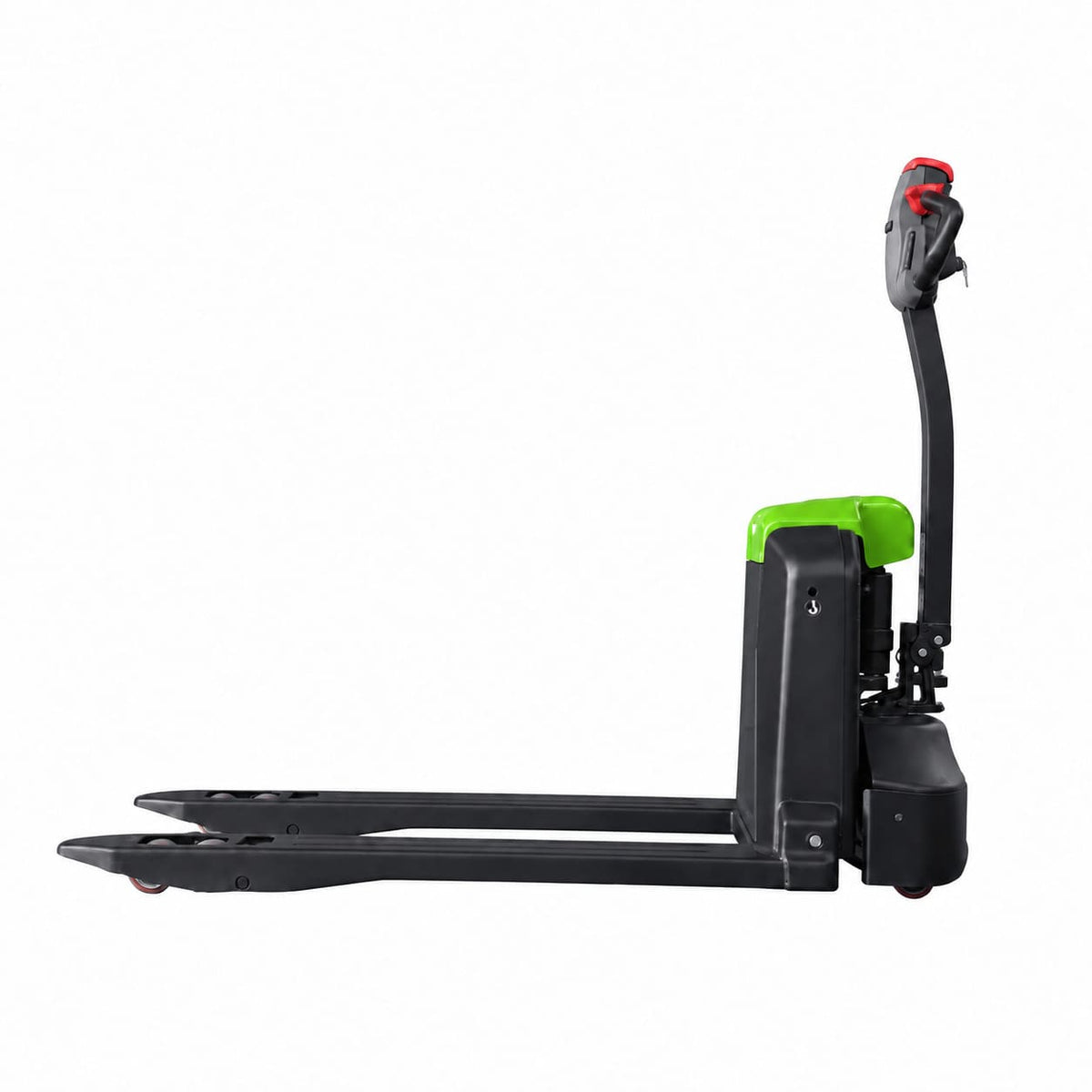

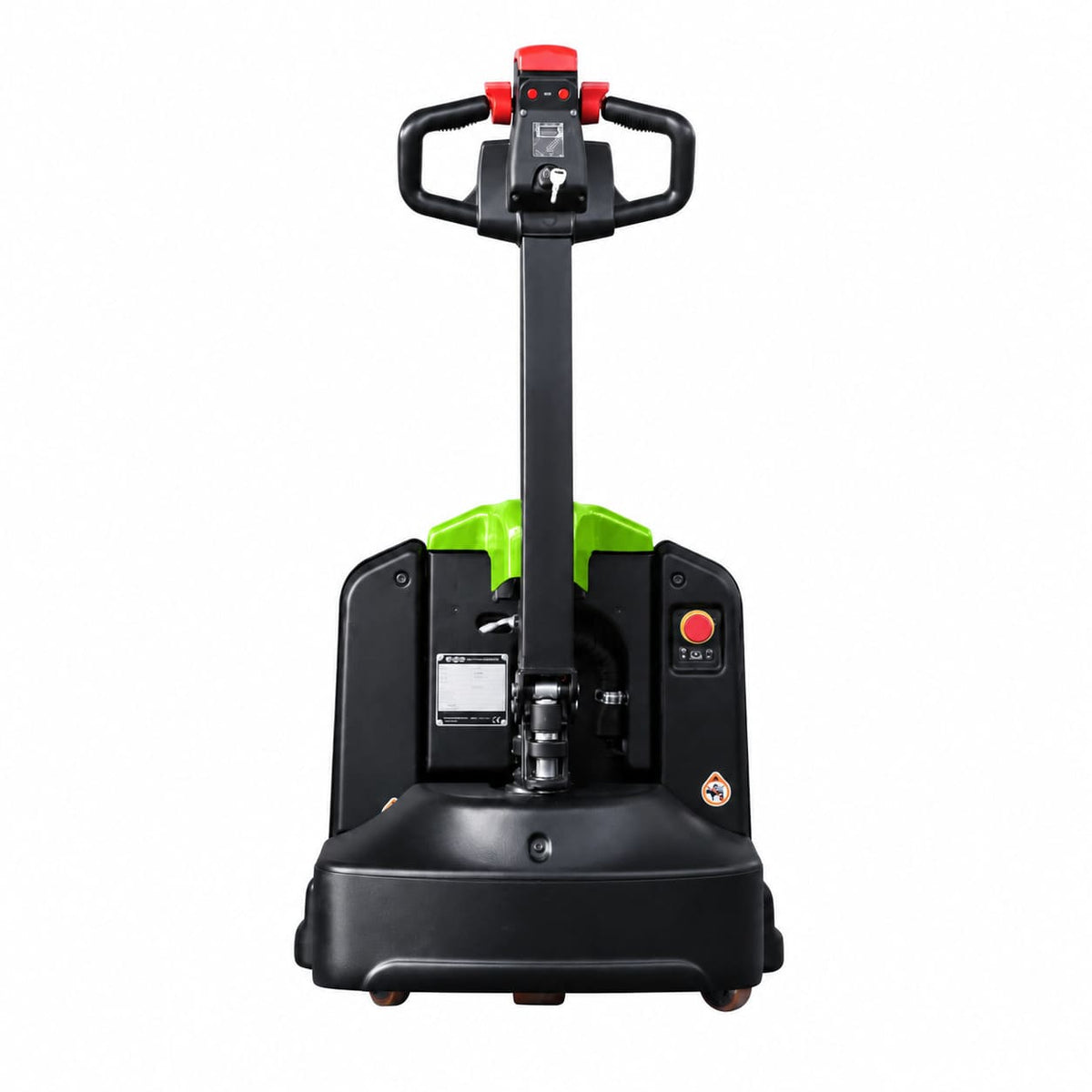

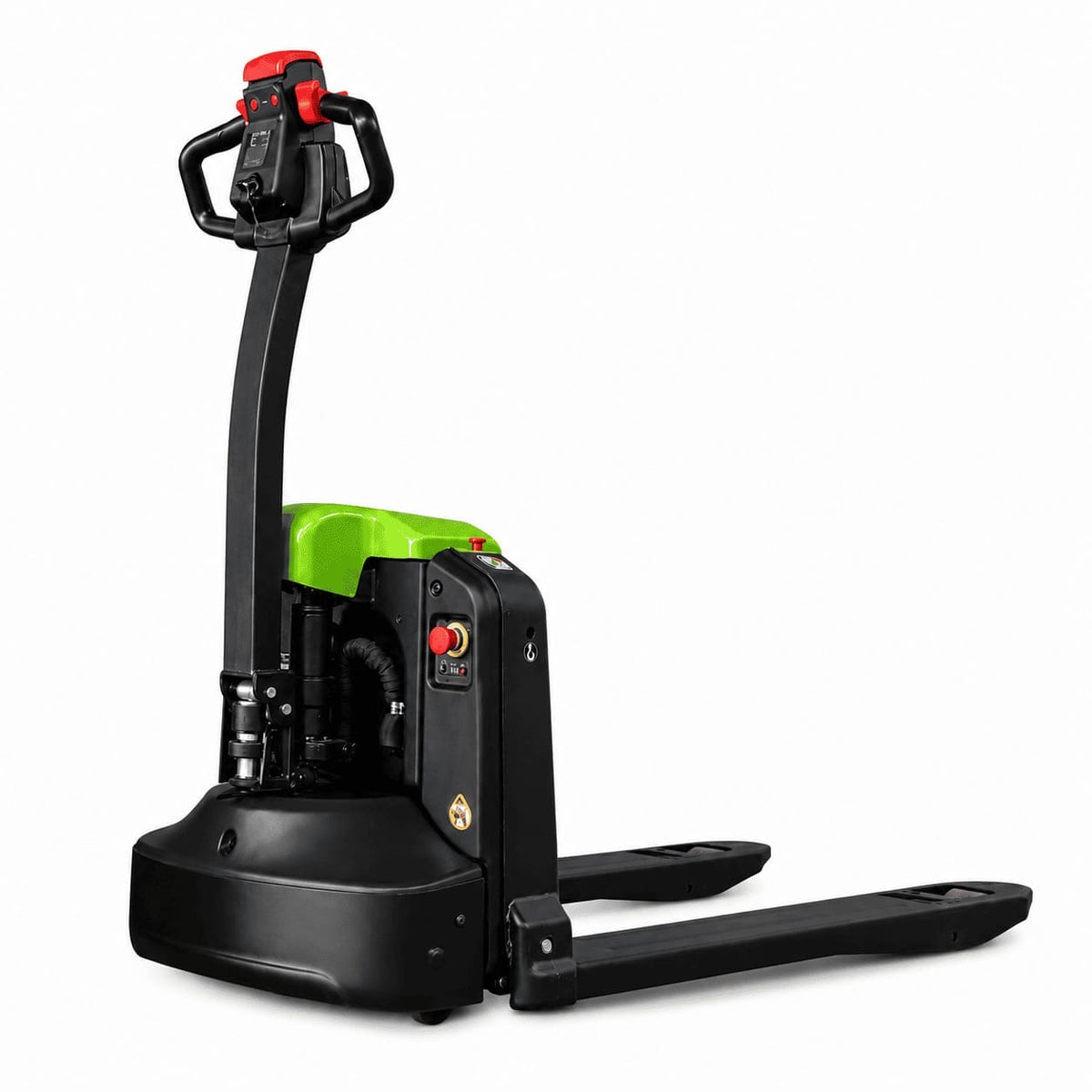

The EPL205 is a 4,400 lb (2,000 kg) walkie electric pallet jack with a removable 48V lithium battery and 48 x 27 in forks, and a charger comes in the box. Four checks decide whether it fits your pallets and your floor.
1. Your heaviest pallet. The truck is rated at 2,000 kg (4,400 lb) at a 600 mm (23.6 in) load centre and weighs 175 kg (386 lb) with the battery in. Weigh your heaviest pallet, not the average one, and keep the load centred on the forks.
2. Pallet entry. The forks are 48 in long and 27 in wide overall, each fork is about 6 in wide and 2.0 in thick, and the gap between them is about 15.5 in. On a 48 x 40 in pallet entered from the 48 in side, the forks run about the full pallet depth. From the 40 in side about 8 in of fork tip comes out the far end, so check what is behind the pallet. The forks rise 4.5 in (115 mm). If your pallets have low openings, send us the opening height and we will confirm the forks fit before you order.
3. Aisle width. Overall length is 63 to 64 in and the truck stands about 52 in tall with the handle upright. Add your longest load to the truck length and compare it with your narrowest aisle or doorway. Send us your narrowest aisle width and we will tell you whether this truck turns in it.
4. Battery and charging. The truck runs on a removable 48V lithium-ion battery that weighs 10.5 kg (23 lb). A charger is included. Tell us how many hours a day the truck runs and we will confirm it suits before you order.
Travel speed is 5 km/h (3.1 mph) loaded and 5.5 km/h (3.4 mph) unloaded, the drive motor is a 0.9 kW brushless DC unit, and floating stabilizing wheels are fitted as standard. Plan the EPL205 for flat floors.
If your pallets are lighter, or you need a longer-shift battery, see the electric pallet jack collection to compare. Or send us your heaviest pallet weight and your aisle width and we will tell you which model fits.
Orders ship within 2 business days by freight truck, anywhere in Canada. Delivery after dispatch depends on your province and the carrier schedule, so ask for a transit estimate to your postal code before ordering.
Read the shipping policyFree pickup from our Richmond, BC warehouses. Orders are normally ready within 24 hours. Wait for the ready-for-pickup email before you travel.
See local pickup details90 days on truck, 1 year on battery and charger
Read the warranty termsReplacement batteries, chargers and load wheels are stocked for this model. Tell us the model and we will confirm the exact part before you order it.
Browse replacement partsStart with the cost and capacity guides if you are still shopping. If a truck is already on your floor and something feels off, the troubleshooting post covers the usual causes. Still stuck after reading? Send us your aisle width and the weight you move, and we will tell you which model fits.
April 30, 2026
There's no single best electric pallet jack — only the one that matches your load, floor, and budget. Here's how Raelon's lineup...
Read the guideMarch 03, 2026
Step-by-step guide to using a manual or electric pallet jack safely, from pre-use checks and controls to turning, stopping and charging.
Read the guideApril 01, 2025
Manual or electric — and if electric, lithium-ion or lead-acid/AGM? Here's what each type actually is and where it fits.
Read the guideSeptember 28, 2026
Prices for Raelon's electric pallet jacks range from $1,859 to $6,900. Here's what actually drives that difference, model by model.
Read the guideSeptember 29, 2026
Most issues come down to three things: charging, speed settings, and battery level. Here's how to tell which one you're dealing with,...
Read the guideJune 02, 2026
Five signs your team has outgrown a manual pallet jack, and the checks to run before you buy an electric one.
Read the guideThe nameplate rates it at 2,000 kg (4,400 lb) at a 23.6 in load centre. The forks rise 4.5 in (115 mm), enough to clear the floor and move a pallet, not to stack one. If you need to place loads on racking, you need a stacker.
Yes, with one thing to know. The forks are 48 in long. Entered from the 48 in side they run about the full pallet depth, and from the 40 in side about 8 in of fork tip comes out the far end, so check what is behind the pallet.
A removable 48V lithium-ion battery that weighs 10.5 kg (23 lb), and a charger in the box. Ask us before ordering if you run long shifts.
Plan this truck for flat floors. If your route includes a ramp or dock plate, send us the grade and we will tell you whether it suits.
90 days on the truck, the battery and the charger together, on every pallet jack we sell. Orders ship within 2 business days by freight anywhere in Canada. Free pickup is available from Richmond, BC, where this truck is in stock, normally ready within 24 hours.
