Capacité nominale
6600lbs
Article ajouté à votre panier
Raelon
Raelon MN-01 6600lbs All-Terrain Electric Pallet Jack with Lead-Acid Battery is a Raelon electric pallet jack designed for commercial pallet movement in warehouses, receiving areas, stockrooms and material handling operations in Canada.
Il ne reste que 4 produits
Estimer l’expédition
Entrez votre code postal canadien pour obtenir une estimation des frais d’expédition de ce produit.
Les frais affichés sont une estimation. Le montant final sera indiqué à la caisse ou confirmé par soumission.
Ramassage local offert
Ramassage à Vancouver (C.-B.)
4751 Shell Road
Unit 10
Richmond BC V6X 3H4
Canada
Aucuns frais d’expédition
Habituellement prête en 24 heures
Passez en revue les principales caractéristiques de capacité, de batterie et de fonctionnement de ce transpalette électrique Raelon.
6600lbs
Lead-Acid
Local Pickup Available
Veuillez vérifier la capacité, la batterie, les dimensions et les spécifications de fonctionnement avant de commander.
The Raelon MN-01 All-Terrain Electric Pallet Jack is built for outdoor and rougher worksite material handling where standard indoor pallet jacks may not be suitable. With a 6600 lbs load capacity, 48V / 32Ah lead-acid battery system, large rubber drive wheel, all-metal body, and pedestrian operation, this rugged electric pallet truck is designed to move heavy pallet loads across yards, loading areas, construction-style work zones, and more demanding industrial environments.
Designed for stronger ground clearance, better traction, and flexible maneuverability, the MN-01 helps operators move pallets more efficiently in outdoor conditions while reducing the physical effort required by manual pallet trucks. It is a practical choice for businesses that need electric pallet handling beyond smooth indoor warehouse floors.
The Raelon MN-01 is designed for heavy pallet movement in outdoor and mixed worksite environments. Its 3-ton rated capacity gives businesses a stronger option for moving loaded pallets where standard compact pallet jacks may not provide enough traction, clearance, or durability.
The MN-01 uses a 48V / 32Ah lead-acid battery system to support stronger drive performance and more capable outdoor operation. Its 1 kW rated drive power helps provide dependable movement for heavy loads and daily material handling tasks.

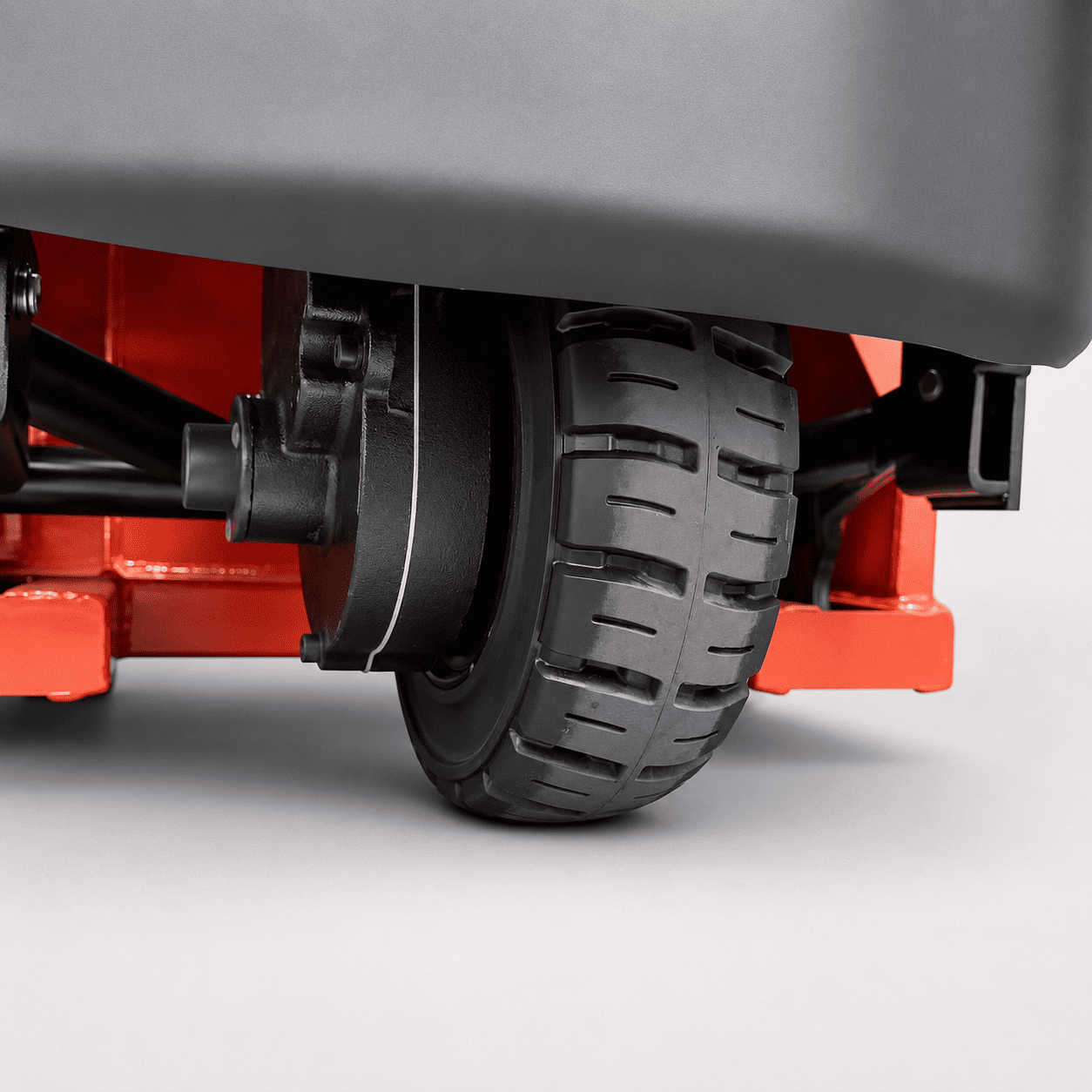

The large rubber drive wheel is designed to improve traction and durability in more demanding environments. Compared with smaller indoor pallet jack wheels, the MN-01’s drive wheel supports better ground contact and more confident handling on outdoor worksite surfaces.
The MN-01 is designed with higher ground clearance and a pallet-entry fork structure to improve passability in outdoor handling conditions. Its 85 mm lowered fork height helps it enter standard pallets while maintaining a more rugged structure for worksite use.
The MN-01 features an all-metal body for durability in demanding environments. Its multifunction handle is designed for practical control and improved protection against dust and moisture exposure in outdoor worksite conditions.
Despite its heavy-duty outdoor structure, the MN-01 is designed to remain maneuverable. Its 1539 mm turning radius helps operators work more flexibly in loading areas, yards, and jobsite spaces where turning room may be limited.
| Load Capacity | Power Type | Battery | Drive Power | Turning Radius | Drive Wheel |
|---|---|---|---|---|---|
| 6600 lbs / 3000 kg | Electric | 48V / 32Ah Lead-Acid | 1 kW | 60.6" / 1539 mm | Φ300 x 95 mm Rubber |
Designed for outdoor worksite pallet handling, higher clearance, and heavy-duty 6600 lbs capacity
| Specification | Raelon MN-01 |
|---|---|
| Model | MN-01 |
| Product Type | All-Terrain Electric Pallet Jack |
| Power Type | Electric |
| Operator Type | Pedestrian |
| Rated Capacity | 6600 lbs / 3000 kg |
| Load Center | 23.6" / 600 mm |
| Service Weight | Approx. 489–520 lbs / 222–236 kg, depending on configuration |
| Service Weight Without Battery | Approx. 441 lbs / 200 kg |
| Battery Type | Lead-Acid |
| Battery Voltage / Capacity | 48V / 32Ah |
| Rated Drive Power | 1 kW |
| Battery Weight | Approx. 79 lbs / 36 kg |
| Front Wheel Size | Φ300 x 95 mm |
| Maximum Lift Height | 4.3" / 110 mm |
| Lowered Fork Height | 3.35" / 85 mm |
| Overall Length | 67.8" / 1721 mm |
| Overall Width | 26.8"–27.0" / 680–685 mm |
| Turning Radius | 60.6" / 1539 mm |
| Aisle Width, 1000 x 1200 mm Pallet Crossways | 91.2" / 2316 mm |
| Aisle Width, 800 x 1200 mm Pallet Lengthways | 87.5" / 2222 mm |
| Travel Speed, Loaded / Unloaded | 2.6 / 3.0 mph | 4.2 / 4.9 km/h |
| Maximum Gradeability, Loaded / Unloaded | 8% / 16% |
Still comparing models? View all Raelon electric pallet jacks to compare indoor, compact, heavy-duty, and all-terrain pallet jack options.
Shipping options are available for eligible electric pallet jacks across Canada. Rates and delivery timing depend on the product, destination and current inventory.
Pickup availability depends on the selected product, variant and current inventory location. Confirm availability before travelling.
Eligible Raelon equipment and batteries include limited warranty coverage subject to the applicable product and warranty terms.
Replacement batteries, chargers, wheels and selected compatible parts are available for supported models.
