6,600 lb rating
3,000 kg at a 23.6 in load centre, the highest rating we sell. The truck itself weighs 520 lb with the battery in. Weigh your heaviest loaded pallet before ordering and keep it centred on the forks.
Item added to your cart
48V all-terrain walkie pallet jack rated 6,600 lb (3,000 kg), with 48 x 27 in forks and pneumatic tires for gravel, yards and uneven pavement. Our highest-rated pallet truck.
Only 4 products left
Estimate Shipping
Enter your Canadian postal code to get an estimated shipping cost for this product.
Shipping is an estimate only. Final shipping will be shown at checkout or confirmed by quote.
Local Pickup Available
Richmond, BC Pickup
4751 Shell Road
Unit 10
Richmond BC V6X 3H4
Canada
No Shipping Fee
Usually ready in 24 hours
Four things to check against your pallets, your aisles and your shift.
3,000 kg at a 23.6 in load centre, the highest rating we sell. The truck itself weighs 520 lb with the battery in. Weigh your heaviest loaded pallet before ordering and keep it centred on the forks.

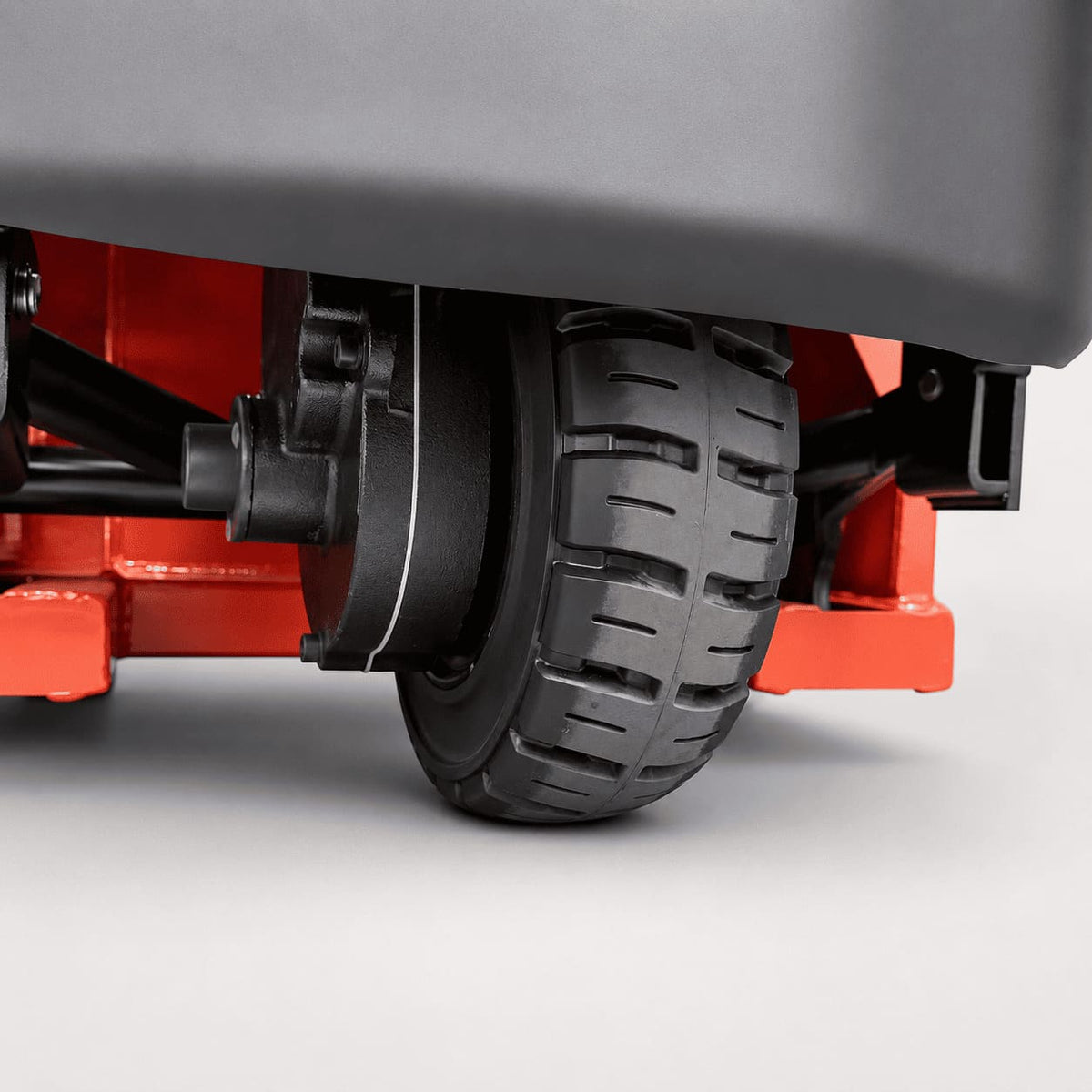

Pneumatic tires instead of polyurethane, so the truck rolls on gravel, packed dirt, asphalt and dock aprons. For a racked aisle or a polished floor, a polyurethane truck is the better tool.
On a 48 x 40 in pallet entered from the 48 in side, the forks run about the full pallet depth. From the 40 in side about 8 in of fork tip comes out the far end. The forks rise 4.3 in.
A 36 kg (79 lb) sealed lead-acid pack, so the truck lands at 520 lb with the battery in. Tell us how many hours a day it runs and where it will be parked to charge, and we will confirm the setup.
Check these numbers against your pallets, your aisles and your heaviest load before ordering.

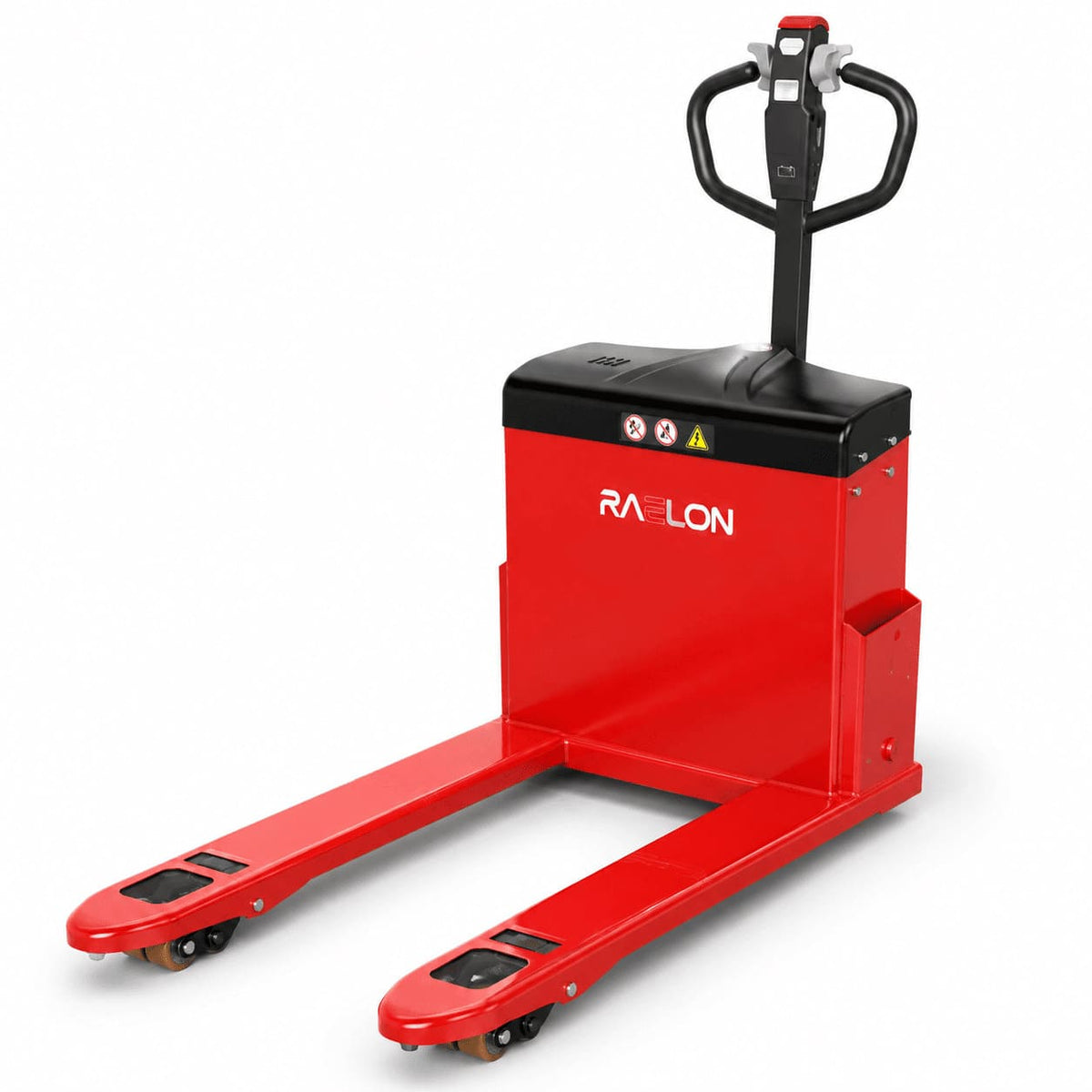

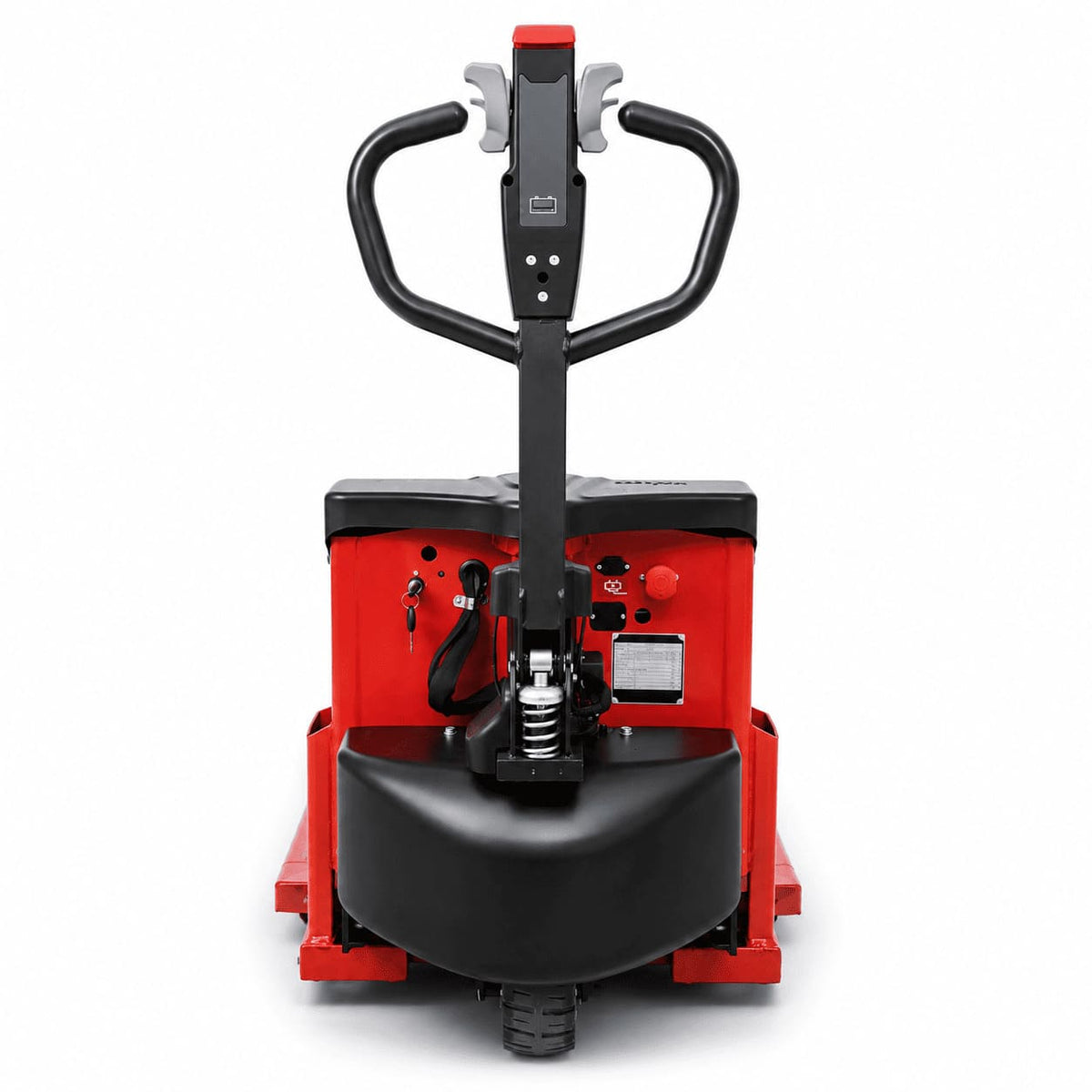

The MN-01 is a 6,600 lb (3,000 kg) all-terrain walkie electric pallet jack. It runs on pneumatic tires instead of polyurethane wheels, so it works on gravel, packed dirt, asphalt and uneven pavement where a warehouse truck would struggle. Four checks decide whether it fits your yard and your loads.
1. Your heaviest pallet. The MN-01 is rated 3,000 kg (6,600 lb) at a 600 mm (23.6 in) load centre, the highest rating in our range. The truck weighs 236 kg (520 lb) with the battery in and 200 kg (441 lb) without. Weigh your heaviest loaded pallet, not your average one, and keep the load centred on the forks.
2. Where it will run. This is the one truck in our range with pneumatic all-terrain tires. That makes it the right choice for a gravel yard, a packed dirt lot, an asphalt apron or a loading area with cracks and potholes. If your work is entirely inside on smooth concrete, a polyurethane-wheel truck steers lighter and costs less to replace tires on.
3. Pallet entry. The forks are 48 in long and 27 in wide overall, each fork is about 6.5 in wide, and the gap between them is about 15 in. On a 48 x 40 in pallet entered from the 48 in side, the forks run about the full pallet depth. From the 40 in side about 8 in of fork tip comes out the far end, so check what is behind the pallet. The forks rise 4.3 in (110 mm), which clears the floor and moves a pallet but is not a stacking height.
4. Turning space and height. Overall length is about 70 in, and the truck stands about 52 in tall with the handle upright. Add your longest load to the truck length and compare it with your narrowest gate, doorway or trailer opening. Send us your turning space and we will tell you whether this truck fits it.
The MN-01 runs on a 48V AGM lead-acid battery weighing 36 kg (79 lb). AGM packs are sealed, so there is no water to top up, and the truck lands at 236 kg (520 lb) with the battery in. Tell us how many hours a day it runs and where it will be parked to charge, and we will confirm the battery setup before you order.
If your work is indoors on smooth concrete, a polyurethane-wheel pallet jack steers lighter and costs less. See the electric pallet jack collection to compare, or send us your heaviest pallet weight, your surface and your turning space and we will tell you which model fits.
Orders ship within 2 business days by freight truck, anywhere in Canada. Delivery after dispatch depends on your province and the carrier schedule, so ask for a transit estimate to your postal code before ordering.
Read the shipping policyFree pickup from our Richmond, BC warehouses. Orders are normally ready within 24 hours. Wait for the ready-for-pickup email before you travel.
See local pickup details90 days on truck, 1 year on battery and charger
Read the warranty termsReplacement batteries, chargers and load wheels are stocked for this model. Tell us the model and we will confirm the exact part before you order it.
Browse replacement partsStart with the cost and capacity guides if you are still shopping. If a truck is already on your floor and something feels off, the troubleshooting post covers the usual causes. Still stuck after reading? Send us your aisle width and the weight you move, and we will tell you which model fits.
April 30, 2026
There's no single best electric pallet jack — only the one that matches your load, floor, and budget. Here's how Raelon's lineup...
Read the guideMarch 03, 2026
Step-by-step guide to using a manual or electric pallet jack safely, from pre-use checks and controls to turning, stopping and charging.
Read the guideApril 01, 2025
Manual or electric — and if electric, lithium-ion or lead-acid/AGM? Here's what each type actually is and where it fits.
Read the guideSeptember 28, 2026
Prices for Raelon's electric pallet jacks range from $1,859 to $6,900. Here's what actually drives that difference, model by model.
Read the guideSeptember 29, 2026
Most issues come down to three things: charging, speed settings, and battery level. Here's how to tell which one you're dealing with,...
Read the guideJune 02, 2026
Five signs your team has outgrown a manual pallet jack, and the checks to run before you buy an electric one.
Read the guideIt is rated 3,000 kg (6,600 lb) at a 23.6 in load centre, the highest rating we sell. The forks rise 4.3 in (110 mm), enough to clear the floor and move a pallet, not to stack one. If you need to place loads on racking, you need a stacker.
It is the only model we sell with pneumatic all-terrain tires. Every other model runs polyurethane wheels, which are made for smooth indoor concrete. The MN-01 is built for gravel, packed dirt, asphalt and uneven pavement.
Yes, with one thing to know. The forks are 48 in long with about 15 in of clear space between them. Entered from the 48 in side they run about the full pallet depth, and from the 40 in side about 8 in of fork tip comes out the far end, so check what is behind the pallet.
A 48V AGM lead-acid battery weighing 36 kg (79 lb). It is sealed, so there is no water to top up, and the truck weighs 520 lb (236 kg) with the battery in. Tell us your shift length and where it will be parked to charge, and we will confirm the setup before you order.
It can, but pneumatic tires are made for rough ground. On a polished warehouse floor a polyurethane-wheel truck turns lighter and is easier to push around, so if all your work is indoors, compare the other models in the collection first.
90 days on the truck, the battery and the charger together, on every pallet jack we sell. Orders ship within 2 business days by freight anywhere in Canada. Free pickup is available from Richmond, BC, normally ready within 24 hours.
