Raelon
Charger-CBD15-24V6A
$65.00
Item added to your cart
Raelon
Only 1 product left
Pickup available at CA Warehouse
Usually ready in 2-4 days
Full-Set Parts
Satisfaction Guaranteed
90 Days Warranty

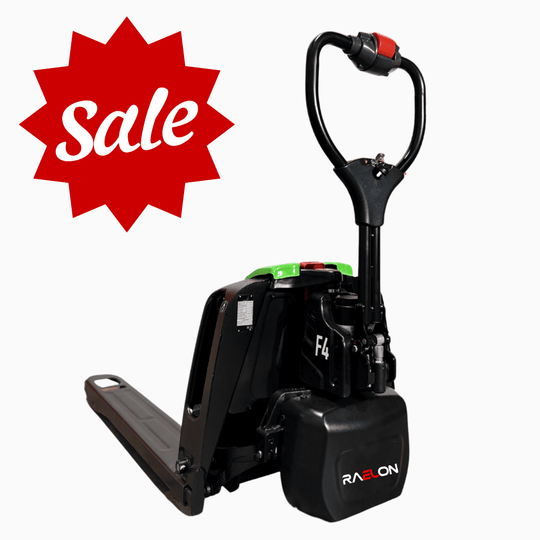

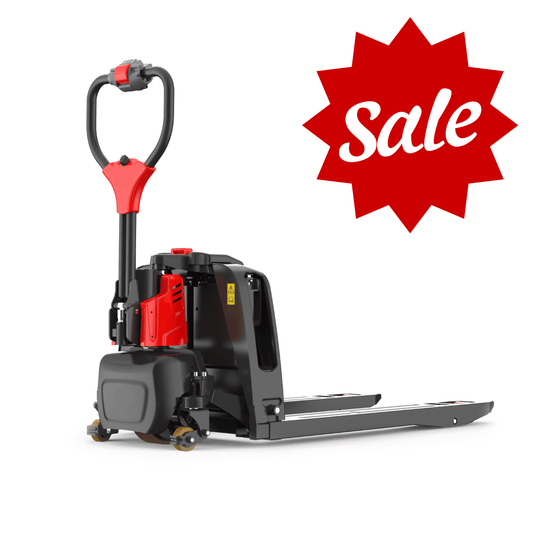

The Raelon F4 With Scale combines a compact electric pallet truck with a high-precision, integrated weighing system—so operators can transport and weigh goods in one step, reducing trips to fixed scale stations and improving receiving, shipping, and inventory control efficiency. With a 1,500 kg (3,300 lbs) capacity, 4 load cells, and Li-ion plug-and-play power, it’s built for fast-paced warehouse and logistics workflows.
Transport + Weigh in One Move: Weigh goods during travel to save time and streamline workflows.
High-Precision Weighing System: 4 load cells with 0.1% accuracy, 1 kg division, and kg/lb unit selection.
Operator-Friendly Display Functions: Tare, auto-off, and totalization supported (display powered by AA batteries).
Compact & Maneuverable: Tight turning radius for efficient use in aisles and staging areas.
Reliable Li-Ion Power: 24V / 20Ah Li-Ion battery (plug & play).
Safe Braking: Electromagnetic service brake for controlled operation.
Quiet Operation: Sound pressure level at operator position: 74 dB(A).
Ideal for places where moving + weighing happens constantly:
Warehouse receiving & shipping areas
Stock control / cycle counting
Retail backroom & replenishment
Logistics hubs and cross-dock operations
By weighing on the move, the Raelon F4 helps reduce manual errors and improves inventory accuracy.
The integrated scale makes pallet handling more efficient by removing dependence on stationary scales. The display supports:
Unit selection (kg/lb): Yes
Tare: Yes
Auto-off: Yes
Totalization: Yes
Accuracy: 0.1%
Load cells: 4
Division: 1 kg
Optional feature: built-in printer for gross / tare / net weights.
| Specification | Details |
|---|---|
| Operator type | Pedestrian |
| Drive | Electric |
| Load capacity | 1500 kg (3,300 lbs) |
| Load centre distance | 600 mm |
| Load distance (drive axle to fork) | 955 mm |
| Wheelbase | 1215 mm |
| Service weight | 155 kg (≈342 lbs) |
| Specification | Details |
|---|---|
| Length to face of forks / Overall length | 1575 mm |
| Overall width | 695 / 590 mm |
| Fork dimensions (thickness / width / length) | 60 / 155 / 1150 mm |
| Turning radius | 1380 mm |
| Lift height | 105 mm |
| Travel speed, laden/unladen | 4 / 4.5 km/h |
| Lifting speed, laden/unladen | 0.017 / 0.023 m/s |
| Lowering speed, laden/unladen | 0.035 / 0.053 m/s |
| Max. gradeability, laden/unladen | 5% / 16% |
| Specification | Details |
|---|---|
| Battery type | Li-Ion |
| Battery voltage | 24 V |
| Battery nominal capacity | 20 Ah |
| Battery weight | 5 kg |
| Drive motor rating (S2 60 min) | 0.75 kW |
| Lift motor rating (S3 15%) | 0.5 kW |
| Type of drive control | DC |
| Steering design | Mechanical |
| Service brake | Electromagnetic |
| Sound pressure level at operator’s ear | 74 dB(A) |
| Energy consumption (DIN EN 16796) | 0.124 kWh/h |
| Specification | Details |
|---|---|
| Tyre type | Polyurethane |
| Tyre size, front | 210×70 |
| Tyre size, rear | Φ80×60 (Φ74×88) |
| Additional wheels (castor wheels) | Φ74×30 (Optional) |
| Wheels number front/rear (x=drive wheels) | 1×2/4 (1×2/2) |
| Tread width, rear | 530 / 405 mm |
Explore more high-performance pallet jacks and stackers to suit your lifting needs.
Built for Productivity - Electric Pallet Jacks Make a Difference
Electric pallet jacks—also known as powered pallet trucks, electric pallet movers, or pallet lifters—have become a must-have in modern logistics and warehouse operations. Unlike manual pallet trucks, these electric power jacks reduce strain on operators, improve efficiency, and are ideal for both tight indoor aisles and high-volume loading zones. Whether you’re handling lightweight items or heavy-duty materials, investing in an electric pallet jack ensures smoother, safer, and more productive shifts.
Why Choose Raelon: Built for North American Warehouses
Engineered for Performance, Trusted Across Canada and US
At Raelon, we build high-performance electric pallet jacks and pallet trucks designed for the real demands of North American warehouses — from fast-paced logistics hubs to cold storage and manufacturing facilities.
Our lineup includes everything from compact jacks for tight aisles to heavy-duty models built for high-capacity lifting. With features like dual lithium-ion batteries, reinforced wheels, and sealed battery housings, our equipment is ready for both light-duty use and industrial applications.
Each unit is built with the operator in mind — combining responsive controls, quick charging, and minimal maintenance. Looking for an electric pallet lifter that’s powerful, flexible, and reliable? Raelon delivers.
We proudly serve businesses across the U.S. and Canada, with fast shipping and dependable support to keep your equipment running smoothly — wherever you're located.
Whether you're adding your first electric jack or upgrading a full fleet, trust Raelon for quality, performance, and long-term value.
Shipping costs vary by location and are calculated at checkout. Standard rates range from $150 to $850 depending on your province. Check our Shipping Policy for more details.
Orders can be canceled before shipping at no cost. If already shipped, additional fees may apply.
All new products come with a 6-month limited warranty, while batteries are covered for 1 year.
The warranty covers defective original parts, but does not include wear-and-tear parts or damage caused by misuse.
Within 30 days, we cover all costs. From 30 days to 6 months, the customer pays 50% of shipping. After 6 months, all repair costs are the customer’s responsibility.
For non-quality-related returns, customers are responsible for double-way shipping costs and a 15% restocking fee.
