5,500 lb rating
2,500 kg at a 23.6 in load centre, carried by a truck that weighs 1,146 lb with the battery in. Weigh your heaviest loaded pallet, not your average one, and keep the load centred on the forks.
Item added to your cart
Raelon
24V lead-acid walkie pallet jack rated 5,500 lb (2,500 kg), with a load backrest, 48 x 27 in forks and an AC drive built for heavy pallets. In stock in Richmond, BC.
Price Comparison
Indicative market pricing at time of publishing; prices may change.
Only 1 product left
Estimate Shipping
Enter your Canadian postal code to get an estimated shipping cost for this product.
Shipping is an estimate only. Final shipping will be shown at checkout or confirmed by quote.
Local Pickup Available
Richmond, BC Pickup
4751 Shell Road
Unit 10
Richmond BC V6X 3H4
Canada
No Shipping Fee
Usually ready in 24 hours
Four things to check against your pallets, your aisles and your shift.
2,500 kg at a 23.6 in load centre, carried by a truck that weighs 1,146 lb with the battery in. Weigh your heaviest loaded pallet, not your average one, and keep the load centred on the forks.

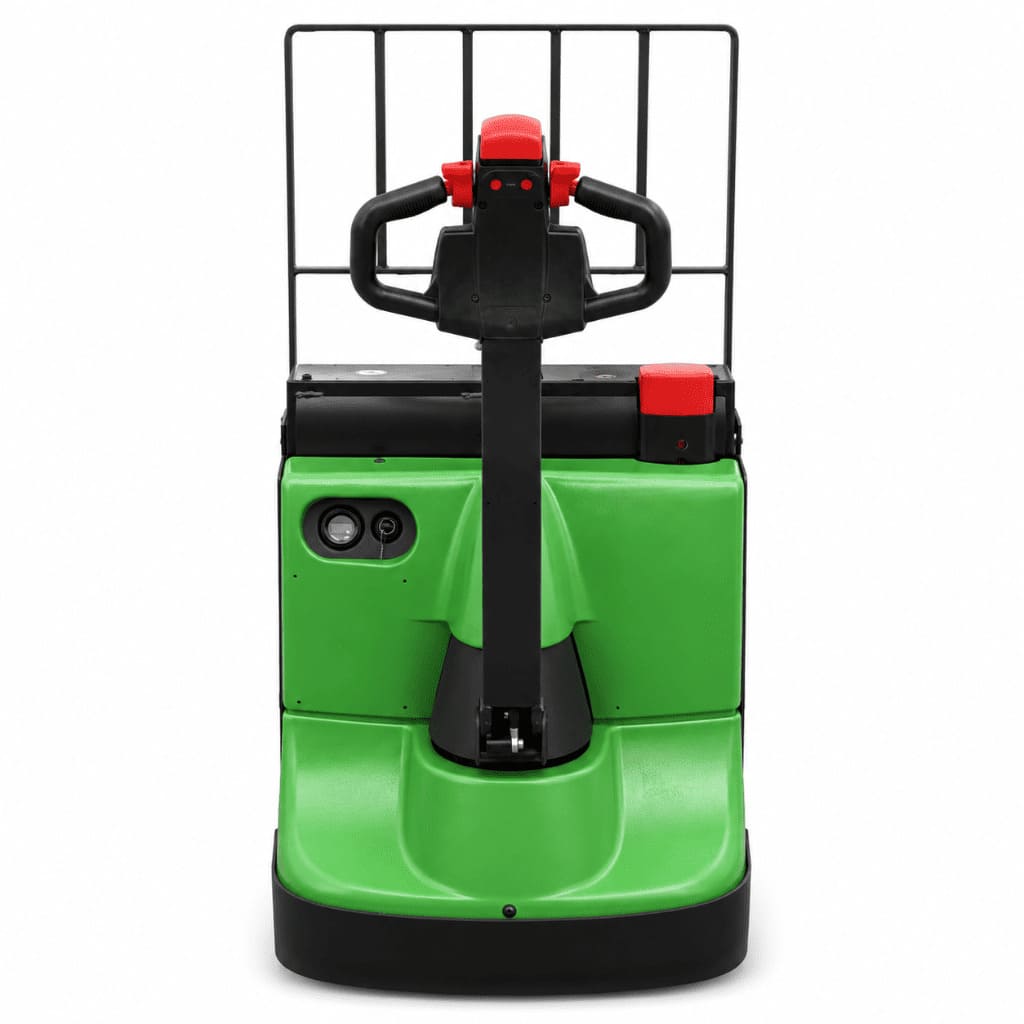

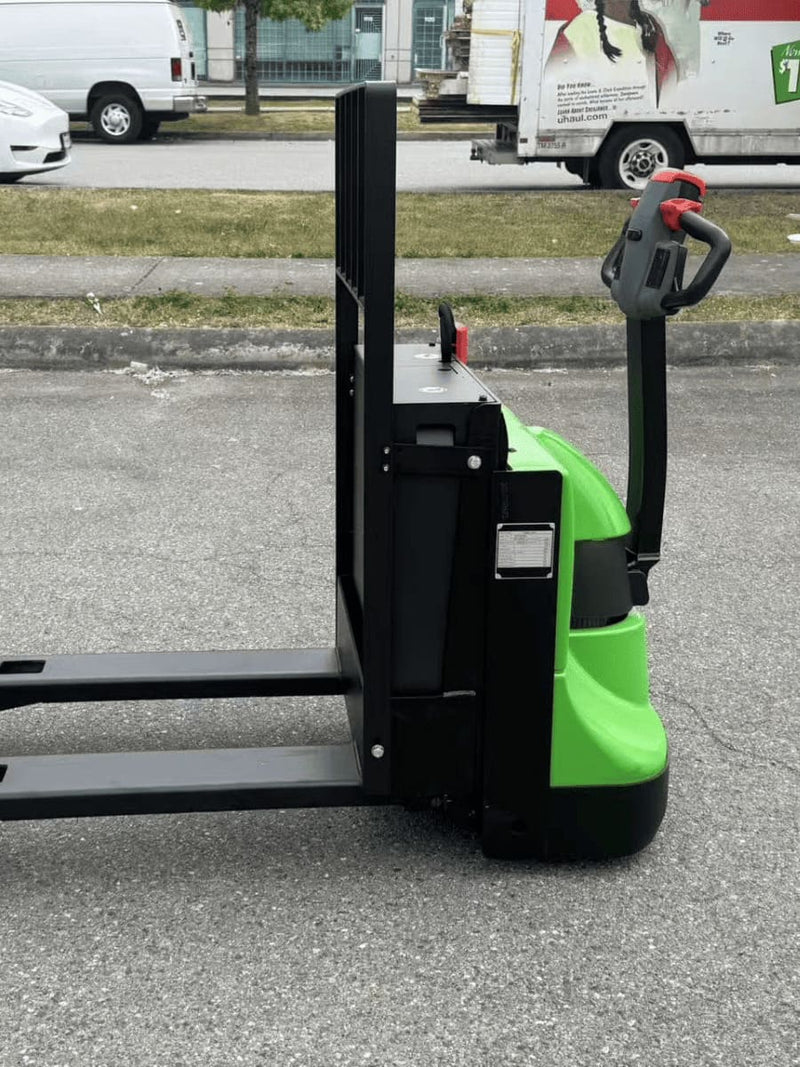

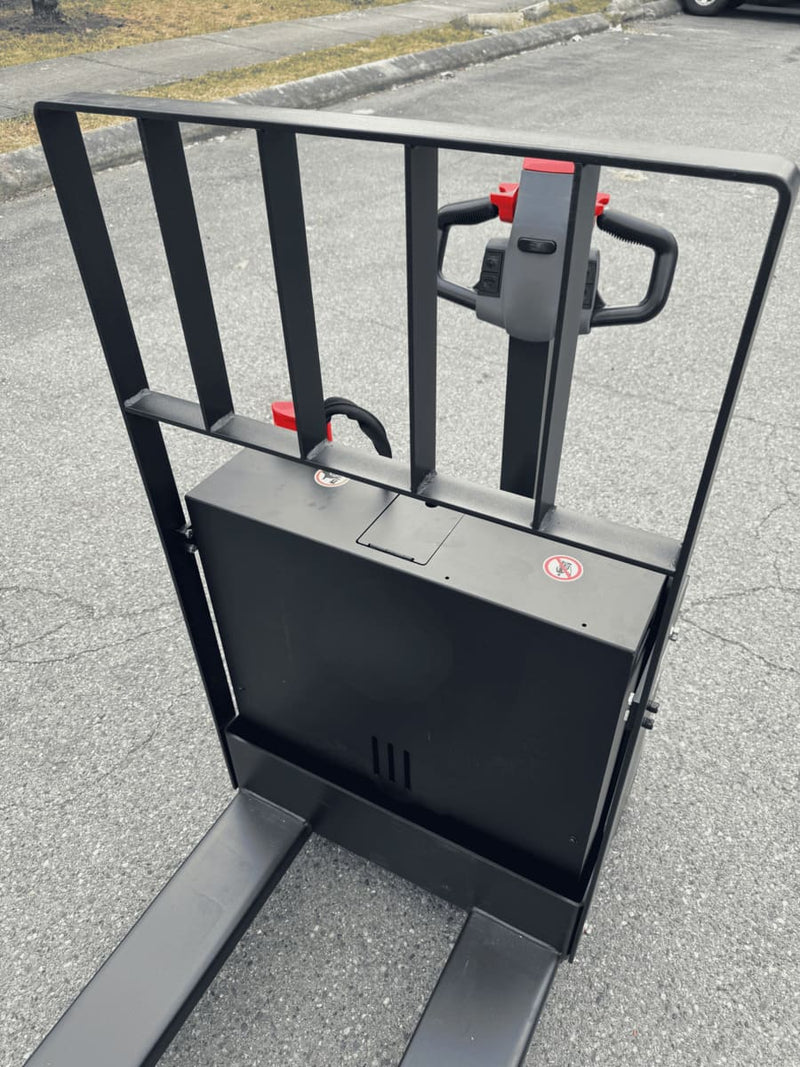

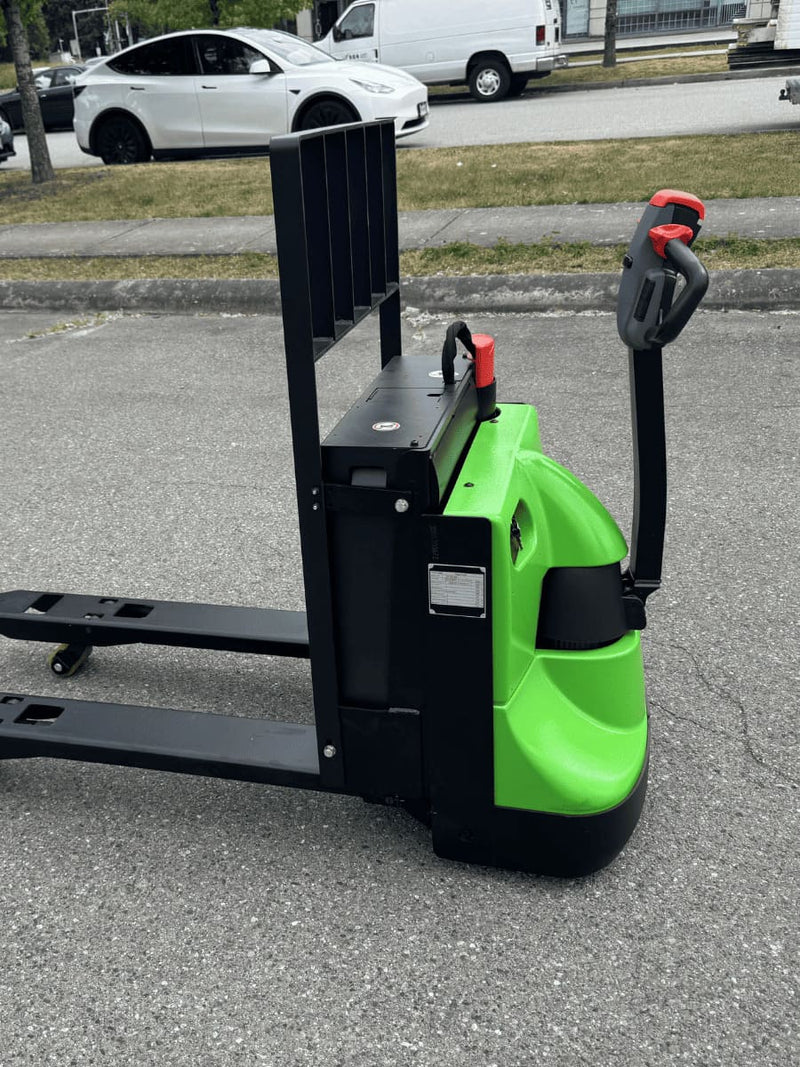

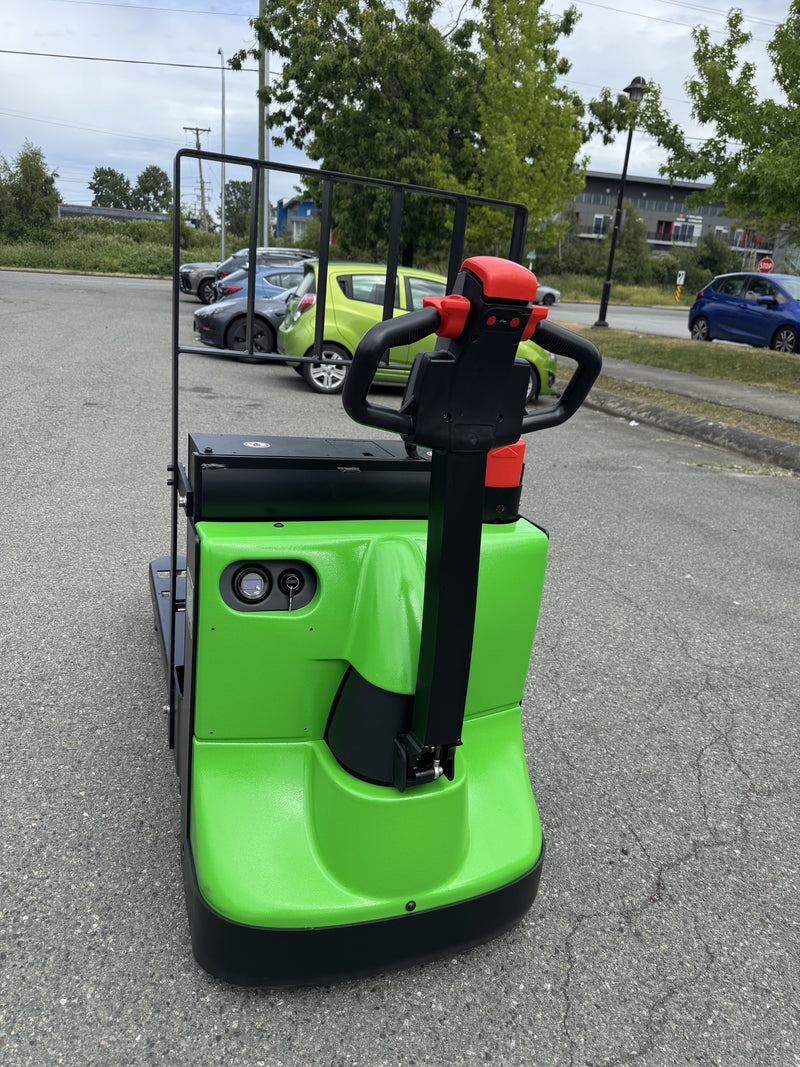

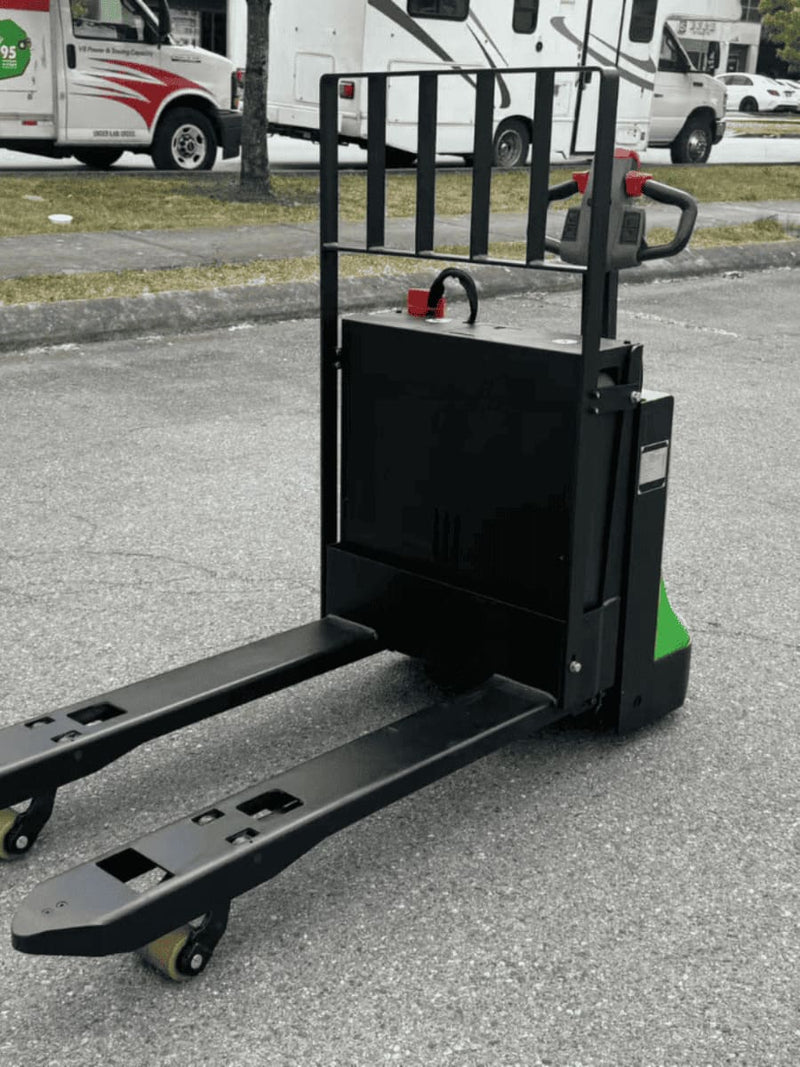

Sits at the handle end and stops a tall or loose load from sliding back toward the operator. It stands 52 in tall and does not raise the 5,500 lb rating.

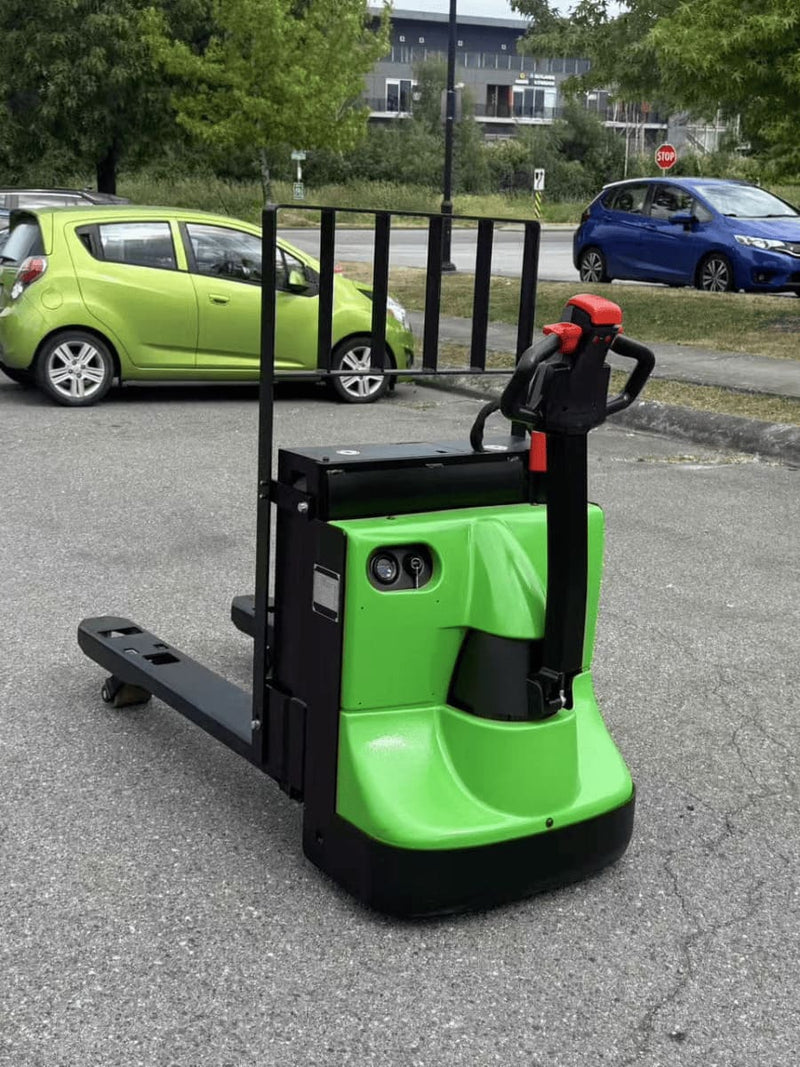

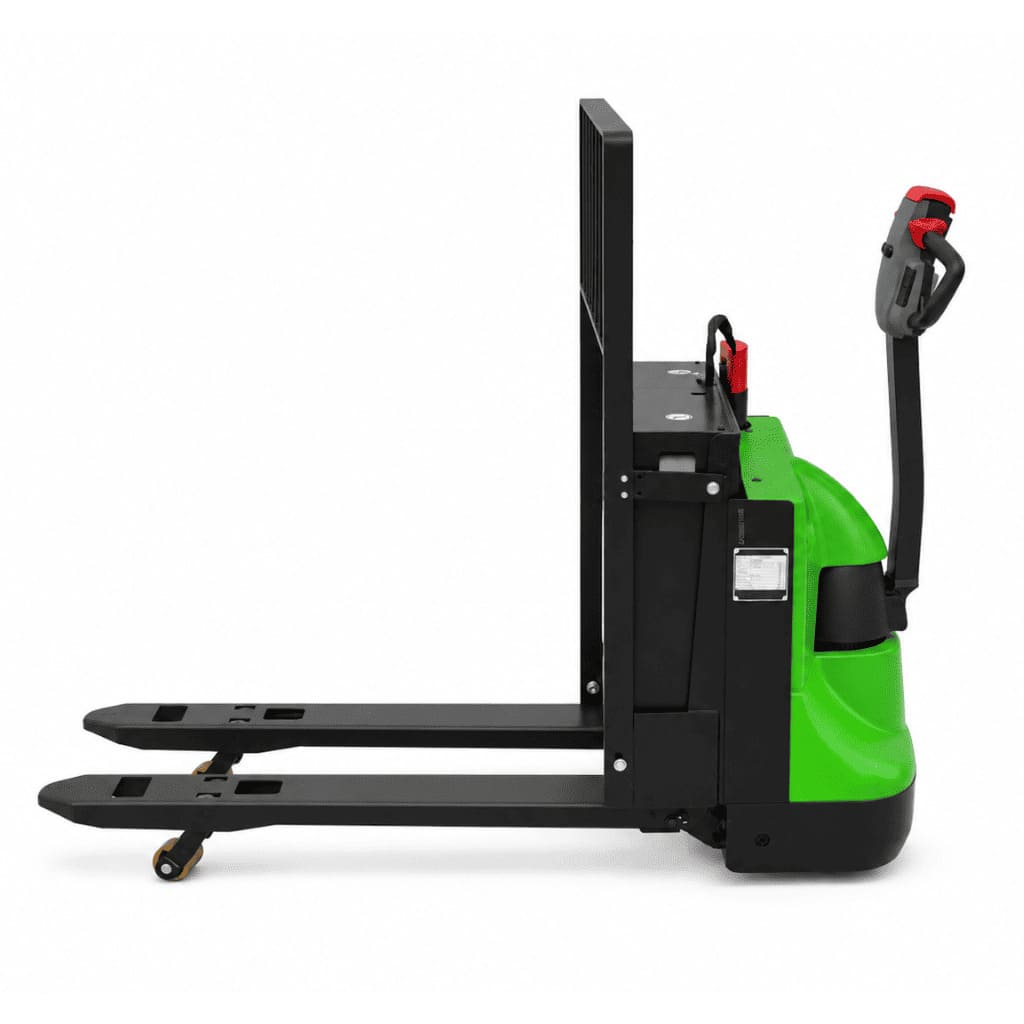

On a 48 x 40 in pallet entered from the 48 in side, the forks run about the full pallet depth. From the 40 in side about 8 in of fork tip comes out the far end. The forks rise 4.7 in.
A 1.6 kW vertical AC motor drives the truck, and the anti-rollback brake holds it on a slope. Gradeability is 8% loaded and 16% unloaded.

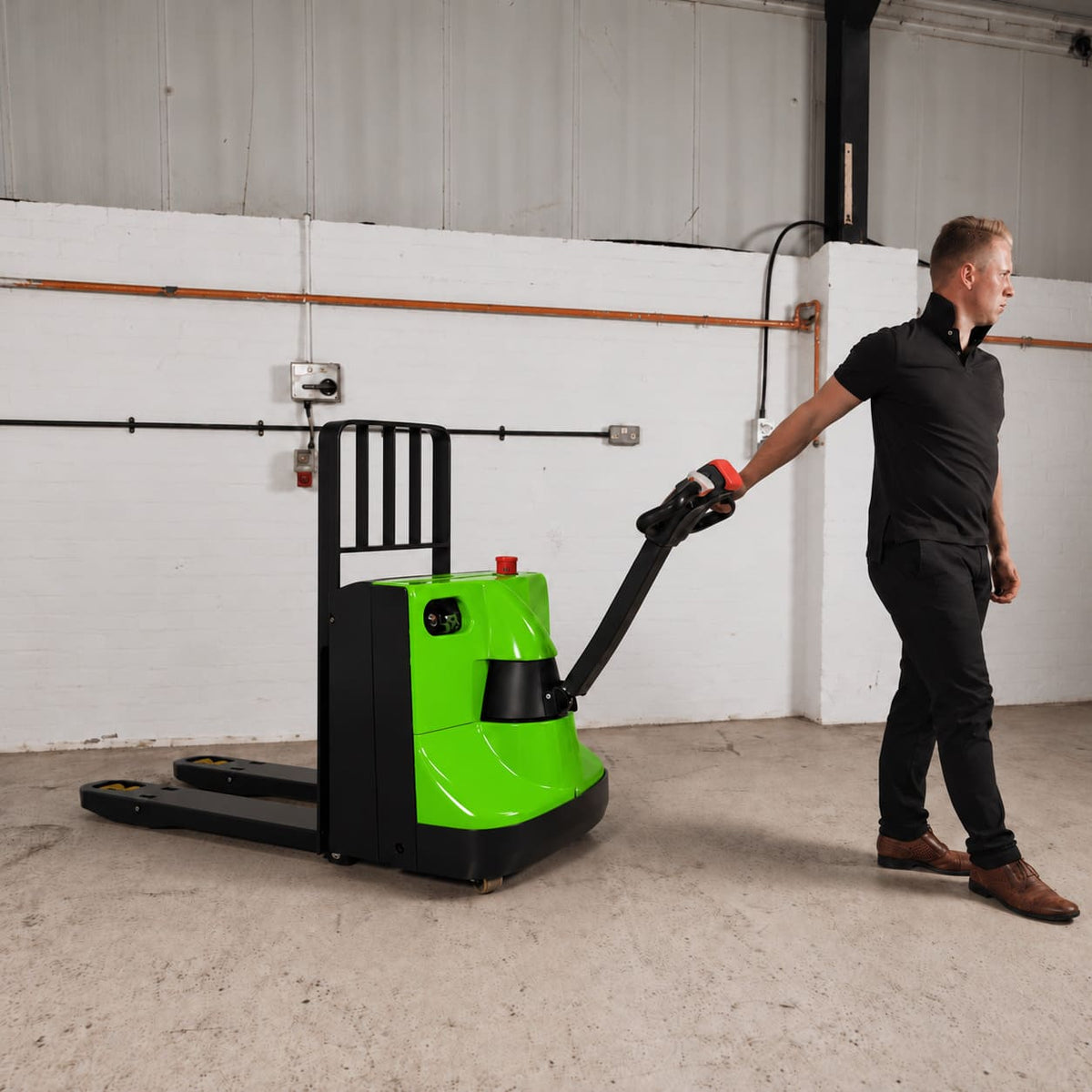

Real photos of this unit, taken before it ships.
Check these numbers against your pallets, your aisles and your heaviest load before ordering.

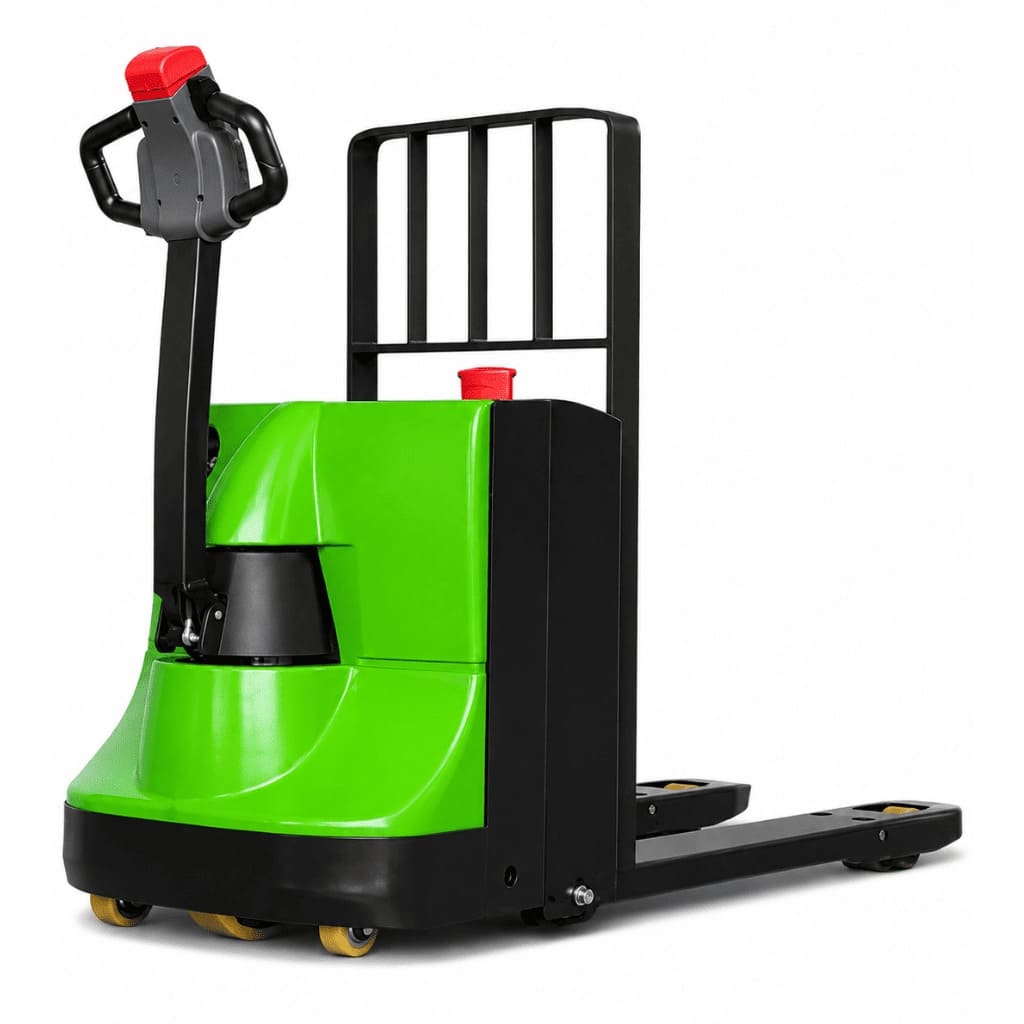

The EPT25-WA is a 5,500 lb (2,500 kg) heavy-duty walkie electric pallet jack with a load backrest, a 24V lead-acid battery and a 48 x 27 in fork. Four checks decide whether it fits your heaviest pallets and your building.
1. Your heaviest pallet. The EPT25-WA is rated 2,500 kg (5,500 lb) at a 600 mm (23.6 in) load centre. The truck itself weighs 520 kg (1,146 lb) with the battery in and 360 kg (794 lb) without. Size it to the heaviest loaded pallet you move, keep the load centred on the forks, and plan how you will move the truck itself if it ever has to go on a trailer.
2. Pallet entry. The forks are 48 in long and 27 in wide overall, each fork is about 6 in wide, and the gap between them is about 14 in. On a 48 x 40 in pallet entered from the 48 in side, the forks run about the full pallet depth. From the 40 in side about 8 in of fork tip comes out the far end, so check what is behind the pallet. The forks rise 4.7 in (120 mm), which clears the floor and moves a pallet but is not a stacking height.

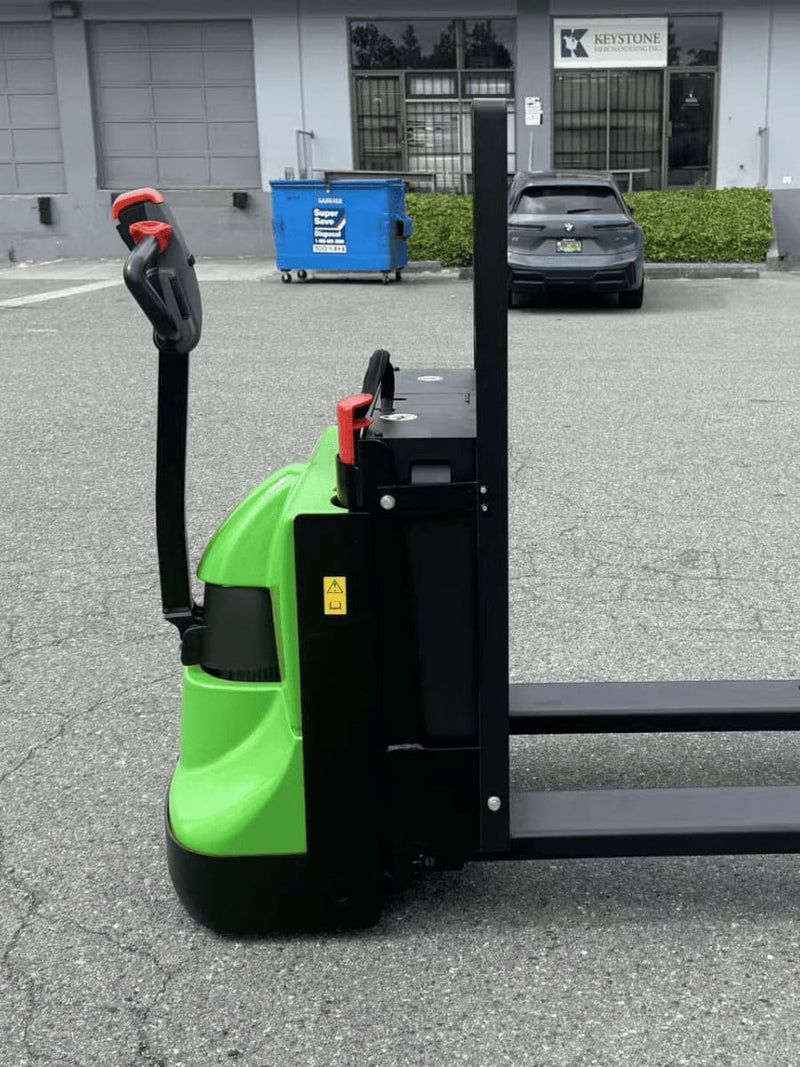

3. Aisle width and footprint. Overall length is about 72 in. With the handle upright the truck stands over 51 in tall, and 52 in at the load backrest. Add your longest load to the truck length and compare it with your narrowest aisle, doorway or trailer opening. Send us your aisle width and we will tell you whether this truck turns in it.

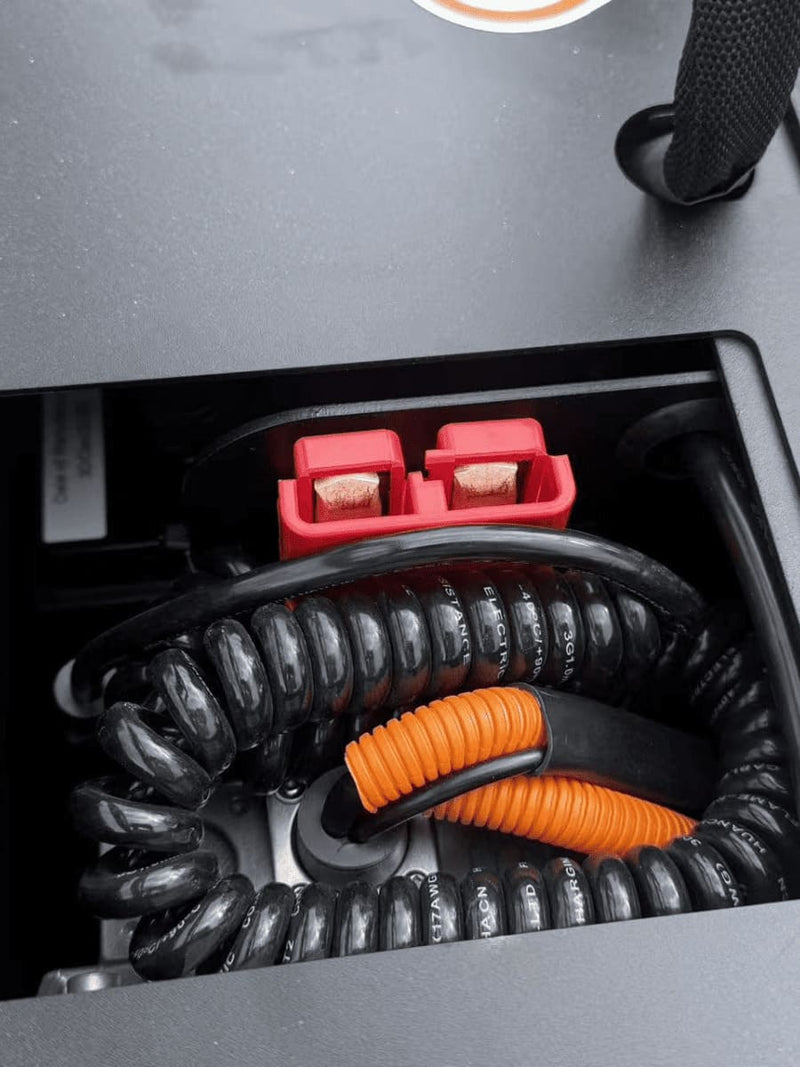

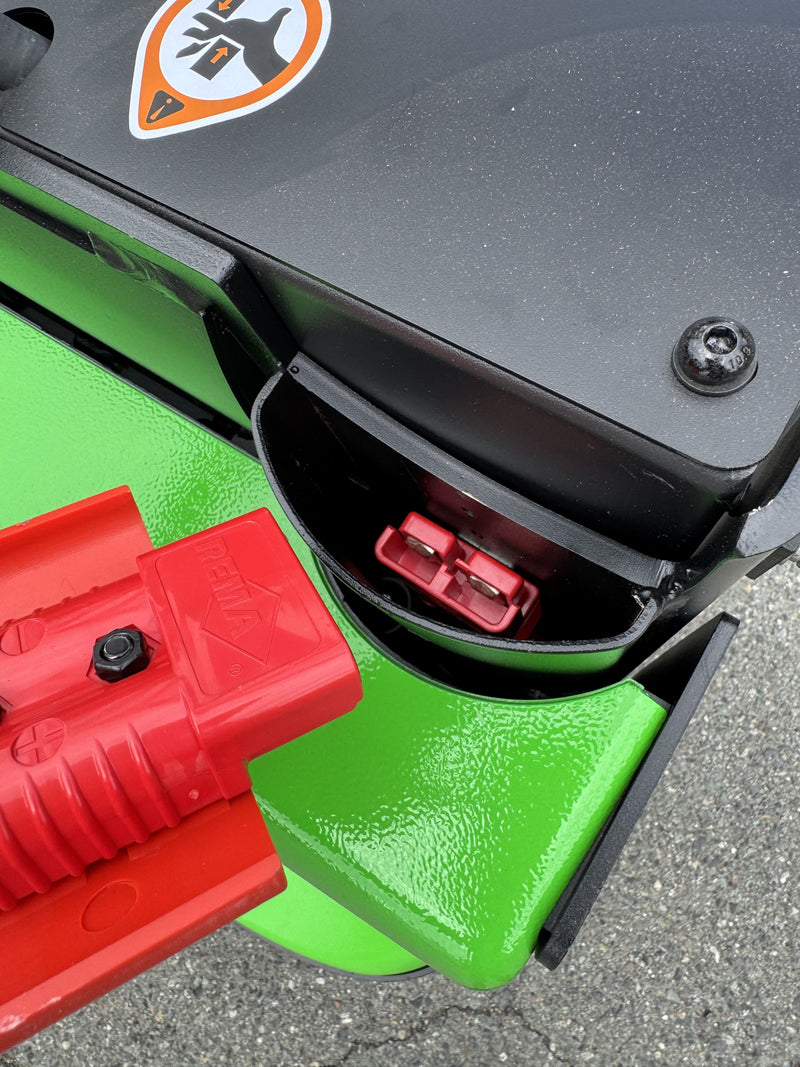

4. Battery, weight and shifts. This truck runs on a 24V lead-acid battery. The nameplate weight range for the pack is 147 to 216 kg (324 to 476 lb), so the truck lands at 1,146 lb with the battery in. Tell us how many hours a day it runs and how you plan to charge it, and we will confirm the battery setup before you order.

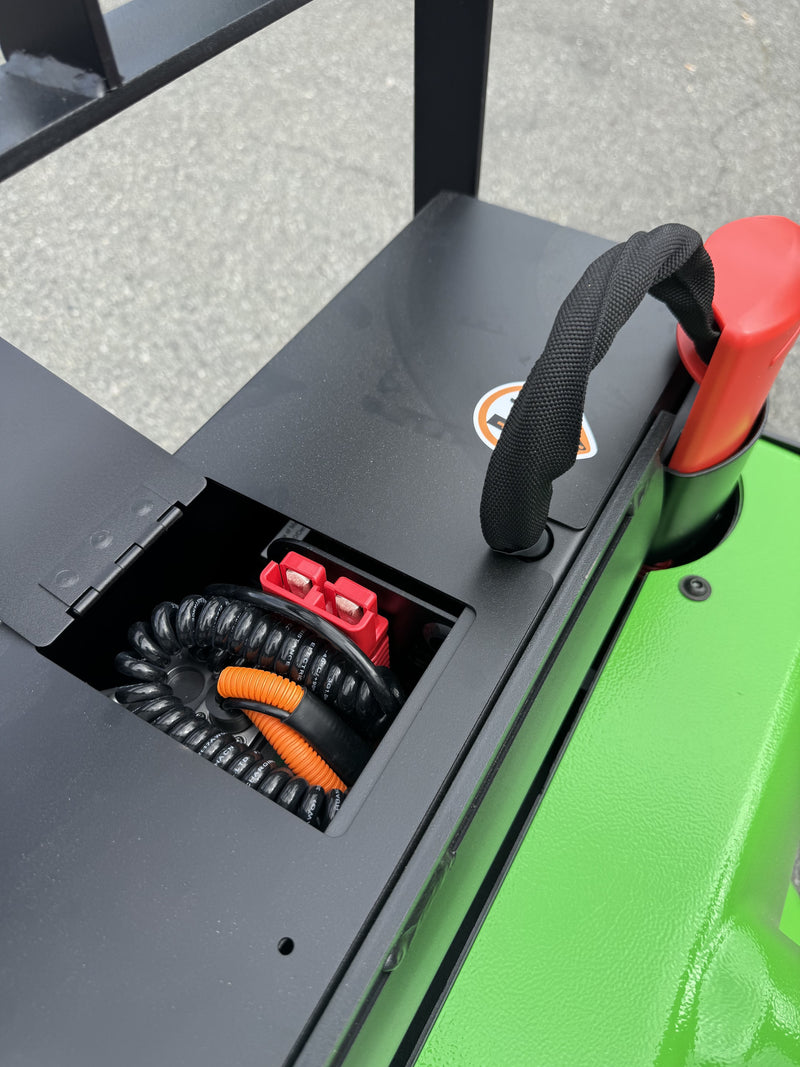

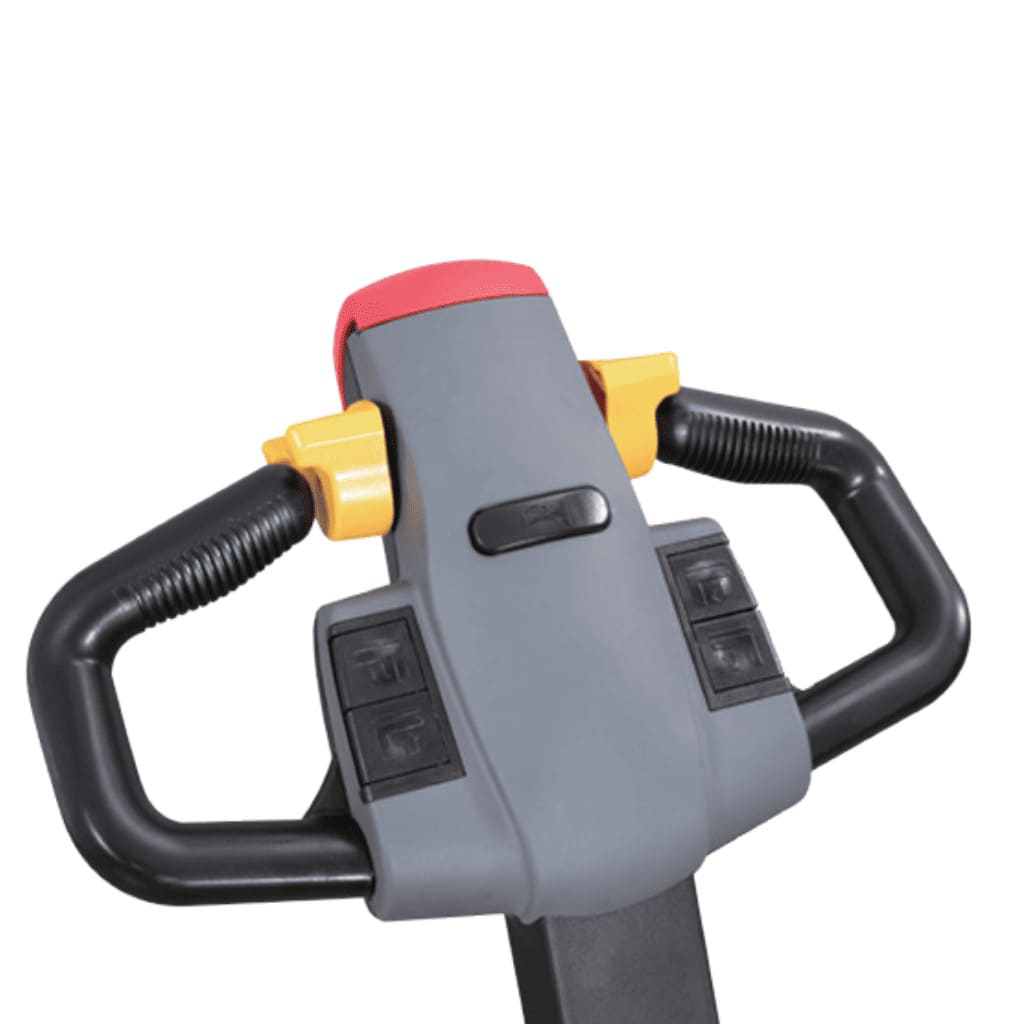

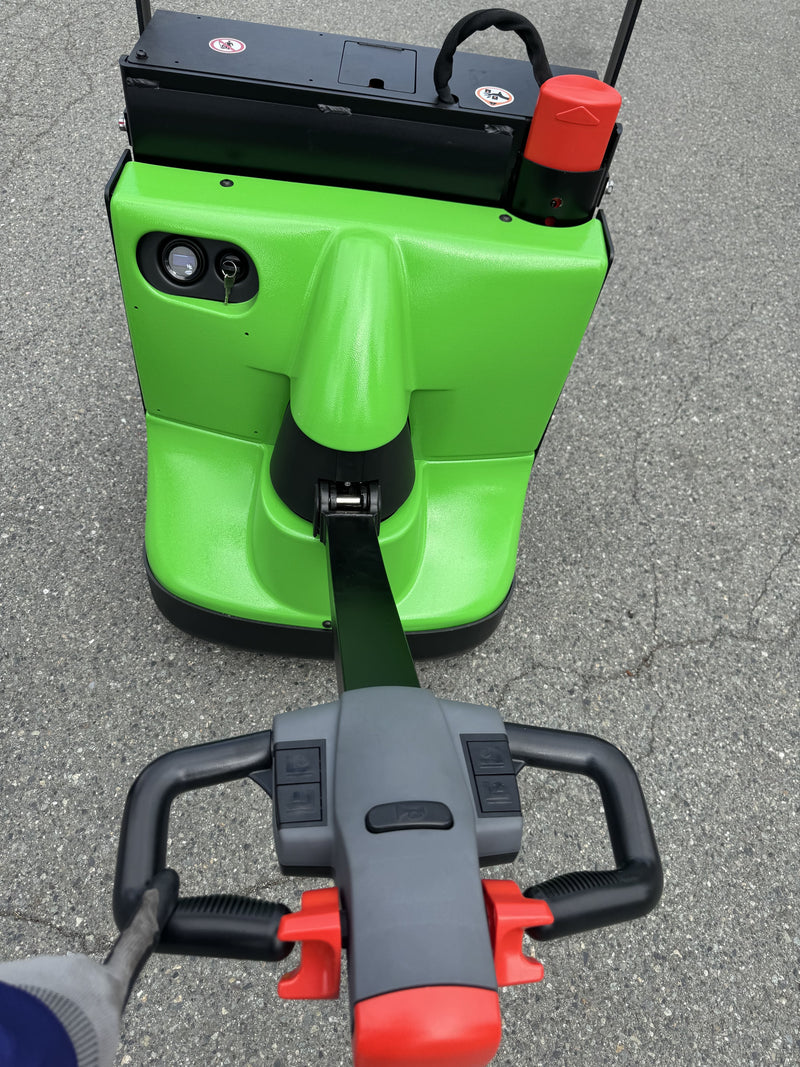

A 1.6 kW vertical AC traction motor drives the truck, and the reinforced hydraulic unit is made for repeated lifts under heavy loads. Safety features include an anti-rollback brake, an emergency disconnect, automatic speed reduction when the tiller is upright, and belly button protection at the handle. The long tiller keeps the operator clear of the load on tight turns.
If your pallets stay under 4,400 lb, a lighter-rated truck costs less and is easier to move around. See the electric pallet jack collection to compare, or send us your heaviest pallet weight and your aisle width and we will tell you which model fits.
Orders ship within 2 business days by freight truck, anywhere in Canada. Delivery after dispatch depends on your province and the carrier schedule, so ask for a transit estimate to your postal code before ordering.
Read the shipping policyFree pickup from our Richmond, BC warehouses. Orders are normally ready within 24 hours. Wait for the ready-for-pickup email before you travel.
See local pickup details90 days on truck, 1 year on battery and charger

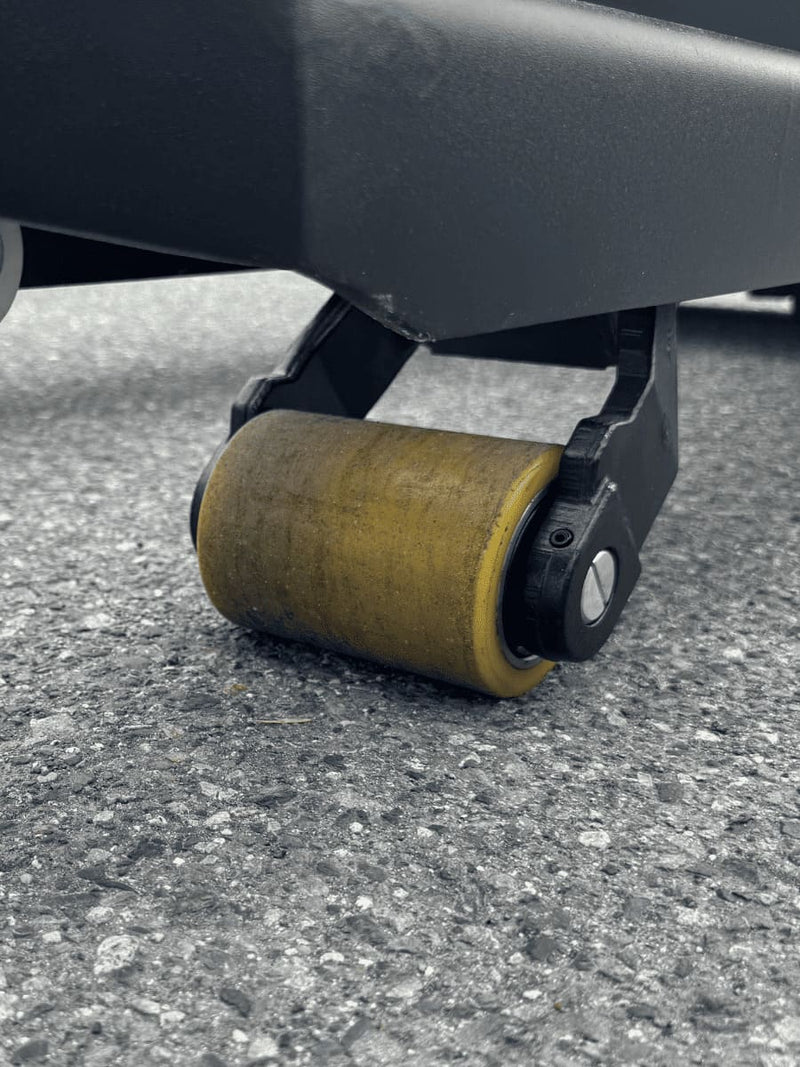

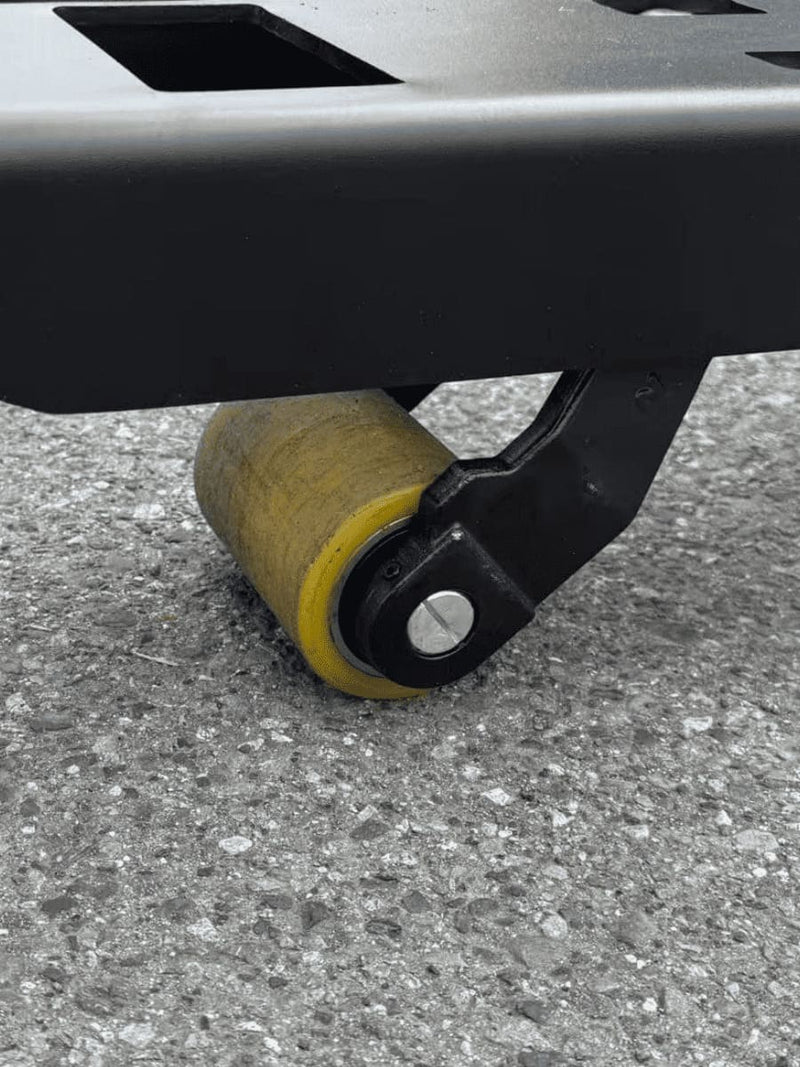

Read the warranty termsReplacement batteries, chargers and load wheels are stocked for this model. Tell us the model and we will confirm the exact part before you order it.
Browse replacement partsStart with the cost and capacity guides if you are still shopping. If a truck is already on your floor and something feels off, the troubleshooting post covers the usual causes. Still stuck after reading? Send us your aisle width and the weight you move, and we will tell you which model fits.
April 30, 2026
There's no single best electric pallet jack — only the one that matches your load, floor, and budget. Here's how Raelon's lineup...
Read the guideMarch 03, 2026
Step-by-step guide to using a manual or electric pallet jack safely, from pre-use checks and controls to turning, stopping and charging.
Read the guideApril 01, 2025
Manual or electric — and if electric, lithium-ion or lead-acid/AGM? Here's what each type actually is and where it fits.
Read the guideSeptember 28, 2026
Prices for Raelon's electric pallet jacks range from $1,859 to $6,900. Here's what actually drives that difference, model by model.
Read the guideSeptember 29, 2026
Most issues come down to three things: charging, speed settings, and battery level. Here's how to tell which one you're dealing with,...
Read the guideJune 02, 2026
Five signs your team has outgrown a manual pallet jack, and the checks to run before you buy an electric one.
Read the guideIt is rated 2,500 kg (5,500 lb) at a 23.6 in load centre. The forks rise 4.7 in (120 mm), enough to clear the floor and move a pallet, not to stack one. If you need to place loads on racking, you need a stacker.
It sits at the handle end of the forks and stops a tall or loose load from sliding back toward the operator. It stands 52 in tall and does not change the 5,500 lb rating, so weigh your heaviest pallet before ordering.
Yes, with one thing to know. The forks are 48 in long with about 14 in of clear space between them. Entered from the 48 in side they run about the full pallet depth, and from the 40 in side about 8 in of fork tip comes out the far end, so check what is behind the pallet.
A 24V lead-acid battery. The truck weighs 1,146 lb (520 kg) with the battery in and 794 lb (360 kg) without, so the pack is between 324 and 476 lb (147 and 216 kg). Tell us your shift length and how you plan to charge it, and we will confirm the battery setup before you order.
Gradeability is 8% loaded and 16% unloaded, and the anti-rollback brake holds the truck on a slope. If your route includes a ramp or a dock plate, send us the grade and we will tell you whether it suits.
90 days on the truck, the battery and the charger together, on every pallet jack we sell. Orders ship within 2 business days by freight anywhere in Canada. Free pickup is available from Richmond, BC, where this truck is in stock, normally ready within 24 hours.
