Most small and mid-size warehouses end up with a walk-behind electric pallet jack, and for good reason: it is the smallest, simplest and cheapest way to stop pushing and pulling loaded pallets by hand. Stand-on and ride-on trucks do a different job. They cover long distances quickly, all shift. This guide shows how the four common types differ and how to tell which one your floor actually needs.
One note up front: Raelon sells walk-behind trucks only. We will say plainly where that is the right answer and where it is not. If a walk-behind is what you are after, you can browse our electric pallet jacks now and come back to the details later.

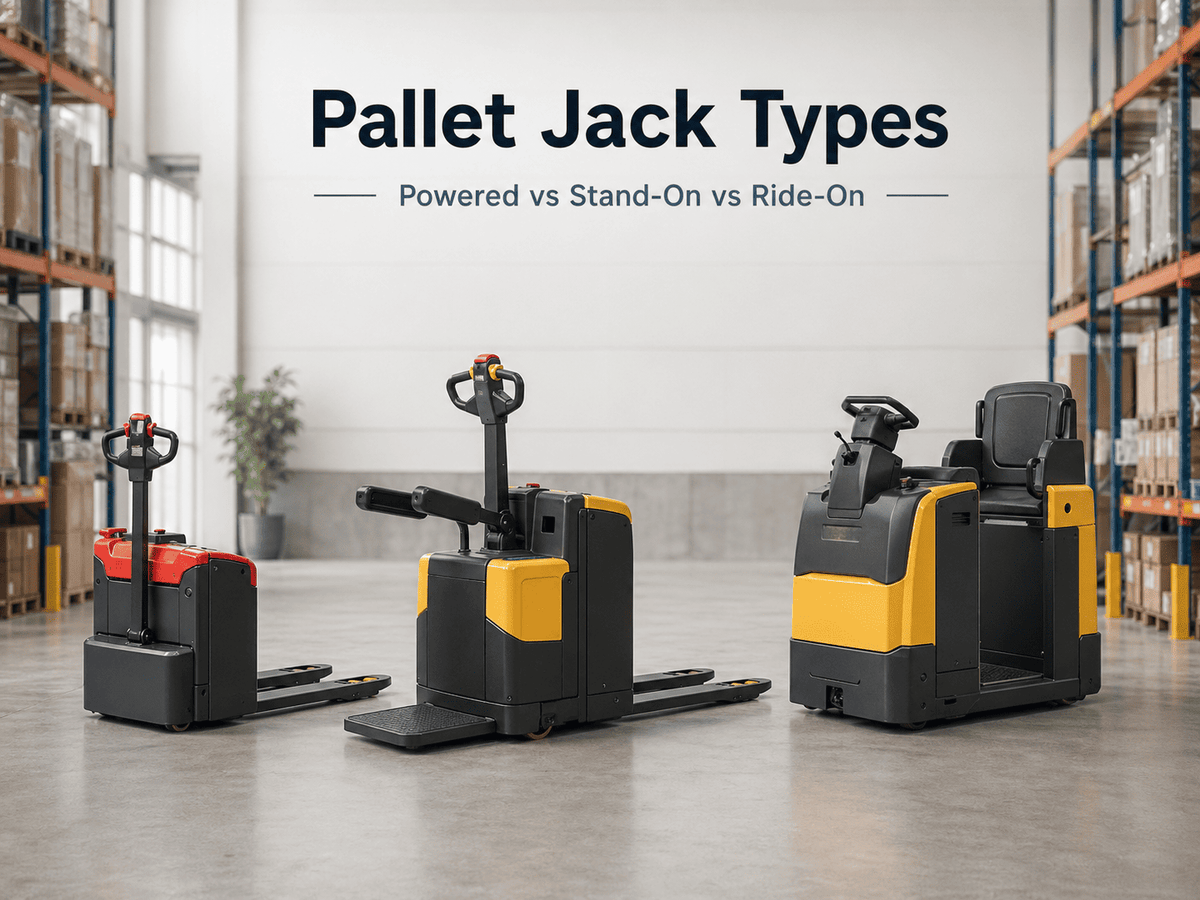

The four types at a glance
| Type | How the operator moves | Best suited to | Trade-off |
|---|---|---|---|
| Walk-behind (walkie) | Walks behind or beside the truck and steers with the handle | Stockrooms, retail backrooms, small and mid-size warehouses, dock and receiving work | The operator covers the distance on foot |
| Stand-on | Stands on a platform at the back of the truck | Medium to large warehouses with longer routes and frequent moves | Costs more and takes more room to turn |
| Ride-on | Rides on the truck for the whole trip | Distribution centres and long runs between dock and storage | Largest and most expensive; needs wider aisles and more operator training |
| Double (twin-pallet) | Rides on the truck, carrying two pallets per trip | High-volume shipping and cross-docking | Only pays off at high volume; needs open floor and experienced operators |
You will also see "end rider" and "rider pallet jack" used for the stand-on and ride-on class. They are trade names for trucks where the operator travels on a platform at the rear.
Where a walk-behind is the right call
A walk-behind is the practical choice when pallets move in short hops: receiving to storage, shelf to loading area, truck to stockroom. It turns in tight aisles, costs the least to buy, and is the simplest to maintain. It is also the natural upgrade for a business that has been working with manual jacks.
Raelon's lineup of lithium-ion walk-behind trucks starts with the F4 and CBD15W-II, both rated for 3,300 lb, and the F4-201 and CBD20W-II, both rated for 4,400 lb. Battery type is the other big decision on any of them, and our lithium vs AGM battery comparison covers it.
When to step up to stand-on or ride-on
Walking is fine until the route, not the load, becomes the bottleneck. If your operators spend more of the shift walking between pick points than moving pallets, a stand-on or ride-on truck saves real time. If pallets move in short hops, it does not.
Four questions settle most cases:
- How long is a typical run, in one direction?
- How many pallets does one operator move per shift?
- Are the aisles wide enough for a larger truck to turn without backing up?
- Will the operators need extra training on a platform truck?
Short runs, narrow aisles and moderate volume point to a walk-behind. Long runs, wide aisles and constant movement point to a stand-on or ride-on. A double truck only makes sense when a ride-on is already running flat out. For the wider picture, see our guide to choosing a pallet jack type.
Don't overbuy
Bigger is not better by default. A ride-on that is too large for the aisles ends up parked, and a stand-on bought for short runs sits idle most of the shift. Extra size also means extra purchase cost, more floor space and more to maintain. Match the truck to the daily workflow, not the biggest version of it.
Not sure a walk-behind will keep up with your floor?
Send us your typical travel distance, pallet weight and how many pallets move per shift. We will tell you whether a walk-behind is enough or whether you should look at a larger truck.
Common questions
What is the difference between a walk-behind and a ride-on electric pallet jack?
On a walk-behind, the operator walks and steers by hand. On a ride-on, the operator travels on the truck. The ride-on is faster over long distances and costs more, takes more room and needs more training.
Can you stand on a walk-behind pallet jack?
No. A walk-behind truck is not built to carry the operator. Stand-on and ride-on trucks have a platform and controls designed for that.
What is a double electric pallet jack?
A truck that carries two pallets at once. It suits high-volume shipping and cross-docking, where the saved trips justify the size and cost.
Which type suits a small warehouse or stockroom?
A walk-behind. Short routes, tight aisles and a modest pallet count are exactly what it handles best.
Ready to compare specific models? Start with our list of the best electric pallet jacks in Canada for 2026, or see the full walk-behind range.
